| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_160T01_9000001798_12190cztM0_level2.evt | modeM0/AS1A04_160T01_9000001798_12190cztM0_level2_quad_clean.evt |
| Size (bytes) | 572,247,360 | 126,964,800 |
| Size | 545.7 MB | 121.1 MB |
| Events in quadrant A | 4,412,208 | 852,537 |
| Events in quadrant B | 5,242,526 | 825,119 |
| Events in quadrant C | 3,288,064 | 861,972 |
| Events in quadrant D | 3,918,133 | 823,066 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17771 | 3 |
| B | 0 | 20183 | 2 |
| C | 0 | 14710 | 2 |
| D | 0 | 16377 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6919 | 292 | 4.220263% |
| B | 6919 | 691 | 9.986992% |
| C | 6919 | 41 | 0.592571% |
| D | 6919 | 115 | 1.662090% |

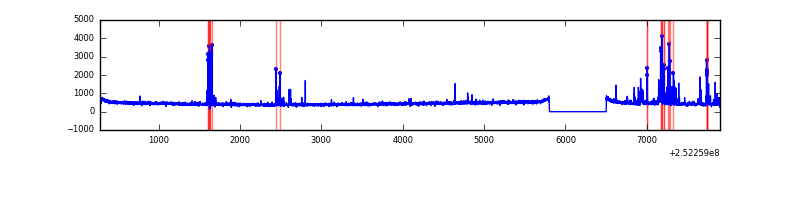

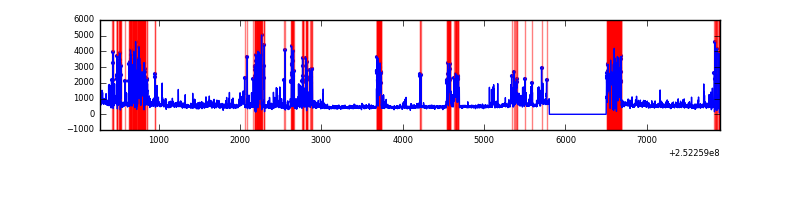

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7620 | 6921 | 153 | 153 | 2.01% | 2.21% |  |
| B | 7619 | 6920 | 416 | 416 | 5.46% | 6.01% |  |
| C | 7620 | 6921 | 26 | 26 | 0.34% | 0.38% |  |
| D | 7620 | 6921 | 84 | 84 | 1.10% | 1.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 667798 | 4090.75 | 797 | 780 | 163.1 |
| A | 1 | 162 | 231709 | 1416.26 | 797 | 780 | 163.1 |
| A | 1 | 178 | 123743 | 754.12 | 797 | 780 | 163.1 |
| B | 4 | 239 | 1662537 | 11585.9 | 766 | 748 | 143.4 |
| B | 15 | 204 | 267675 | 1861.0 | 766 | 748 | 143.4 |
| B | 11 | 51 | 114525 | 793.25 | 766 | 748 | 143.4 |
| C | 15 | 208 | 194489 | 1083.45 | 776 | 777 | 178.8 |
| C | 0 | 207 | 42794 | 235.01 | 776 | 777 | 178.8 |
| C | 4 | 175 | 17719 | 94.76 | 776 | 777 | 178.8 |
| D | 1 | 52 | 285631 | 1545.29 | 770 | 748 | 184.4 |
| D | 13 | 104 | 145974 | 787.75 | 770 | 748 | 184.4 |
| D | 10 | 199 | 145578 | 785.6 | 770 | 748 | 184.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

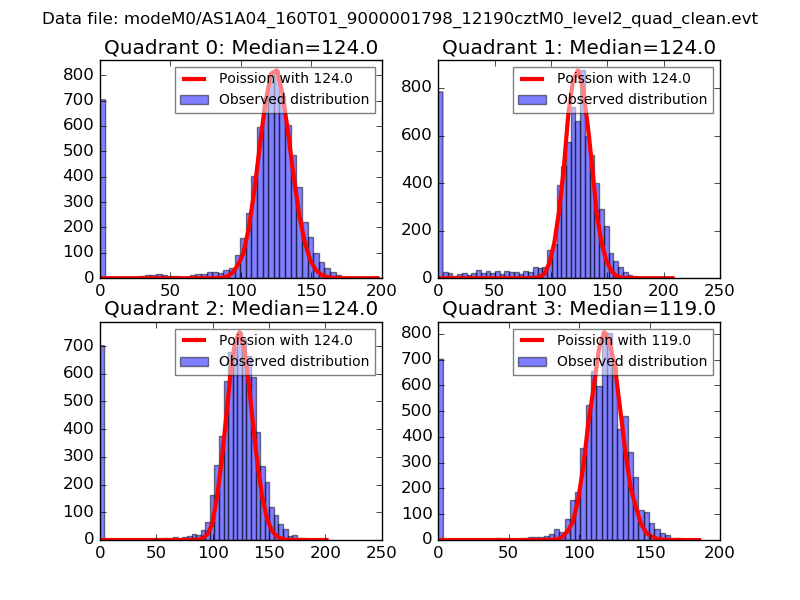

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

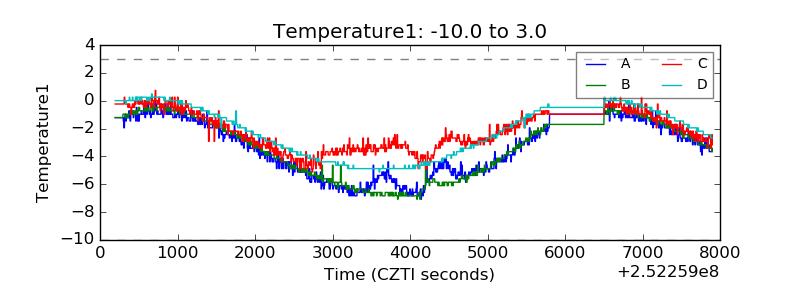

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

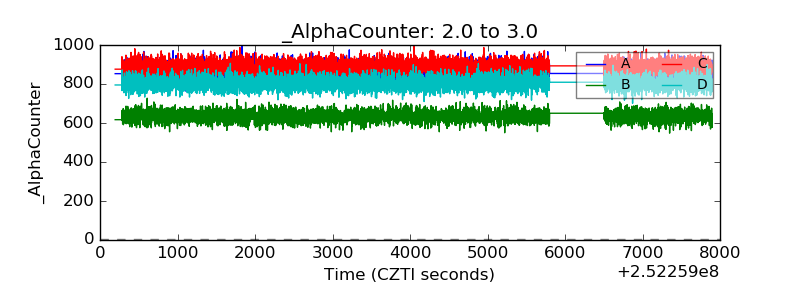

| Alpha Counter |  |

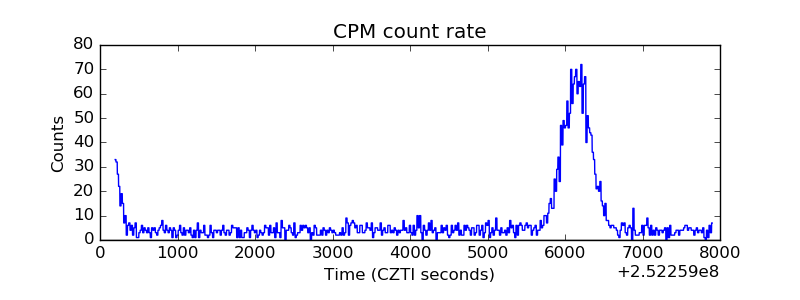

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

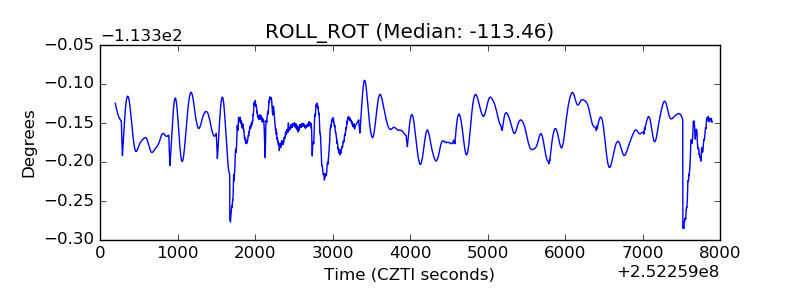

| _ROLL_ROT |  |
| _Roll_DEC |  |

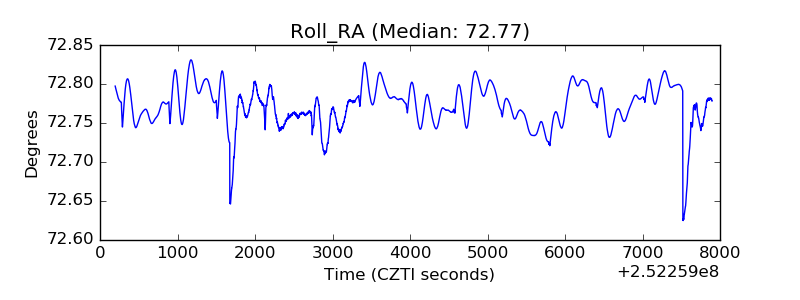

| _Roll_RA |  |
| Veto Counter |  |
