| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_010T03_9000001800_12192cztM0_level2.evt | modeM0/AS1G08_010T03_9000001800_12192cztM0_level2_quad_clean.evt |
| Size (bytes) | 440,674,560 | 58,360,320 |
| Size | 420.3 MB | 55.7 MB |
| Events in quadrant A | 2,769,178 | 365,378 |
| Events in quadrant B | 4,216,277 | 349,945 |
| Events in quadrant C | 2,367,173 | 365,257 |
| Events in quadrant D | 3,661,245 | 343,560 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11539 | 3 |
| B | 0 | 15889 | 2 |
| C | 0 | 10448 | 2 |
| D | 0 | 14268 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4875 | 135 | 2.769231% |
| B | 4875 | 896 | 18.379487% |
| C | 4875 | 45 | 0.923077% |
| D | 4875 | 259 | 5.312821% |

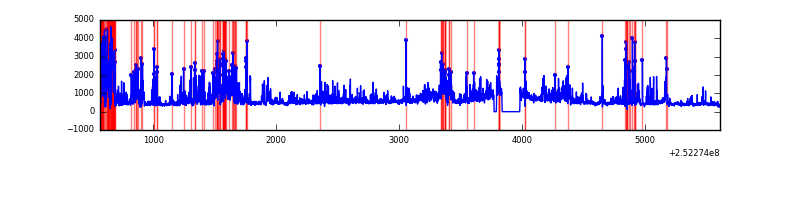

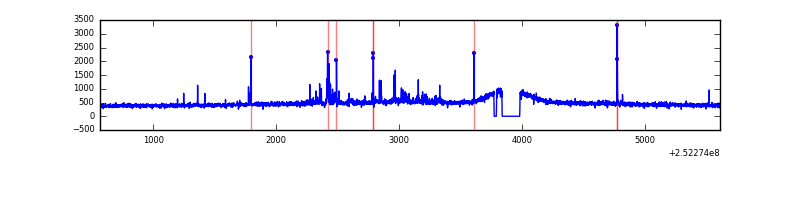

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5041 | 4878 | 14 | 14 | 0.28% | 0.29% |  |
| B | 5041 | 4878 | 537 | 537 | 10.65% | 11.01% |  |
| C | 5041 | 4878 | 8 | 8 | 0.16% | 0.16% |  |
| D | 5041 | 4878 | 165 | 165 | 3.27% | 3.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 123616 | 1000.75 | 595 | 580 | 122.9 |
| A | 1 | 162 | 118024 | 955.26 | 595 | 580 | 122.9 |
| A | 1 | 178 | 63555 | 512.22 | 595 | 580 | 122.9 |
| B | 4 | 239 | 1868672 | 17885.04 | 531 | 518 | 104.5 |
| B | 11 | 51 | 95849 | 912.67 | 531 | 518 | 104.5 |
| B | 15 | 204 | 87694 | 834.59 | 531 | 518 | 104.5 |
| C | 15 | 208 | 96063 | 712.76 | 576 | 579 | 134.0 |
| C | 12 | 4 | 10914 | 77.15 | 576 | 579 | 134.0 |
| C | 4 | 175 | 5917 | 39.85 | 576 | 579 | 134.0 |
| D | 1 | 52 | 868153 | 6283.58 | 566 | 549 | 138.1 |
| D | 14 | 34 | 345843 | 2500.77 | 566 | 549 | 138.1 |
| D | 10 | 199 | 76869 | 552.74 | 566 | 549 | 138.1 |

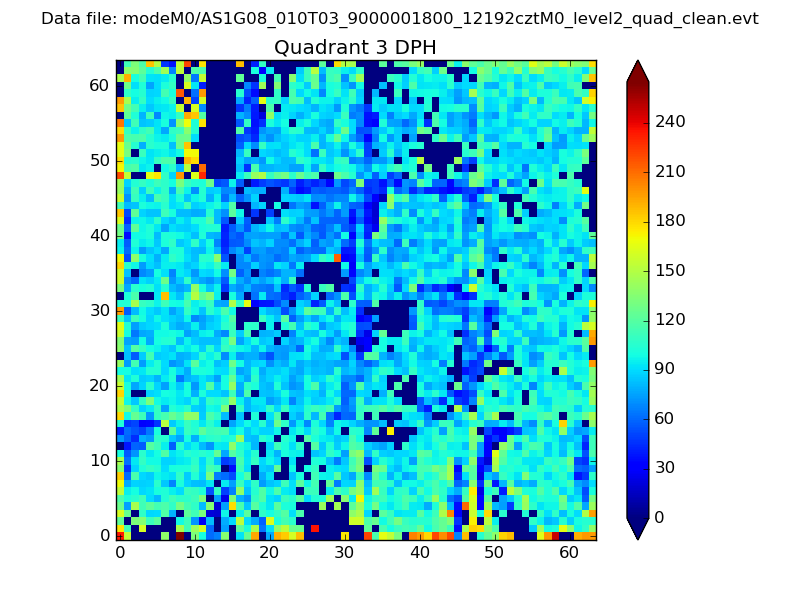

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

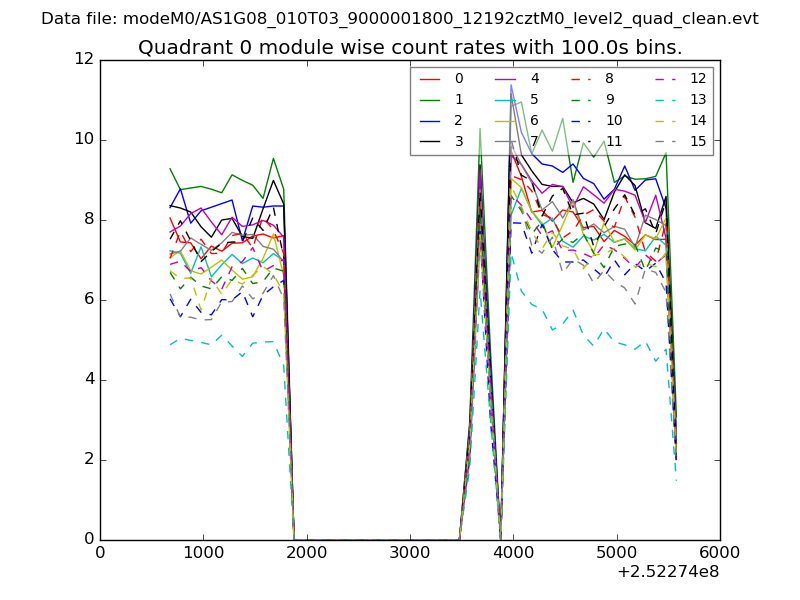

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

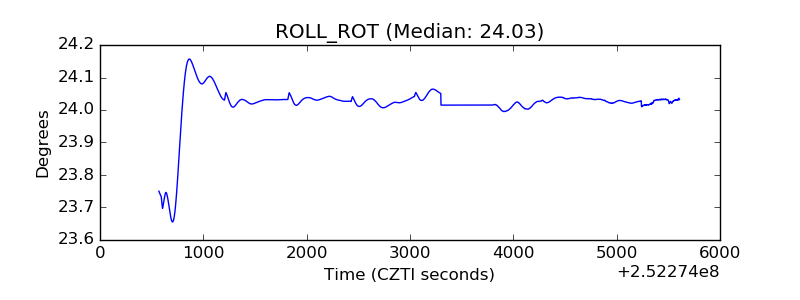

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
