| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_010T03_9000001800_12193cztM0_level2.evt | modeM0/AS1G08_010T03_9000001800_12193cztM0_level2_quad_clean.evt |
| Size (bytes) | 635,201,280 | 109,892,160 |
| Size | 605.8 MB | 104.8 MB |
| Events in quadrant A | 4,151,699 | 719,099 |
| Events in quadrant B | 5,703,071 | 685,796 |
| Events in quadrant C | 3,566,549 | 711,823 |
| Events in quadrant D | 5,290,151 | 671,543 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17744 | 4 |
| B | 0 | 22341 | 3 |
| C | 0 | 16209 | 3 |
| D | 0 | 21499 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7753 | 162 | 2.089514% |
| B | 7753 | 795 | 10.254095% |
| C | 7753 | 53 | 0.683606% |
| D | 7753 | 419 | 5.404360% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

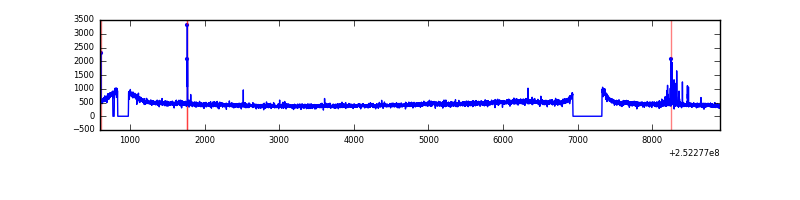

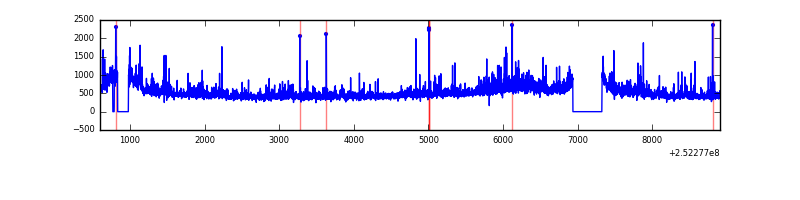

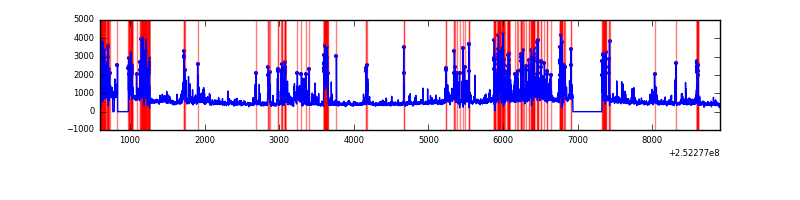

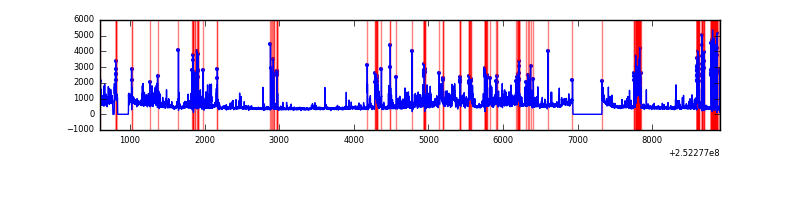

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8309 | 7757 | 8 | 8 | 0.10% | 0.10% |  |
| B | 8309 | 7757 | 355 | 355 | 4.27% | 4.58% |  |
| C | 8309 | 7757 | 4 | 4 | 0.05% | 0.05% |  |
| D | 8309 | 7757 | 260 | 260 | 3.13% | 3.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 196248 | 1044.08 | 914 | 895 | 187.1 |
| A | 1 | 178 | 105574 | 559.47 | 914 | 895 | 187.1 |
| A | 1 | 161 | 91871 | 486.23 | 914 | 895 | 187.1 |
| B | 4 | 239 | 1938095 | 11516.78 | 876 | 854 | 168.2 |
| B | 15 | 204 | 97937 | 577.15 | 876 | 854 | 168.2 |
| B | 11 | 51 | 83651 | 492.22 | 876 | 854 | 168.2 |
| C | 15 | 208 | 39985 | 188.29 | 895 | 897 | 207.6 |
| C | 12 | 4 | 12608 | 56.41 | 895 | 897 | 207.6 |
| C | 7 | 247 | 9469 | 41.29 | 895 | 897 | 207.6 |
| D | 1 | 52 | 717805 | 3406.85 | 870 | 845 | 210.4 |
| D | 10 | 157 | 496144 | 2353.56 | 870 | 845 | 210.4 |
| D | 13 | 104 | 215014 | 1017.69 | 870 | 845 | 210.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

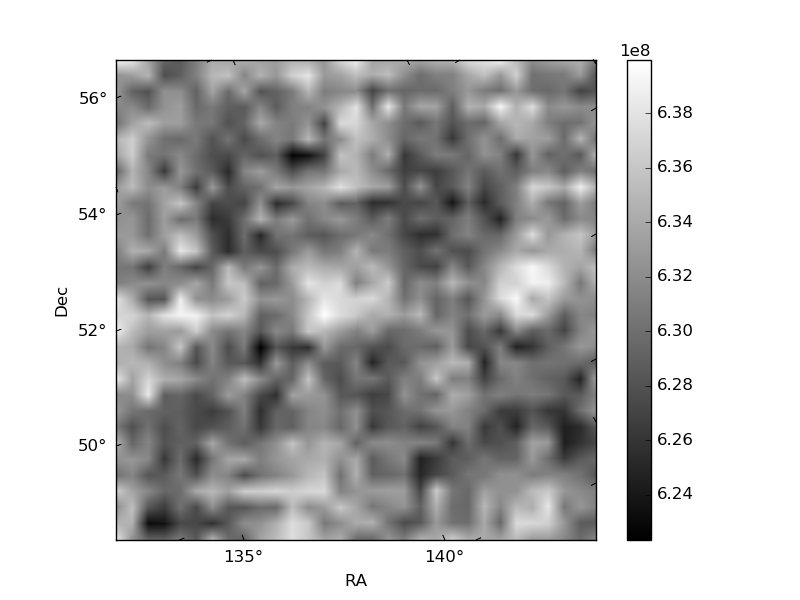

| Plot type | Count rate plots | Images |
|---|---|---|

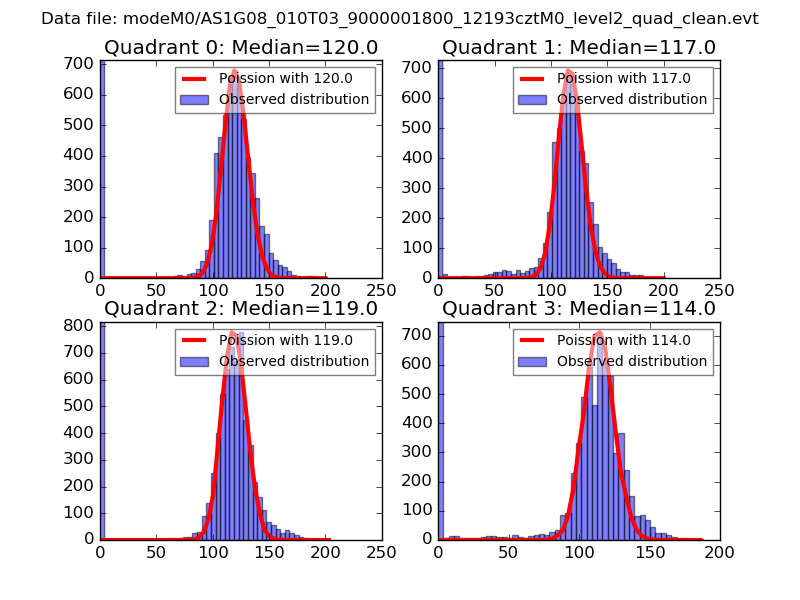

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

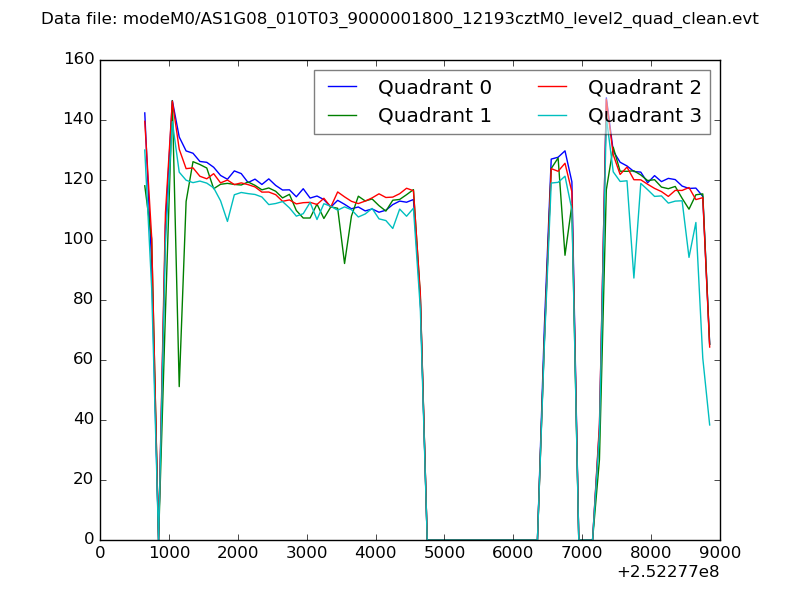

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

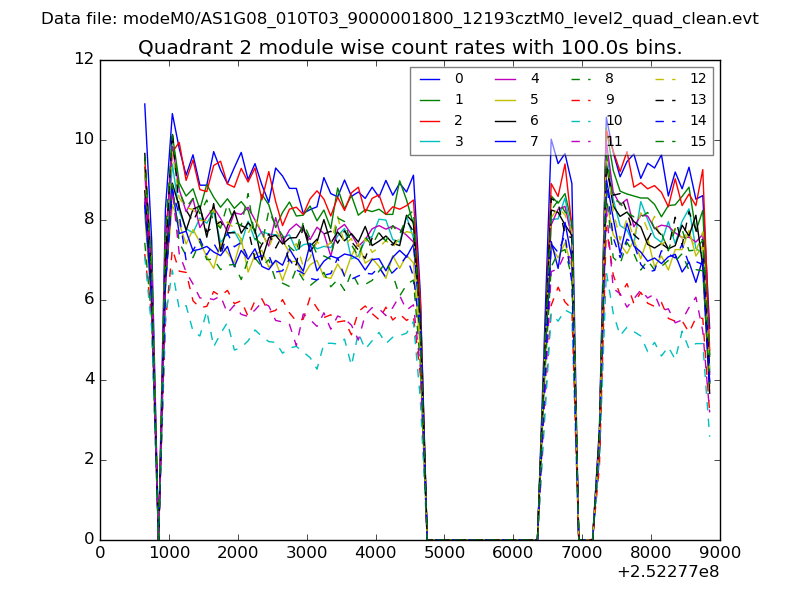

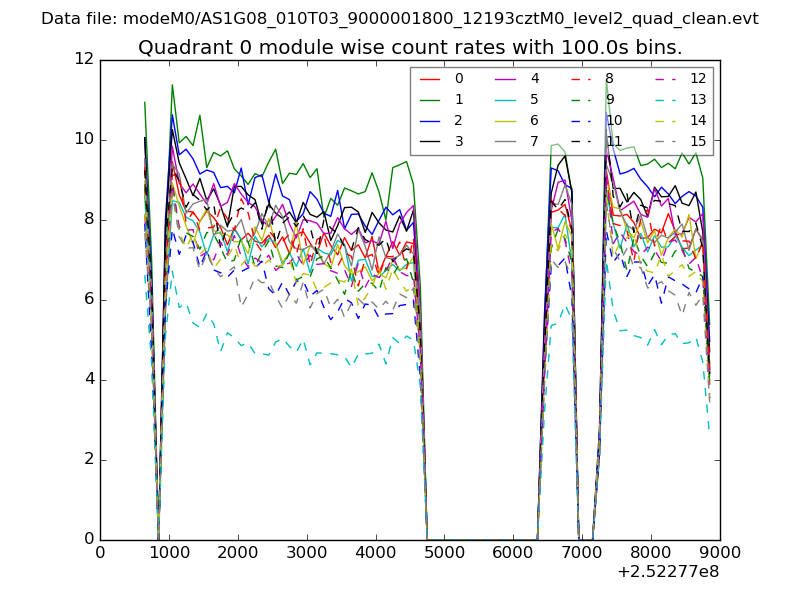

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

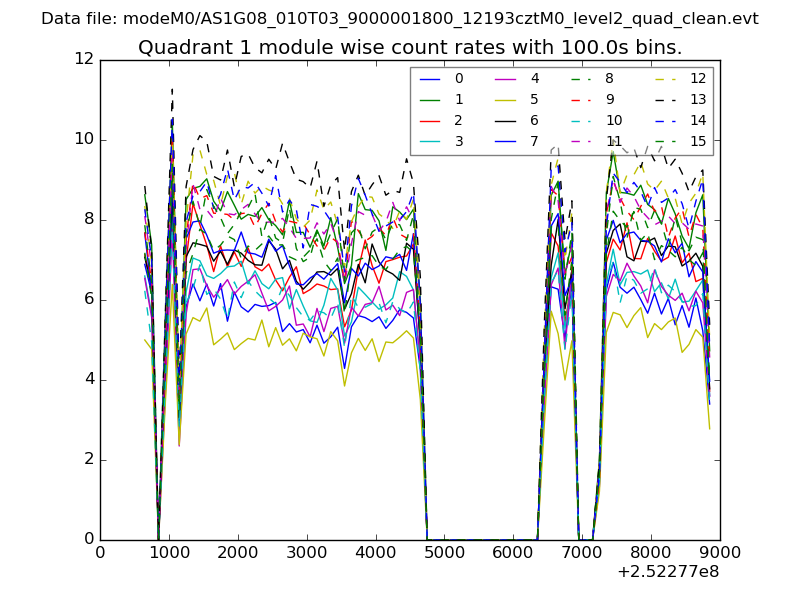

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

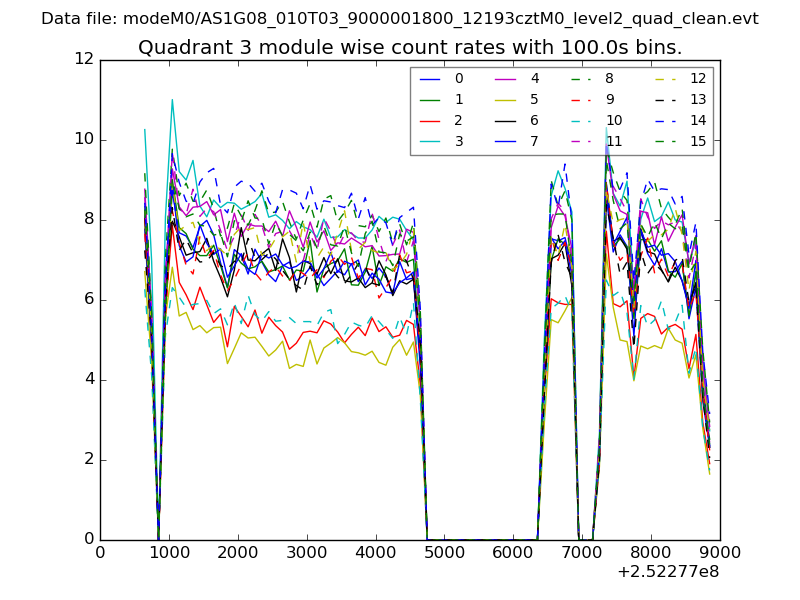

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

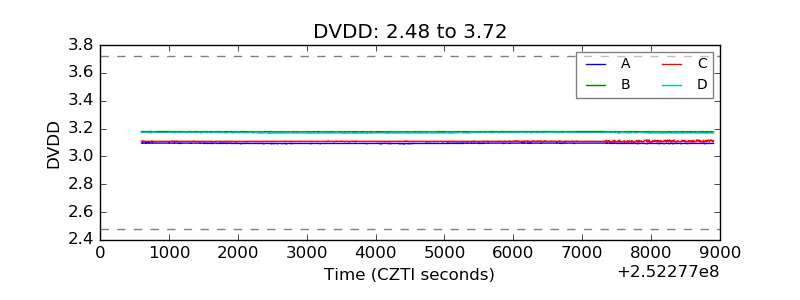

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

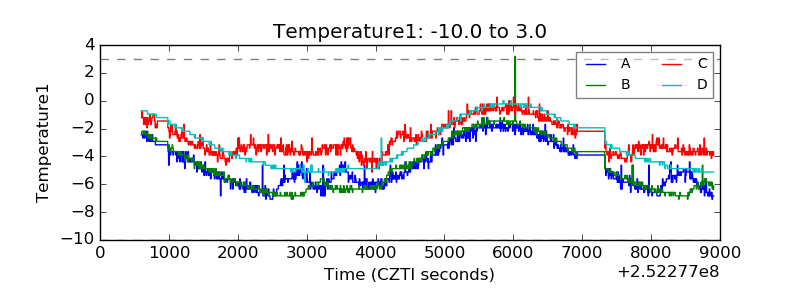

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

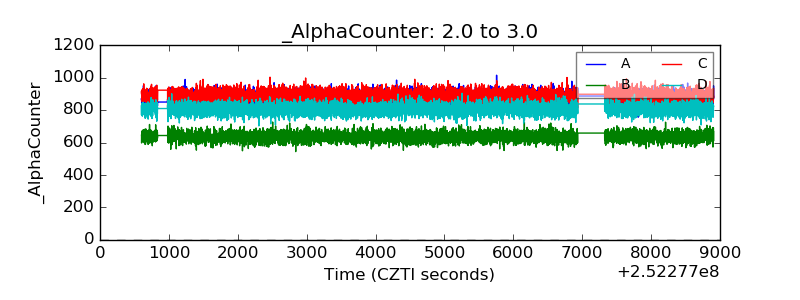

| Alpha Counter |  |

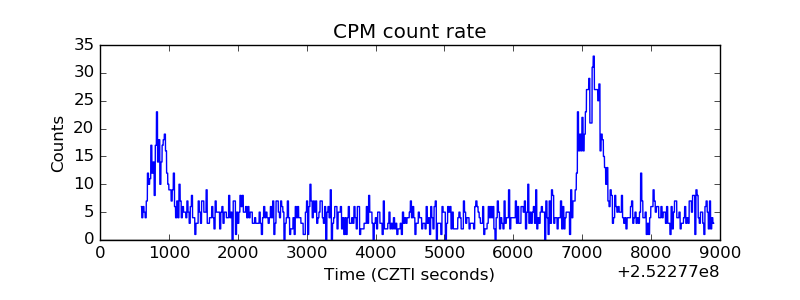

| _CPM_Rate |  |

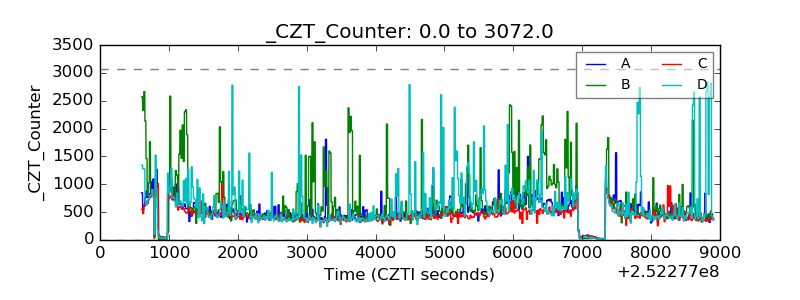

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

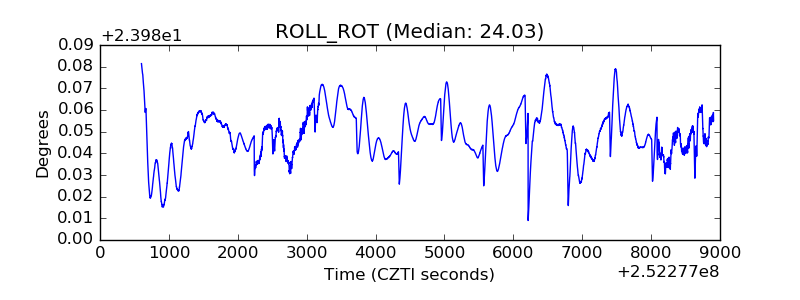

| _ROLL_ROT |  |

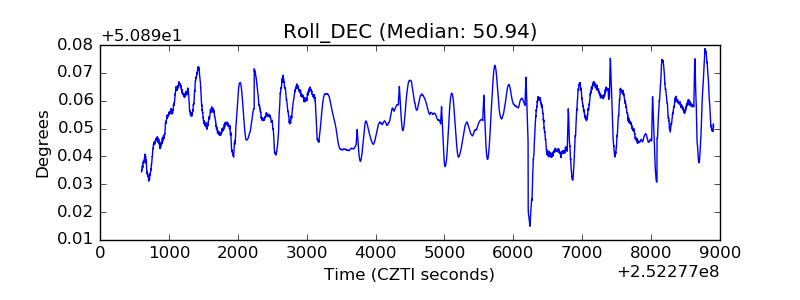

| _Roll_DEC |  |

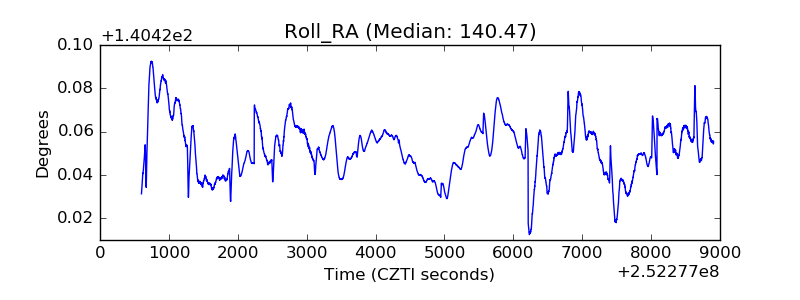

| _Roll_RA |  |

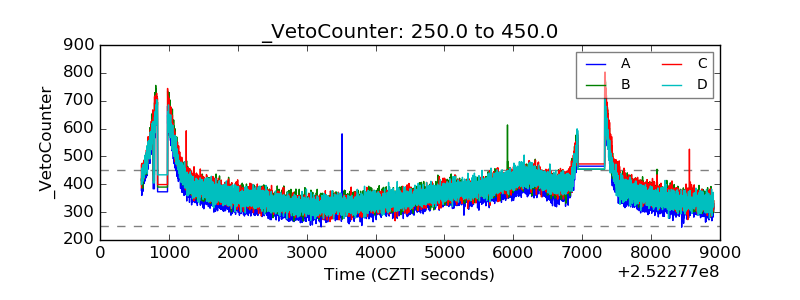

| Veto Counter |  |
