| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_066T01_9000001802_12200cztM0_level2.evt | modeM0/AS1A04_066T01_9000001802_12200cztM0_level2_quad_clean.evt |
| Size (bytes) | 114,520,320 | 32,564,160 |
| Size | 109.2 MB | 31.1 MB |
| Events in quadrant A | 854,875 | 225,427 |
| Events in quadrant B | 982,758 | 227,107 |
| Events in quadrant C | 745,528 | 222,626 |
| Events in quadrant D | 792,798 | 211,841 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3476 | 2 |
| B | 0 | 3855 | 1 |
| C | 0 | 3039 | 1 |
| D | 0 | 3200 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1319 | 20 | 1.516300% |
| B | 1319 | 76 | 5.761941% |
| C | 1319 | 4 | 0.303260% |
| D | 1319 | 5 | 0.379075% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1320 | 1320 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1320 | 1320 | 46 | 46 | 3.48% | 3.48% |  |
| C | 1320 | 1320 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1320 | 1320 | 2 | 2 | 0.15% | 0.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 32748 | 801.6 | 197 | 194 | 40.6 |
| A | 1 | 178 | 18773 | 457.48 | 197 | 194 | 40.6 |
| A | 1 | 161 | 16251 | 395.38 | 197 | 194 | 40.6 |
| B | 4 | 173 | 130355 | 3562.65 | 190 | 187 | 36.5 |
| B | 4 | 239 | 73500 | 2006.55 | 190 | 187 | 36.5 |
| B | 11 | 51 | 19825 | 537.48 | 190 | 187 | 36.5 |
| C | 13 | 61 | 1388 | 26.92 | 190 | 192 | 44.4 |
| C | 4 | 175 | 1123 | 20.96 | 190 | 192 | 44.4 |
| C | 14 | 234 | 849 | 14.79 | 190 | 192 | 44.4 |
| D | 12 | 221 | 33216 | 711.55 | 192 | 188 | 46.4 |
| D | 10 | 50 | 20897 | 446.15 | 192 | 188 | 46.4 |
| D | 13 | 172 | 3735 | 76.42 | 192 | 188 | 46.4 |

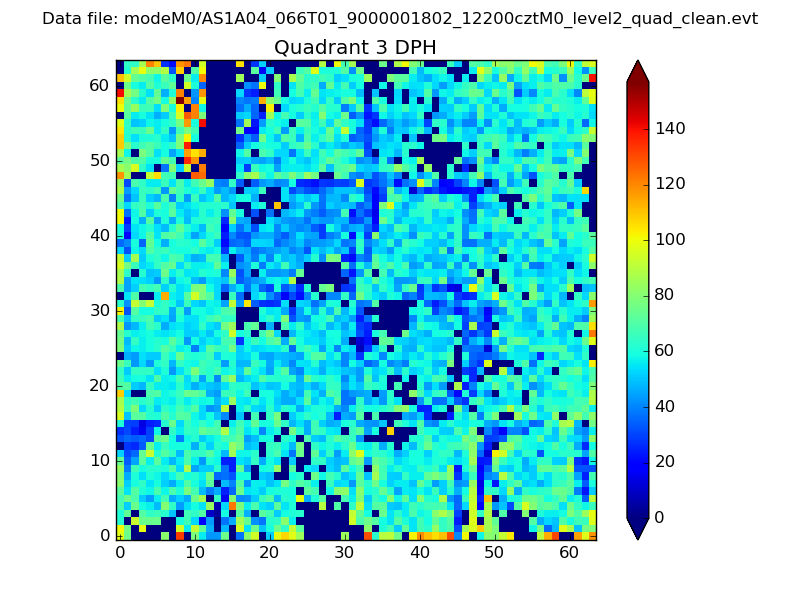

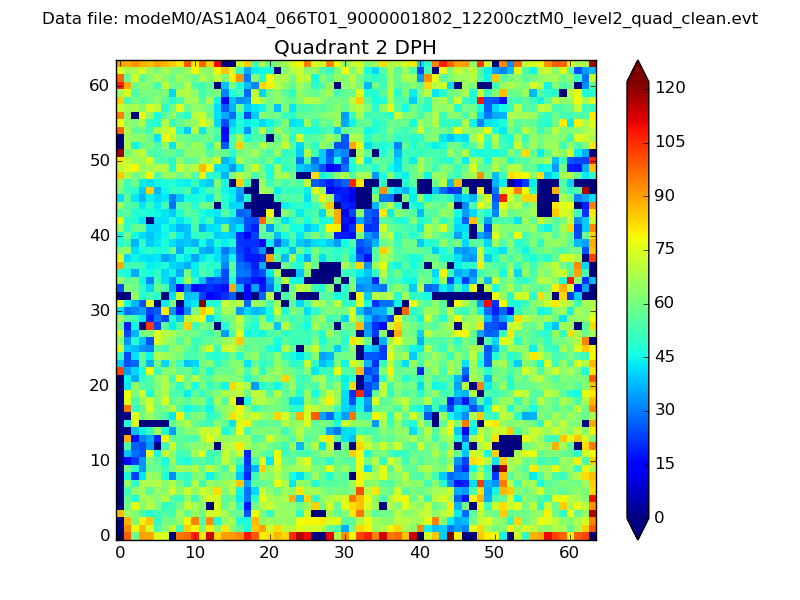

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

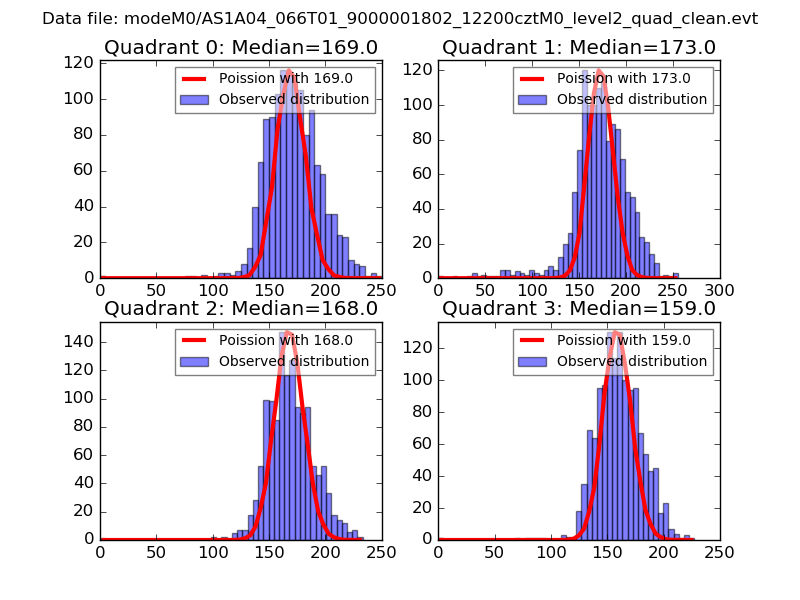

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

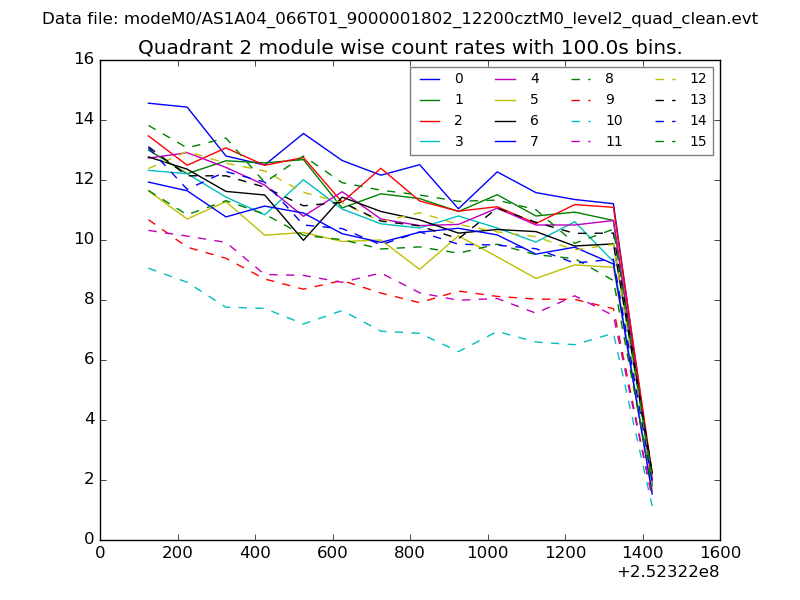

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

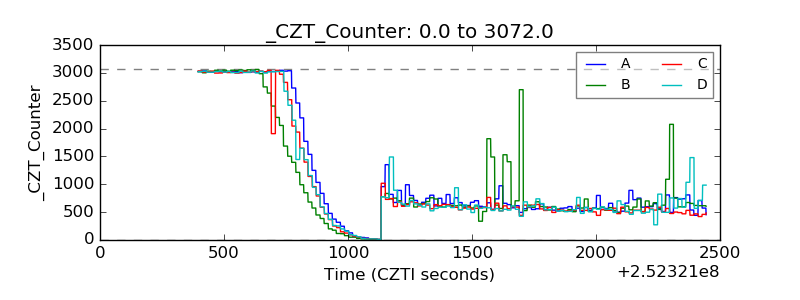

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

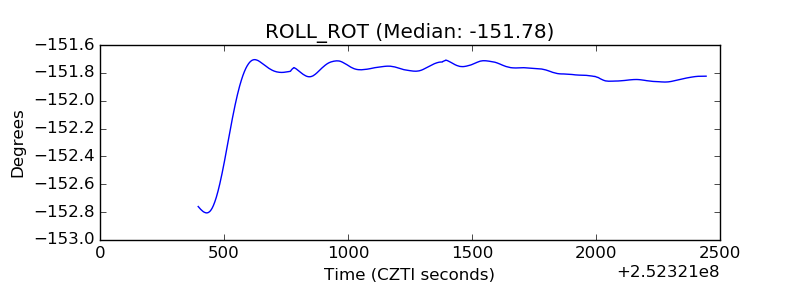

| _ROLL_ROT |  |

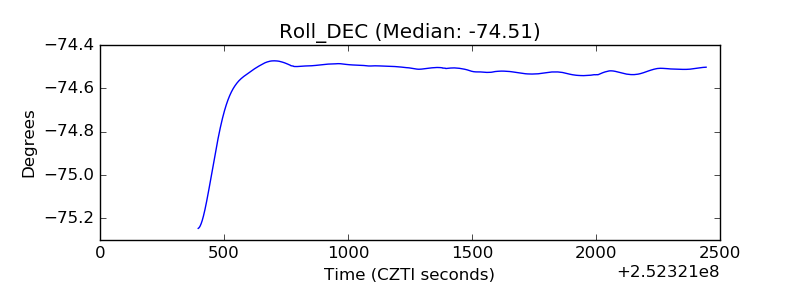

| _Roll_DEC |  |
| _Roll_RA |  |

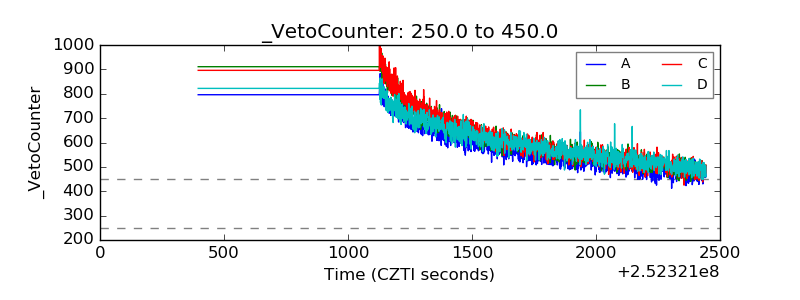

| Veto Counter |  |
