| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_066T01_9000001802_12205cztM0_level2.evt | modeM0/AS1A04_066T01_9000001802_12205cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,461,760 | 121,576,320 |
| Size | 492.5 MB | 115.9 MB |
| Events in quadrant A | 3,703,084 | 822,258 |
| Events in quadrant B | 4,512,919 | 798,114 |
| Events in quadrant C | 2,967,569 | 815,439 |
| Events in quadrant D | 4,000,663 | 777,162 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15566 | 2 |
| B | 0 | 17789 | 1 |
| C | 0 | 13794 | 1 |
| D | 0 | 16659 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6731 | 105 | 1.559947% |
| B | 6731 | 488 | 7.250037% |
| C | 6731 | 12 | 0.178280% |
| D | 6731 | 195 | 2.897044% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

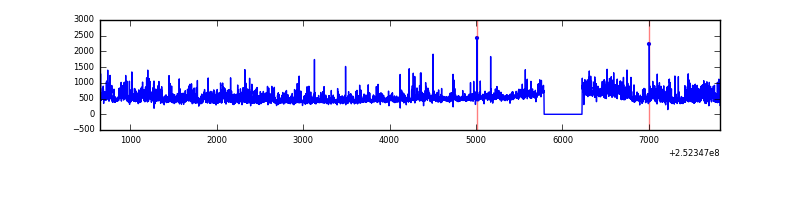

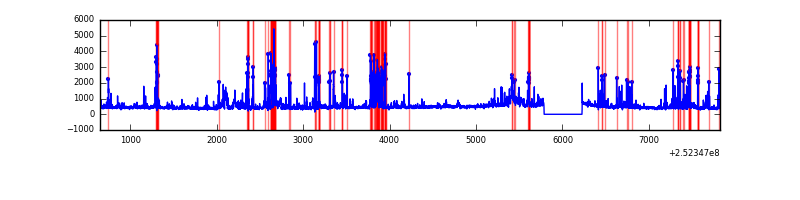

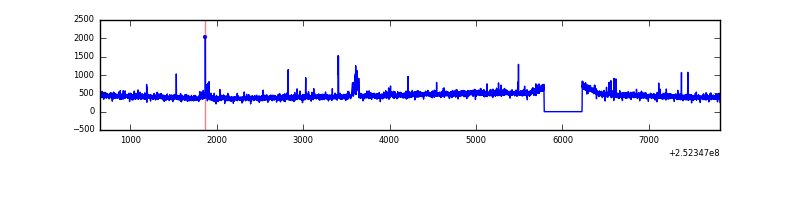

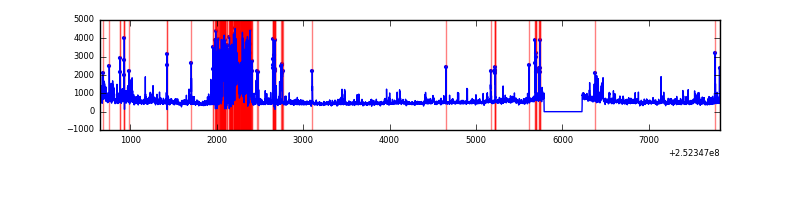

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7172 | 6733 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7172 | 6733 | 252 | 252 | 3.51% | 3.74% |  |
| C | 7172 | 6733 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7172 | 6733 | 159 | 159 | 2.22% | 2.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 216693 | 1385.4 | 767 | 750 | 155.9 |
| A | 8 | 15 | 149010 | 951.17 | 767 | 750 | 155.9 |
| A | 1 | 178 | 123260 | 785.97 | 767 | 750 | 155.9 |
| B | 4 | 239 | 1077172 | 7616.85 | 747 | 729 | 141.3 |
| B | 15 | 204 | 221576 | 1562.7 | 747 | 729 | 141.3 |
| B | 10 | 16 | 70148 | 491.2 | 747 | 729 | 141.3 |
| C | 5 | 112 | 52836 | 306.59 | 738 | 741 | 169.9 |
| C | 4 | 175 | 15888 | 89.14 | 738 | 741 | 169.9 |
| C | 0 | 207 | 9902 | 53.91 | 738 | 741 | 169.9 |
| D | 1 | 52 | 321237 | 1802.43 | 732 | 710 | 177.8 |
| D | 13 | 104 | 214074 | 1199.82 | 732 | 710 | 177.8 |
| D | 12 | 221 | 190098 | 1064.99 | 732 | 710 | 177.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

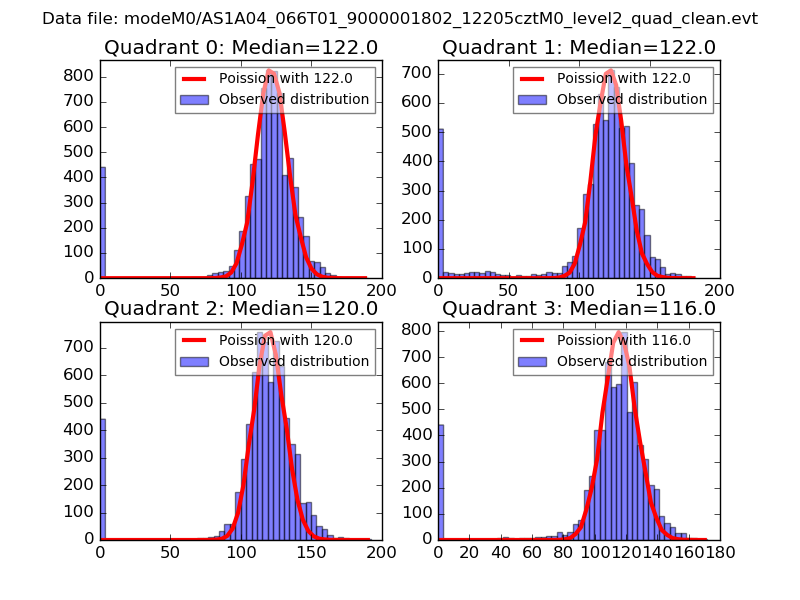

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

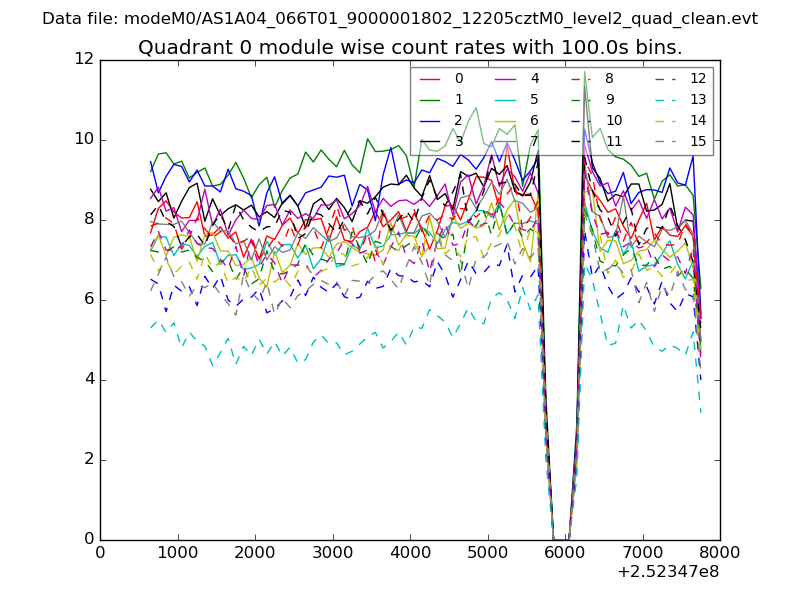

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

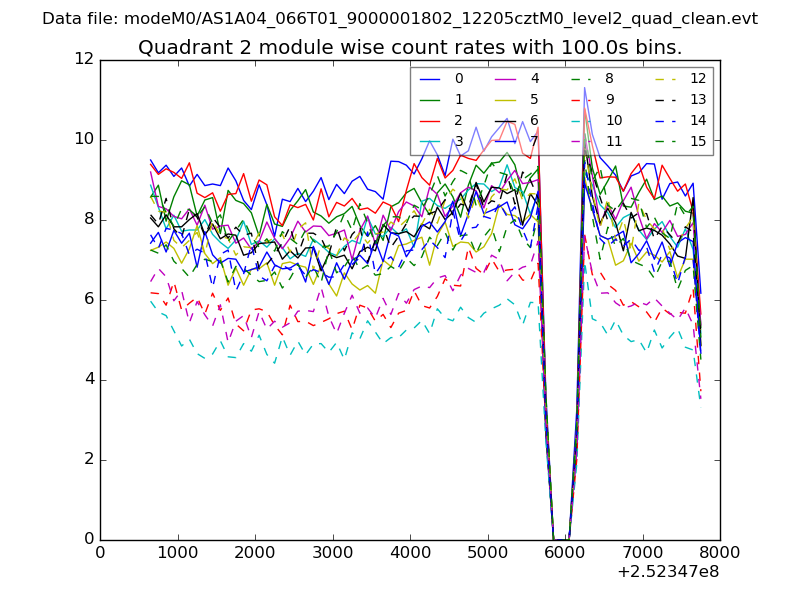

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

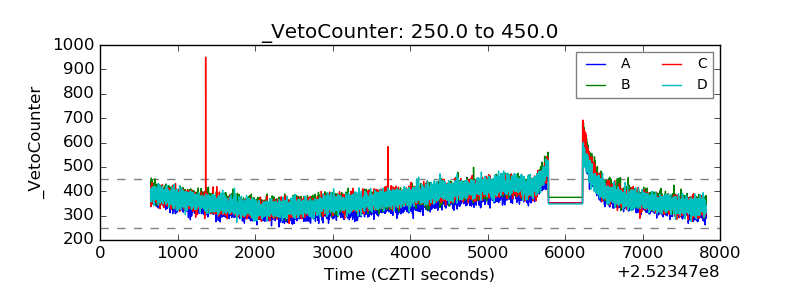

| Veto Counter |  |
