| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_066T01_9000001802_12207cztM0_level2.evt | modeM0/AS1A04_066T01_9000001802_12207cztM0_level2_quad_clean.evt |
| Size (bytes) | 708,799,680 | 137,151,360 |
| Size | 676.0 MB | 130.8 MB |
| Events in quadrant A | 6,318,125 | 918,197 |
| Events in quadrant B | 6,847,020 | 859,082 |
| Events in quadrant C | 3,479,982 | 933,193 |
| Events in quadrant D | 4,288,603 | 896,046 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24272 | 3 |
| B | 0 | 25694 | 2 |
| C | 0 | 16185 | 2 |
| D | 0 | 18372 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7861 | 552 | 7.022007% |
| B | 7861 | 1283 | 16.321079% |
| C | 7861 | 50 | 0.636051% |
| D | 7861 | 149 | 1.895433% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8297 | 7865 | 130 | 130 | 1.57% | 1.65% |  |
| B | 8297 | 7865 | 575 | 575 | 6.93% | 7.31% |  |
| C | 8297 | 7865 | 5 | 5 | 0.06% | 0.06% |  |
| D | 8297 | 7865 | 83 | 83 | 1.00% | 1.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 1854941 | 10278.94 | 889 | 868 | 180.4 |
| A | 1 | 162 | 257009 | 1420.04 | 889 | 868 | 180.4 |
| A | 9 | 143 | 230271 | 1271.8 | 889 | 868 | 180.4 |
| B | 4 | 239 | 2603324 | 16381.24 | 838 | 816 | 158.9 |
| B | 15 | 204 | 597526 | 3755.94 | 838 | 816 | 158.9 |
| B | 11 | 51 | 103222 | 644.58 | 838 | 816 | 158.9 |
| C | 0 | 207 | 25740 | 123.15 | 873 | 875 | 201.9 |
| C | 5 | 112 | 15599 | 72.92 | 873 | 875 | 201.9 |
| C | 4 | 175 | 12418 | 57.17 | 873 | 875 | 201.9 |
| D | 13 | 104 | 262342 | 1244.64 | 868 | 842 | 210.1 |
| D | 1 | 52 | 162545 | 769.65 | 868 | 842 | 210.1 |
| D | 10 | 199 | 117449 | 555.01 | 868 | 842 | 210.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

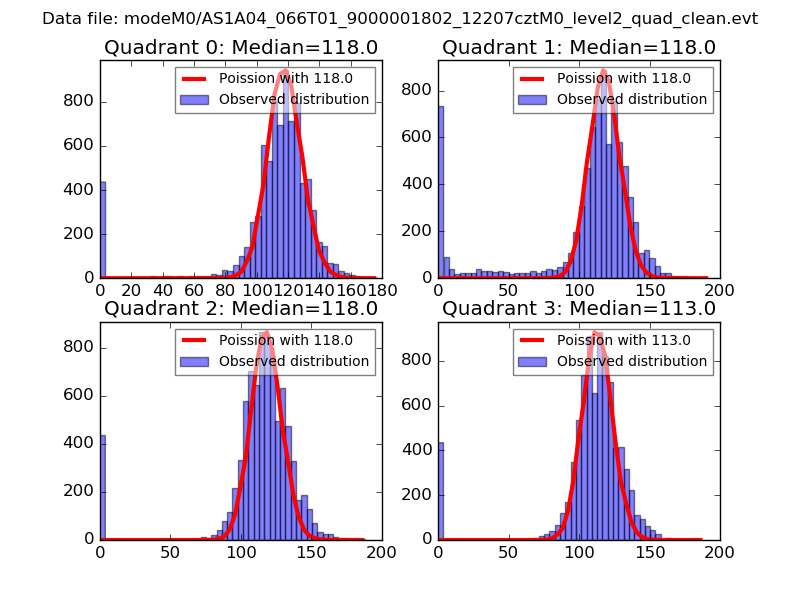

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

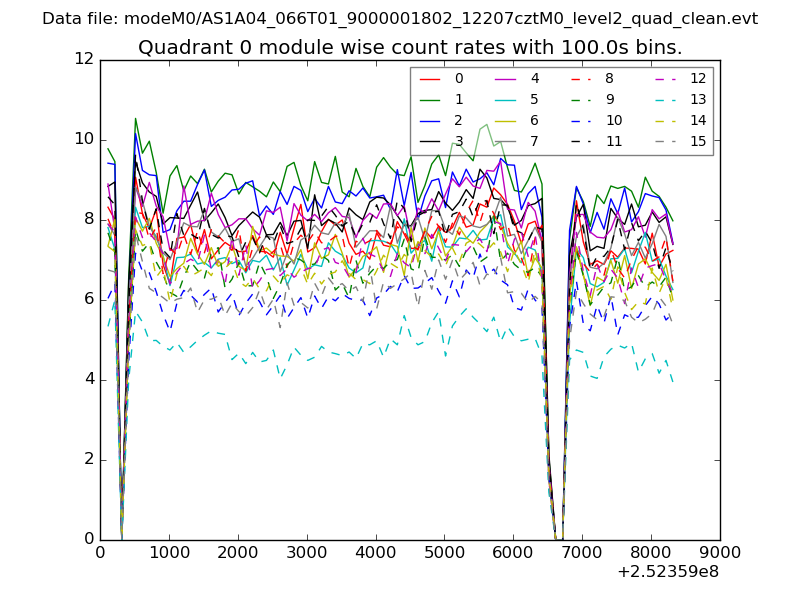

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

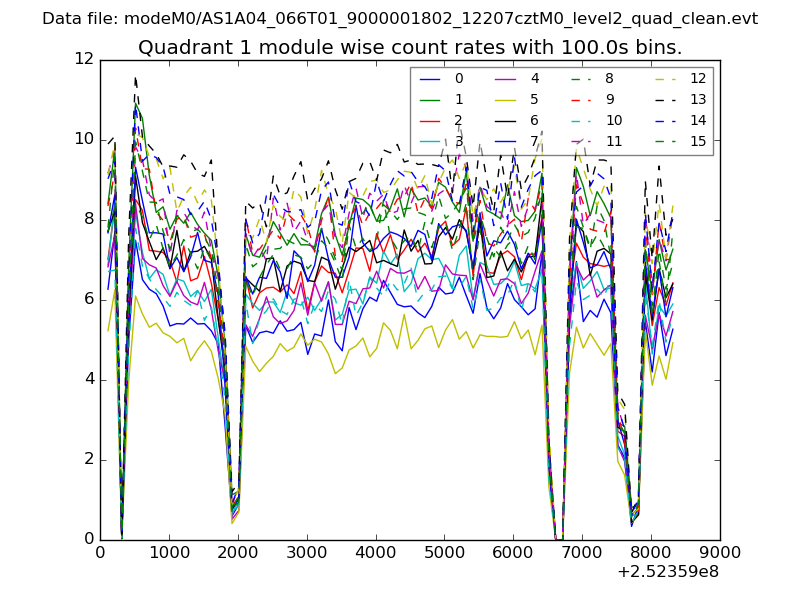

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

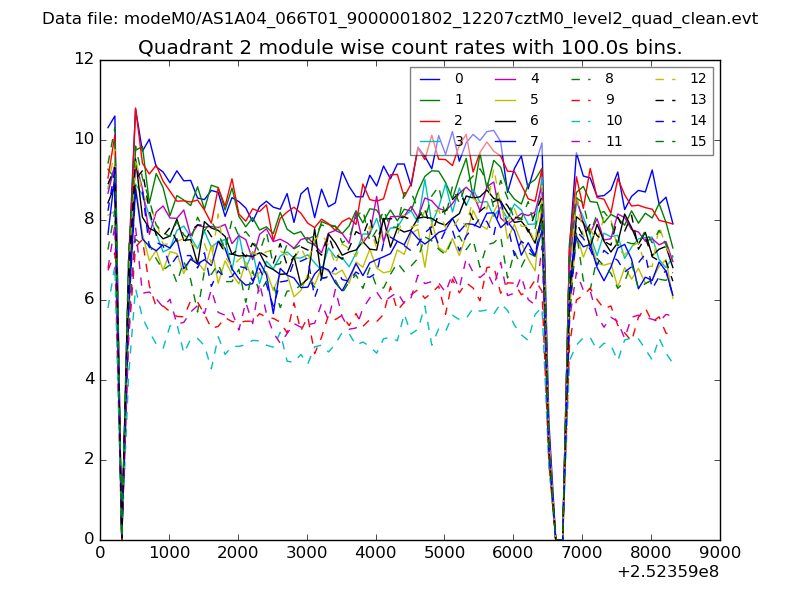

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

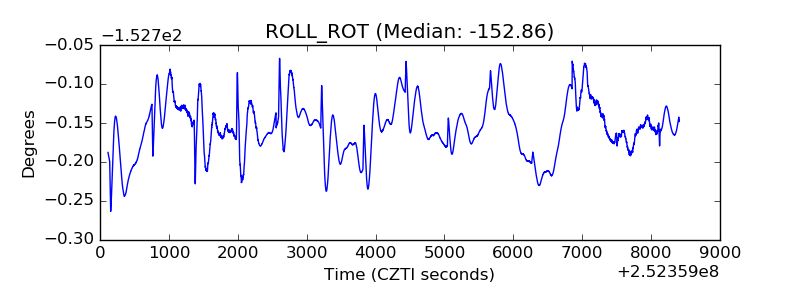

| _ROLL_ROT |  |

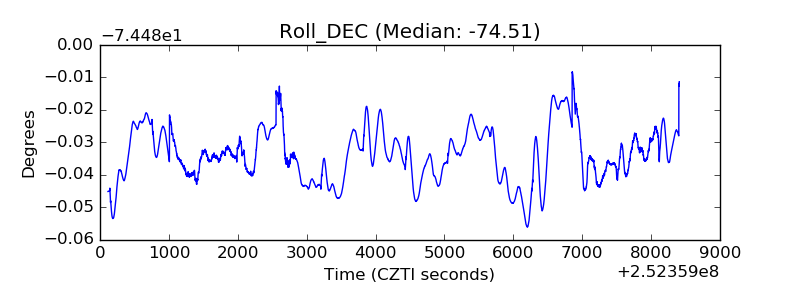

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
