| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_014T01_9000001804_12218cztM0_level2.evt | modeM0/AS1C03_014T01_9000001804_12218cztM0_level2_quad_clean.evt |
| Size (bytes) | 365,192,640 | 79,159,680 |
| Size | 348.3 MB | 75.5 MB |
| Events in quadrant A | 2,665,469 | 543,780 |
| Events in quadrant B | 3,516,969 | 509,617 |
| Events in quadrant C | 2,141,366 | 535,010 |
| Events in quadrant D | 2,451,356 | 513,926 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10757 | 2 |
| B | 0 | 13228 | 1 |
| C | 0 | 9262 | 1 |
| D | 0 | 10135 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4189 | 124 | 2.960134% |
| B | 4189 | 507 | 12.103127% |
| C | 4189 | 54 | 1.289090% |
| D | 4189 | 92 | 2.196228% |

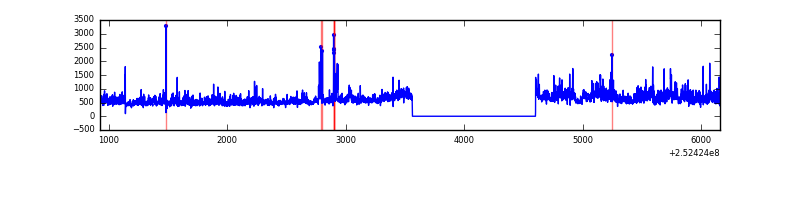

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5230 | 4191 | 8 | 8 | 0.15% | 0.19% |  |
| B | 5230 | 4191 | 282 | 282 | 5.39% | 6.73% |  |
| C | 5230 | 4191 | 30 | 30 | 0.57% | 0.72% |  |
| D | 5230 | 4191 | 31 | 31 | 0.59% | 0.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 162952 | 1589.69 | 498 | 488 | 102.2 |
| A | 1 | 162 | 143130 | 1395.74 | 498 | 488 | 102.2 |
| A | 13 | 251 | 96744 | 941.86 | 498 | 488 | 102.2 |
| B | 4 | 239 | 1114431 | 12386.5 | 475 | 464 | 89.9 |
| B | 15 | 204 | 337167 | 3743.89 | 475 | 464 | 89.9 |
| B | 11 | 51 | 73280 | 809.66 | 475 | 464 | 89.9 |
| C | 15 | 208 | 242872 | 2174.62 | 482 | 483 | 111.5 |
| C | 12 | 4 | 8501 | 71.93 | 482 | 483 | 111.5 |
| C | 4 | 175 | 7371 | 61.79 | 482 | 483 | 111.5 |
| D | 14 | 34 | 259194 | 2236.37 | 480 | 465 | 115.7 |
| D | 13 | 249 | 55165 | 472.81 | 480 | 465 | 115.7 |
| D | 1 | 52 | 53748 | 460.56 | 480 | 465 | 115.7 |

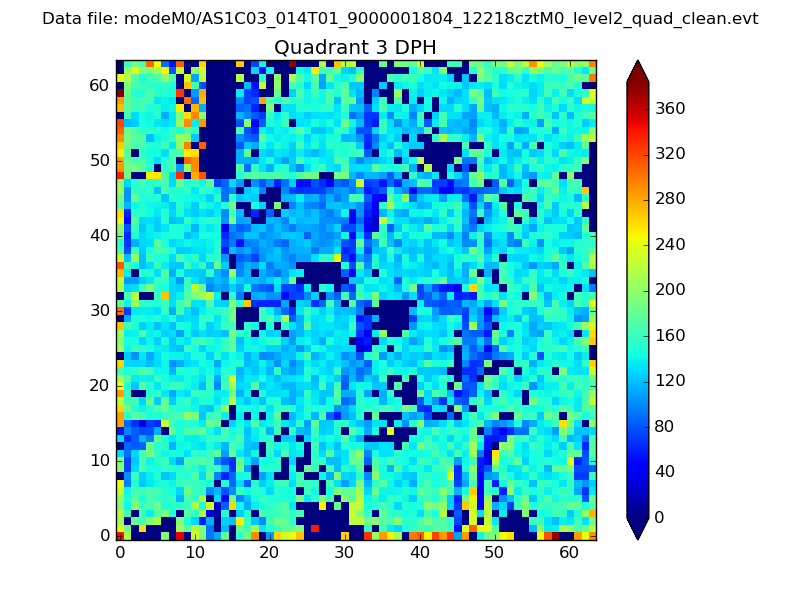

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

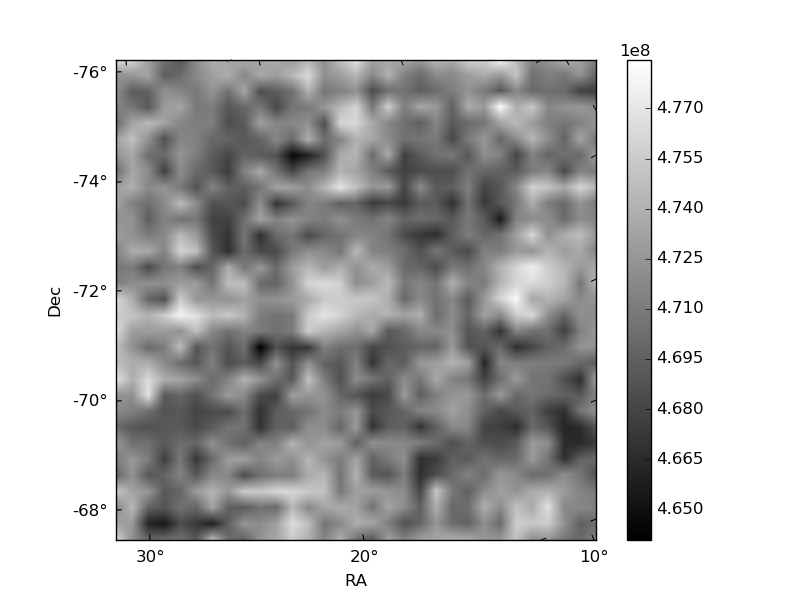

| Plot type | Count rate plots | Images |
|---|---|---|

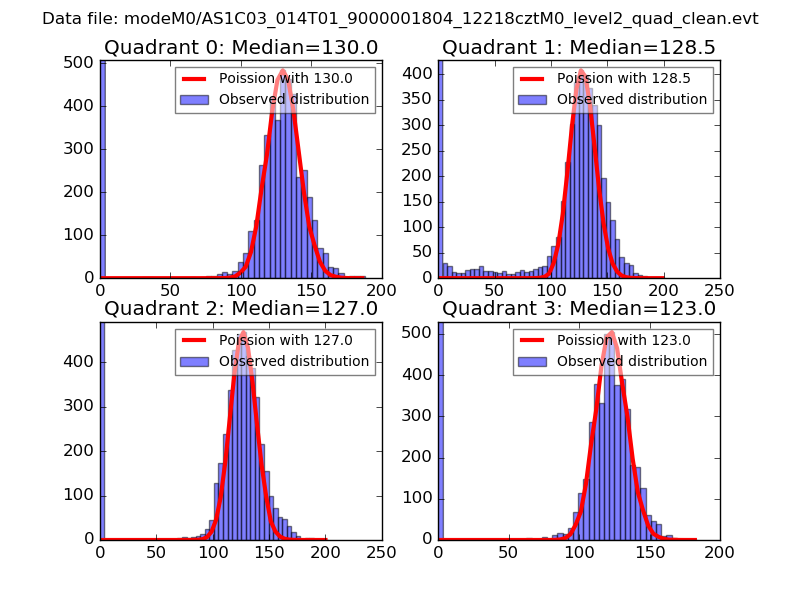

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

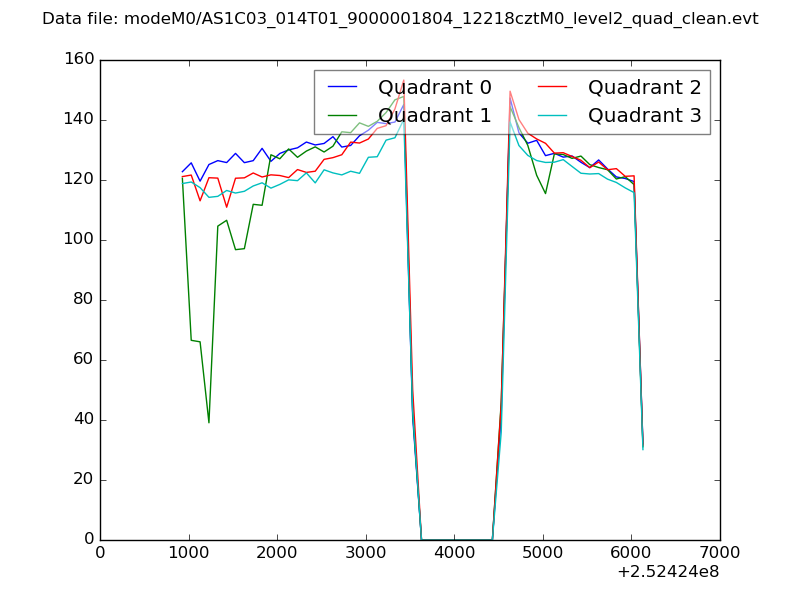

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

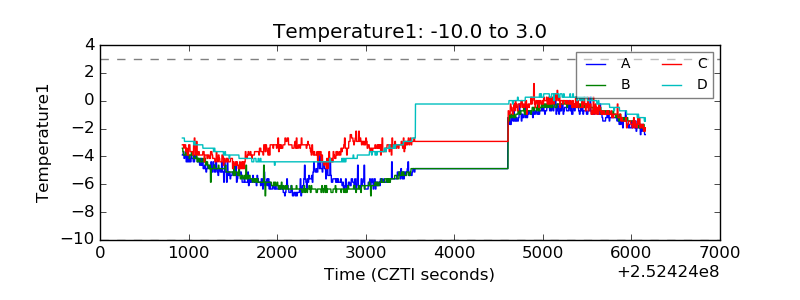

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

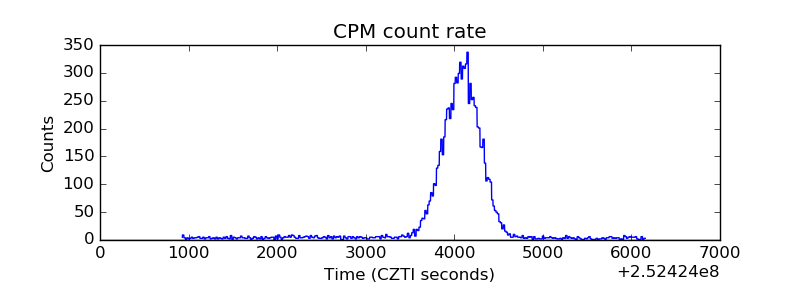

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

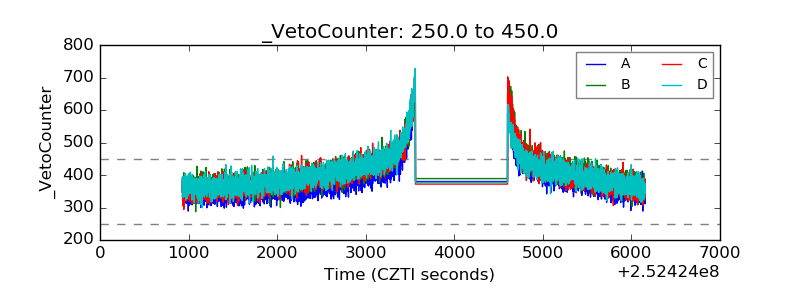

| Veto Counter |  |
