| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_014T01_9000001804_12220cztM0_level2.evt | modeM0/AS1C03_014T01_9000001804_12220cztM0_level2_quad_clean.evt |
| Size (bytes) | 599,397,120 | 127,483,200 |
| Size | 571.6 MB | 121.6 MB |
| Events in quadrant A | 4,092,402 | 867,136 |
| Events in quadrant B | 5,833,472 | 817,300 |
| Events in quadrant C | 3,696,186 | 855,841 |
| Events in quadrant D | 4,046,615 | 823,170 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16884 | 2 |
| B | 0 | 22278 | 1 |
| C | 0 | 15976 | 1 |
| D | 0 | 17099 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7146 | 113 | 1.581304% |
| B | 7146 | 809 | 11.321019% |
| C | 7146 | 73 | 1.021551% |
| D | 7146 | 133 | 1.861181% |

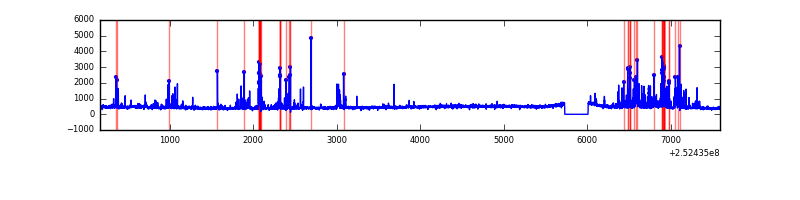

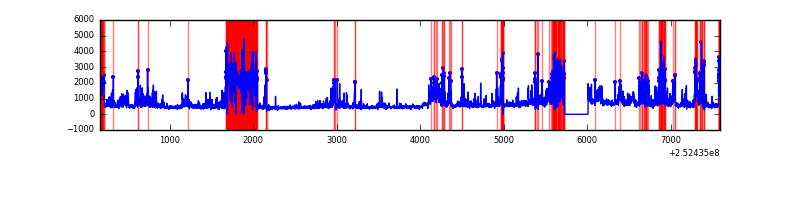

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7427 | 7148 | 12 | 12 | 0.16% | 0.17% |  |
| B | 7427 | 7147 | 445 | 445 | 5.99% | 6.23% |  |
| C | 7427 | 7148 | 54 | 54 | 0.73% | 0.76% |  |
| D | 7427 | 7148 | 103 | 103 | 1.39% | 1.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 230486 | 1387.79 | 815 | 797 | 165.5 |
| A | 13 | 251 | 190719 | 1147.51 | 815 | 797 | 165.5 |
| A | 1 | 178 | 130542 | 783.92 | 815 | 797 | 165.5 |
| B | 4 | 239 | 1426482 | 9763.61 | 773 | 754 | 146.0 |
| B | 15 | 204 | 545036 | 3727.33 | 773 | 754 | 146.0 |
| B | 3 | 64 | 234874 | 1603.29 | 773 | 754 | 146.0 |
| C | 15 | 208 | 562105 | 3093.02 | 783 | 786 | 181.5 |
| C | 4 | 175 | 30493 | 163.69 | 783 | 786 | 181.5 |
| C | 0 | 207 | 16511 | 86.65 | 783 | 786 | 181.5 |
| D | 10 | 199 | 250296 | 1313.53 | 779 | 755 | 190.0 |
| D | 13 | 104 | 193822 | 1016.26 | 779 | 755 | 190.0 |
| D | 1 | 52 | 178279 | 934.45 | 779 | 755 | 190.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

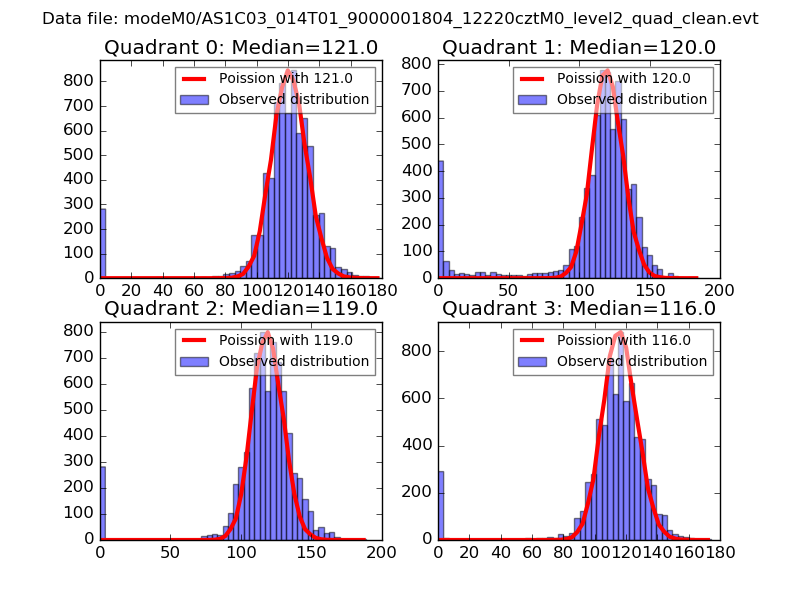

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

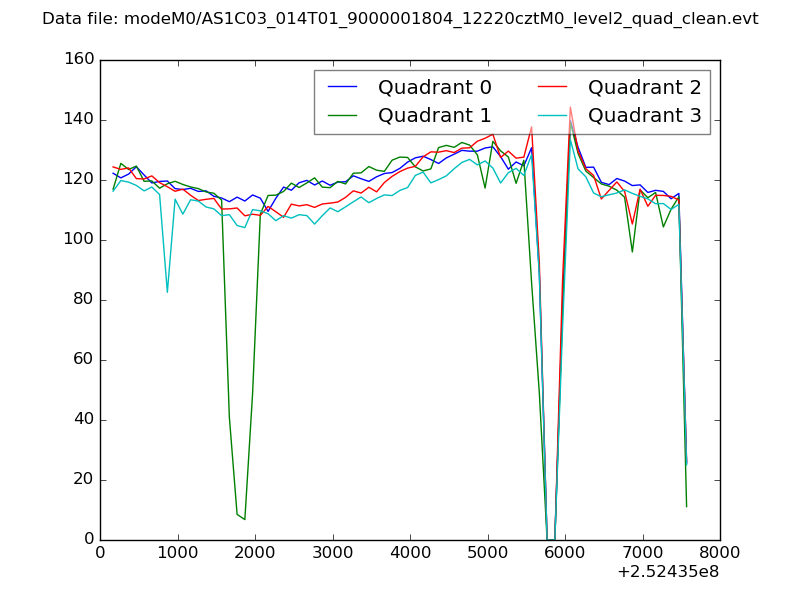

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

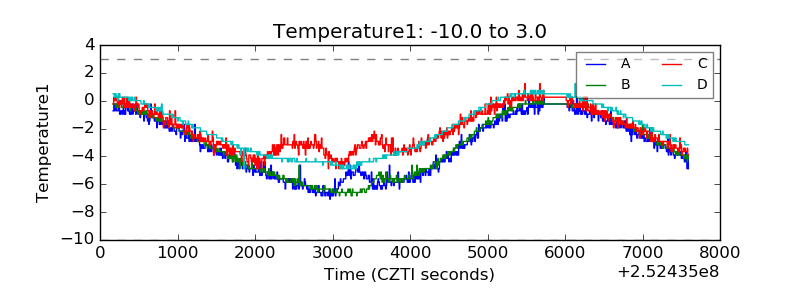

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

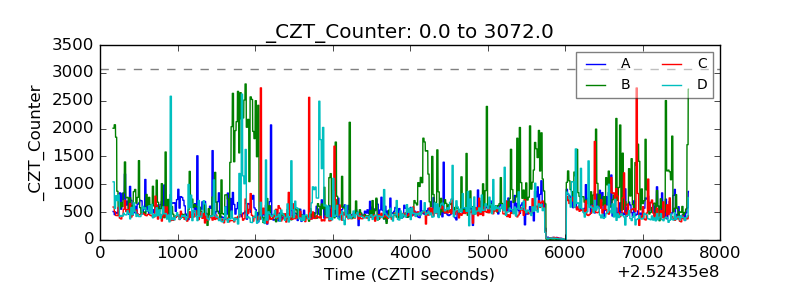

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

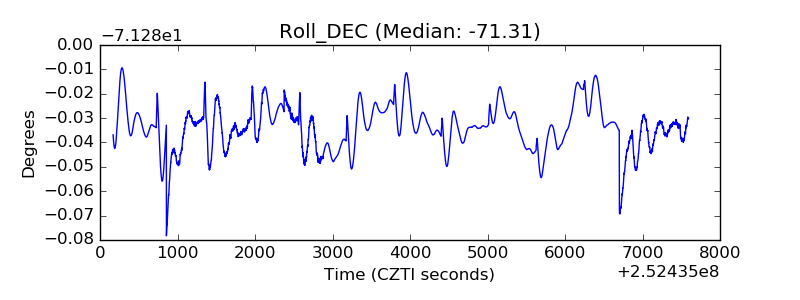

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

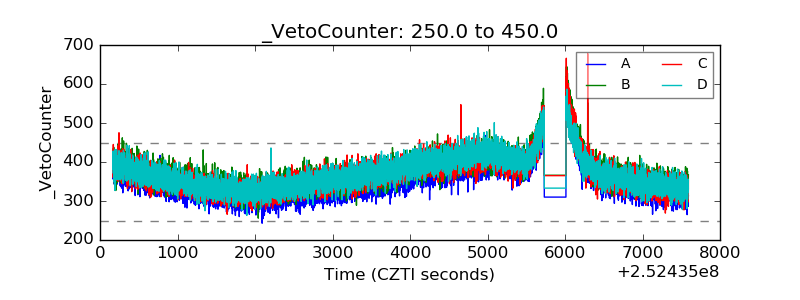

| Veto Counter |  |
