| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_014T02_9000001806_12230cztM0_level2.evt | modeM0/AS1C03_014T02_9000001806_12230cztM0_level2_quad_clean.evt |
| Size (bytes) | 535,178,880 | 130,167,360 |
| Size | 510.4 MB | 124.1 MB |
| Events in quadrant A | 4,505,235 | 893,376 |
| Events in quadrant B | 4,603,912 | 867,390 |
| Events in quadrant C | 3,219,342 | 894,068 |
| Events in quadrant D | 3,461,842 | 857,374 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17920 | 2 |
| B | 0 | 17848 | 1 |
| C | 0 | 13579 | 1 |
| D | 0 | 14369 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6160 | 129 | 2.094156% |
| B | 6160 | 570 | 9.253247% |
| C | 6160 | 83 | 1.347403% |
| D | 6160 | 110 | 1.785714% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7476 | 6162 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7476 | 6162 | 294 | 294 | 3.93% | 4.77% |  |
| C | 7476 | 6162 | 19 | 19 | 0.25% | 0.31% |  |
| D | 7476 | 6162 | 44 | 44 | 0.59% | 0.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 521314 | 3284.08 | 790 | 777 | 158.5 |
| A | 8 | 15 | 419220 | 2639.97 | 790 | 777 | 158.5 |
| A | 1 | 162 | 170201 | 1068.9 | 790 | 777 | 158.5 |
| B | 4 | 239 | 1230256 | 8857.57 | 755 | 739 | 138.8 |
| B | 11 | 51 | 186524 | 1338.41 | 755 | 739 | 138.8 |
| B | 3 | 64 | 48704 | 345.54 | 755 | 739 | 138.8 |
| C | 15 | 208 | 210942 | 1233.37 | 760 | 765 | 170.4 |
| C | 4 | 175 | 18688 | 105.18 | 760 | 765 | 170.4 |
| C | 0 | 207 | 15987 | 89.33 | 760 | 765 | 170.4 |
| D | 1 | 52 | 137024 | 759.84 | 762 | 743 | 179.4 |
| D | 2 | 33 | 126476 | 701.03 | 762 | 743 | 179.4 |
| D | 13 | 104 | 79167 | 437.25 | 762 | 743 | 179.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

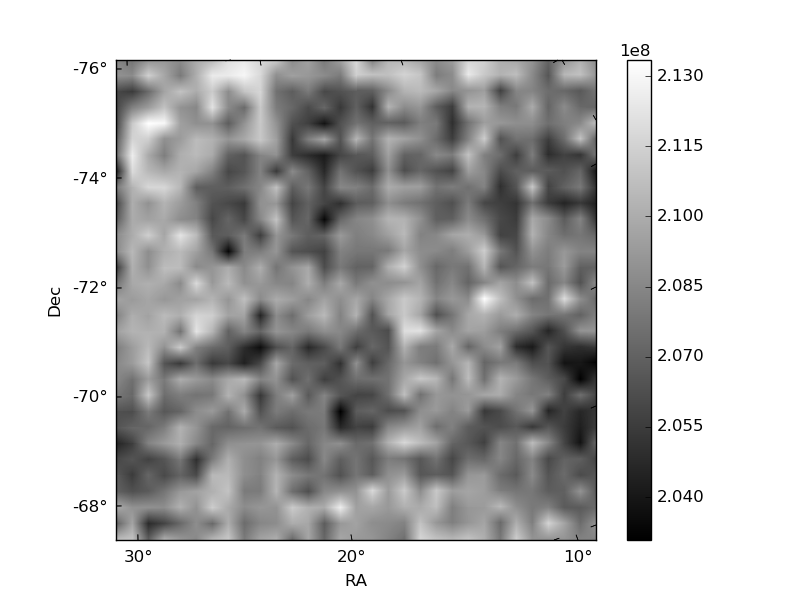

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

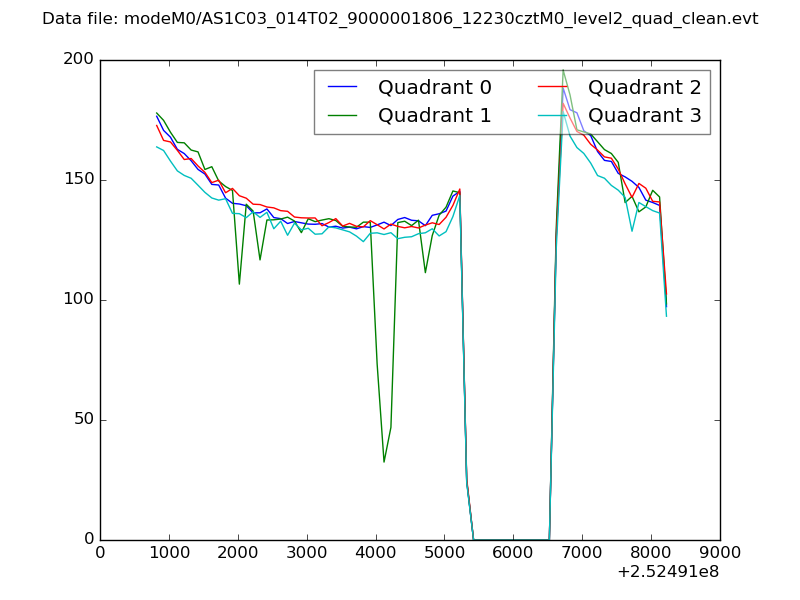

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

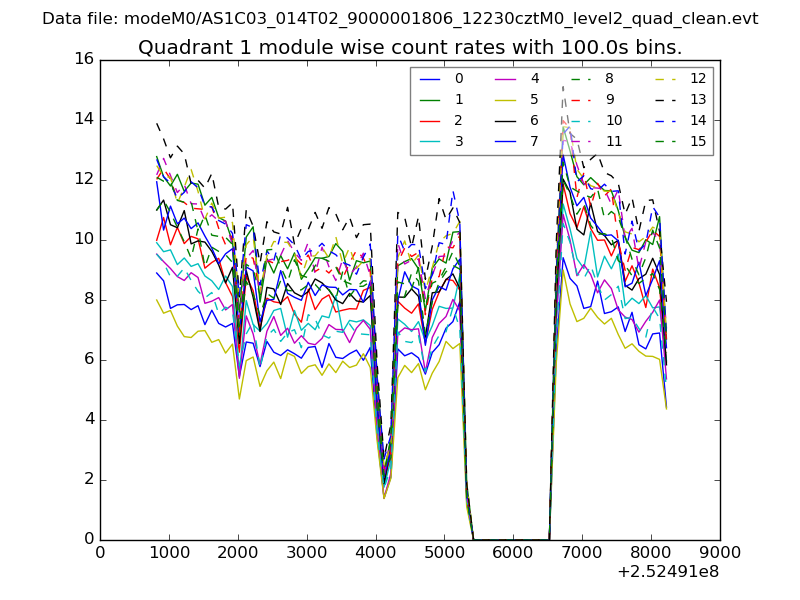

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

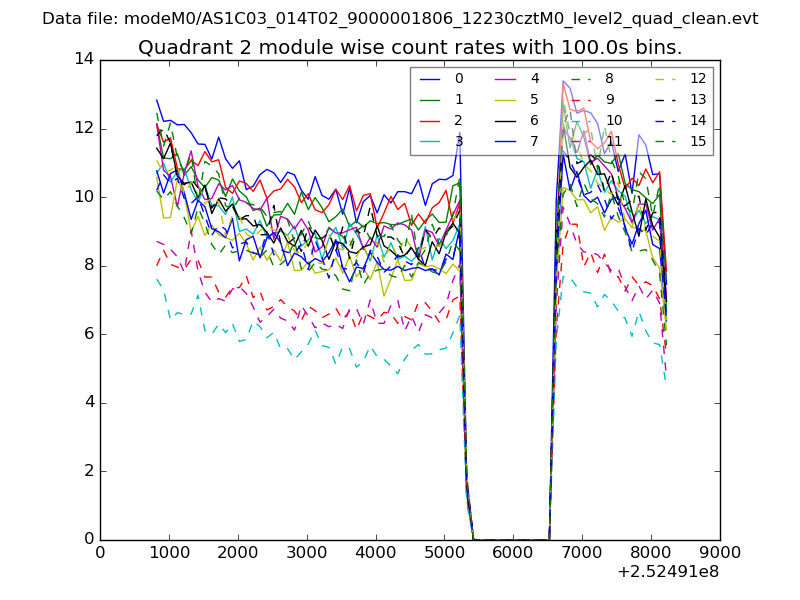

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

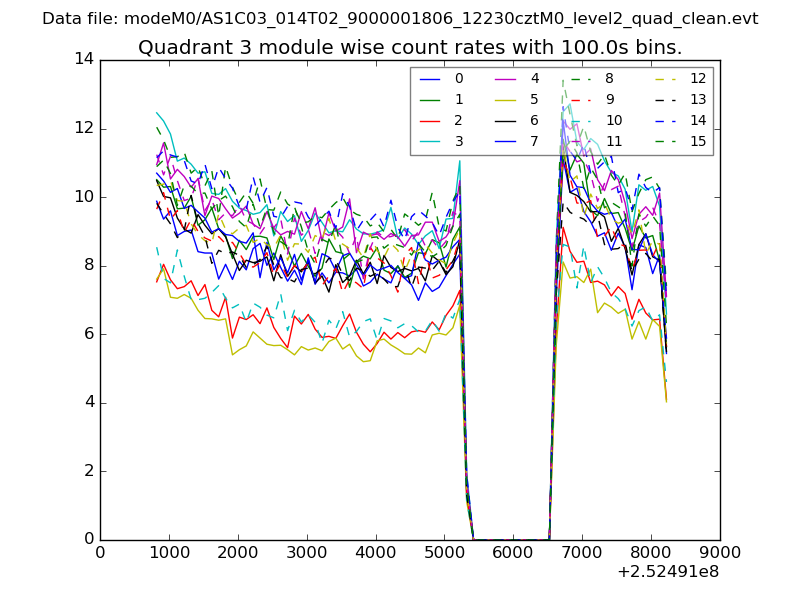

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

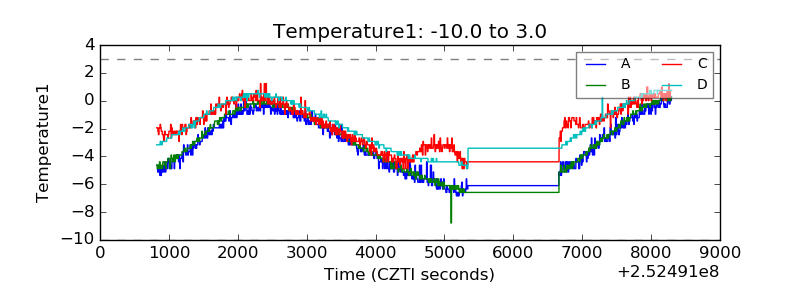

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

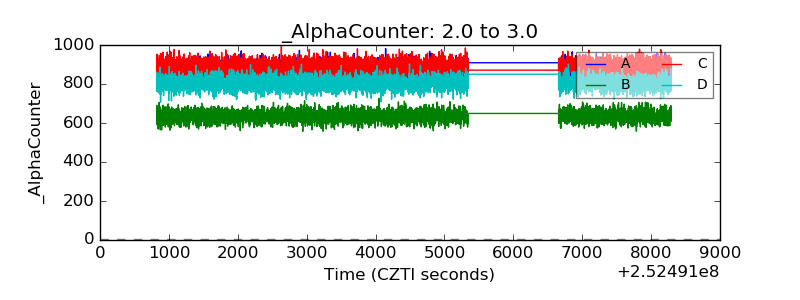

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
