| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_014T02_9000001806_12231cztM0_level2.evt | modeM0/AS1C03_014T02_9000001806_12231cztM0_level2_quad_clean.evt |
| Size (bytes) | 568,359,360 | 124,191,360 |
| Size | 542.0 MB | 118.4 MB |
| Events in quadrant A | 5,164,462 | 844,653 |
| Events in quadrant B | 4,643,327 | 835,460 |
| Events in quadrant C | 3,228,606 | 846,308 |
| Events in quadrant D | 3,765,487 | 810,833 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19935 | 2 |
| B | 0 | 17966 | 1 |
| C | 0 | 13603 | 1 |
| D | 0 | 15296 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6078 | 195 | 3.208292% |
| B | 6078 | 471 | 7.749260% |
| C | 6078 | 103 | 1.694636% |
| D | 6078 | 209 | 3.438631% |

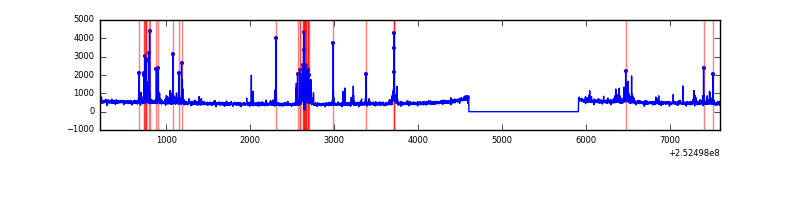

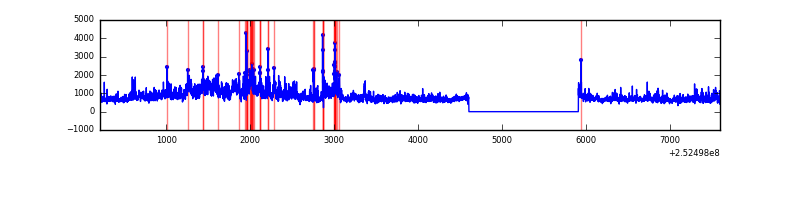

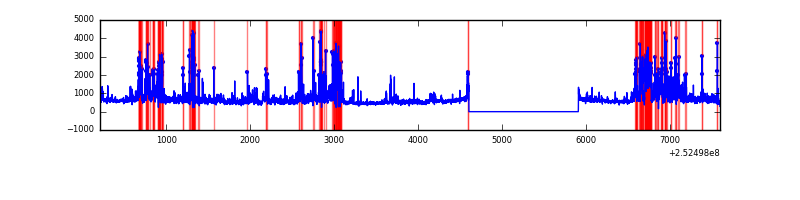

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7384 | 6080 | 48 | 48 | 0.65% | 0.79% |  |
| B | 7384 | 6080 | 237 | 237 | 3.21% | 3.90% |  |
| C | 7384 | 6080 | 40 | 40 | 0.54% | 0.66% |  |
| D | 7384 | 6080 | 130 | 130 | 1.76% | 2.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 859347 | 5623.8 | 754 | 741 | 152.7 |
| A | 13 | 251 | 824240 | 5393.86 | 754 | 741 | 152.7 |
| A | 1 | 162 | 159291 | 1038.49 | 754 | 741 | 152.7 |
| B | 4 | 239 | 953154 | 7070.74 | 732 | 716 | 134.7 |
| B | 3 | 64 | 235466 | 1742.74 | 732 | 716 | 134.7 |
| B | 11 | 51 | 233269 | 1726.43 | 732 | 716 | 134.7 |
| C | 15 | 208 | 357009 | 2165.16 | 721 | 725 | 164.6 |
| C | 5 | 112 | 27435 | 162.32 | 721 | 725 | 164.6 |
| C | 0 | 207 | 15893 | 92.18 | 721 | 725 | 164.6 |
| D | 1 | 52 | 468042 | 2705.07 | 723 | 703 | 172.8 |
| D | 13 | 104 | 113121 | 650.7 | 723 | 703 | 172.8 |
| D | 7 | 71 | 97285 | 559.04 | 723 | 703 | 172.8 |

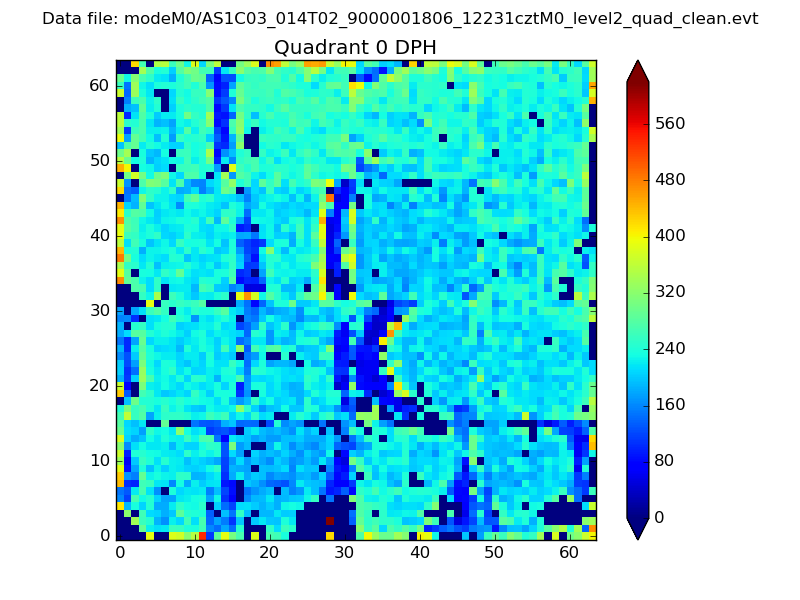

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

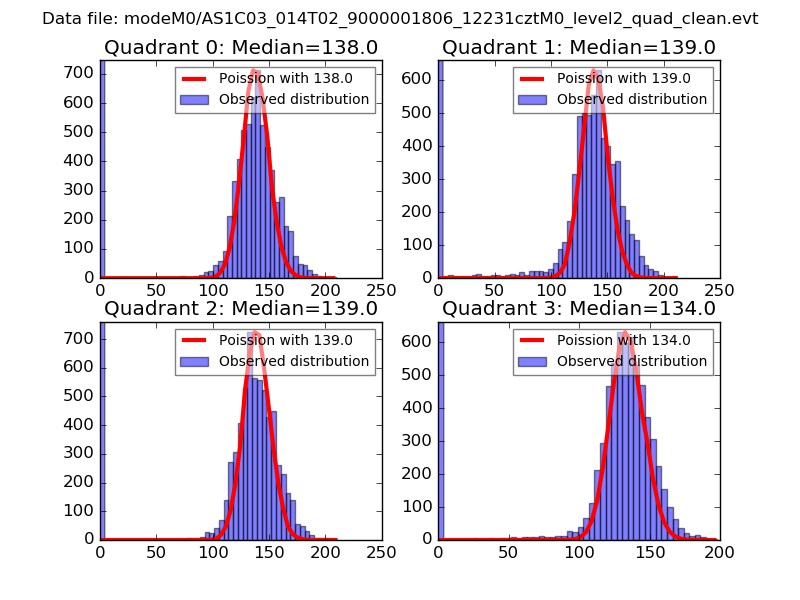

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

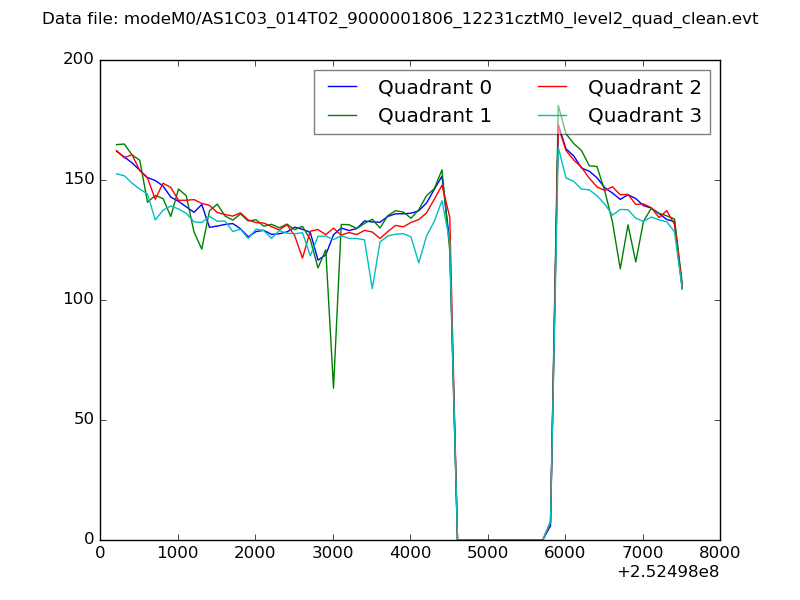

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

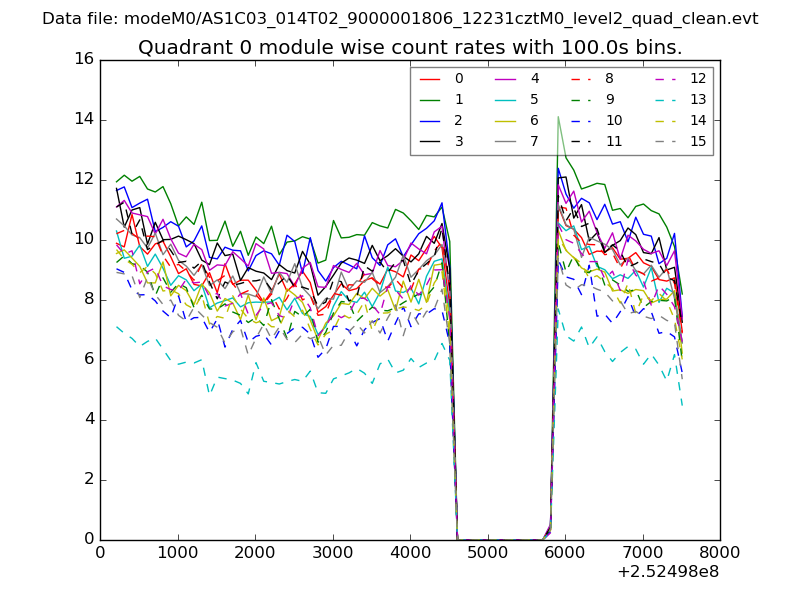

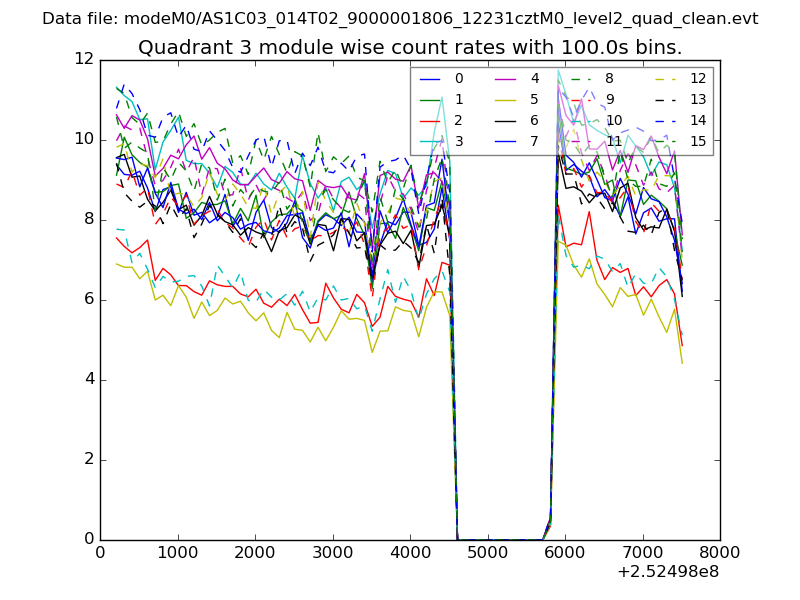

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

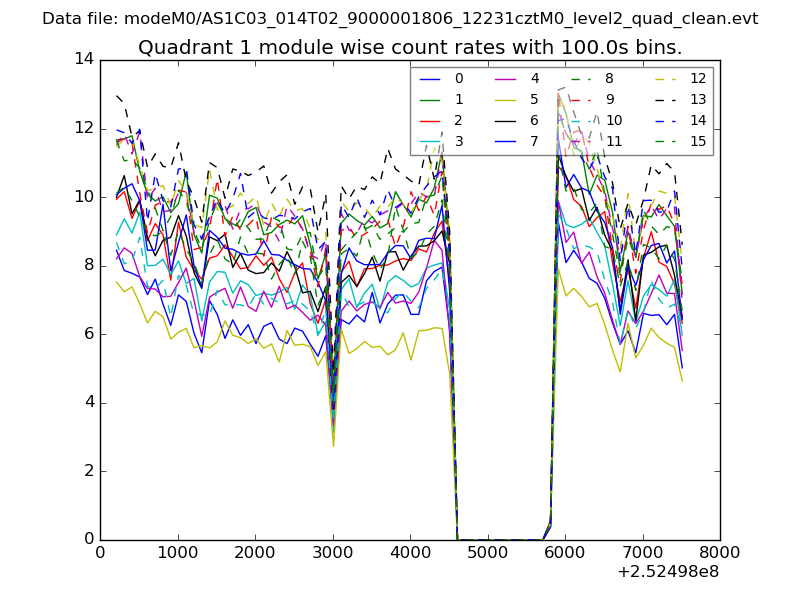

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

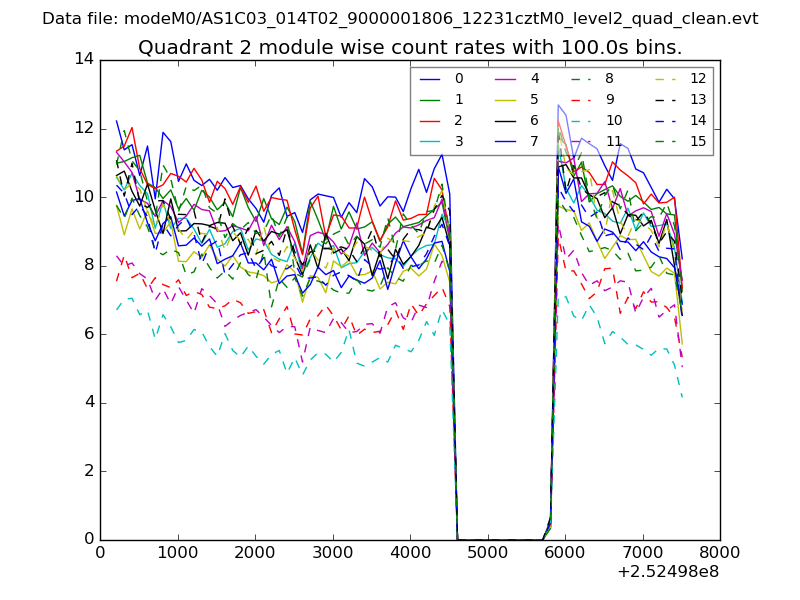

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

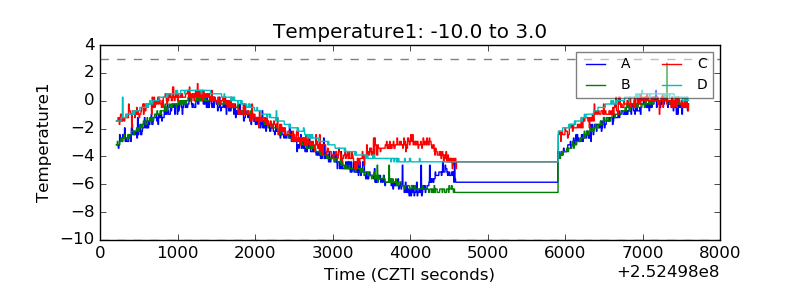

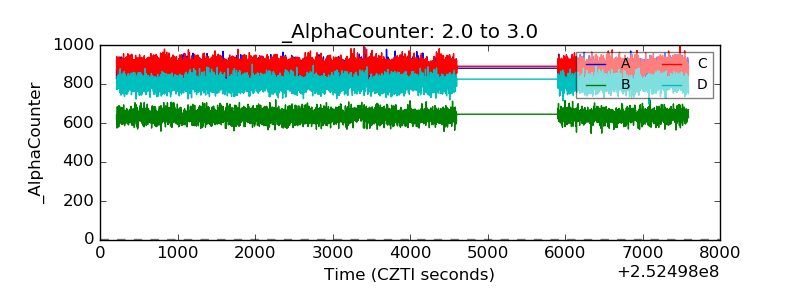

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

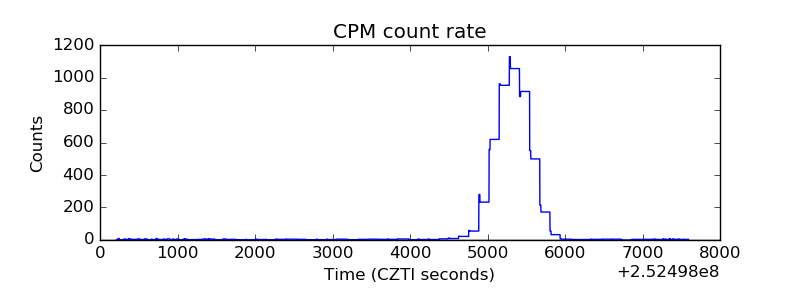

| _CPM_Rate |  |

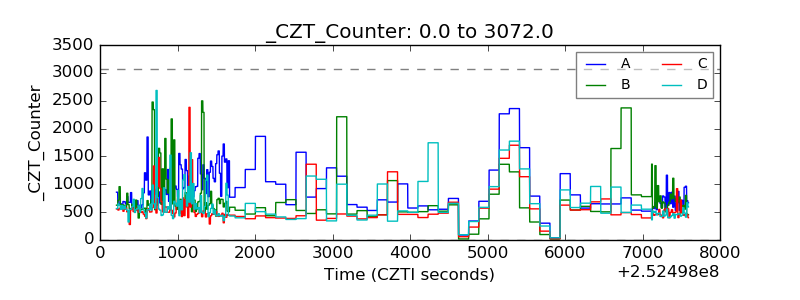

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

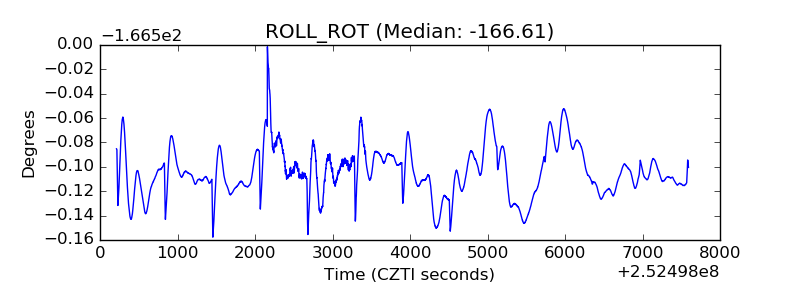

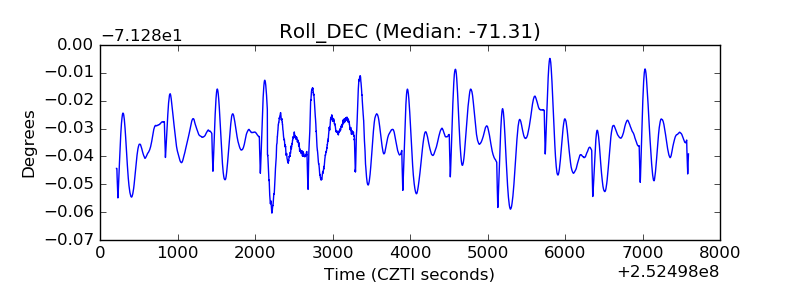

| _ROLL_ROT |  |
| _Roll_DEC |  |

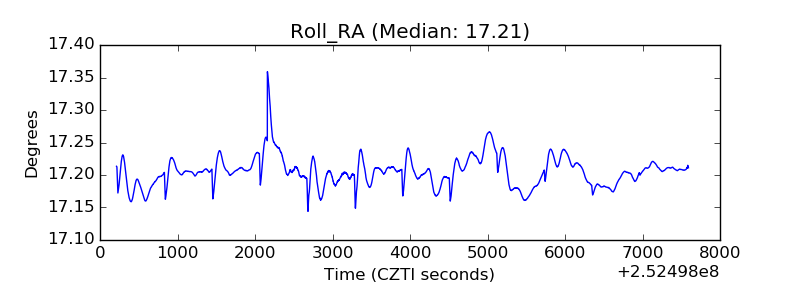

| _Roll_RA |  |

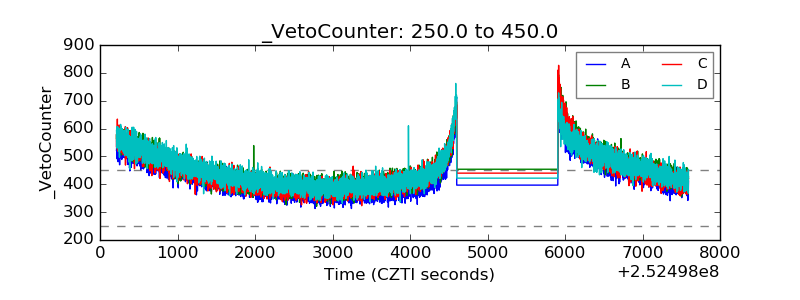

| Veto Counter |  |
