| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_014T02_9000001806_12232cztM0_level2.evt | modeM0/AS1C03_014T02_9000001806_12232cztM0_level2_quad_clean.evt |
| Size (bytes) | 565,709,760 | 118,431,360 |
| Size | 539.5 MB | 112.9 MB |
| Events in quadrant A | 5,558,854 | 796,869 |
| Events in quadrant B | 4,718,784 | 772,135 |
| Events in quadrant C | 3,000,175 | 807,431 |
| Events in quadrant D | 3,439,443 | 782,153 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20868 | 2 |
| B | 0 | 18176 | 1 |
| C | 0 | 13069 | 1 |
| D | 0 | 14396 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6138 | 437 | 7.119583% |
| B | 6138 | 710 | 11.567286% |
| C | 6138 | 59 | 0.961225% |
| D | 6138 | 140 | 2.280873% |

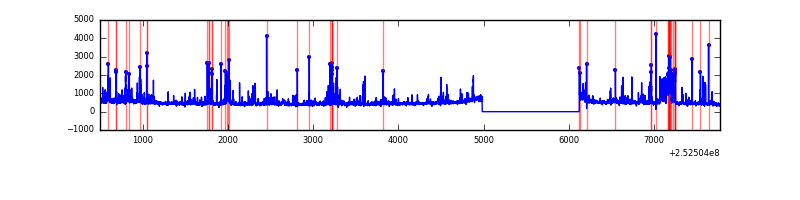

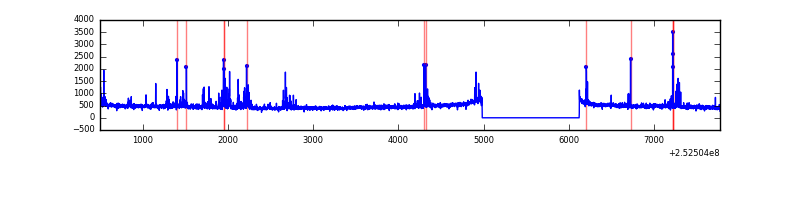

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7279 | 6140 | 128 | 128 | 1.76% | 2.08% |  |
| B | 7279 | 6140 | 372 | 372 | 5.11% | 6.06% |  |
| C | 7279 | 6140 | 12 | 12 | 0.16% | 0.20% |  |
| D | 7279 | 6140 | 52 | 52 | 0.71% | 0.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 1901625 | 12877.49 | 728 | 712 | 147.6 |
| A | 8 | 15 | 336713 | 2276.2 | 728 | 712 | 147.6 |
| A | 1 | 162 | 183100 | 1235.56 | 728 | 712 | 147.6 |
| B | 4 | 239 | 1365740 | 10468.06 | 697 | 681 | 130.4 |
| B | 11 | 51 | 252951 | 1934.55 | 697 | 681 | 130.4 |
| B | 10 | 246 | 156071 | 1191.62 | 697 | 681 | 130.4 |
| C | 15 | 208 | 113420 | 699.92 | 702 | 704 | 161.0 |
| C | 5 | 112 | 103672 | 639.39 | 702 | 704 | 161.0 |
| C | 4 | 175 | 38796 | 236.53 | 702 | 704 | 161.0 |
| D | 12 | 221 | 183209 | 1076.9 | 708 | 687 | 169.5 |
| D | 13 | 104 | 121090 | 710.39 | 708 | 687 | 169.5 |
| D | 1 | 52 | 88881 | 520.36 | 708 | 687 | 169.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

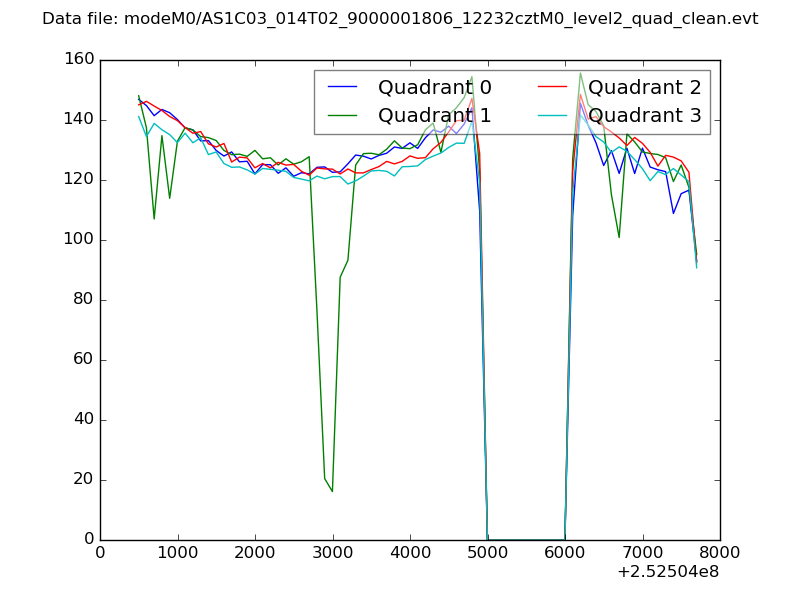

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

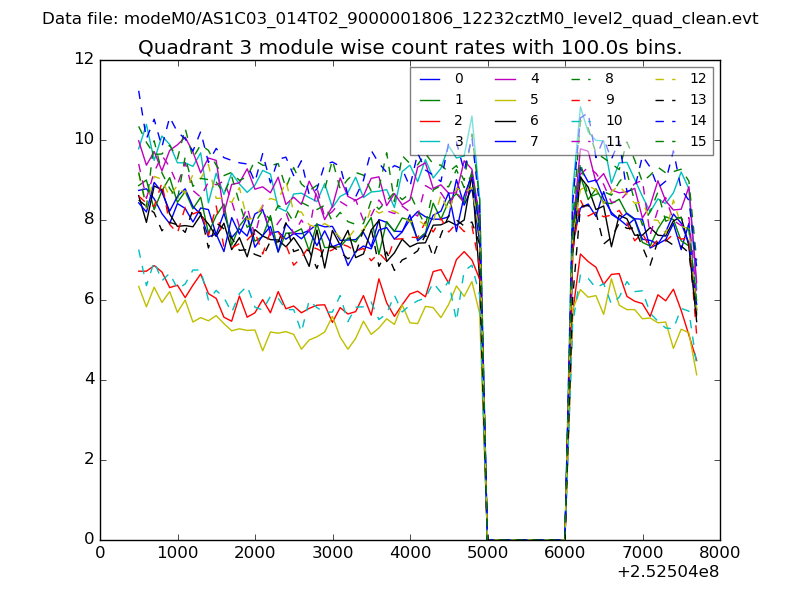

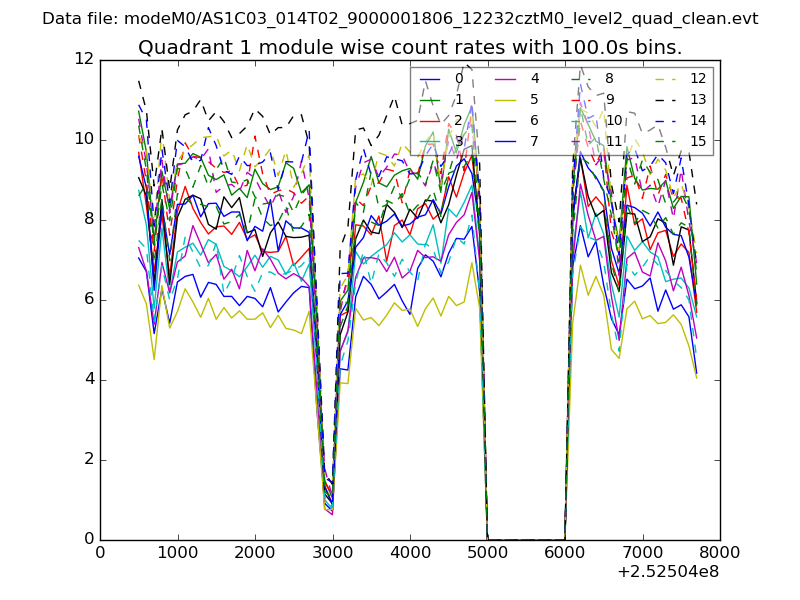

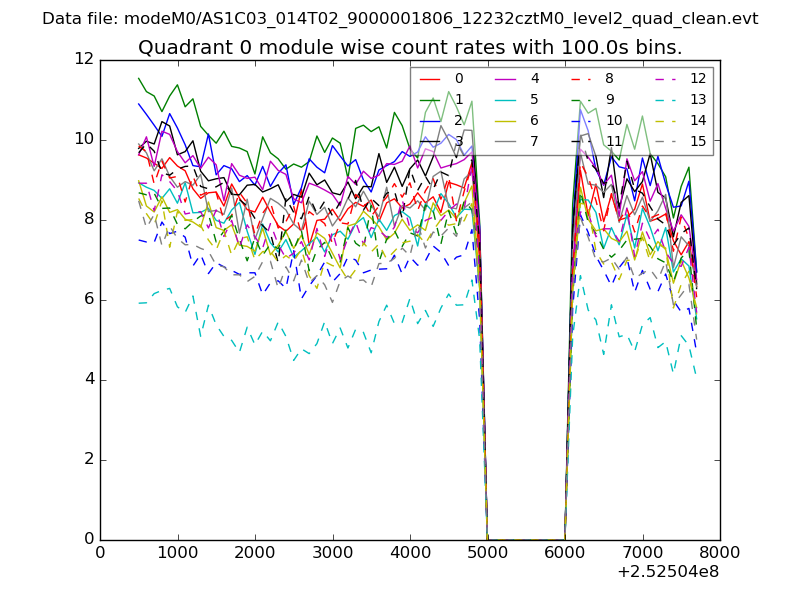

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

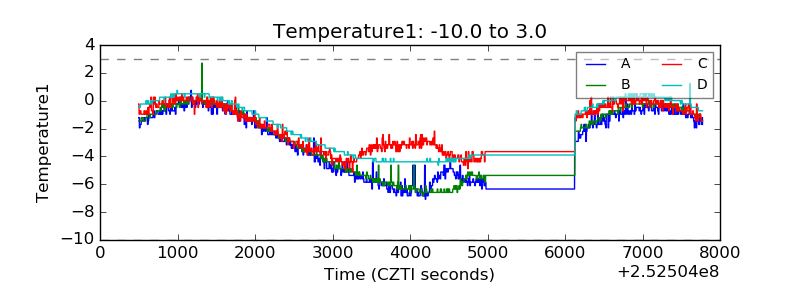

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

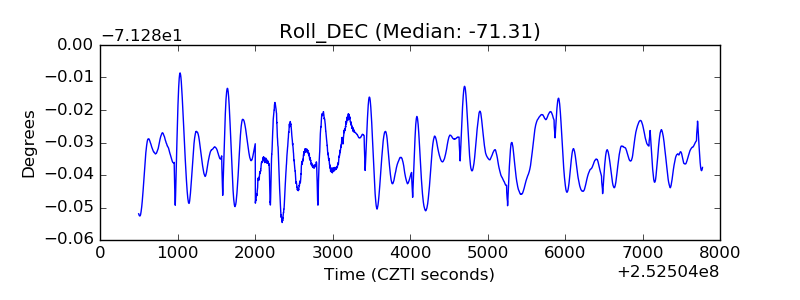

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
