| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_006T04_9000001812_12257cztM0_level2.evt | modeM0/AS1G08_006T04_9000001812_12257cztM0_level2_quad_clean.evt |
| Size (bytes) | 426,723,840 | 115,940,160 |
| Size | 407.0 MB | 110.6 MB |
| Events in quadrant A | 3,079,349 | 782,429 |
| Events in quadrant B | 3,655,283 | 789,540 |
| Events in quadrant C | 2,919,959 | 783,913 |
| Events in quadrant D | 2,874,303 | 750,021 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12822 | 2 |
| B | 0 | 14412 | 1 |
| C | 0 | 12669 | 1 |
| D | 0 | 12444 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5804 | 63 | 1.085458% |
| B | 5804 | 195 | 3.359752% |
| C | 5804 | 67 | 1.154376% |
| D | 5804 | 55 | 0.947622% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

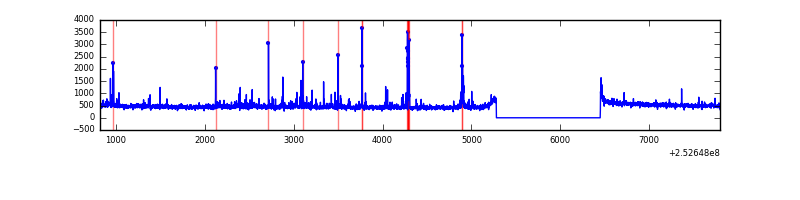

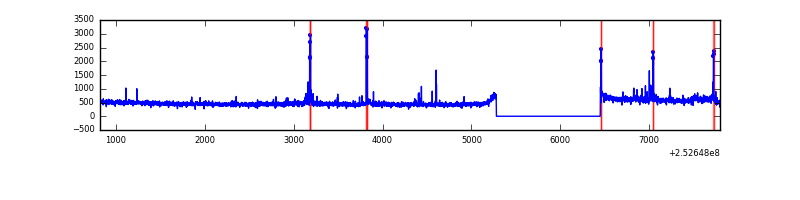

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6975 | 5806 | 4 | 4 | 0.06% | 0.07% |  |
| B | 6975 | 5806 | 73 | 73 | 1.05% | 1.26% |  |
| C | 6975 | 5806 | 18 | 18 | 0.26% | 0.31% |  |
| D | 6975 | 5806 | 17 | 17 | 0.24% | 0.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 74210 | 512.78 | 710 | 696 | 143.4 |
| A | 13 | 251 | 72564 | 501.3 | 710 | 696 | 143.4 |
| A | 7 | 16 | 56920 | 392.18 | 710 | 696 | 143.4 |
| B | 4 | 239 | 364097 | 2766.71 | 703 | 689 | 131.4 |
| B | 0 | 85 | 197202 | 1496.1 | 703 | 689 | 131.4 |
| B | 4 | 206 | 153993 | 1167.14 | 703 | 689 | 131.4 |
| C | 15 | 208 | 109019 | 687.44 | 691 | 695 | 157.6 |
| C | 3 | 233 | 79877 | 502.5 | 691 | 695 | 157.6 |
| C | 4 | 175 | 15878 | 96.35 | 691 | 695 | 157.6 |
| D | 10 | 199 | 59241 | 355.51 | 691 | 672 | 164.7 |
| D | 13 | 104 | 57102 | 342.52 | 691 | 672 | 164.7 |
| D | 1 | 52 | 46519 | 278.29 | 691 | 672 | 164.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

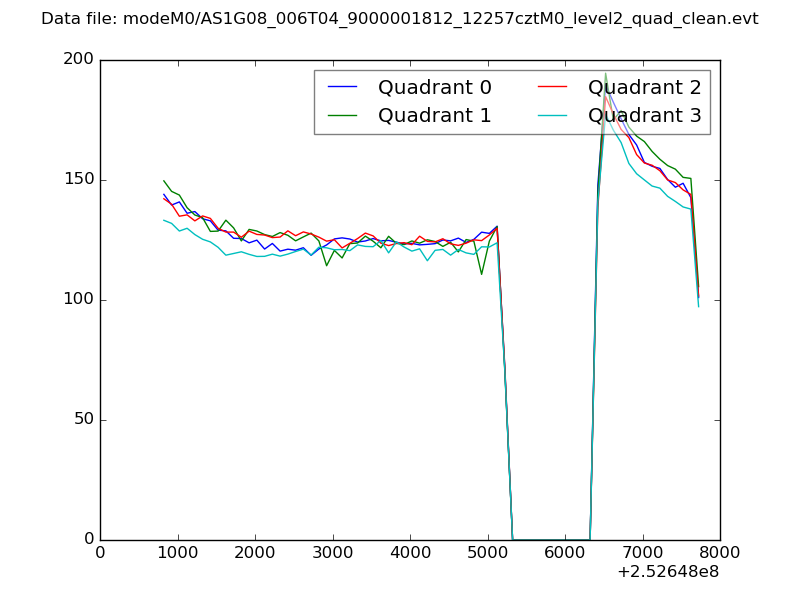

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

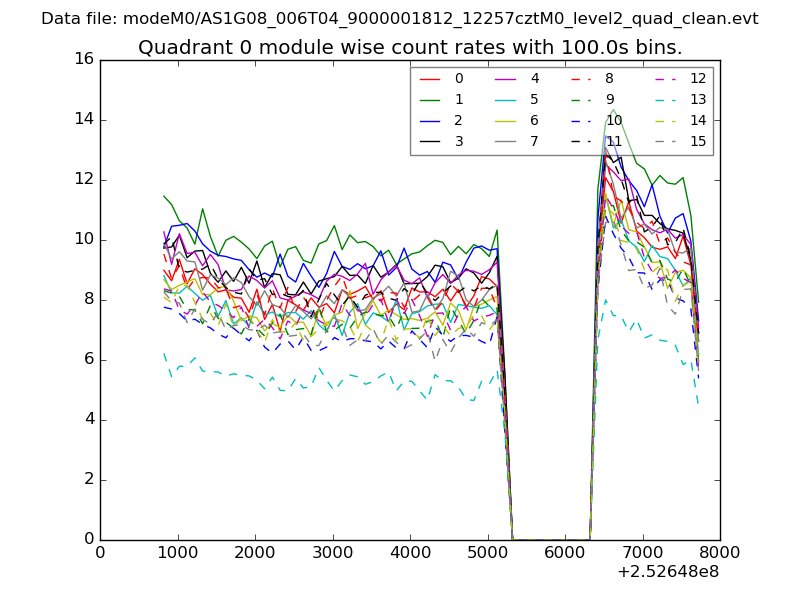

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

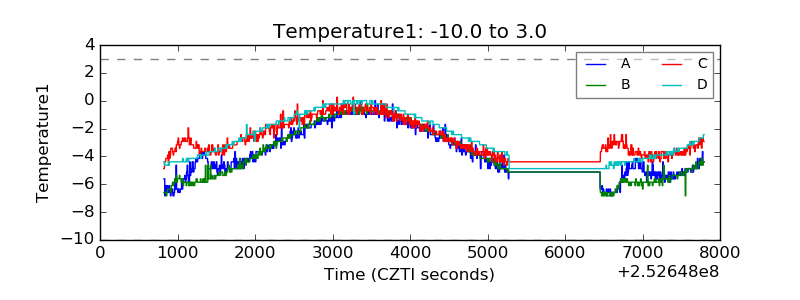

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

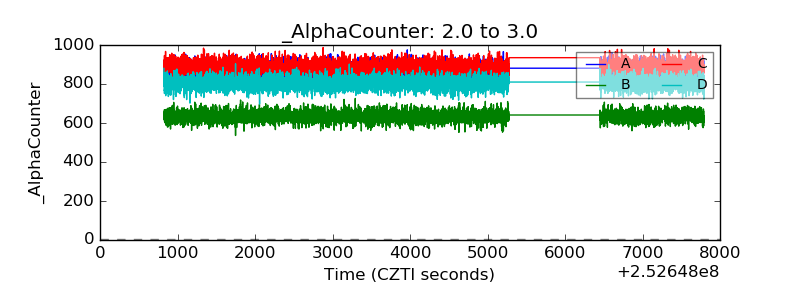

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

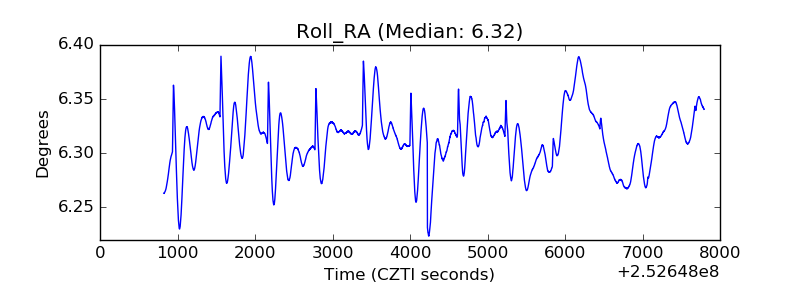

| _Roll_RA |  |

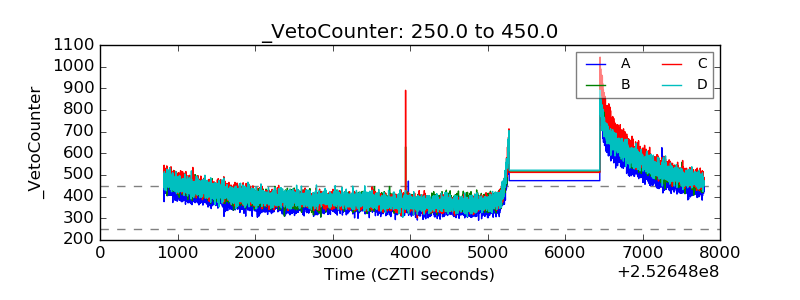

| Veto Counter |  |
