| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_006T04_9000001812_12258cztM0_level2.evt | modeM0/AS1G08_006T04_9000001812_12258cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,407,040 | 132,137,280 |
| Size | 492.5 MB | 126.0 MB |
| Events in quadrant A | 3,807,395 | 902,345 |
| Events in quadrant B | 4,121,846 | 907,631 |
| Events in quadrant C | 3,496,481 | 902,811 |
| Events in quadrant D | 3,792,011 | 855,252 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15526 | 3 |
| B | 0 | 16192 | 2 |
| C | 0 | 14537 | 2 |
| D | 0 | 15474 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6224 | 108 | 1.735219% |
| B | 6224 | 214 | 3.438303% |
| C | 6224 | 89 | 1.429949% |
| D | 6224 | 177 | 2.843830% |

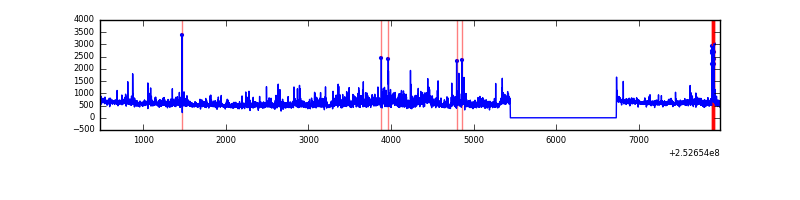

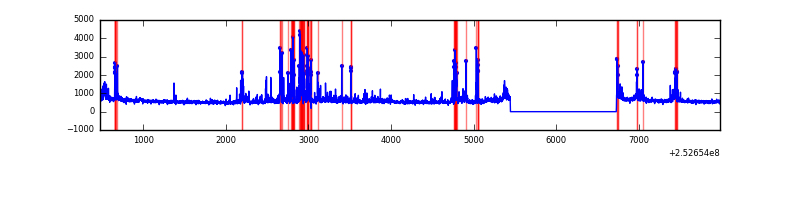

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7510 | 6226 | 17 | 17 | 0.23% | 0.27% |  |
| B | 7510 | 6226 | 100 | 100 | 1.33% | 1.61% |  |
| C | 7510 | 6226 | 45 | 45 | 0.60% | 0.72% |  |
| D | 7510 | 6226 | 63 | 63 | 0.84% | 1.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 176791 | 1110.84 | 798 | 783 | 158.4 |
| A | 13 | 251 | 108875 | 682.2 | 798 | 783 | 158.4 |
| A | 1 | 178 | 100908 | 631.92 | 798 | 783 | 158.4 |
| B | 4 | 239 | 365120 | 2526.67 | 790 | 774 | 144.2 |
| B | 4 | 206 | 210332 | 1453.24 | 790 | 774 | 144.2 |
| B | 3 | 64 | 157261 | 1085.21 | 790 | 774 | 144.2 |
| C | 15 | 208 | 279366 | 1592.15 | 777 | 782 | 175.0 |
| C | 3 | 233 | 160496 | 912.79 | 777 | 782 | 175.0 |
| C | 4 | 175 | 16498 | 89.82 | 777 | 782 | 175.0 |
| D | 1 | 52 | 521711 | 2850.4 | 774 | 752 | 182.8 |
| D | 10 | 199 | 190186 | 1036.48 | 774 | 752 | 182.8 |
| D | 13 | 104 | 45124 | 242.78 | 774 | 752 | 182.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

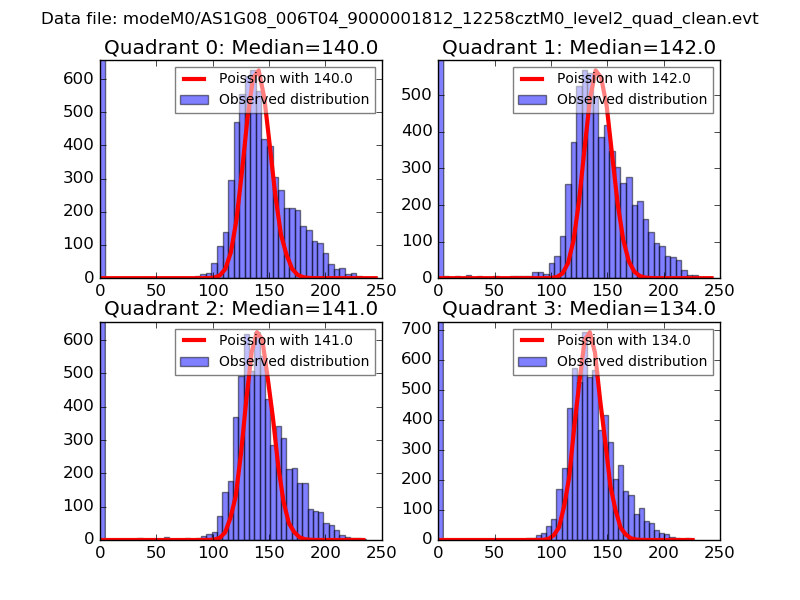

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

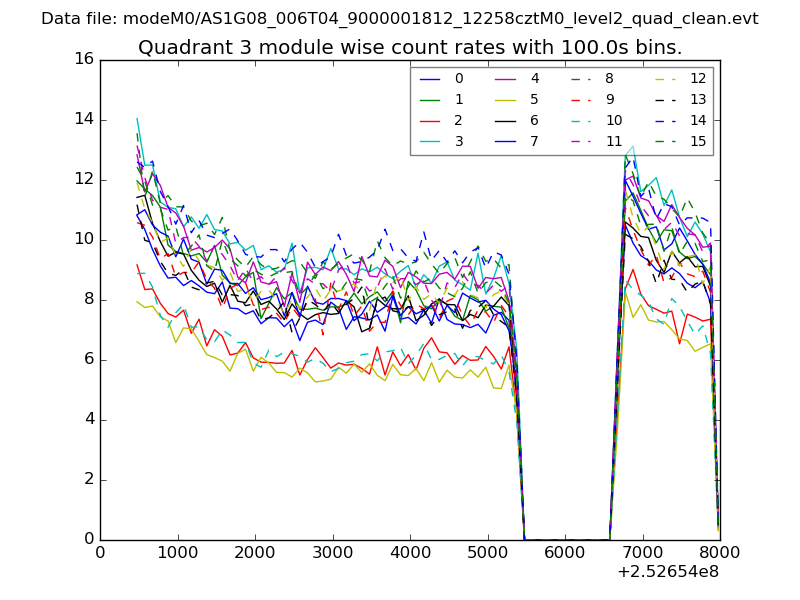

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

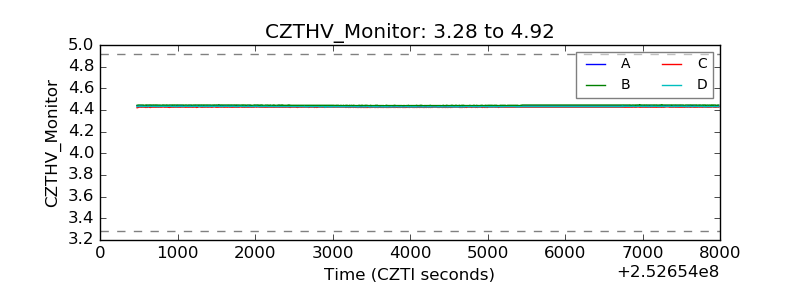

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

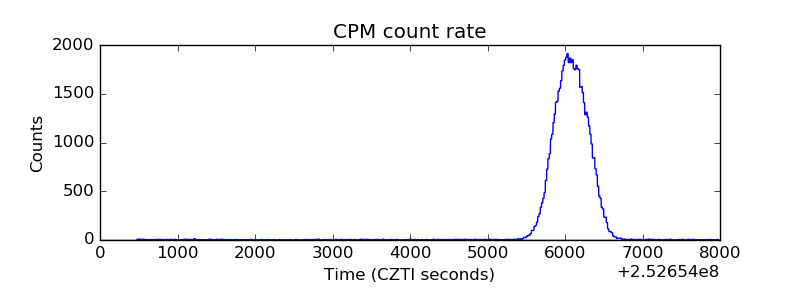

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
