| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_064T01_9000001814_12273cztM0_level2.evt | modeM0/AS1G08_064T01_9000001814_12273cztM0_level2_quad_clean.evt |
| Size (bytes) | 528,428,160 | 81,720,000 |
| Size | 503.9 MB | 77.9 MB |
| Events in quadrant A | 4,217,802 | 523,327 |
| Events in quadrant B | 5,326,031 | 522,875 |
| Events in quadrant C | 2,776,398 | 526,306 |
| Events in quadrant D | 3,294,510 | 501,369 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16611 | 2 |
| B | 0 | 19445 | 1 |
| C | 0 | 11896 | 1 |
| D | 0 | 13443 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5733 | 167 | 2.912960% |
| B | 5733 | 1260 | 21.978022% |
| C | 5733 | 35 | 0.610501% |
| D | 5733 | 92 | 1.604744% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7014 | 5735 | 29 | 29 | 0.41% | 0.51% |  |
| B | 7014 | 5735 | 723 | 723 | 10.31% | 12.61% |  |
| C | 7014 | 5735 | 10 | 10 | 0.14% | 0.17% |  |
| D | 7014 | 5735 | 36 | 36 | 0.51% | 0.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 769253 | 5308.93 | 715 | 702 | 144.8 |
| A | 1 | 162 | 178203 | 1226.13 | 715 | 702 | 144.8 |
| A | 1 | 178 | 103551 | 710.45 | 715 | 702 | 144.8 |
| B | 4 | 239 | 2746851 | 24145.23 | 601 | 589 | 113.7 |
| B | 11 | 51 | 77421 | 675.51 | 601 | 589 | 113.7 |
| B | 0 | 85 | 36569 | 316.34 | 601 | 589 | 113.7 |
| C | 14 | 234 | 71277 | 446.59 | 688 | 691 | 158.1 |
| C | 4 | 175 | 16732 | 101.49 | 688 | 691 | 158.1 |
| C | 13 | 61 | 5062 | 27.65 | 688 | 691 | 158.1 |
| D | 5 | 222 | 263696 | 1617.97 | 689 | 671 | 162.6 |
| D | 13 | 104 | 99176 | 605.94 | 689 | 671 | 162.6 |
| D | 9 | 85 | 74322 | 453.06 | 689 | 671 | 162.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

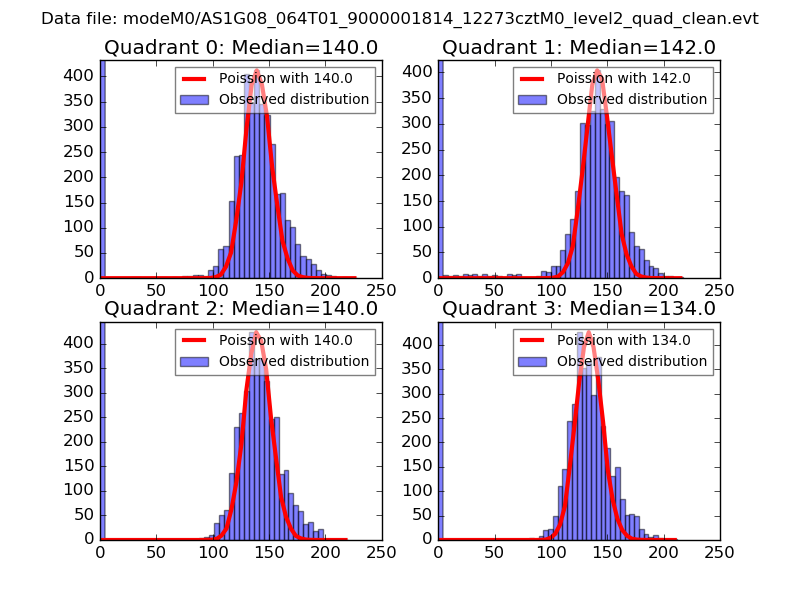

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

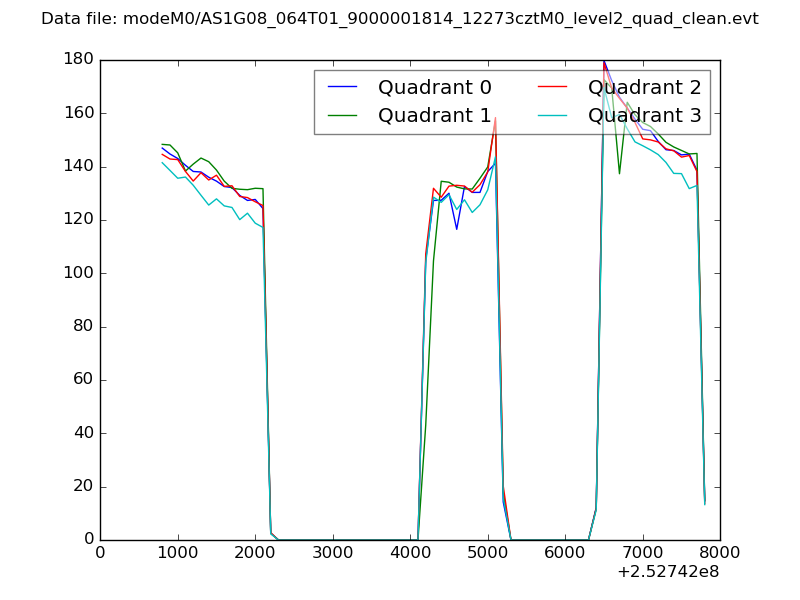

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

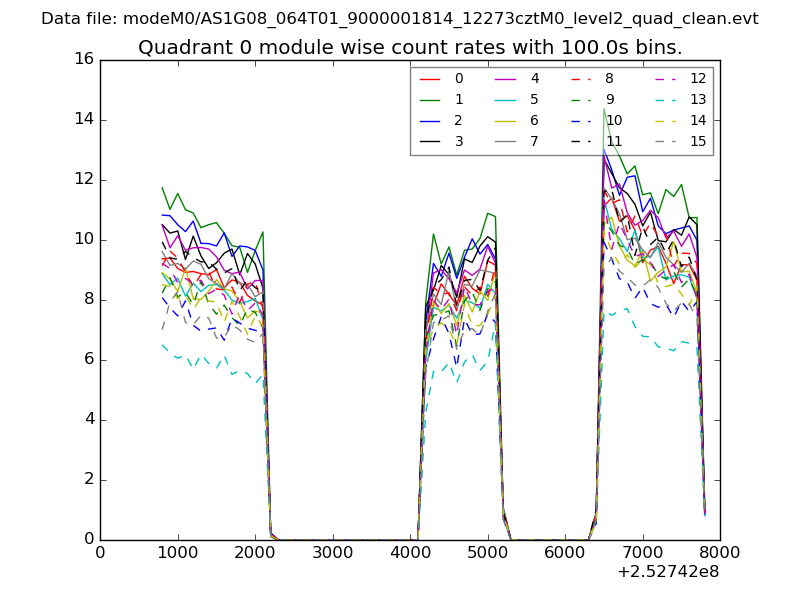

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

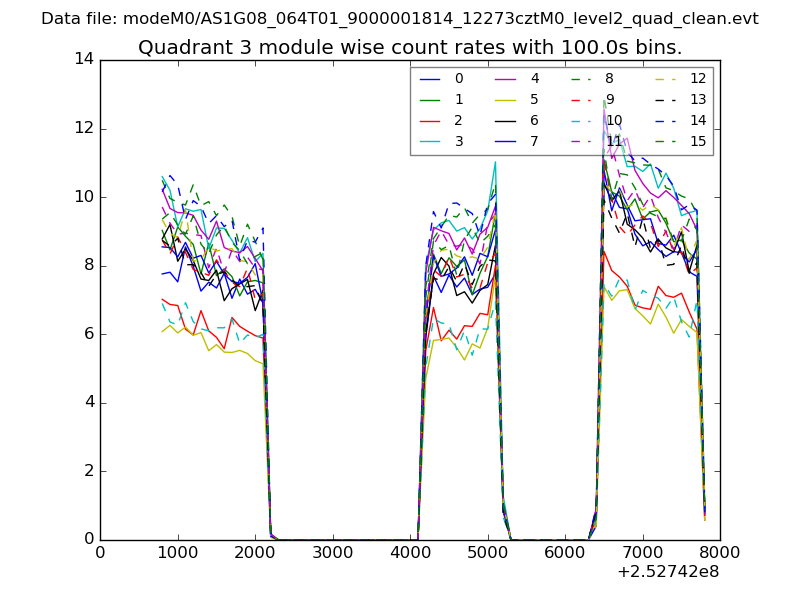

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

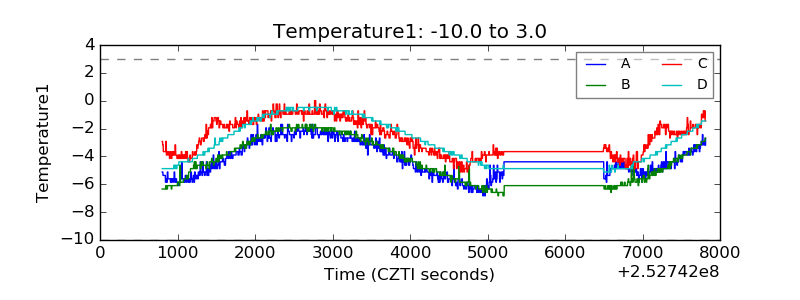

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

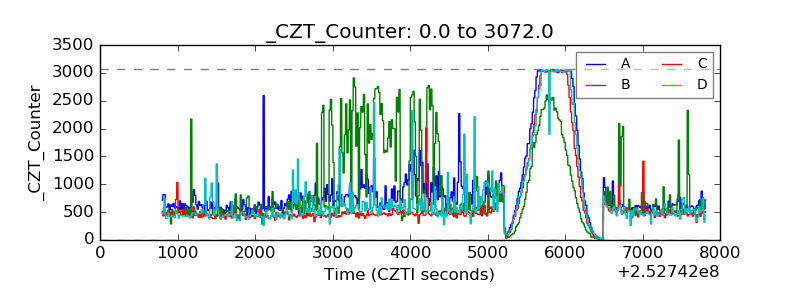

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
