| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_064T01_9000001814_12282cztM0_level2.evt | modeM0/AS1G08_064T01_9000001814_12282cztM0_level2_quad_clean.evt |
| Size (bytes) | 614,033,280 | 93,055,680 |
| Size | 585.6 MB | 88.7 MB |
| Events in quadrant A | 4,522,008 | 577,406 |
| Events in quadrant B | 6,059,342 | 553,879 |
| Events in quadrant C | 3,556,459 | 584,970 |
| Events in quadrant D | 3,933,043 | 563,238 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 163 | 5 |
| B | 0 | 164 | 8 |
| C | 0 | 164 | 6 |
| D | 0 | 165 | 9 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19509 | 743 |
| B | 0 | 23992 | 661 |
| C | 0 | 16572 | 624 |
| D | 0 | 17694 | 663 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7743 | 253 | 3.267467% |
| B | 7750 | 956 | 12.335484% |
| C | 7741 | 57 | 0.736339% |
| D | 7727 | 108 | 1.397696% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

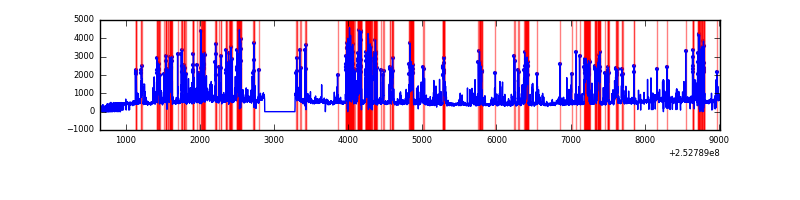

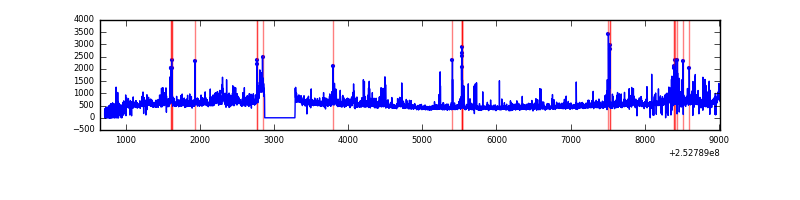

| A | 8305 | 7820 | 23 | 23 | 0.28% | 0.29% |  |
| B | 8340 | 7841 | 483 | 483 | 5.79% | 6.16% |  |
| C | 8368 | 7826 | 1 | 1 | 0.01% | 0.01% |  |

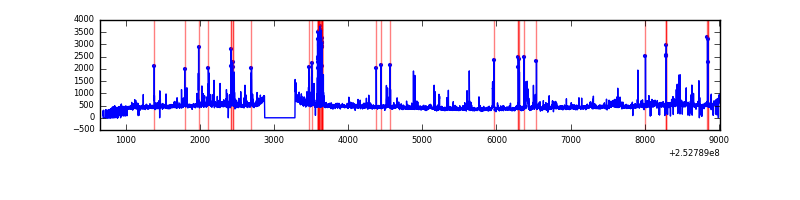

| D | 8327 | 7819 | 44 | 44 | 0.53% | 0.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 203685 | 1080.99 | 912 | 891 | 187.6 |
| A | 1 | 162 | 193891 | 1028.78 | 912 | 891 | 187.6 |
| A | 13 | 251 | 181224 | 961.26 | 912 | 891 | 187.6 |
| B | 4 | 239 | 1725771 | 10333.57 | 866 | 845 | 166.9 |
| B | 0 | 85 | 395606 | 2364.91 | 866 | 845 | 166.9 |
| B | 3 | 64 | 223064 | 1331.25 | 866 | 845 | 166.9 |
| C | 1 | 16 | 43041 | 205.22 | 888 | 893 | 205.4 |
| C | 4 | 254 | 18209 | 84.31 | 888 | 893 | 205.4 |
| C | 8 | 128 | 9512 | 41.97 | 888 | 893 | 205.4 |
| D | 5 | 222 | 97065 | 454.72 | 886 | 859 | 211.6 |
| D | 13 | 104 | 85727 | 401.13 | 886 | 859 | 211.6 |
| D | 10 | 253 | 76027 | 355.28 | 886 | 859 | 211.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

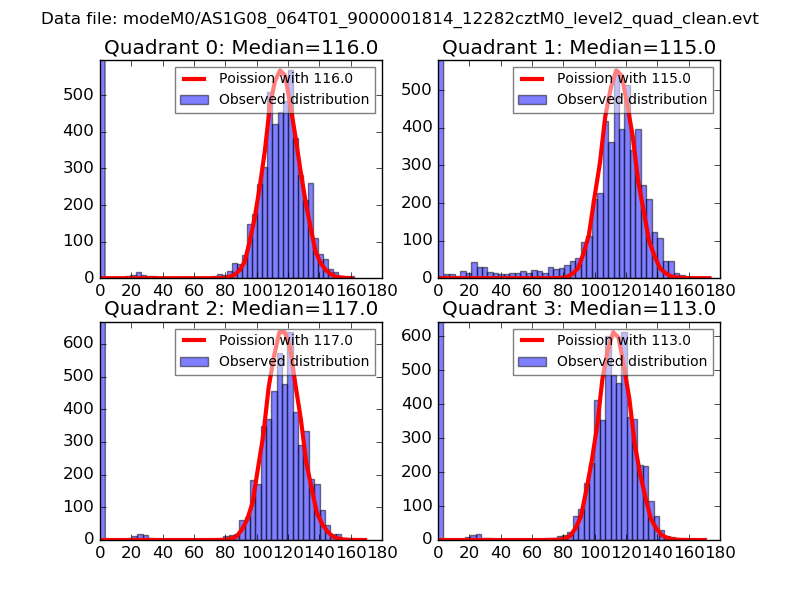

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

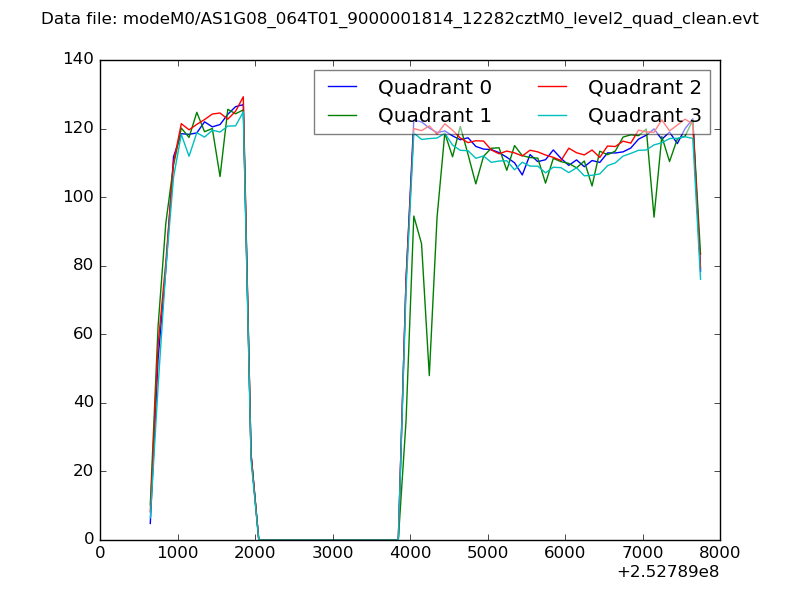

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

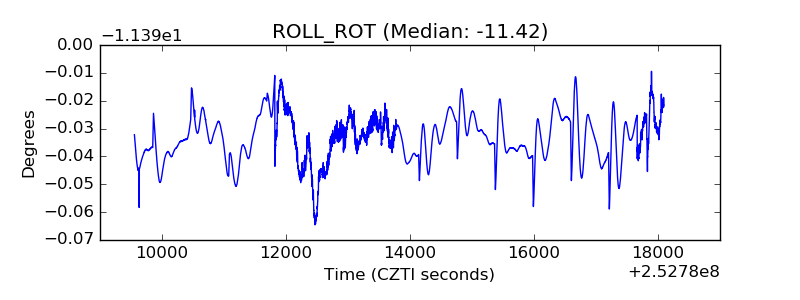

| _ROLL_ROT |  |

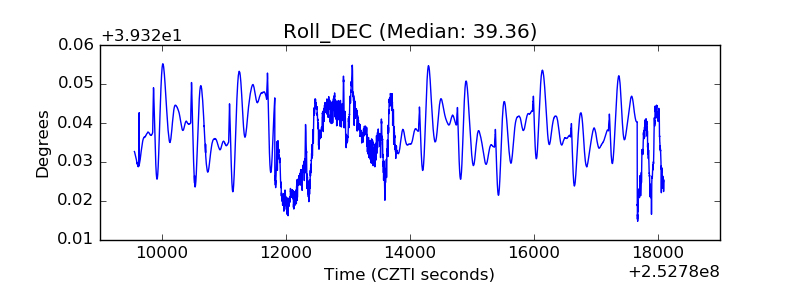

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
