| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_064T01_9000001814_12286cztM0_level2.evt | modeM0/AS1G08_064T01_9000001814_12286cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,529,201,600 | 432,645,120 |
| Size | 2.4 GB | 412.6 MB |
| Events in quadrant A | 18,903,025 | 2,728,772 |
| Events in quadrant B | 23,262,936 | 2,697,767 |
| Events in quadrant C | 14,970,152 | 2,760,754 |
| Events in quadrant D | 17,209,386 | 2,623,968 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48 | 0 |
| B | 0 | 48 | 0 |
| C | 0 | 48 | 0 |
| D | 0 | 48 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 680 | 0 |
| B | 0 | 680 | 0 |
| C | 0 | 680 | 0 |
| D | 0 | 680 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 78552 | 9 |
| B | 0 | 92412 | 6 |
| C | 0 | 68482 | 6 |
| D | 0 | 75211 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 33368 | 738 | 2.211700% |
| B | 33369 | 2934 | 8.792592% |
| C | 33369 | 170 | 0.509455% |
| D | 33369 | 554 | 1.660224% |

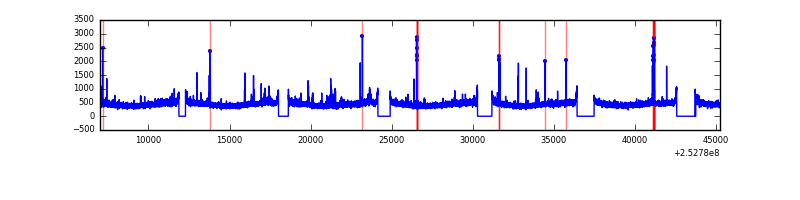

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

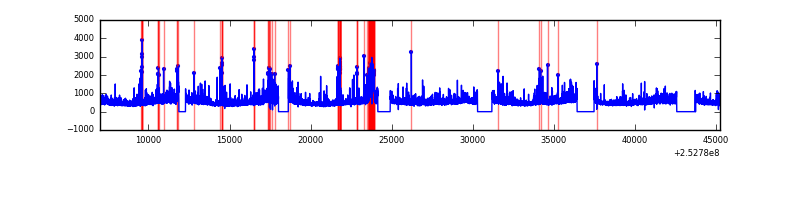

| A | 38255 | 33377 | 117 | 117 | 0.31% | 0.35% |  |
| B | 38255 | 33375 | 1567 | 1567 | 4.10% | 4.70% |  |
| C | 38255 | 33377 | 26 | 26 | 0.07% | 0.08% |  |

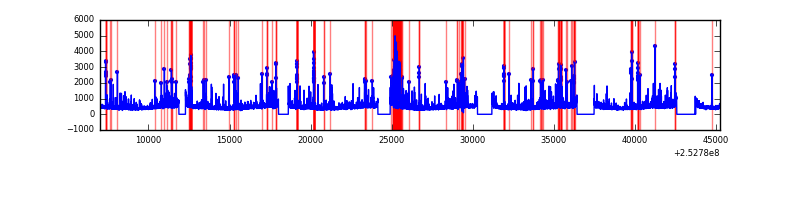

| D | 38255 | 33377 | 352 | 352 | 0.92% | 1.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 1644154 | 2098.14 | 3846 | 3758 | 781.8 |
| A | 13 | 251 | 701525 | 892.48 | 3846 | 3758 | 781.8 |
| A | 1 | 162 | 574154 | 729.56 | 3846 | 3758 | 781.8 |
| B | 4 | 239 | 5119322 | 7345.35 | 3701 | 3613 | 696.5 |
| B | 3 | 64 | 1966554 | 2818.47 | 3701 | 3613 | 696.5 |
| B | 0 | 85 | 758283 | 1083.59 | 3701 | 3613 | 696.5 |
| C | 1 | 16 | 186038 | 212.23 | 3749 | 3760 | 858.9 |
| C | 4 | 254 | 128244 | 144.94 | 3749 | 3760 | 858.9 |
| C | 13 | 61 | 27519 | 27.66 | 3749 | 3760 | 858.9 |
| D | 1 | 52 | 969812 | 1111.23 | 3705 | 3604 | 869.5 |
| D | 10 | 199 | 319191 | 362.96 | 3705 | 3604 | 869.5 |
| D | 10 | 253 | 305215 | 346.88 | 3705 | 3604 | 869.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

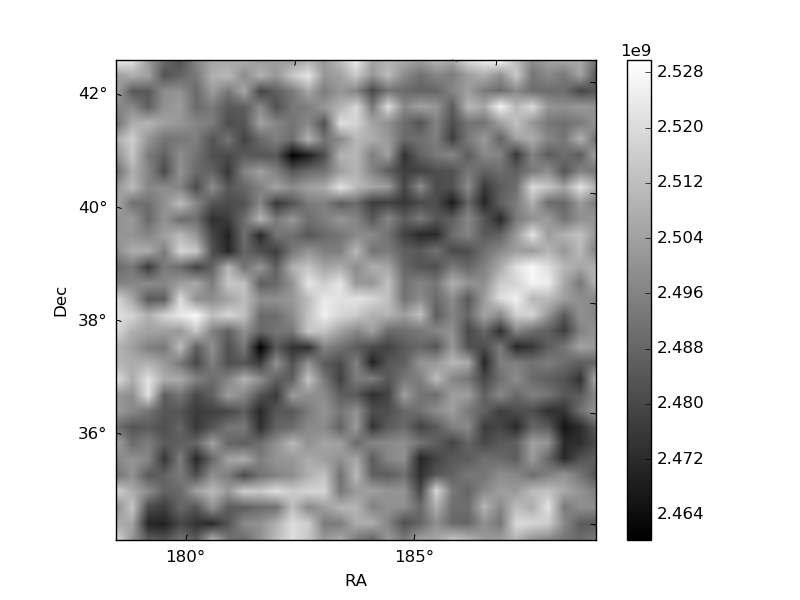

| Plot type | Count rate plots | Images |
|---|---|---|

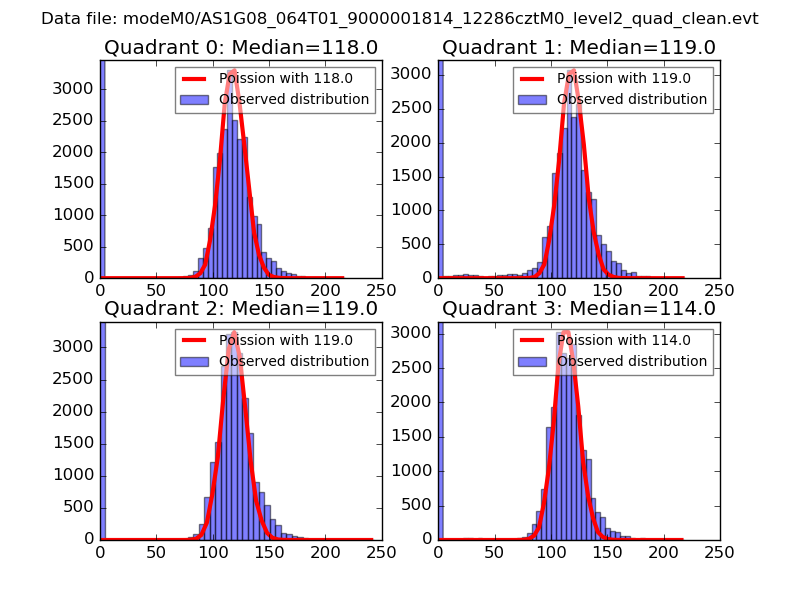

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

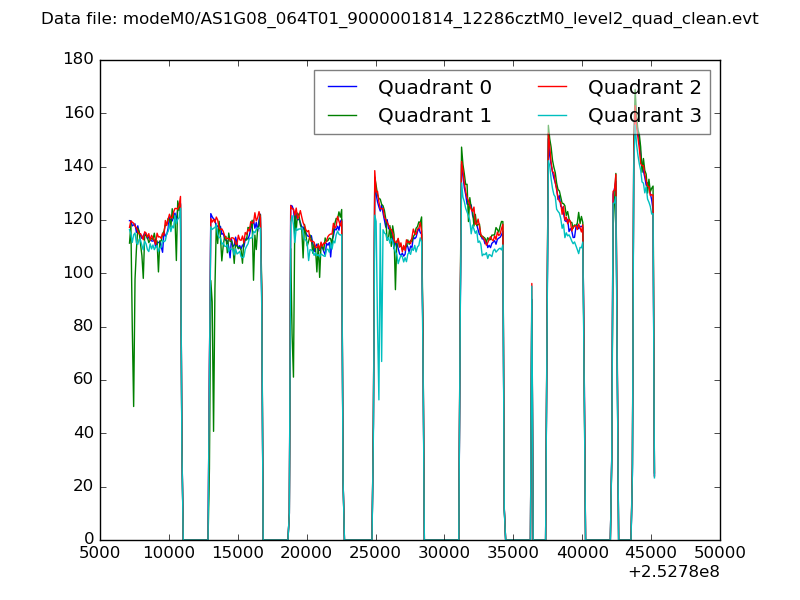

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

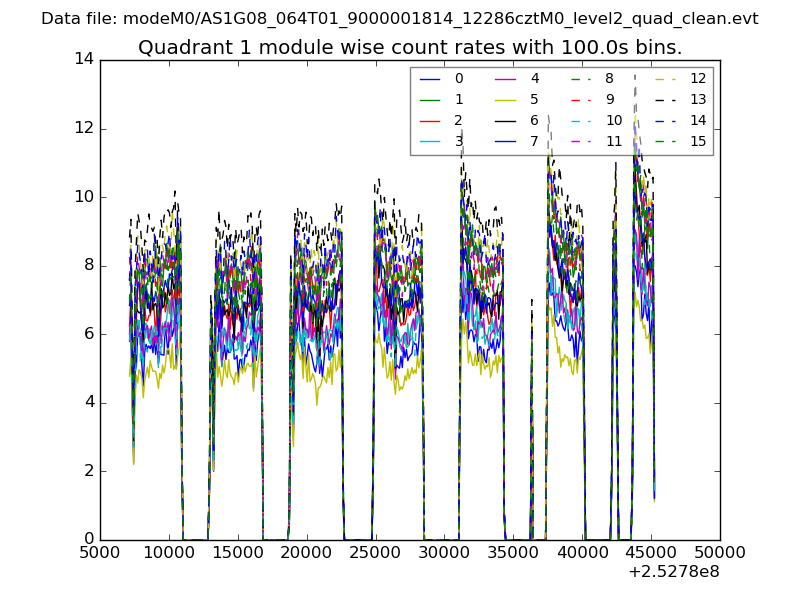

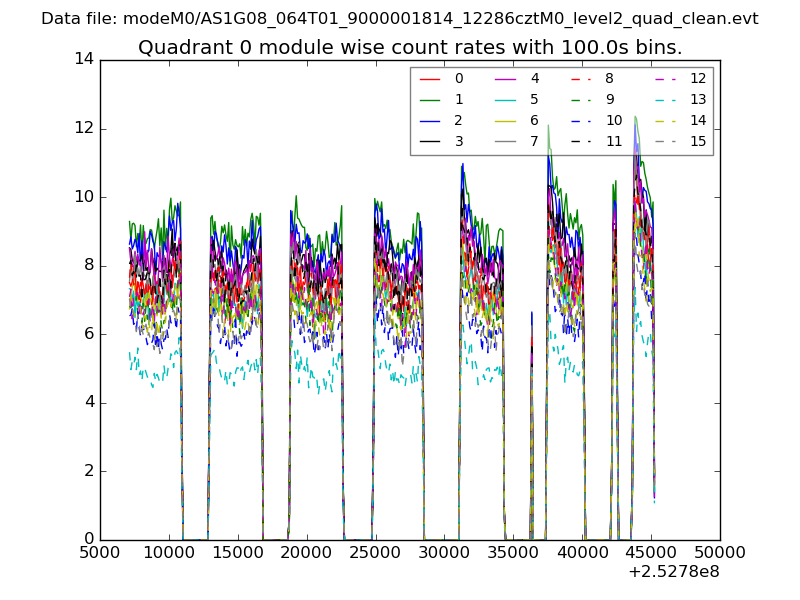

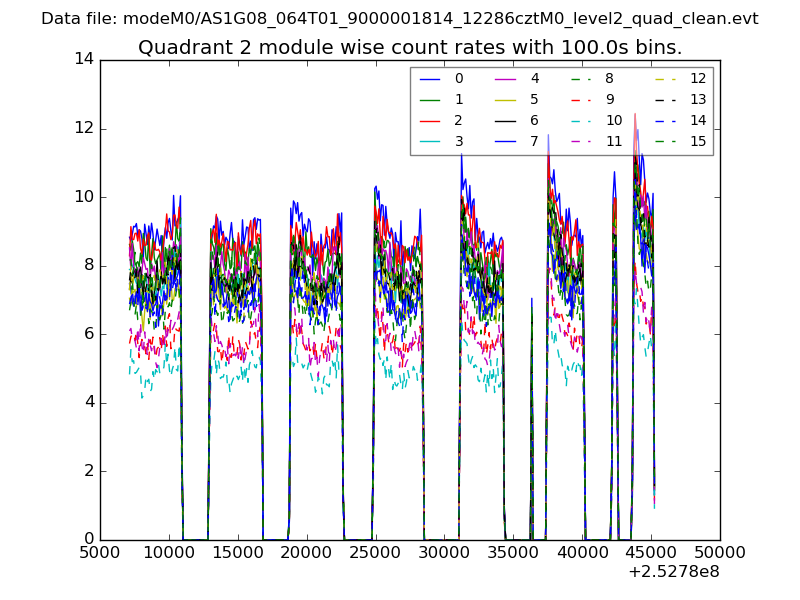

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

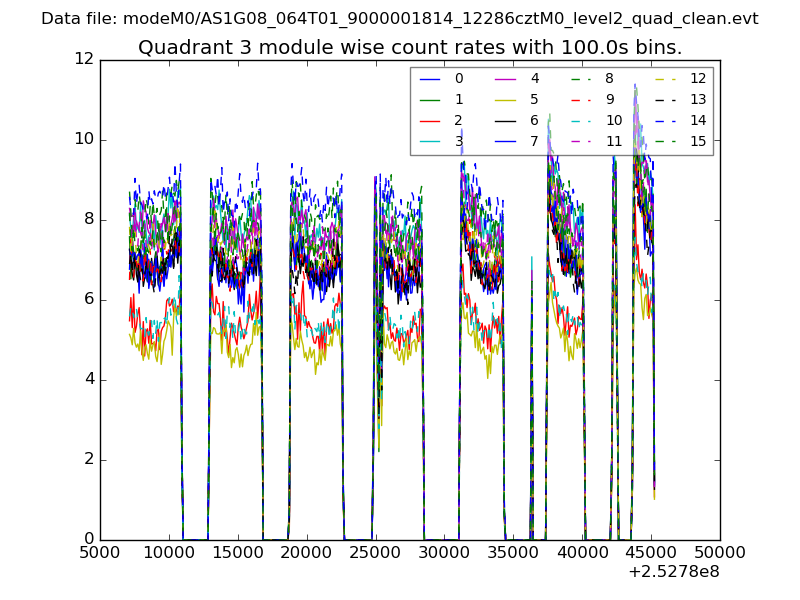

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

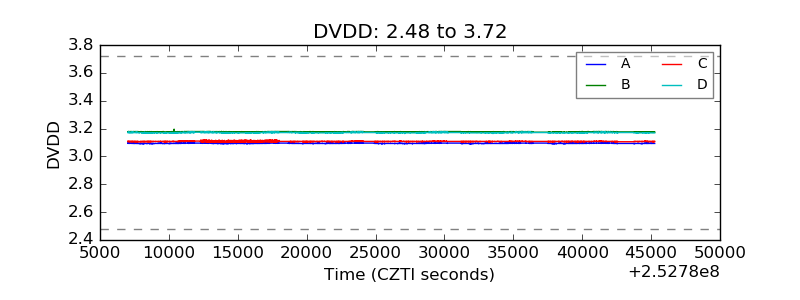

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

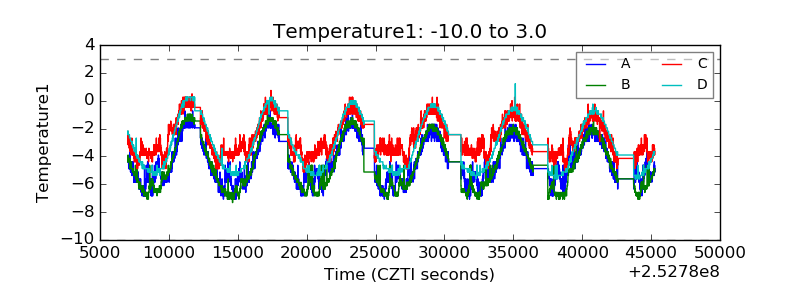

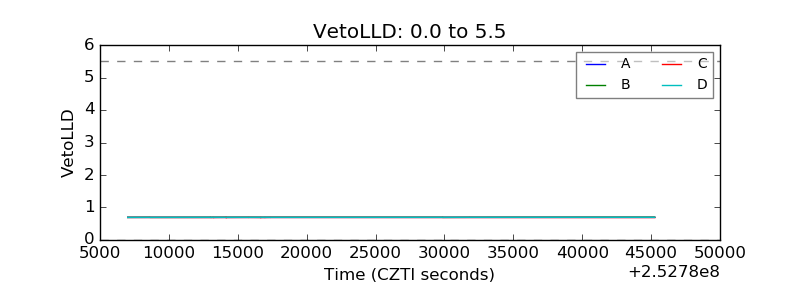

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

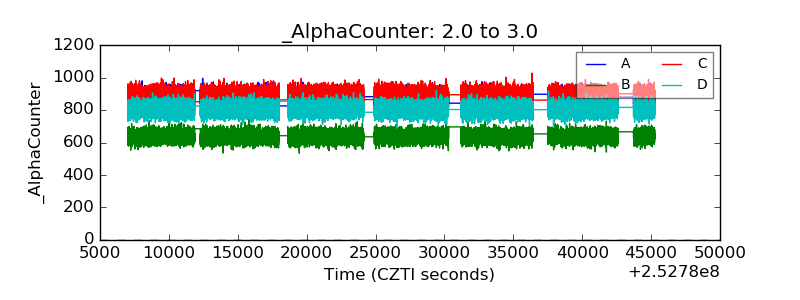

| Alpha Counter |  |

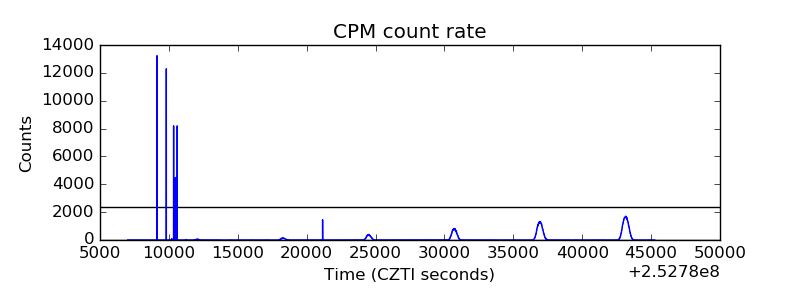

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

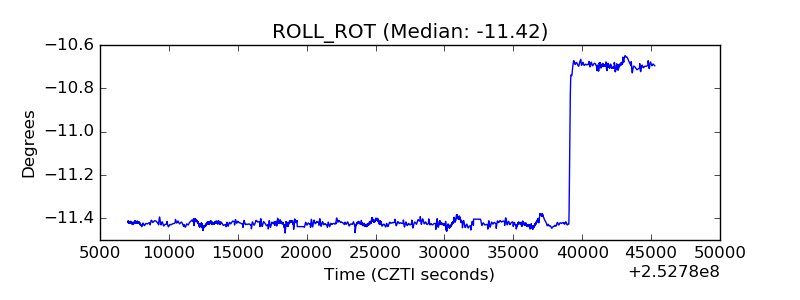

| _ROLL_ROT |  |

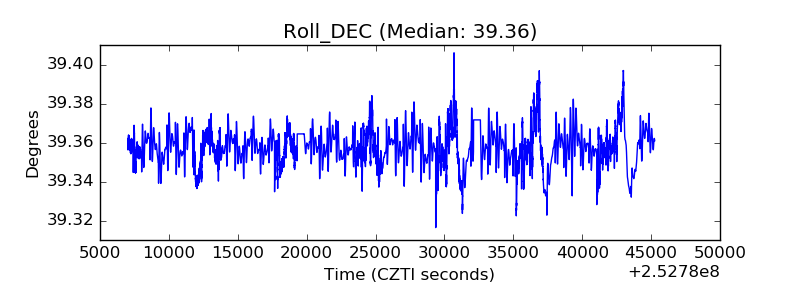

| _Roll_DEC |  |
| _Roll_RA |  |

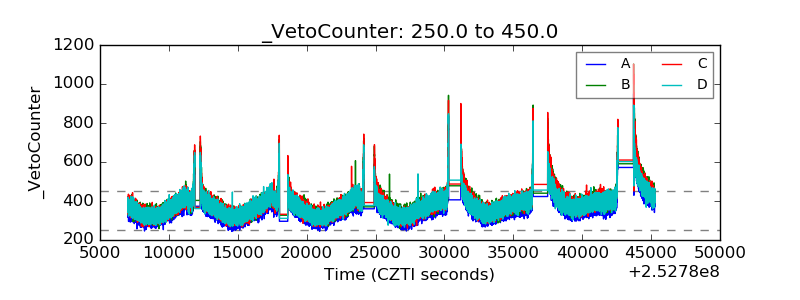

| Veto Counter |  |
