| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_064T01_9000001814_12289cztM0_level2.evt | modeM0/AS1G08_064T01_9000001814_12289cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,748,160 | 86,650,560 |
| Size | 448.0 MB | 82.6 MB |
| Events in quadrant A | 3,499,335 | 553,668 |
| Events in quadrant B | 4,034,942 | 560,488 |
| Events in quadrant C | 2,929,743 | 553,048 |
| Events in quadrant D | 3,347,320 | 529,899 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14219 | 2 |
| B | 0 | 15641 | 1 |
| C | 0 | 12535 | 1 |
| D | 0 | 13800 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6115 | 90 | 1.471791% |
| B | 6115 | 382 | 6.246934% |
| C | 6115 | 18 | 0.294358% |
| D | 6115 | 72 | 1.177433% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7411 | 6117 | 7 | 7 | 0.09% | 0.11% |  |
| B | 7411 | 6117 | 224 | 224 | 3.02% | 3.66% |  |
| C | 7411 | 6117 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7411 | 6117 | 26 | 26 | 0.35% | 0.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 130286 | 827.42 | 775 | 762 | 156.5 |
| A | 15 | 174 | 87623 | 554.88 | 775 | 762 | 156.5 |
| A | 1 | 178 | 74473 | 470.88 | 775 | 762 | 156.5 |
| B | 4 | 239 | 866977 | 6213.5 | 740 | 722 | 139.4 |
| B | 11 | 51 | 94457 | 672.35 | 740 | 722 | 139.4 |
| B | 3 | 64 | 57723 | 408.86 | 740 | 722 | 139.4 |
| C | 1 | 16 | 25585 | 146.09 | 742 | 746 | 170.0 |
| C | 15 | 208 | 5977 | 30.77 | 742 | 746 | 170.0 |
| C | 13 | 61 | 5592 | 28.5 | 742 | 746 | 170.0 |
| D | 1 | 52 | 139195 | 788.68 | 747 | 729 | 175.6 |
| D | 13 | 104 | 82426 | 465.33 | 747 | 729 | 175.6 |
| D | 10 | 50 | 80712 | 455.57 | 747 | 729 | 175.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

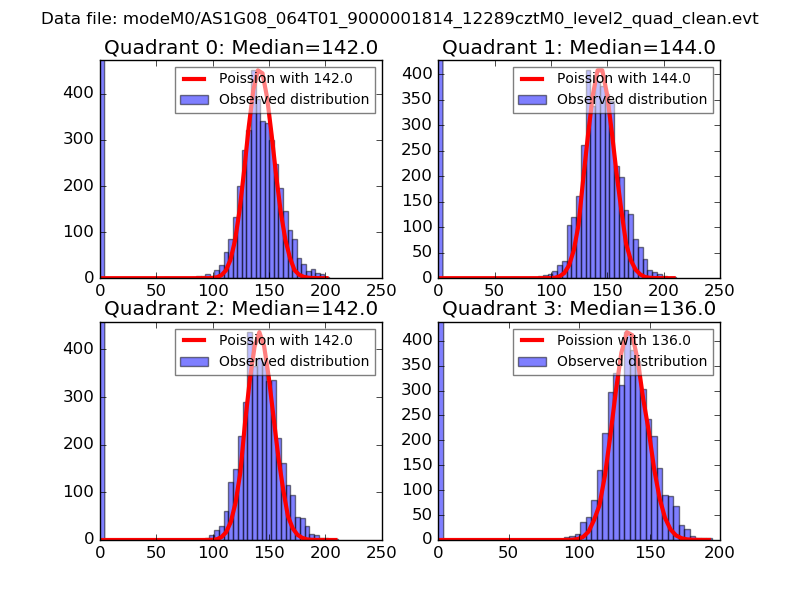

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

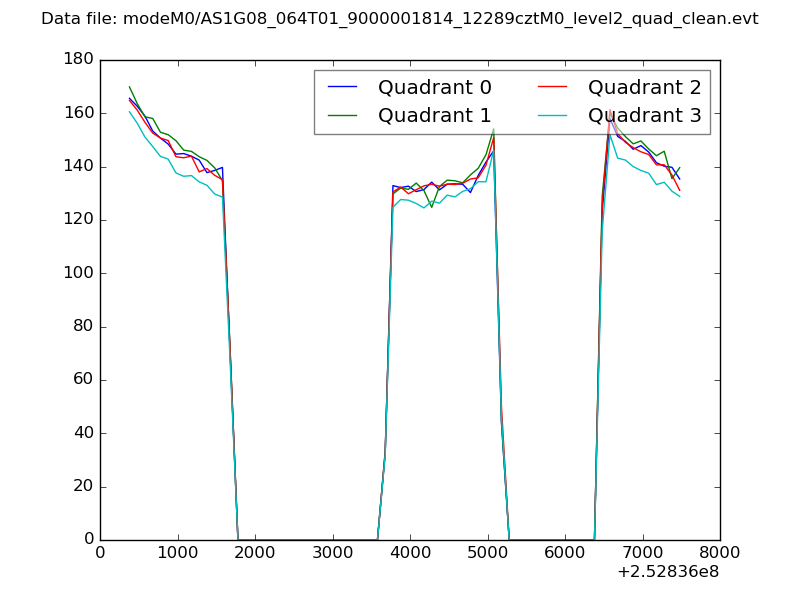

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

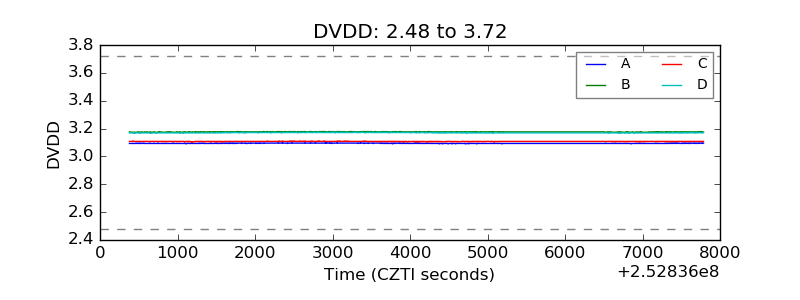

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

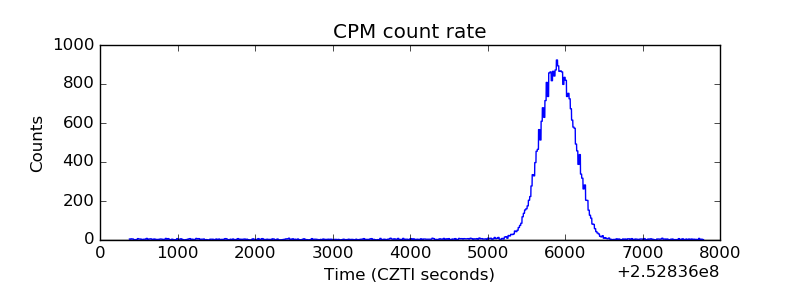

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

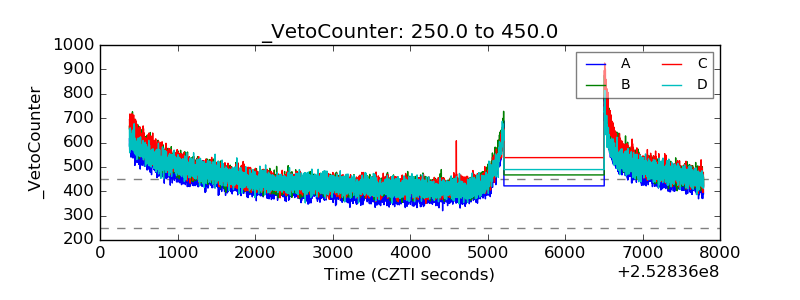

| Veto Counter |  |
