| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_064T01_9000001814_12290cztM0_level2.evt | modeM0/AS1G08_064T01_9000001814_12290cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,539,520 | 81,797,760 |
| Size | 441.1 MB | 78.0 MB |
| Events in quadrant A | 3,514,258 | 512,820 |
| Events in quadrant B | 3,599,040 | 519,307 |
| Events in quadrant C | 3,085,506 | 513,914 |
| Events in quadrant D | 3,381,018 | 491,038 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14405 | 3 |
| B | 0 | 14515 | 2 |
| C | 0 | 13240 | 2 |
| D | 0 | 14102 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6303 | 129 | 2.046644% |
| B | 6303 | 216 | 3.426940% |
| C | 6303 | 88 | 1.396161% |
| D | 6303 | 134 | 2.125972% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7439 | 6305 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7439 | 6305 | 57 | 57 | 0.77% | 0.90% |  |
| C | 7439 | 6305 | 6 | 6 | 0.08% | 0.10% |  |
| D | 7439 | 6305 | 36 | 36 | 0.48% | 0.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 136179 | 847.95 | 789 | 772 | 159.7 |
| A | 1 | 178 | 78259 | 485.24 | 789 | 772 | 159.7 |
| A | 0 | 23 | 73531 | 455.64 | 789 | 772 | 159.7 |
| B | 4 | 239 | 289443 | 1979.36 | 777 | 758 | 145.8 |
| B | 11 | 51 | 91480 | 622.03 | 777 | 758 | 145.8 |
| B | 0 | 85 | 65884 | 446.53 | 777 | 758 | 145.8 |
| C | 15 | 208 | 103051 | 580.66 | 760 | 764 | 176.2 |
| C | 4 | 254 | 10777 | 56.84 | 760 | 764 | 176.2 |
| C | 1 | 16 | 6529 | 32.73 | 760 | 764 | 176.2 |
| D | 1 | 52 | 78153 | 429.4 | 761 | 740 | 180.3 |
| D | 10 | 50 | 73912 | 405.88 | 761 | 740 | 180.3 |
| D | 13 | 104 | 54274 | 296.95 | 761 | 740 | 180.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

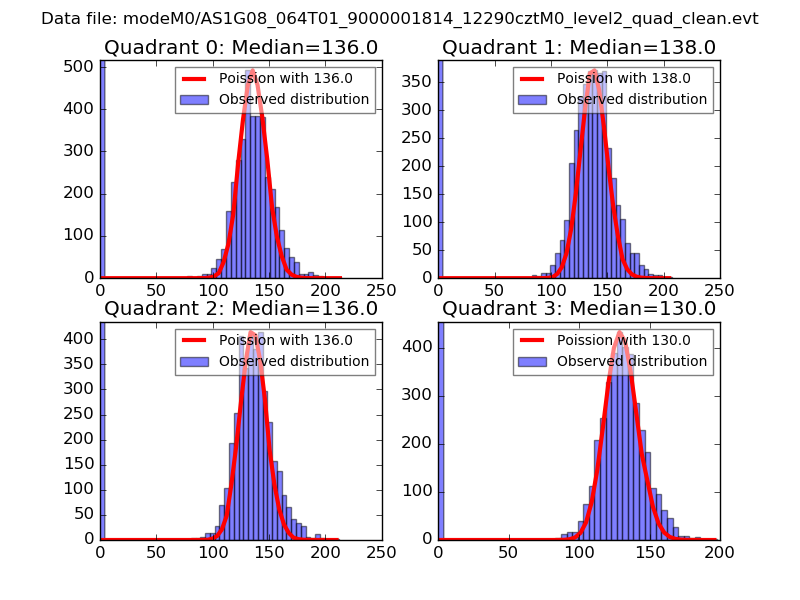

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

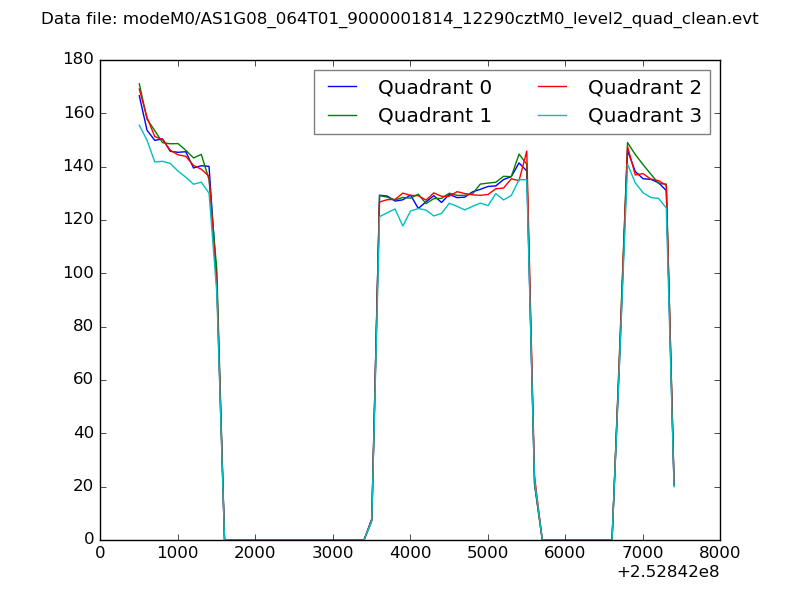

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
