| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_183T02_9000001816_12302cztM0_level2.evt | modeM0/AS1A04_183T02_9000001816_12302cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,725,440 | 62,360,640 |
| Size | 477.5 MB | 59.5 MB |
| Events in quadrant A | 3,411,874 | 364,198 |
| Events in quadrant B | 4,785,788 | 369,105 |
| Events in quadrant C | 3,216,888 | 368,436 |
| Events in quadrant D | 3,325,169 | 349,212 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13871 | 3 |
| B | 0 | 18377 | 2 |
| C | 0 | 13402 | 2 |
| D | 0 | 13782 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6258 | 51 | 0.814957% |
| B | 6258 | 415 | 6.631512% |
| C | 6258 | 40 | 0.639182% |
| D | 6258 | 58 | 0.926814% |

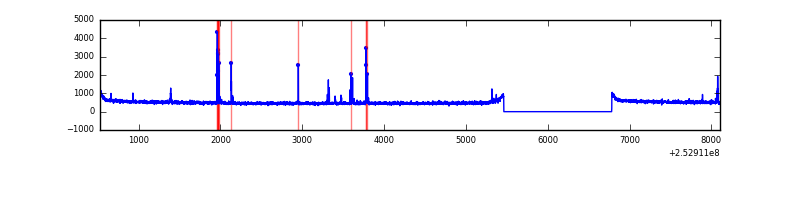

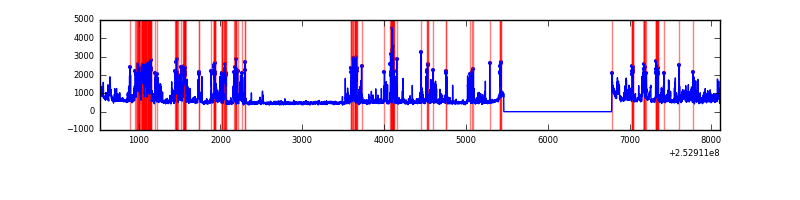

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7579 | 6260 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7579 | 6260 | 220 | 220 | 2.90% | 3.51% |  |
| C | 7579 | 6260 | 13 | 13 | 0.17% | 0.21% |  |
| D | 7579 | 6260 | 38 | 38 | 0.50% | 0.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 89666 | 536.53 | 820 | 805 | 165.6 |
| A | 1 | 178 | 47351 | 281.04 | 820 | 805 | 165.6 |
| A | 1 | 161 | 41048 | 242.98 | 820 | 805 | 165.6 |
| B | 4 | 239 | 1120452 | 7295.15 | 816 | 800 | 153.5 |
| B | 0 | 85 | 379821 | 2469.53 | 816 | 800 | 153.5 |
| B | 11 | 51 | 39654 | 253.16 | 816 | 800 | 153.5 |
| C | 14 | 234 | 94452 | 513.1 | 797 | 805 | 182.5 |
| C | 15 | 208 | 10711 | 54.28 | 797 | 805 | 182.5 |
| C | 13 | 61 | 5929 | 28.07 | 797 | 805 | 182.5 |
| D | 1 | 52 | 161795 | 849.42 | 786 | 765 | 189.6 |
| D | 11 | 129 | 77849 | 406.61 | 786 | 765 | 189.6 |
| D | 13 | 104 | 42793 | 221.69 | 786 | 765 | 189.6 |

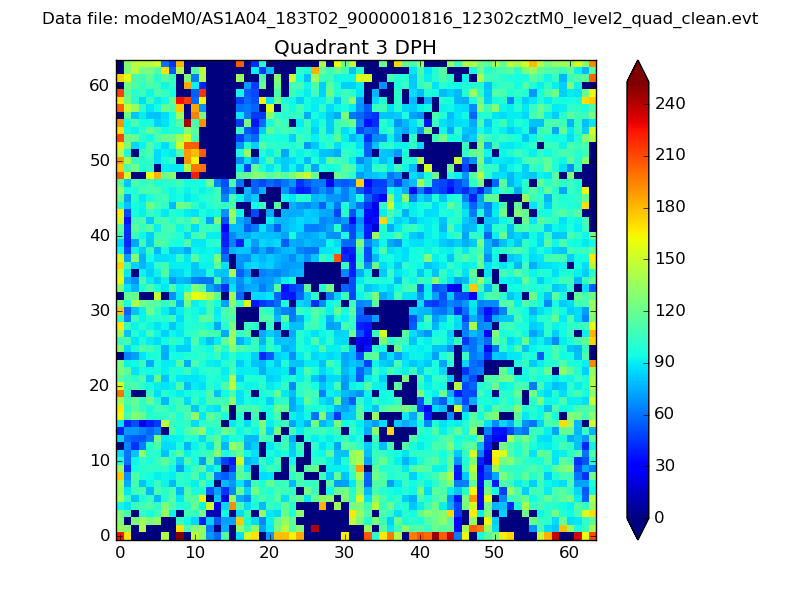

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

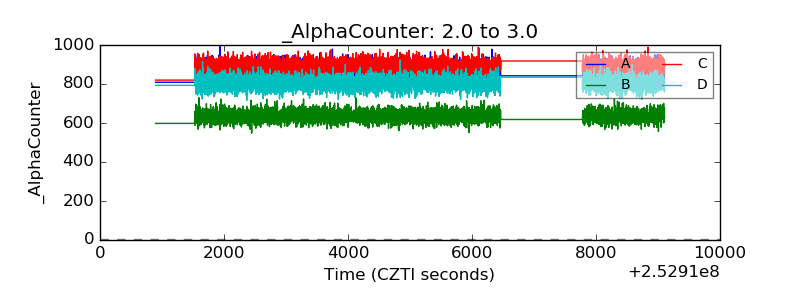

| Alpha Counter |  |
| _CPM_Rate |  |

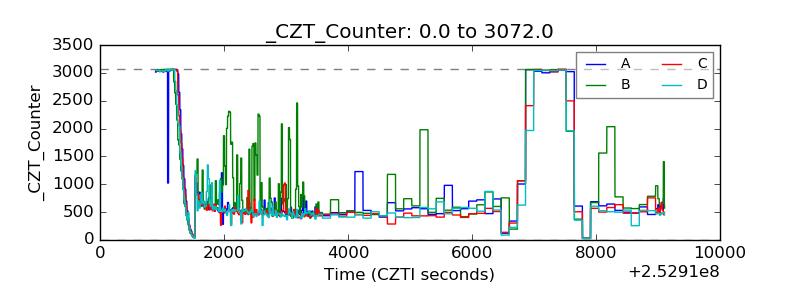

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

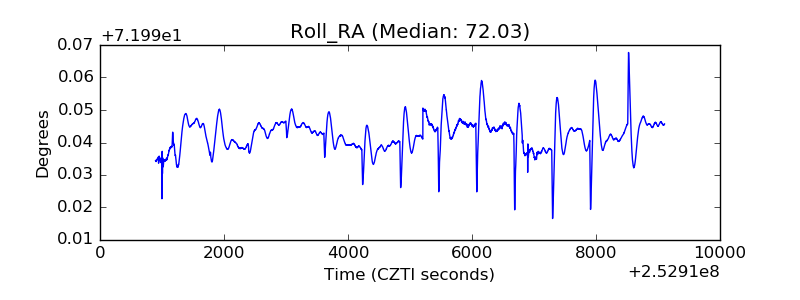

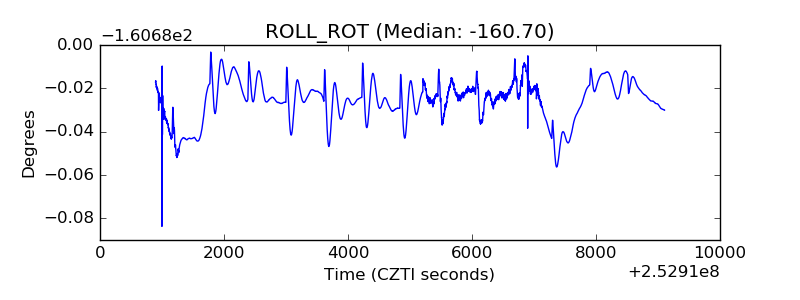

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
