| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_183T02_9000001816_12307cztM0_level2.evt | modeM0/AS1A04_183T02_9000001816_12307cztM0_level2_quad_clean.evt |
| Size (bytes) | 624,240,000 | 97,655,040 |
| Size | 595.3 MB | 93.1 MB |
| Events in quadrant A | 4,499,996 | 608,245 |
| Events in quadrant B | 5,393,298 | 584,177 |
| Events in quadrant C | 3,800,110 | 620,397 |
| Events in quadrant D | 4,670,077 | 589,025 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18516 | 3 |
| B | 0 | 21228 | 2 |
| C | 0 | 16776 | 2 |
| D | 0 | 19096 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7996 | 299 | 3.739370% |
| B | 7996 | 700 | 8.754377% |
| C | 7996 | 81 | 1.013007% |
| D | 7996 | 281 | 3.514257% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8862 | 7999 | 7 | 7 | 0.08% | 0.09% |  |
| B | 8862 | 7999 | 267 | 267 | 3.01% | 3.34% |  |
| C | 8862 | 7999 | 3 | 3 | 0.03% | 0.04% |  |
| D | 8862 | 7999 | 135 | 135 | 1.52% | 1.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 190022 | 923.77 | 988 | 964 | 204.7 |
| A | 11 | 29 | 136606 | 662.77 | 988 | 964 | 204.7 |
| A | 1 | 178 | 106925 | 517.74 | 988 | 964 | 204.7 |
| B | 4 | 239 | 1248380 | 6723.58 | 957 | 932 | 185.5 |
| B | 3 | 64 | 179550 | 962.73 | 957 | 932 | 185.5 |
| B | 11 | 51 | 64969 | 345.15 | 957 | 932 | 185.5 |
| C | 14 | 234 | 31833 | 137.01 | 964 | 968 | 225.3 |
| C | 13 | 61 | 7038 | 26.94 | 964 | 968 | 225.3 |
| C | 4 | 254 | 6033 | 22.48 | 964 | 968 | 225.3 |
| D | 1 | 52 | 669858 | 2878.61 | 959 | 932 | 232.4 |
| D | 5 | 222 | 79432 | 337.81 | 959 | 932 | 232.4 |
| D | 8 | 195 | 67542 | 286.64 | 959 | 932 | 232.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

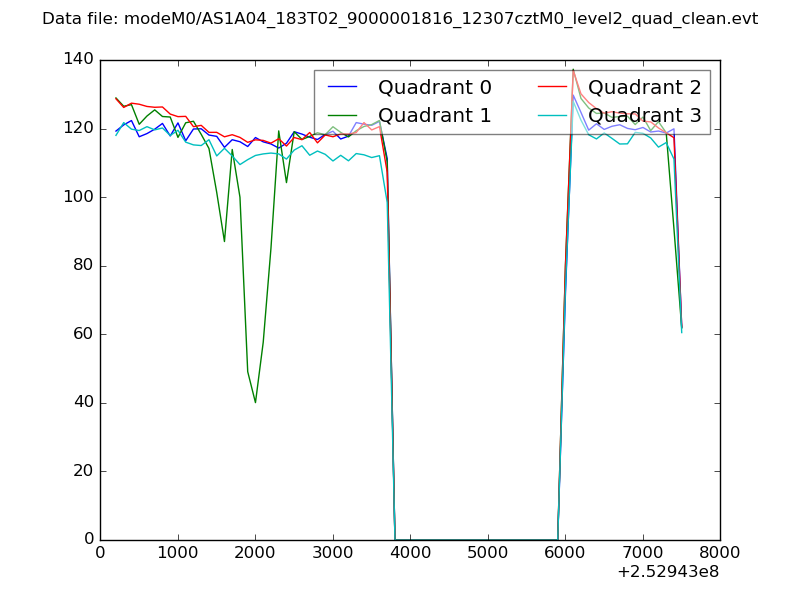

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

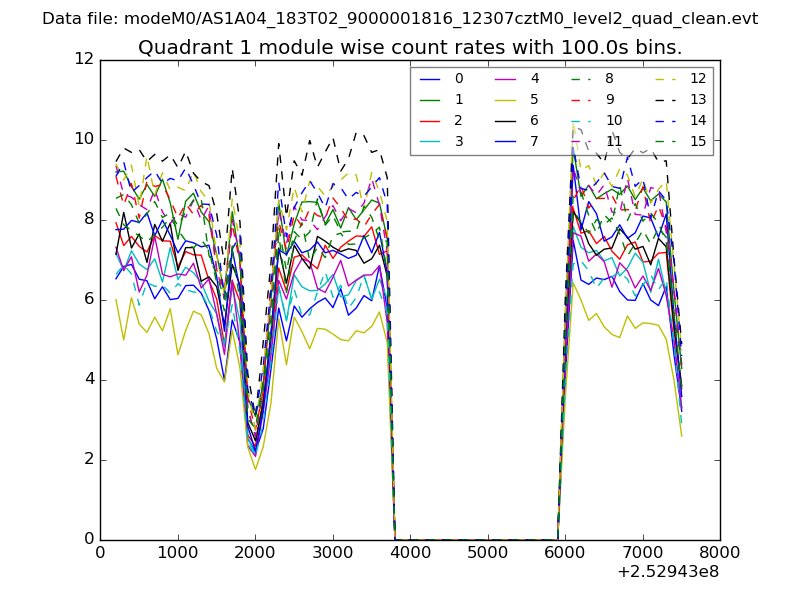

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

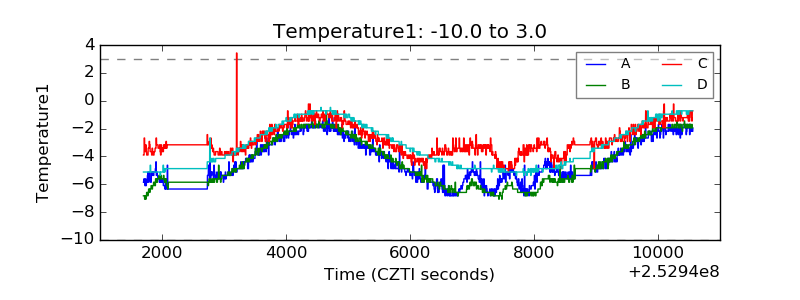

| Temperature 1 |  |

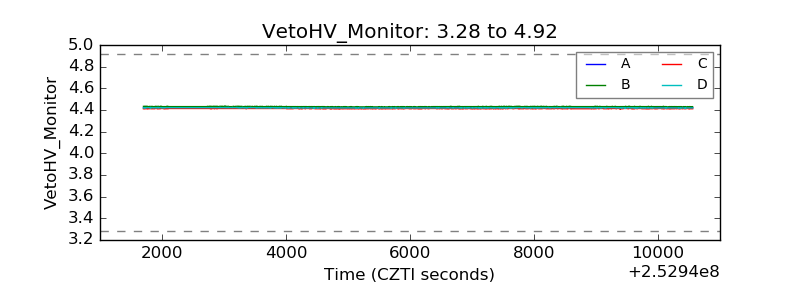

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

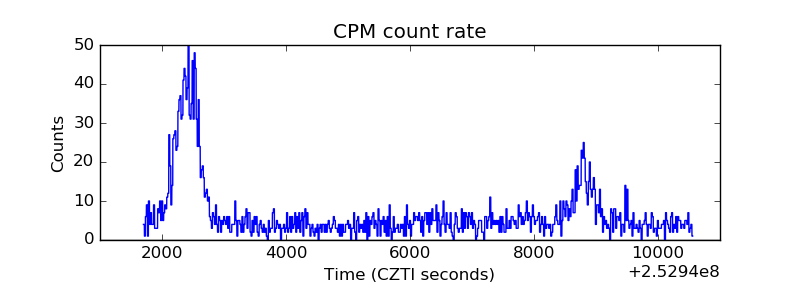

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

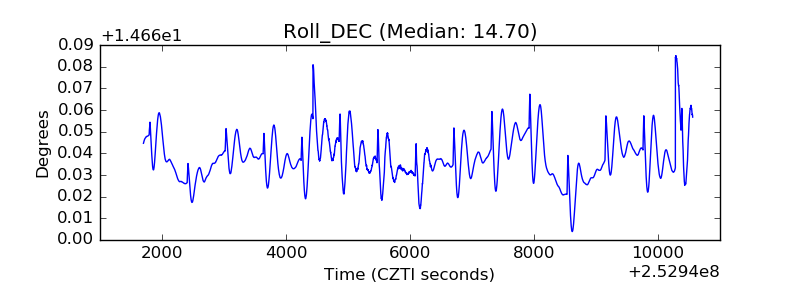

| _Roll_DEC |  |
| _Roll_RA |  |

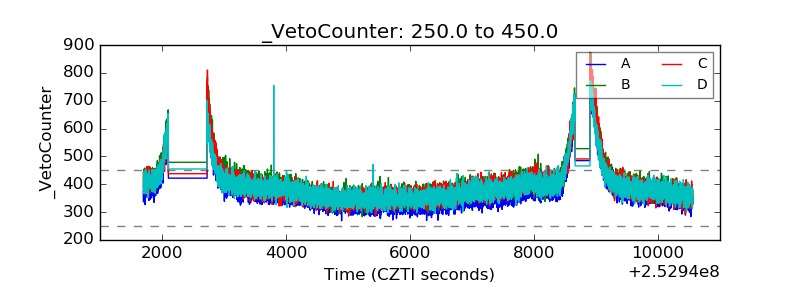

| Veto Counter |  |
