| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_048T01_9000001820_12326cztM0_level2.evt | modeM0/AS1A04_048T01_9000001820_12326cztM0_level2_quad_clean.evt |
| Size (bytes) | 572,762,880 | 97,776,000 |
| Size | 546.2 MB | 93.2 MB |
| Events in quadrant A | 4,403,616 | 614,984 |
| Events in quadrant B | 4,732,032 | 620,277 |
| Events in quadrant C | 3,477,322 | 620,317 |
| Events in quadrant D | 4,230,805 | 590,143 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18156 | 3 |
| B | 0 | 19026 | 2 |
| C | 0 | 15379 | 2 |
| D | 0 | 17789 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7405 | 189 | 2.552330% |
| B | 7405 | 619 | 8.359217% |
| C | 7405 | 52 | 0.702228% |
| D | 7405 | 170 | 2.295746% |

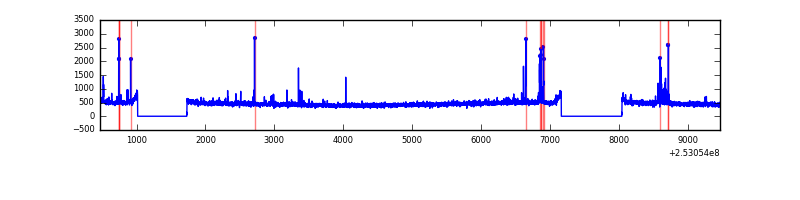

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9001 | 7408 | 10 | 10 | 0.11% | 0.13% |  |
| B | 9001 | 7408 | 212 | 212 | 2.36% | 2.86% |  |
| C | 9001 | 7408 | 14 | 14 | 0.16% | 0.19% |  |
| D | 9001 | 7408 | 98 | 98 | 1.09% | 1.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 268317 | 1477.9 | 875 | 855 | 181.0 |
| A | 13 | 251 | 166677 | 916.27 | 875 | 855 | 181.0 |
| A | 1 | 178 | 150675 | 827.85 | 875 | 855 | 181.0 |
| B | 4 | 239 | 963875 | 6055.16 | 837 | 818 | 159.0 |
| B | 0 | 85 | 208219 | 1304.02 | 837 | 818 | 159.0 |
| B | 3 | 64 | 161702 | 1011.55 | 837 | 818 | 159.0 |
| C | 4 | 254 | 60442 | 300.94 | 855 | 859 | 198.0 |
| C | 15 | 208 | 33225 | 163.47 | 855 | 859 | 198.0 |
| C | 0 | 207 | 31550 | 155.01 | 855 | 859 | 198.0 |
| D | 10 | 199 | 260949 | 1288.64 | 841 | 817 | 201.9 |
| D | 14 | 34 | 210778 | 1040.1 | 841 | 817 | 201.9 |
| D | 1 | 52 | 180190 | 888.58 | 841 | 817 | 201.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

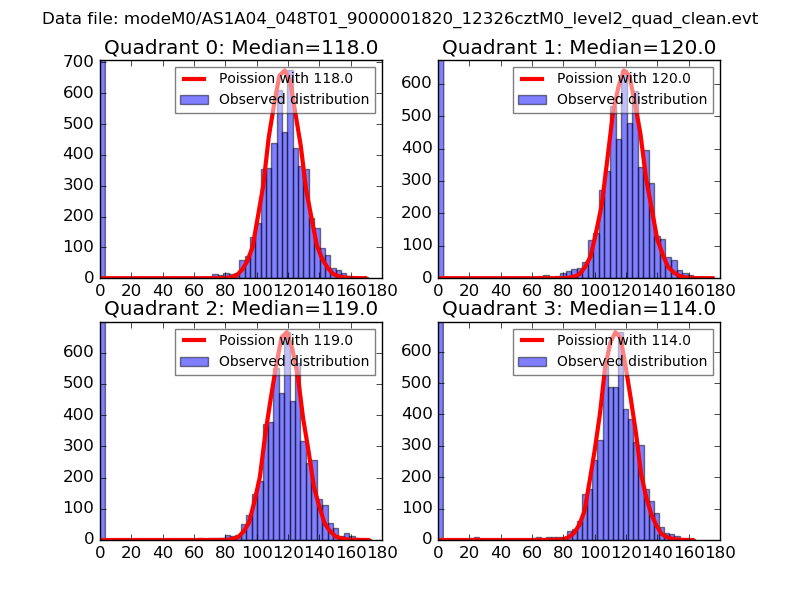

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

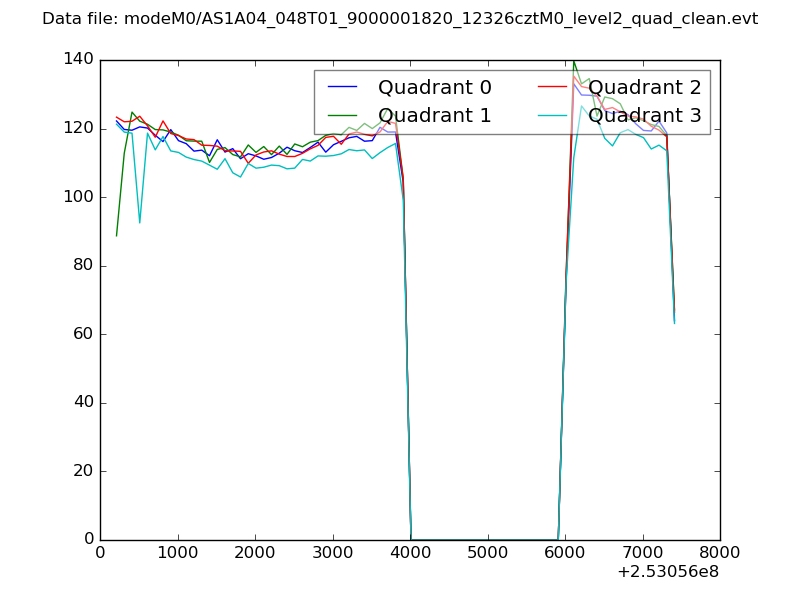

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

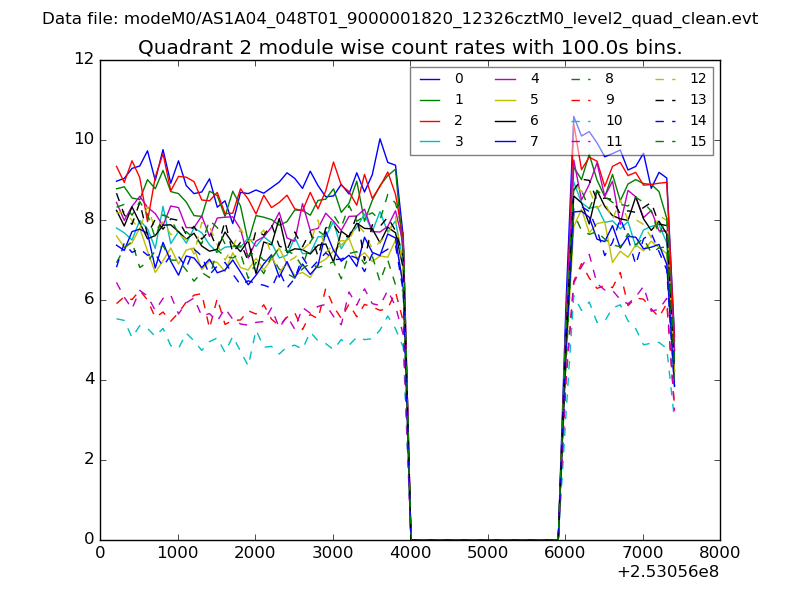

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

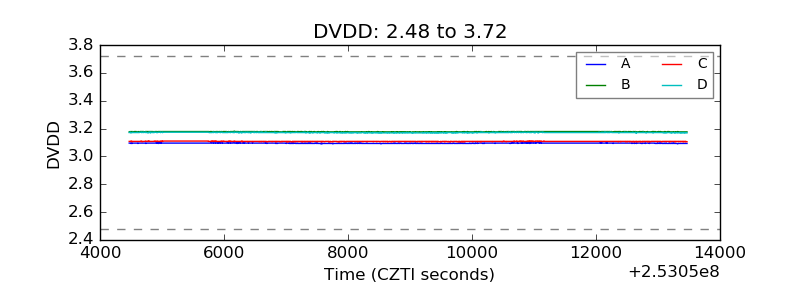

| D_VDD |  |

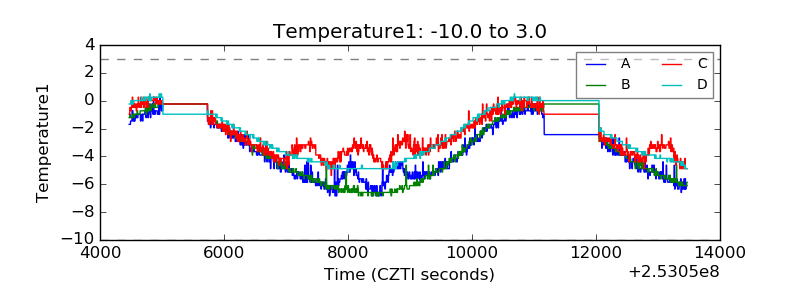

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

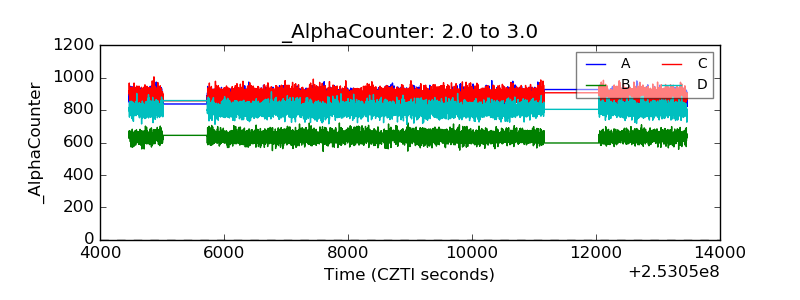

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
