| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_048T01_9000001820_12327cztM0_level2.evt | modeM0/AS1A04_048T01_9000001820_12327cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,206,400 | 97,738,560 |
| Size | 486.6 MB | 93.2 MB |
| Events in quadrant A | 3,888,993 | 624,647 |
| Events in quadrant B | 3,821,043 | 642,273 |
| Events in quadrant C | 3,327,487 | 634,762 |
| Events in quadrant D | 3,966,615 | 598,286 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16021 | 3 |
| B | 0 | 15802 | 2 |
| C | 0 | 14314 | 2 |
| D | 0 | 16477 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6597 | 82 | 1.242989% |
| B | 6597 | 172 | 2.607246% |
| C | 6597 | 40 | 0.606336% |
| D | 6597 | 161 | 2.440503% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7633 | 6599 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7633 | 6599 | 71 | 71 | 0.93% | 1.08% |  |
| C | 7633 | 6599 | 32 | 32 | 0.42% | 0.48% |  |
| D | 7633 | 6599 | 134 | 134 | 1.76% | 2.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 228004 | 1433.18 | 771 | 754 | 158.6 |
| A | 13 | 248 | 188124 | 1181.67 | 771 | 754 | 158.6 |
| A | 1 | 162 | 184143 | 1156.56 | 771 | 754 | 158.6 |
| B | 4 | 239 | 335545 | 2257.1 | 779 | 760 | 148.3 |
| B | 0 | 85 | 305989 | 2057.84 | 779 | 760 | 148.3 |
| B | 3 | 64 | 43838 | 290.43 | 779 | 760 | 148.3 |
| C | 4 | 254 | 271799 | 1543.62 | 758 | 760 | 175.6 |
| C | 15 | 208 | 58139 | 326.78 | 758 | 760 | 175.6 |
| C | 0 | 207 | 21941 | 120.63 | 758 | 760 | 175.6 |
| D | 14 | 34 | 248606 | 1384.65 | 742 | 721 | 179.0 |
| D | 10 | 199 | 232995 | 1297.45 | 742 | 721 | 179.0 |
| D | 1 | 52 | 178530 | 993.21 | 742 | 721 | 179.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

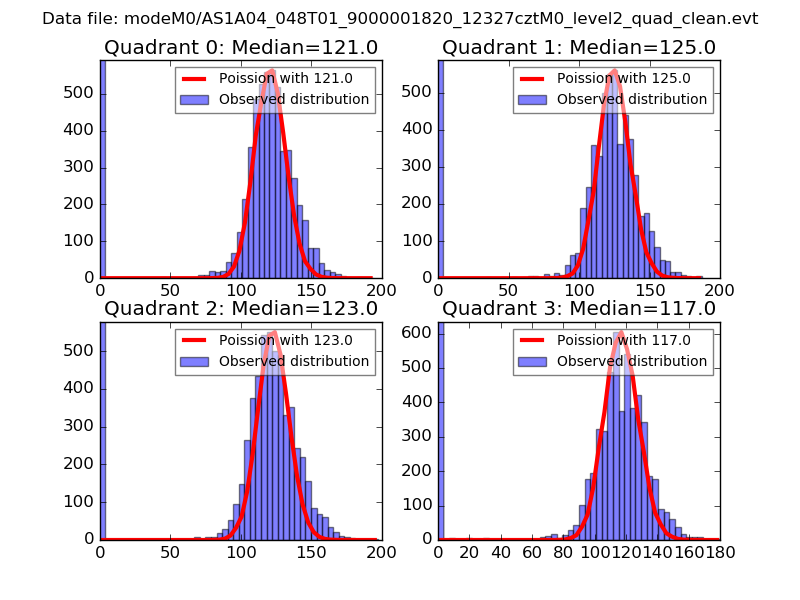

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

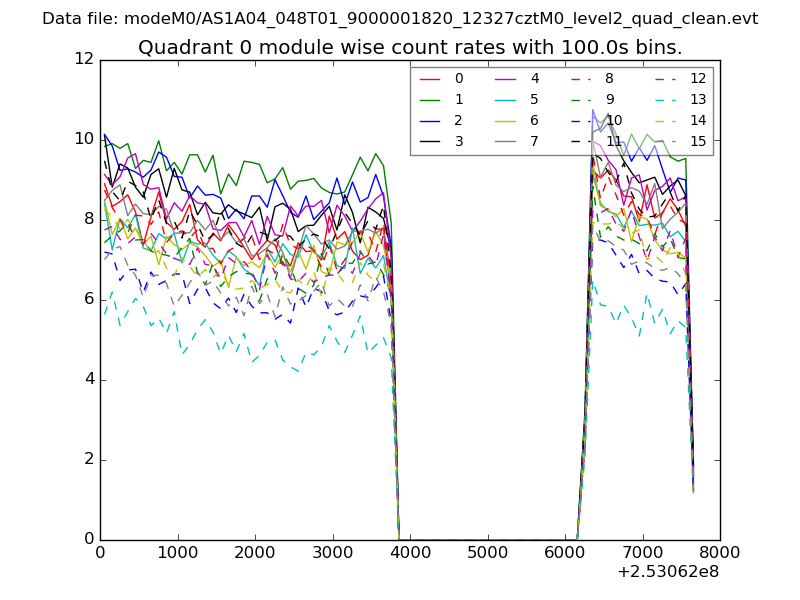

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

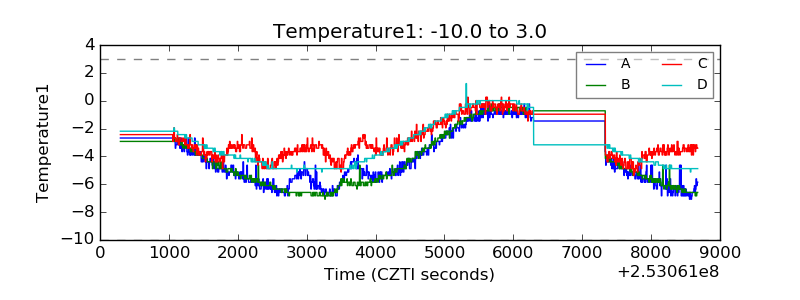

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

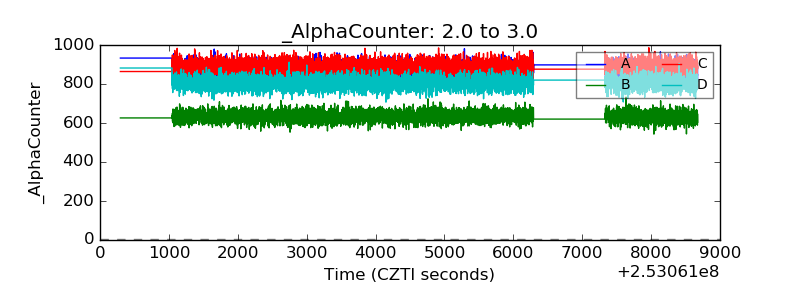

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

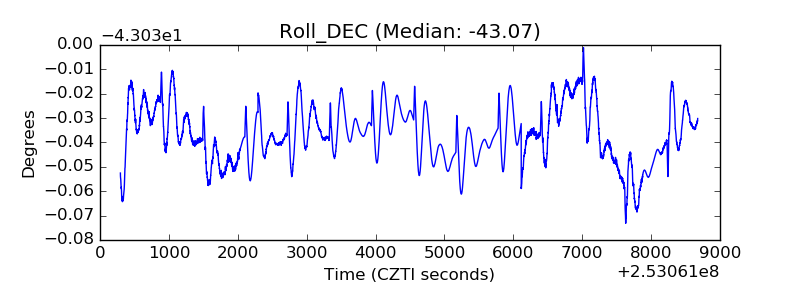

| _Roll_DEC |  |
| _Roll_RA |  |

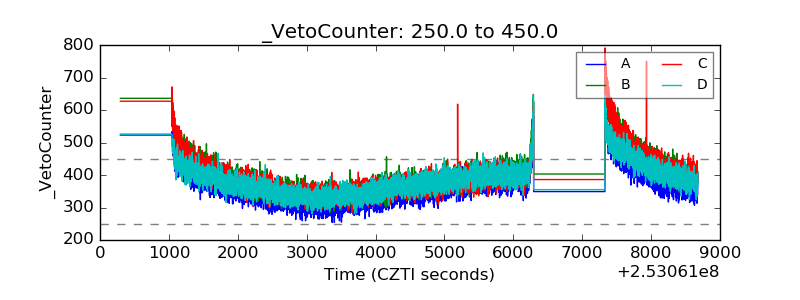

| Veto Counter |  |
