| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_048T01_9000001820_12332cztM0_level2.evt | modeM0/AS1A04_048T01_9000001820_12332cztM0_level2_quad_clean.evt |
| Size (bytes) | 454,976,640 | 84,093,120 |
| Size | 433.9 MB | 80.2 MB |
| Events in quadrant A | 3,233,660 | 534,401 |
| Events in quadrant B | 4,039,486 | 542,619 |
| Events in quadrant C | 3,071,092 | 544,291 |
| Events in quadrant D | 3,039,956 | 518,744 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13156 | 2 |
| B | 0 | 15725 | 1 |
| C | 0 | 12665 | 1 |
| D | 0 | 12705 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5810 | 42 | 0.722892% |
| B | 5810 | 283 | 4.870912% |
| C | 5810 | 52 | 0.895009% |
| D | 5810 | 32 | 0.550775% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7146 | 5812 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7146 | 5812 | 185 | 185 | 2.59% | 3.18% |  |
| C | 7146 | 5812 | 29 | 29 | 0.41% | 0.50% |  |
| D | 7146 | 5812 | 12 | 12 | 0.17% | 0.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 135841 | 922.52 | 727 | 713 | 146.5 |
| A | 1 | 178 | 71059 | 480.26 | 727 | 713 | 146.5 |
| A | 13 | 251 | 69822 | 471.81 | 727 | 713 | 146.5 |
| B | 0 | 85 | 700134 | 5229.82 | 718 | 702 | 133.7 |
| B | 4 | 239 | 376305 | 2808.47 | 718 | 702 | 133.7 |
| B | 3 | 64 | 51019 | 376.23 | 718 | 702 | 133.7 |
| C | 4 | 254 | 171139 | 1027.07 | 721 | 725 | 165.9 |
| C | 15 | 208 | 79266 | 473.36 | 721 | 725 | 165.9 |
| C | 3 | 233 | 7738 | 42.27 | 721 | 725 | 165.9 |
| D | 10 | 50 | 65762 | 377.35 | 719 | 699 | 172.4 |
| D | 10 | 199 | 65721 | 377.11 | 719 | 699 | 172.4 |
| D | 13 | 104 | 45985 | 262.65 | 719 | 699 | 172.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

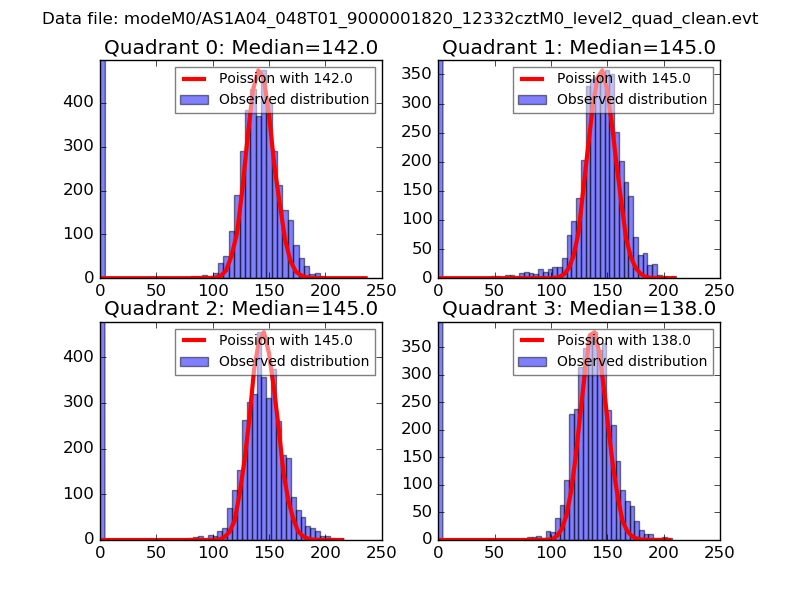

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

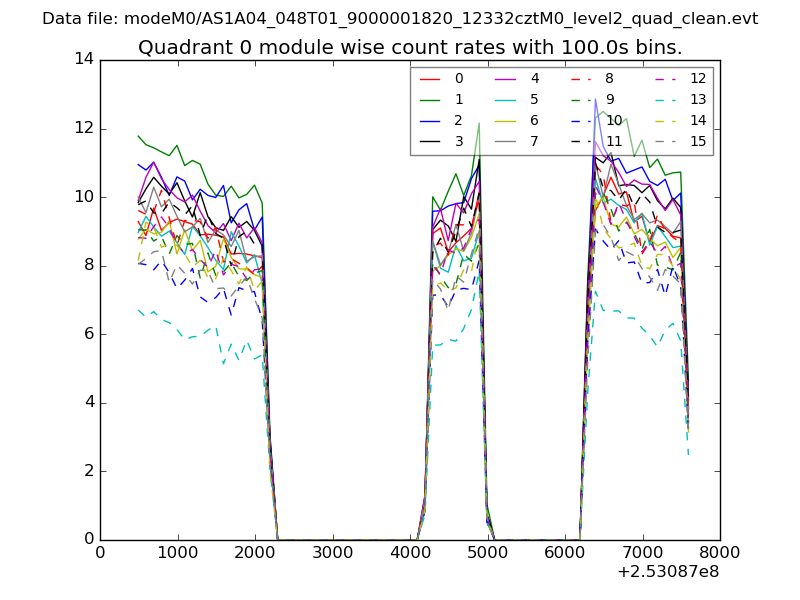

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

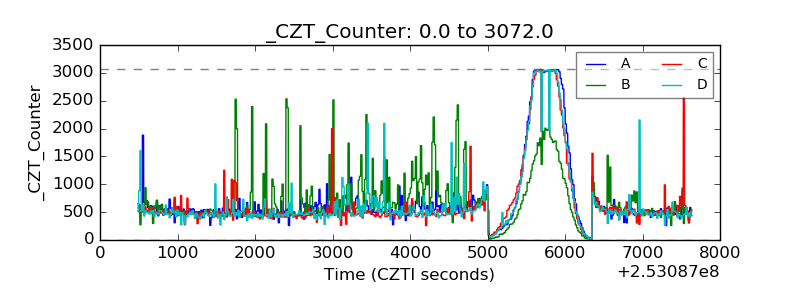

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

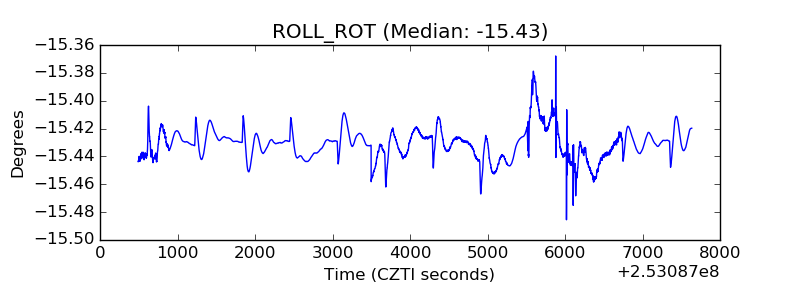

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

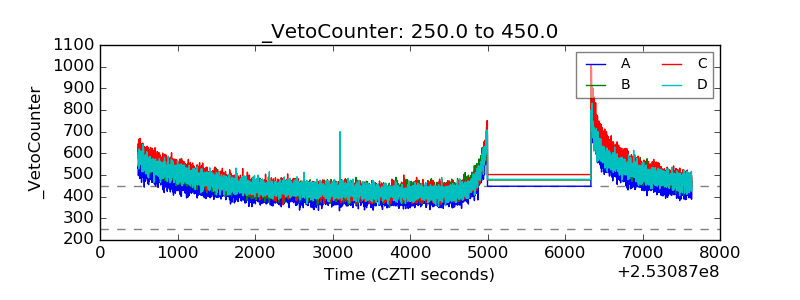

| Veto Counter |  |
