| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_048T01_9000001820_12333cztM0_level2.evt | modeM0/AS1A04_048T01_9000001820_12333cztM0_level2_quad_clean.evt |
| Size (bytes) | 451,486,080 | 83,373,120 |
| Size | 430.6 MB | 79.5 MB |
| Events in quadrant A | 3,354,407 | 530,001 |
| Events in quadrant B | 3,636,615 | 534,120 |
| Events in quadrant C | 3,118,686 | 537,561 |
| Events in quadrant D | 3,162,382 | 510,282 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13683 | 2 |
| B | 0 | 14461 | 1 |
| C | 0 | 13018 | 1 |
| D | 0 | 13200 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5908 | 111 | 1.878808% |
| B | 5908 | 249 | 4.214624% |
| C | 5908 | 88 | 1.489506% |
| D | 5908 | 128 | 2.166554% |

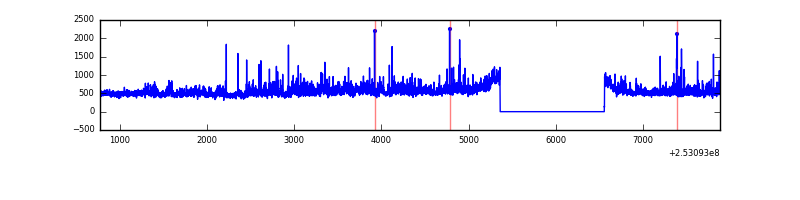

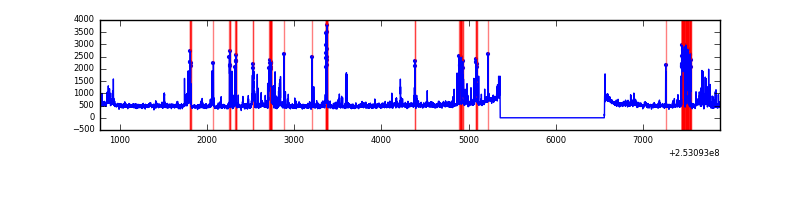

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7104 | 5910 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7104 | 5910 | 122 | 122 | 1.72% | 2.06% |  |
| C | 7104 | 5910 | 28 | 28 | 0.39% | 0.47% |  |
| D | 7104 | 5910 | 62 | 62 | 0.87% | 1.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 140099 | 924.74 | 735 | 718 | 150.7 |
| A | 1 | 162 | 137542 | 907.77 | 735 | 718 | 150.7 |
| A | 1 | 178 | 72204 | 474.28 | 735 | 718 | 150.7 |
| B | 0 | 85 | 404044 | 2937.13 | 725 | 708 | 137.3 |
| B | 4 | 239 | 232645 | 1688.99 | 725 | 708 | 137.3 |
| B | 3 | 64 | 59560 | 428.57 | 725 | 708 | 137.3 |
| C | 4 | 254 | 241730 | 1446.99 | 725 | 728 | 166.6 |
| C | 15 | 208 | 43606 | 257.44 | 725 | 728 | 166.6 |
| C | 13 | 61 | 5230 | 27.03 | 725 | 728 | 166.6 |
| D | 10 | 199 | 179952 | 1033.79 | 723 | 704 | 173.4 |
| D | 13 | 104 | 108753 | 623.16 | 723 | 704 | 173.4 |
| D | 7 | 71 | 41506 | 235.32 | 723 | 704 | 173.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

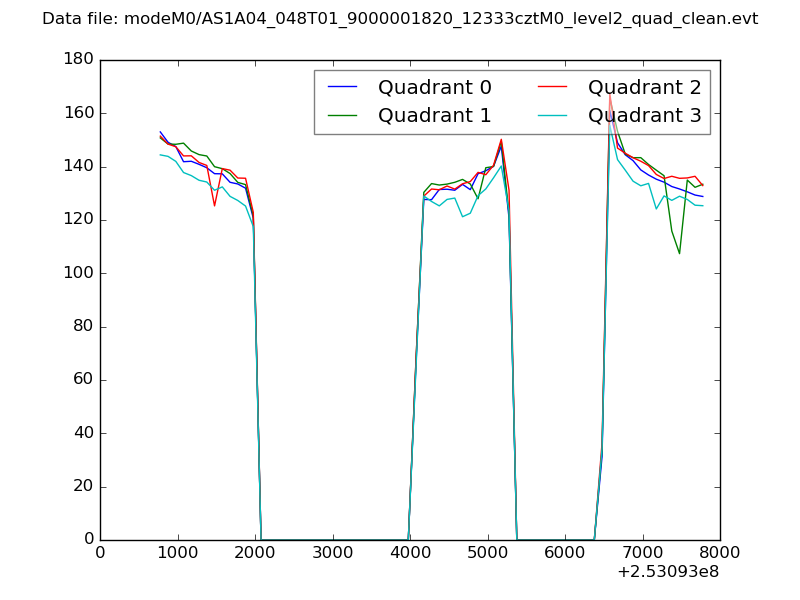

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

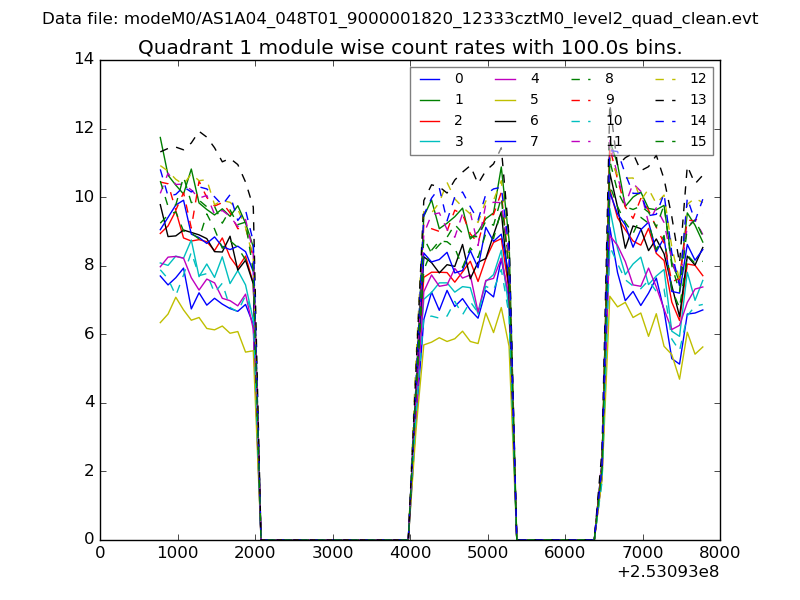

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

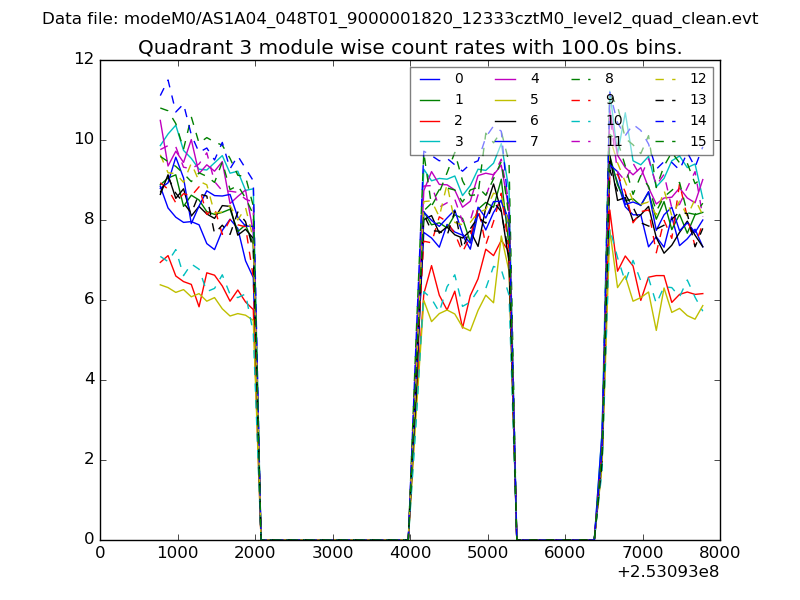

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

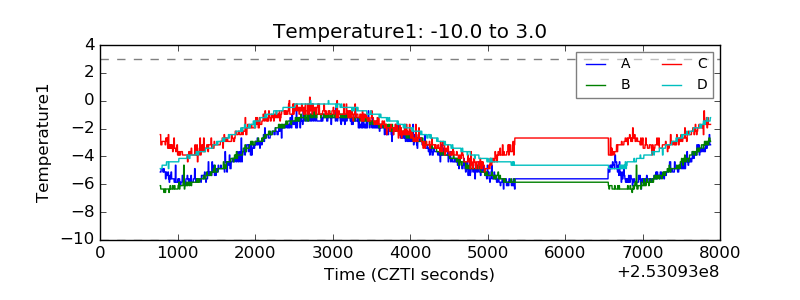

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

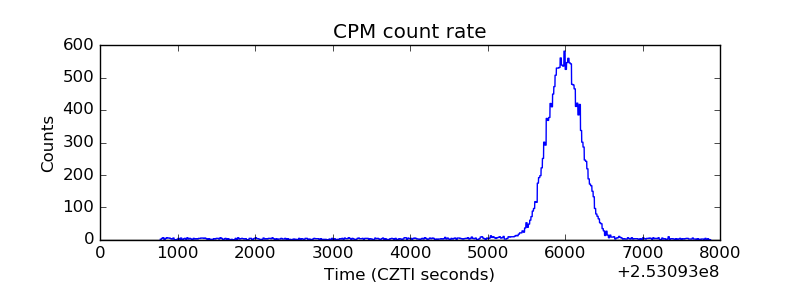

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

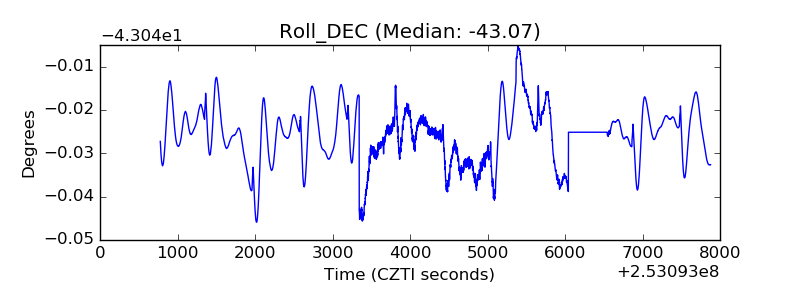

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
