| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_048T01_9000001820_12334cztM0_level2.evt | modeM0/AS1A04_048T01_9000001820_12334cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,807,360 | 87,724,800 |
| Size | 510.0 MB | 83.7 MB |
| Events in quadrant A | 3,687,682 | 552,980 |
| Events in quadrant B | 4,860,310 | 556,514 |
| Events in quadrant C | 3,415,062 | 561,666 |
| Events in quadrant D | 3,791,484 | 530,940 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15037 | 3 |
| B | 0 | 18581 | 2 |
| C | 0 | 14399 | 2 |
| D | 0 | 15544 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6514 | 132 | 2.026405% |
| B | 6514 | 694 | 10.653976% |
| C | 6514 | 151 | 2.318084% |
| D | 6515 | 197 | 3.023791% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

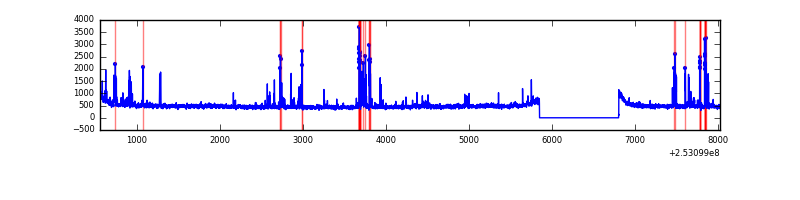

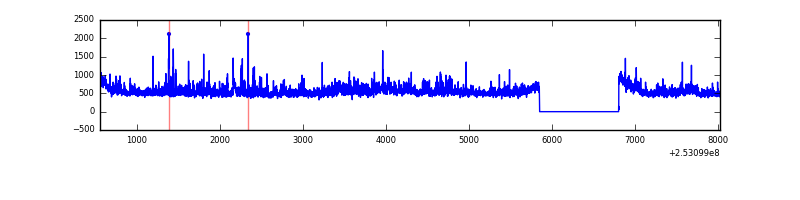

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7470 | 6516 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7470 | 6516 | 477 | 477 | 6.39% | 7.32% |  |
| C | 7470 | 6516 | 40 | 40 | 0.54% | 0.61% |  |
| D | 7471 | 6517 | 105 | 105 | 1.41% | 1.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 190165 | 1171.89 | 794 | 777 | 161.6 |
| A | 1 | 162 | 145118 | 893.15 | 794 | 777 | 161.6 |
| A | 1 | 178 | 73274 | 448.59 | 794 | 777 | 161.6 |
| B | 0 | 85 | 1603926 | 11135.03 | 759 | 740 | 144.0 |
| B | 4 | 239 | 78786 | 542.07 | 759 | 740 | 144.0 |
| B | 0 | 219 | 77306 | 531.79 | 759 | 740 | 144.0 |
| C | 4 | 254 | 332148 | 1844.43 | 780 | 784 | 179.7 |
| C | 15 | 208 | 24879 | 134.12 | 780 | 784 | 179.7 |
| C | 0 | 207 | 8629 | 43.67 | 780 | 784 | 179.7 |
| D | 1 | 52 | 405170 | 2177.81 | 774 | 752 | 185.7 |
| D | 10 | 199 | 127365 | 681.82 | 774 | 752 | 185.7 |
| D | 13 | 104 | 100362 | 536.4 | 774 | 752 | 185.7 |

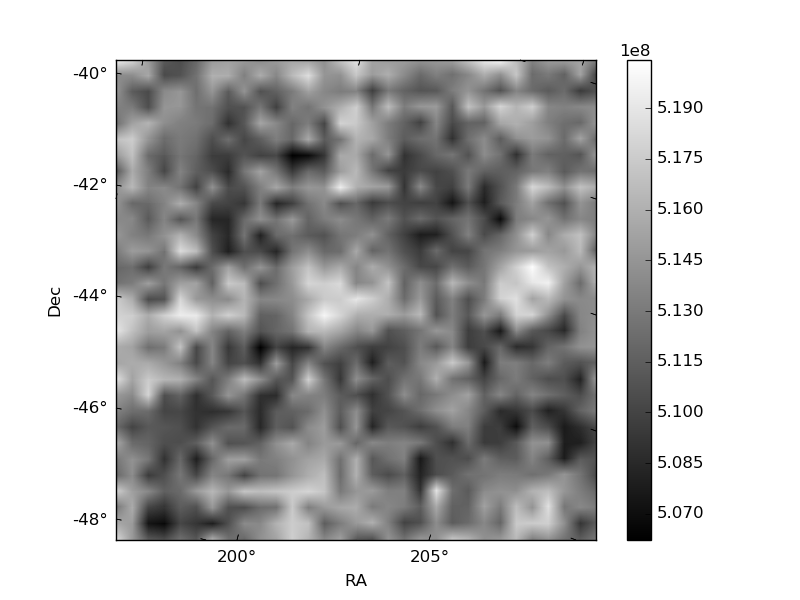

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

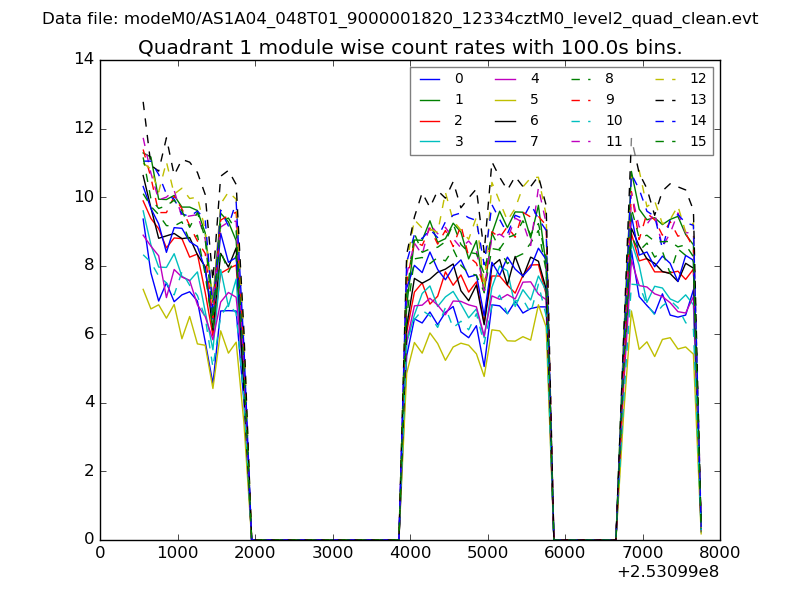

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

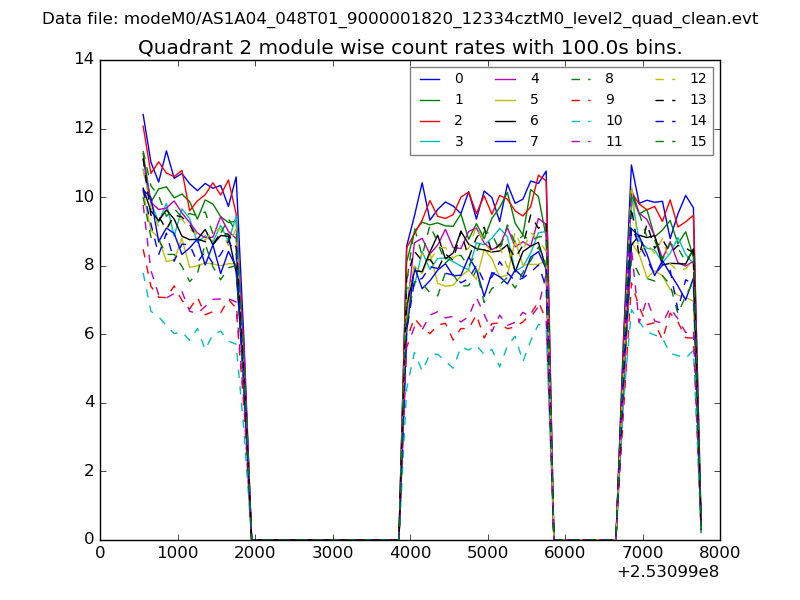

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

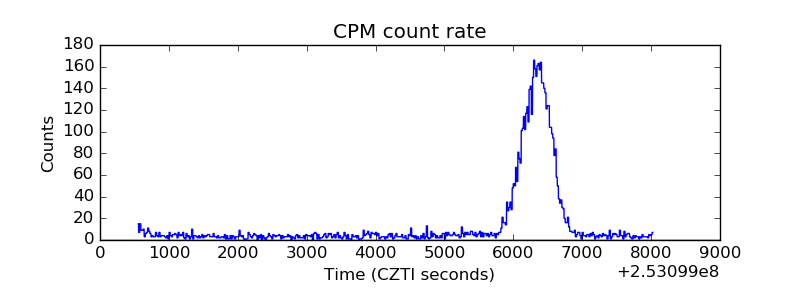

| _CPM_Rate |  |

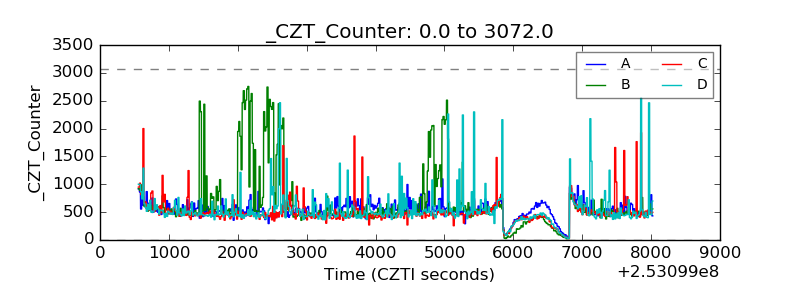

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

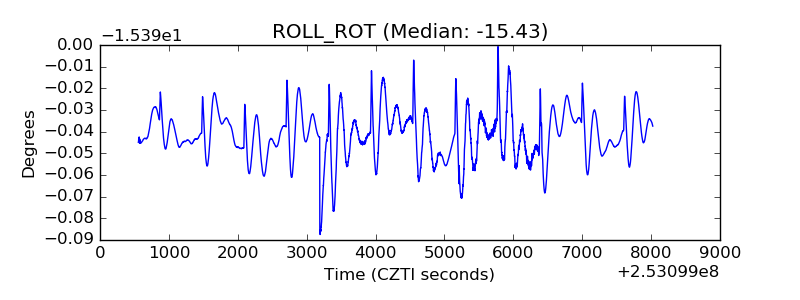

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
