| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_130T01_9000001822_12337cztM0_level2.evt | modeM0/AS1A04_130T01_9000001822_12337cztM0_level2_quad_clean.evt |
| Size (bytes) | 649,523,520 | 103,072,320 |
| Size | 619.4 MB | 98.3 MB |
| Events in quadrant A | 5,029,625 | 657,403 |
| Events in quadrant B | 5,201,460 | 633,017 |
| Events in quadrant C | 4,582,829 | 654,878 |
| Events in quadrant D | 4,339,325 | 644,219 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20214 | 3 |
| B | 0 | 20359 | 2 |
| C | 0 | 18851 | 2 |
| D | 0 | 18074 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7645 | 318 | 4.159581% |
| B | 7645 | 664 | 8.685415% |
| C | 7645 | 277 | 3.623283% |
| D | 7645 | 148 | 1.935906% |

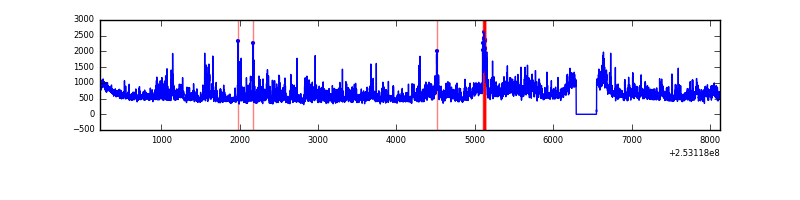

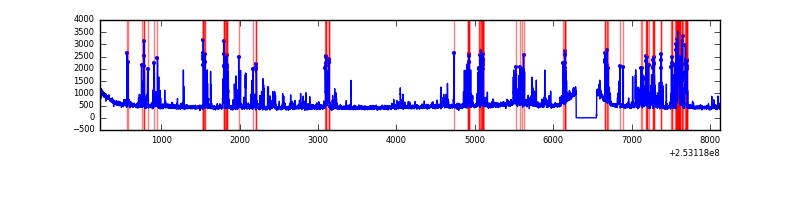

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7906 | 7647 | 15 | 15 | 0.19% | 0.20% |  |
| B | 7906 | 7647 | 328 | 328 | 4.15% | 4.29% |  |
| C | 7906 | 7647 | 153 | 153 | 1.94% | 2.00% |  |
| D | 7906 | 7647 | 67 | 67 | 0.85% | 0.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 442157 | 2272.93 | 940 | 919 | 194.1 |
| A | 1 | 162 | 237989 | 1221.21 | 940 | 919 | 194.1 |
| A | 13 | 251 | 201901 | 1035.31 | 940 | 919 | 194.1 |
| B | 0 | 85 | 980215 | 5631.41 | 907 | 885 | 173.9 |
| B | 4 | 239 | 263687 | 1511.18 | 907 | 885 | 173.9 |
| B | 3 | 64 | 152129 | 869.69 | 907 | 885 | 173.9 |
| C | 4 | 254 | 1005610 | 4743.98 | 901 | 907 | 211.8 |
| C | 15 | 208 | 39401 | 181.76 | 901 | 907 | 211.8 |
| C | 8 | 128 | 9603 | 41.06 | 901 | 907 | 211.8 |
| D | 14 | 34 | 380818 | 1723.38 | 918 | 894 | 220.5 |
| D | 1 | 52 | 163702 | 738.52 | 918 | 894 | 220.5 |
| D | 13 | 104 | 78501 | 352.03 | 918 | 894 | 220.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

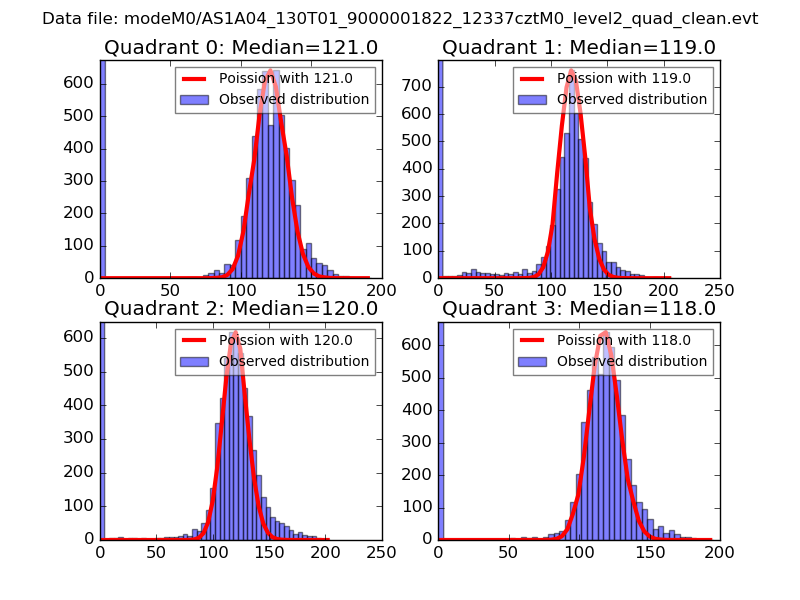

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

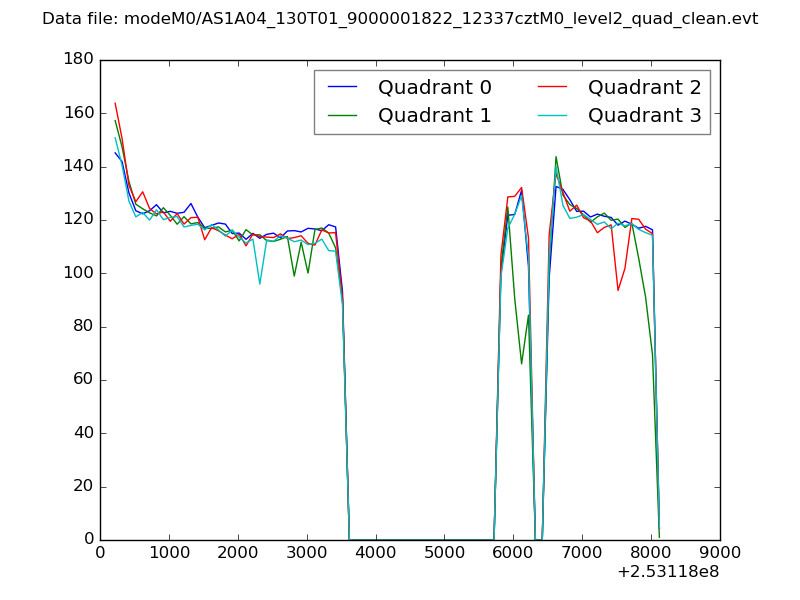

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

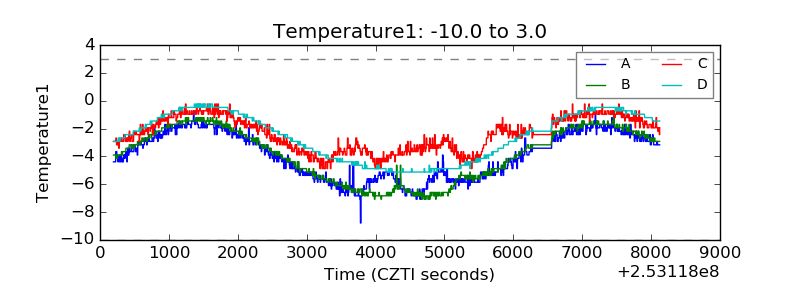

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

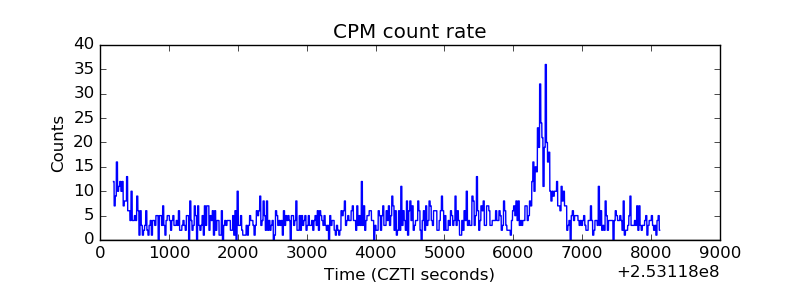

| _CPM_Rate |  |

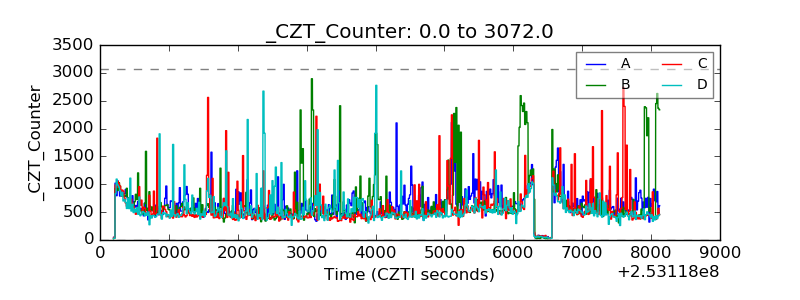

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

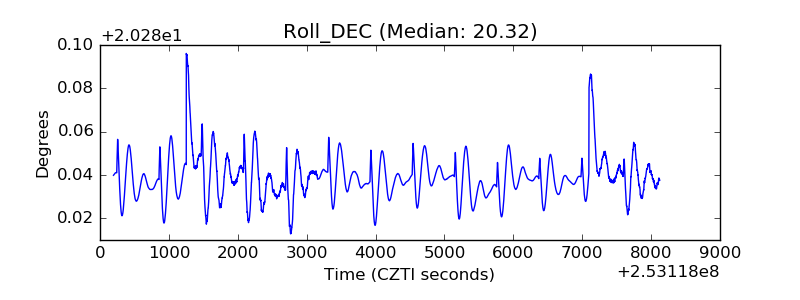

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
