| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_210T01_9000001824_12347cztM0_level2.evt | modeM0/AS1A04_210T01_9000001824_12347cztM0_level2_quad_clean.evt |
| Size (bytes) | 571,389,120 | 62,893,440 |
| Size | 544.9 MB | 60.0 MB |
| Events in quadrant A | 3,895,746 | 372,657 |
| Events in quadrant B | 4,396,198 | 381,908 |
| Events in quadrant C | 3,063,076 | 376,694 |
| Events in quadrant D | 5,521,955 | 332,167 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15867 | 2 |
| B | 0 | 16871 | 1 |
| C | 0 | 13025 | 1 |
| D | 0 | 20544 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6311 | 114 | 1.806370% |
| B | 6311 | 526 | 8.334654% |
| C | 6311 | 50 | 0.792267% |
| D | 6311 | 736 | 11.662177% |

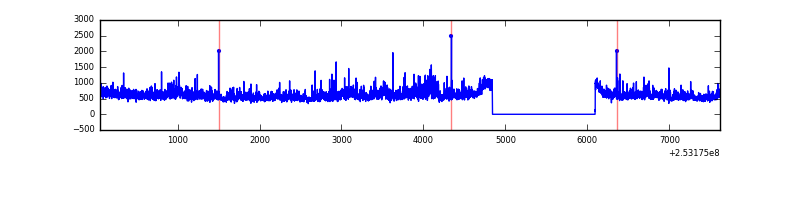

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7567 | 6313 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7567 | 6313 | 325 | 325 | 4.29% | 5.15% |  |
| C | 7567 | 6313 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7567 | 6313 | 572 | 572 | 7.56% | 9.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 186566 | 1137.75 | 808 | 794 | 163.3 |
| A | 13 | 251 | 180433 | 1100.19 | 808 | 794 | 163.3 |
| A | 8 | 15 | 142888 | 870.24 | 808 | 794 | 163.3 |
| B | 15 | 201 | 944763 | 6298.14 | 795 | 778 | 149.9 |
| B | 4 | 239 | 240867 | 1601.84 | 795 | 778 | 149.9 |
| B | 0 | 85 | 64653 | 426.17 | 795 | 778 | 149.9 |
| C | 14 | 225 | 11202 | 58.45 | 782 | 789 | 178.1 |
| C | 13 | 61 | 5773 | 27.98 | 782 | 789 | 178.1 |
| C | 8 | 222 | 2587 | 10.09 | 782 | 789 | 178.1 |
| D | 1 | 52 | 1870443 | 10751.66 | 729 | 710 | 173.9 |
| D | 13 | 170 | 362925 | 2082.87 | 729 | 710 | 173.9 |
| D | 10 | 253 | 215225 | 1233.54 | 729 | 710 | 173.9 |

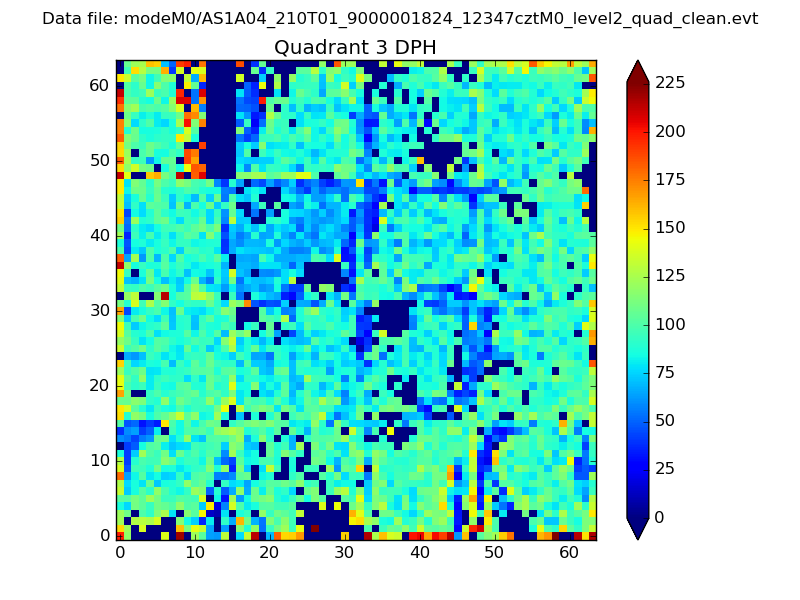

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

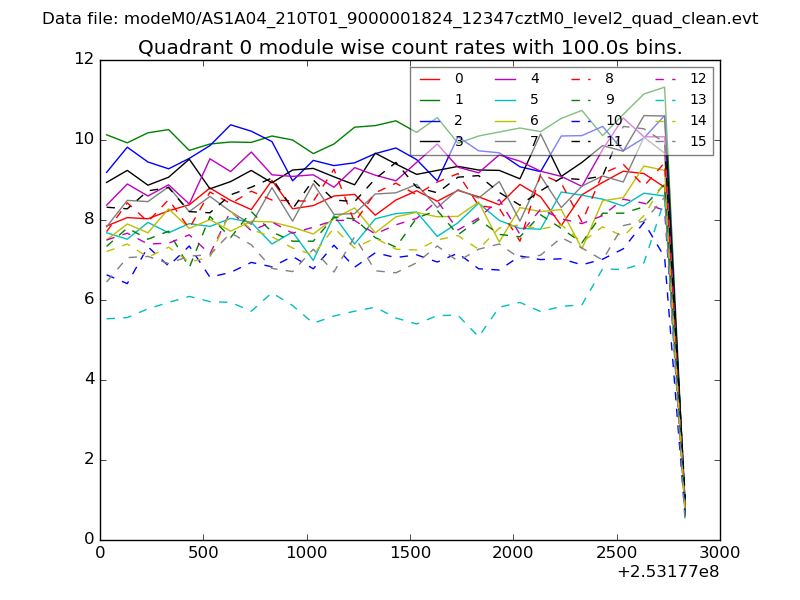

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

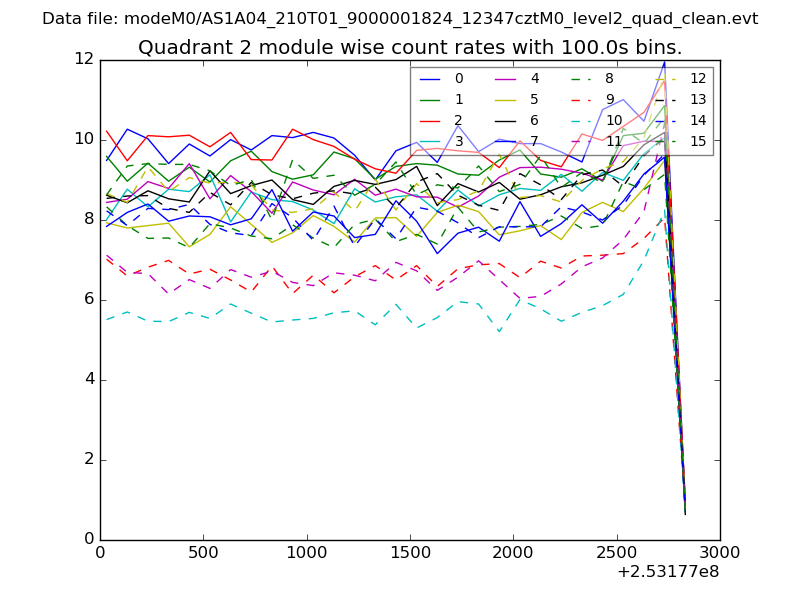

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

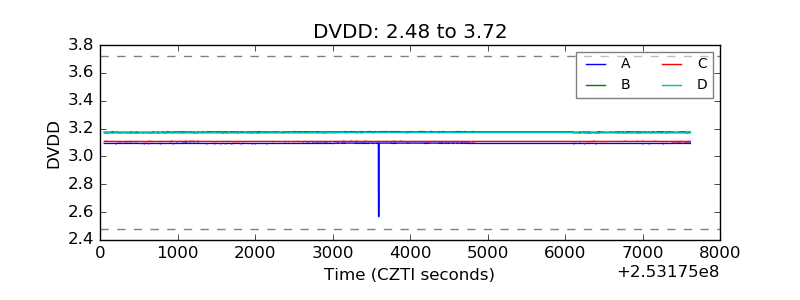

| D_VDD |  |

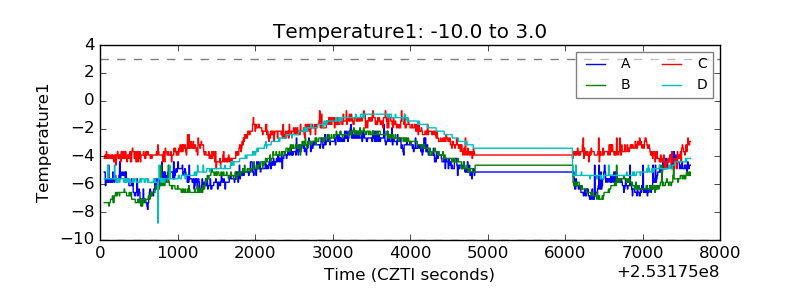

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

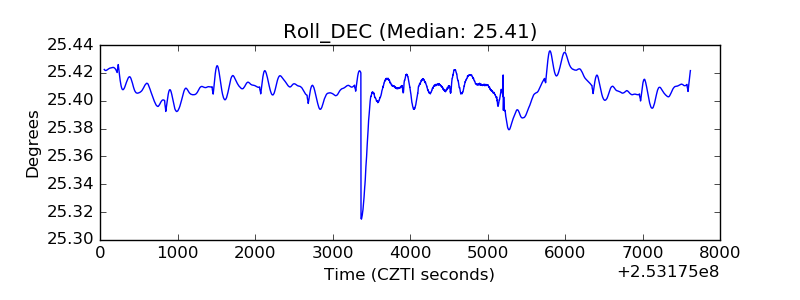

| _Roll_DEC |  |

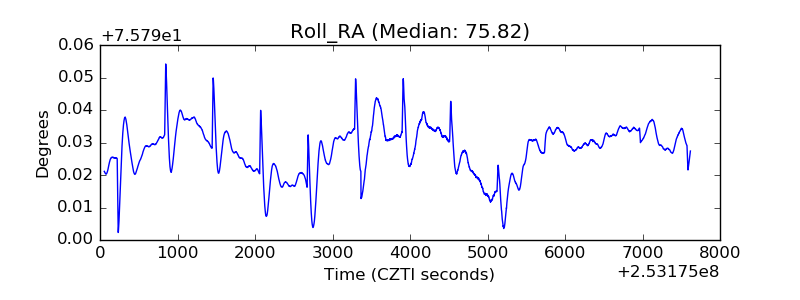

| _Roll_RA |  |
| Veto Counter |  |
