| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_210T01_9000001824_12348cztM0_level2.evt | modeM0/AS1A04_210T01_9000001824_12348cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,917,120 | 73,177,920 |
| Size | 488.2 MB | 69.8 MB |
| Events in quadrant A | 4,106,560 | 439,230 |
| Events in quadrant B | 3,619,172 | 451,182 |
| Events in quadrant C | 3,198,282 | 446,042 |
| Events in quadrant D | 4,133,209 | 420,816 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16604 | 3 |
| B | 0 | 14799 | 2 |
| C | 0 | 13755 | 2 |
| D | 0 | 16587 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6582 | 192 | 2.917046% |
| B | 6582 | 254 | 3.859009% |
| C | 6582 | 100 | 1.519295% |
| D | 6582 | 297 | 4.512306% |

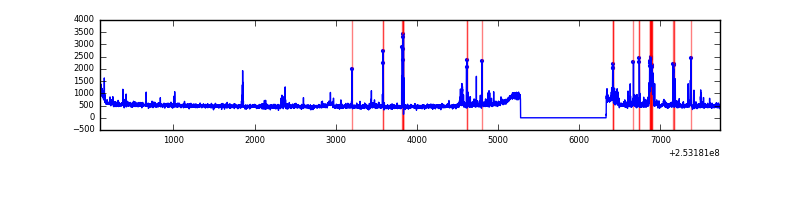

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7638 | 6584 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7638 | 6584 | 31 | 31 | 0.41% | 0.47% |  |
| C | 7638 | 6584 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7638 | 6584 | 176 | 176 | 2.30% | 2.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 200536 | 1164.78 | 835 | 817 | 171.5 |
| A | 8 | 15 | 199199 | 1156.98 | 835 | 817 | 171.5 |
| A | 1 | 162 | 196924 | 1143.71 | 835 | 817 | 171.5 |
| B | 4 | 239 | 248742 | 1554.66 | 838 | 821 | 159.5 |
| B | 3 | 64 | 40248 | 247.24 | 838 | 821 | 159.5 |
| B | 0 | 230 | 18320 | 109.73 | 838 | 821 | 159.5 |
| C | 15 | 208 | 15027 | 75.25 | 811 | 818 | 188.8 |
| C | 14 | 225 | 9323 | 45.04 | 811 | 818 | 188.8 |
| C | 13 | 61 | 6029 | 27.6 | 811 | 818 | 188.8 |
| D | 1 | 52 | 679157 | 3543.7 | 795 | 775 | 191.4 |
| D | 10 | 253 | 244337 | 1272.31 | 795 | 775 | 191.4 |
| D | 13 | 104 | 60645 | 312.75 | 795 | 775 | 191.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

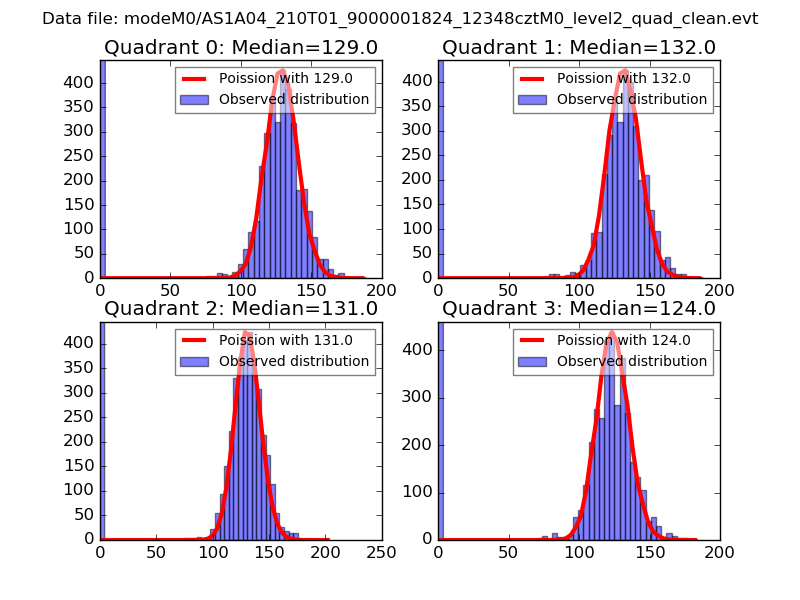

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

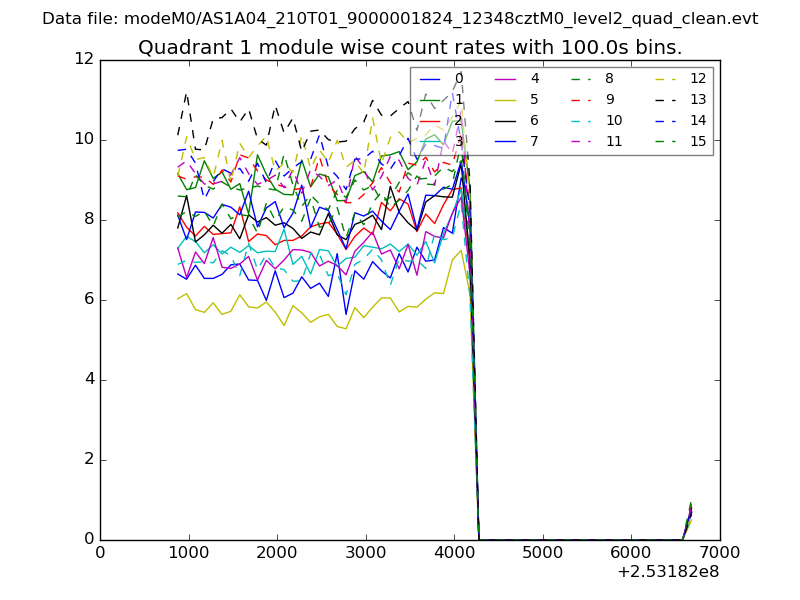

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

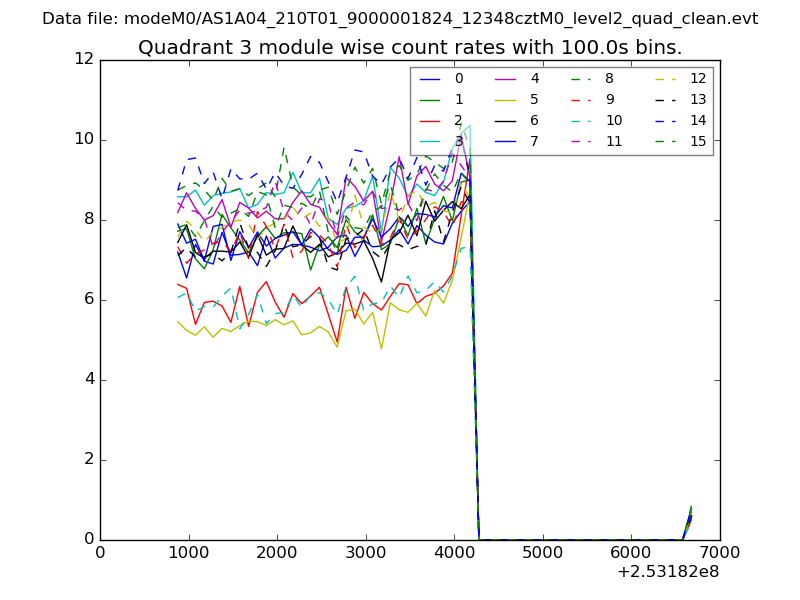

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

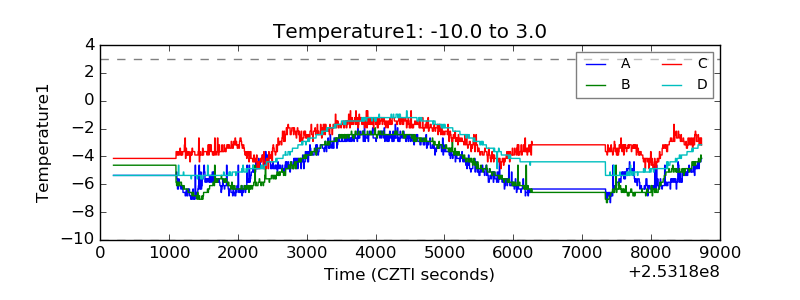

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

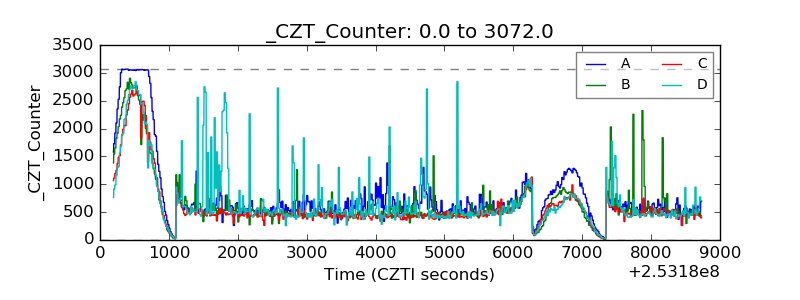

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

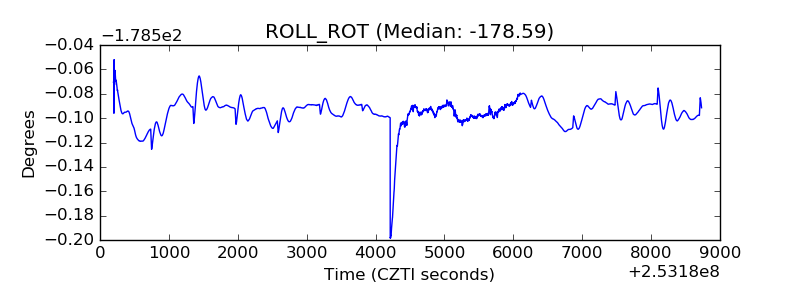

| _ROLL_ROT |  |
| _Roll_DEC |  |

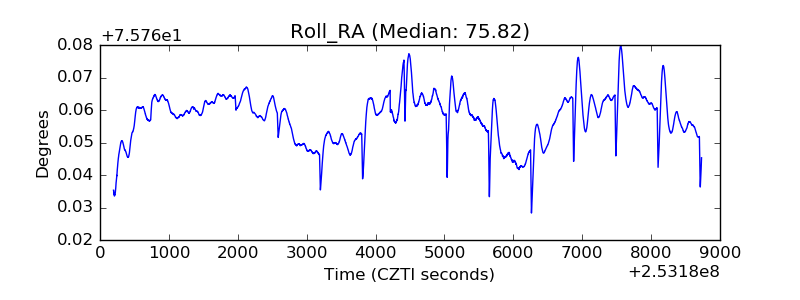

| _Roll_RA |  |
| Veto Counter |  |
