| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_210T02_9000001826_12351cztM0_level2.evt | modeM0/AS1A04_210T02_9000001826_12351cztM0_level2_quad_clean.evt |
| Size (bytes) | 648,120,960 | 96,526,080 |
| Size | 618.1 MB | 92.1 MB |
| Events in quadrant A | 6,010,886 | 589,124 |
| Events in quadrant B | 4,202,028 | 615,249 |
| Events in quadrant C | 3,645,613 | 611,661 |
| Events in quadrant D | 5,246,403 | 569,474 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23144 | 2 |
| B | 0 | 17416 | 1 |
| C | 0 | 16221 | 1 |
| D | 0 | 20741 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7730 | 465 | 6.015524% |
| B | 7730 | 352 | 4.553687% |
| C | 7730 | 195 | 2.522639% |
| D | 7730 | 598 | 7.736093% |

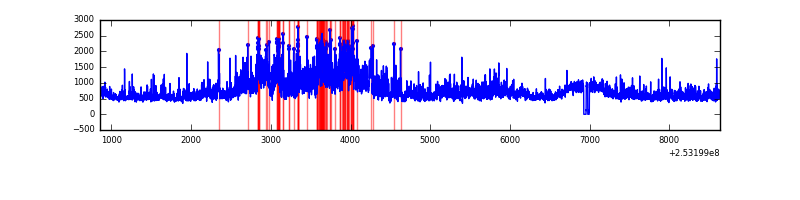

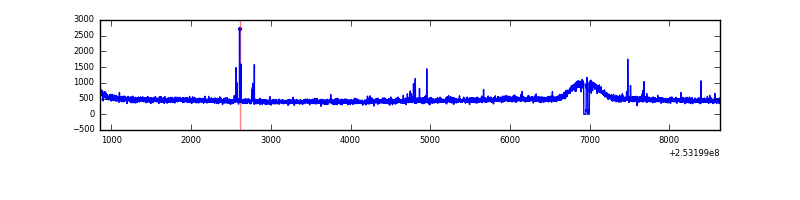

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7781 | 7733 | 109 | 109 | 1.40% | 1.41% |  |
| B | 7781 | 7733 | 15 | 15 | 0.19% | 0.19% |  |
| C | 7781 | 7733 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7781 | 7733 | 388 | 388 | 4.99% | 5.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 1367914 | 7033.02 | 941 | 918 | 194.4 |
| A | 13 | 251 | 494265 | 2538.21 | 941 | 918 | 194.4 |
| A | 1 | 162 | 214075 | 1096.67 | 941 | 918 | 194.4 |
| B | 4 | 239 | 209460 | 1142.14 | 946 | 922 | 182.6 |
| B | 0 | 85 | 113144 | 614.63 | 946 | 922 | 182.6 |
| B | 10 | 245 | 38253 | 204.46 | 946 | 922 | 182.6 |
| C | 15 | 208 | 24838 | 110.4 | 925 | 929 | 216.6 |
| C | 0 | 207 | 13158 | 56.47 | 925 | 929 | 216.6 |
| C | 13 | 61 | 6767 | 26.96 | 925 | 929 | 216.6 |
| D | 1 | 52 | 1265834 | 5716.26 | 913 | 887 | 221.3 |
| D | 13 | 104 | 166943 | 750.4 | 913 | 887 | 221.3 |
| D | 14 | 34 | 139103 | 624.59 | 913 | 887 | 221.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

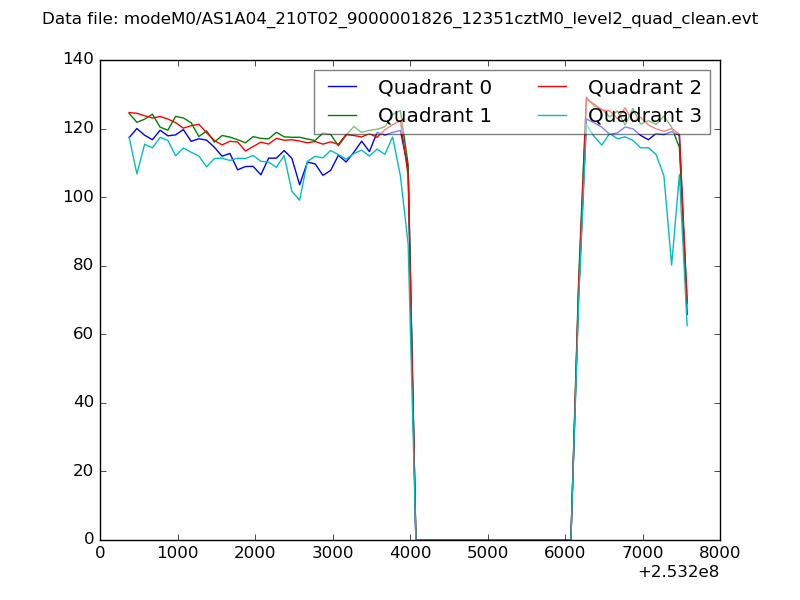

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

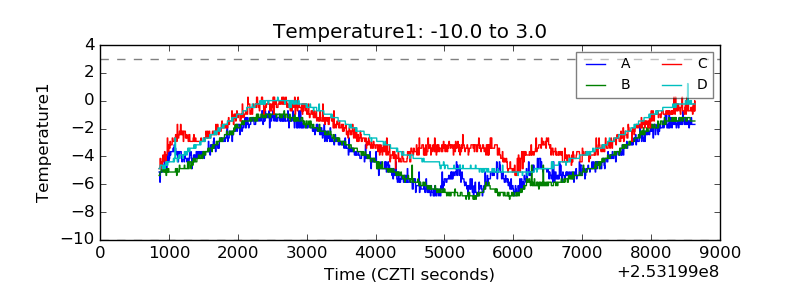

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

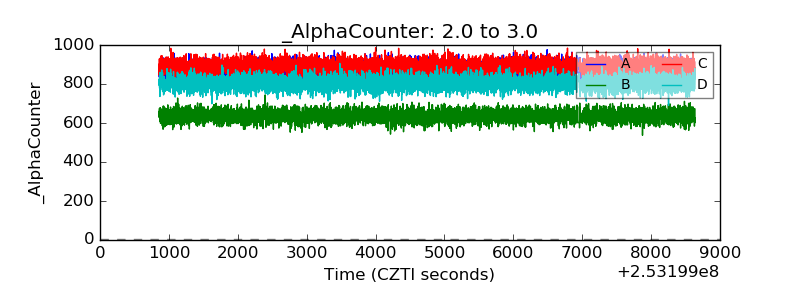

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

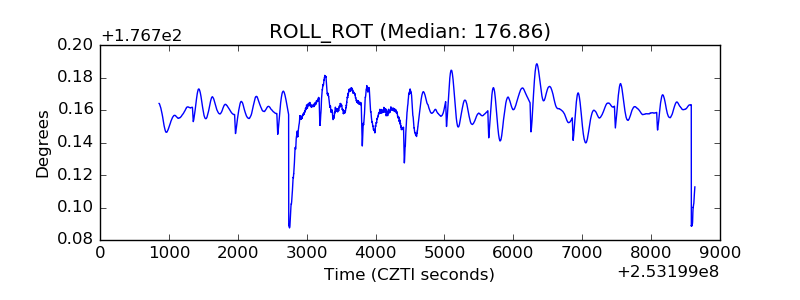

| _ROLL_ROT |  |
| _Roll_DEC |  |

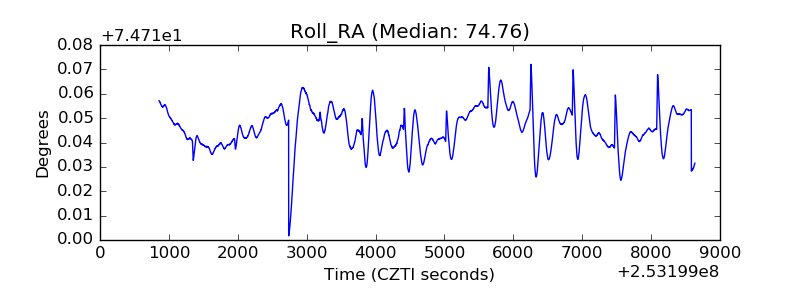

| _Roll_RA |  |
| Veto Counter |  |
