| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_210T04_9000001828_12352cztM0_level2.evt | modeM0/AS1A04_210T04_9000001828_12352cztM0_level2_quad_clean.evt |
| Size (bytes) | 378,573,120 | 55,503,360 |
| Size | 361.0 MB | 52.9 MB |
| Events in quadrant A | 3,143,626 | 331,860 |
| Events in quadrant B | 2,719,895 | 338,587 |
| Events in quadrant C | 2,396,314 | 339,962 |
| Events in quadrant D | 2,868,045 | 322,426 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12703 | 2 |
| B | 0 | 11263 | 1 |
| C | 0 | 10524 | 1 |
| D | 0 | 11931 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4951 | 152 | 3.070087% |
| B | 4951 | 146 | 2.948899% |
| C | 4951 | 60 | 1.211876% |
| D | 4951 | 154 | 3.110483% |

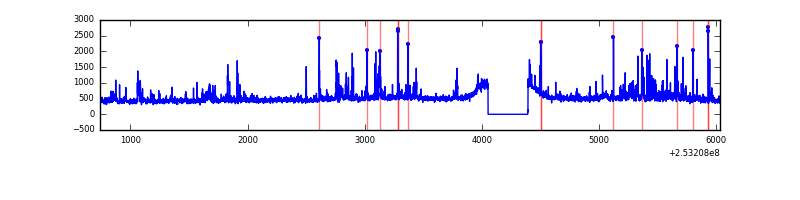

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5292 | 4953 | 2 | 2 | 0.04% | 0.04% |  |
| B | 5292 | 4953 | 14 | 14 | 0.26% | 0.28% |  |
| C | 5292 | 4953 | 15 | 15 | 0.28% | 0.30% |  |
| D | 5292 | 4953 | 70 | 70 | 1.32% | 1.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 218104 | 1744.98 | 598 | 582 | 124.7 |
| A | 8 | 15 | 196015 | 1567.78 | 598 | 582 | 124.7 |
| A | 1 | 162 | 171530 | 1371.36 | 598 | 582 | 124.7 |
| B | 10 | 245 | 138979 | 1188.58 | 601 | 586 | 116.4 |
| B | 4 | 239 | 106037 | 905.66 | 601 | 586 | 116.4 |
| B | 0 | 85 | 36825 | 311.24 | 601 | 586 | 116.4 |
| C | 15 | 208 | 104399 | 752.79 | 587 | 590 | 137.9 |
| C | 13 | 61 | 4022 | 24.89 | 587 | 590 | 137.9 |
| C | 14 | 234 | 3078 | 18.04 | 587 | 590 | 137.9 |
| D | 1 | 52 | 229100 | 1588.06 | 582 | 564 | 143.9 |
| D | 13 | 104 | 131103 | 907.1 | 582 | 564 | 143.9 |
| D | 10 | 253 | 100016 | 691.08 | 582 | 564 | 143.9 |

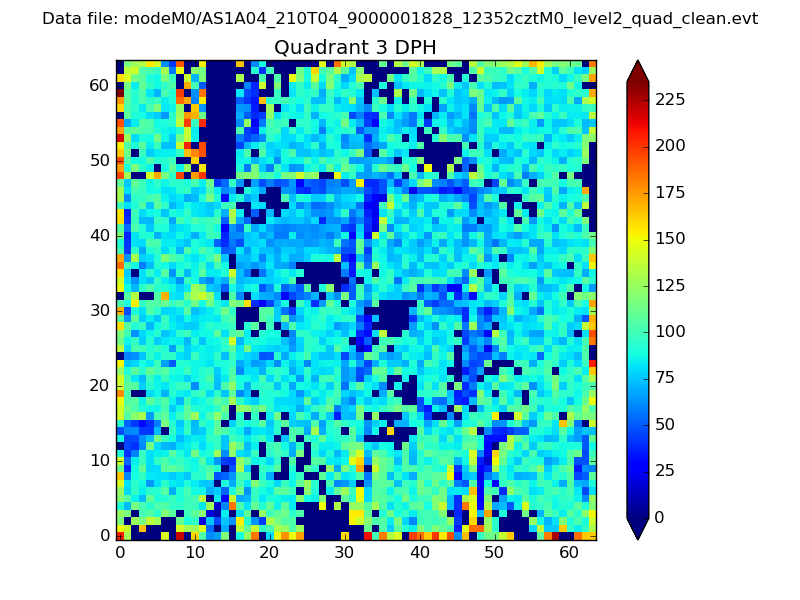

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

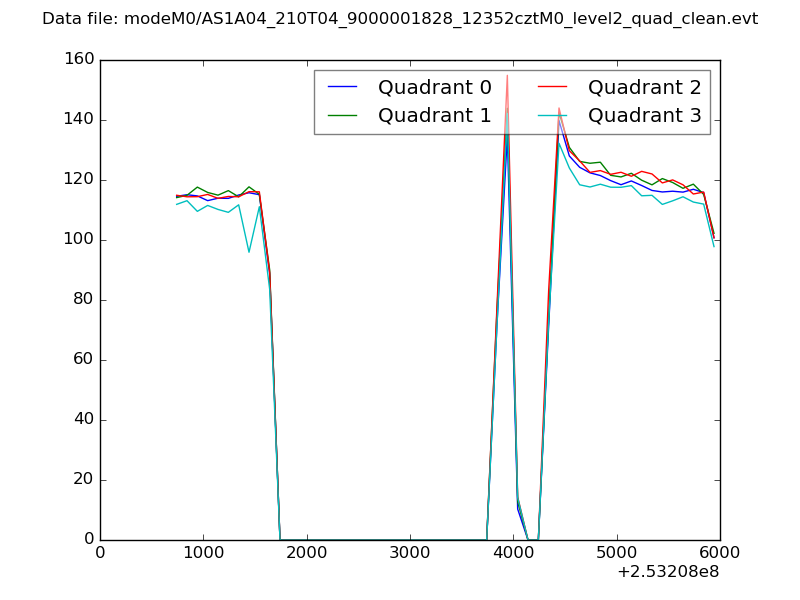

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

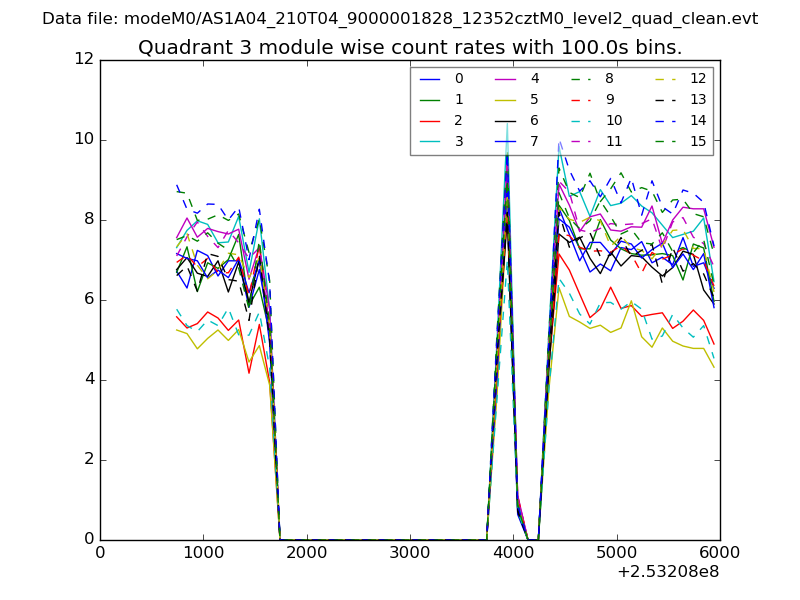

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

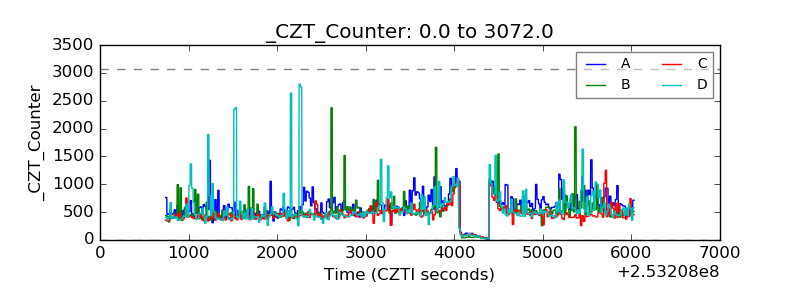

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

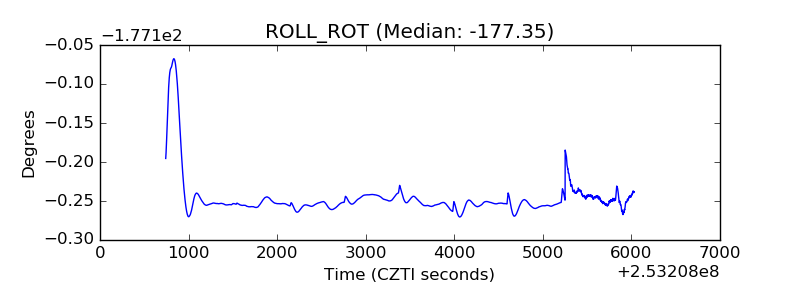

| _ROLL_ROT |  |

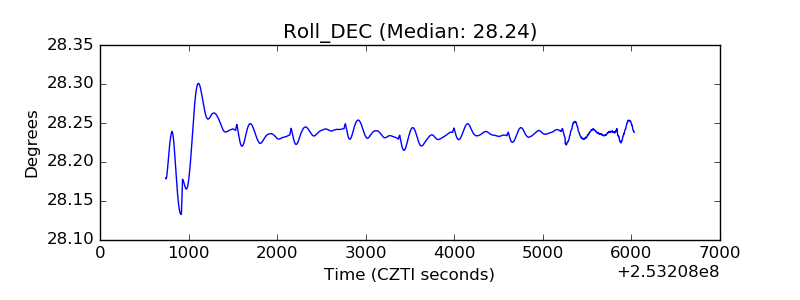

| _Roll_DEC |  |
| _Roll_RA |  |

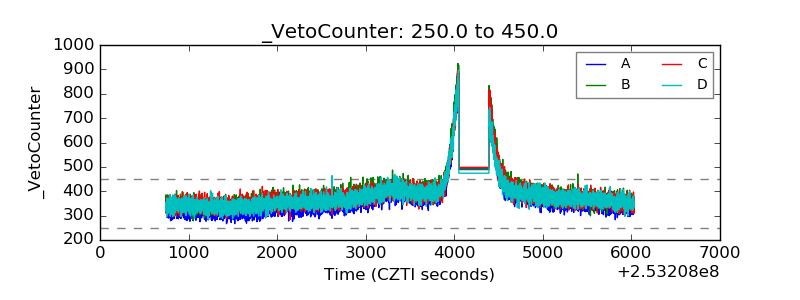

| Veto Counter |  |
