| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_210T04_9000001828_12355cztM0_level2.evt | modeM0/AS1A04_210T04_9000001828_12355cztM0_level2_quad_clean.evt |
| Size (bytes) | 647,579,520 | 111,389,760 |
| Size | 617.6 MB | 106.2 MB |
| Events in quadrant A | 5,383,433 | 698,789 |
| Events in quadrant B | 4,369,236 | 713,117 |
| Events in quadrant C | 3,728,761 | 712,858 |
| Events in quadrant D | 5,577,384 | 680,891 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21649 | 1 |
| B | 0 | 18489 | 1 |
| C | 0 | 16925 | 1 |
| D | 0 | 22155 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8169 | 172 | 2.105521% |
| B | 8169 | 136 | 1.664830% |
| C | 8169 | 21 | 0.257069% |
| D | 8169 | 156 | 1.909658% |

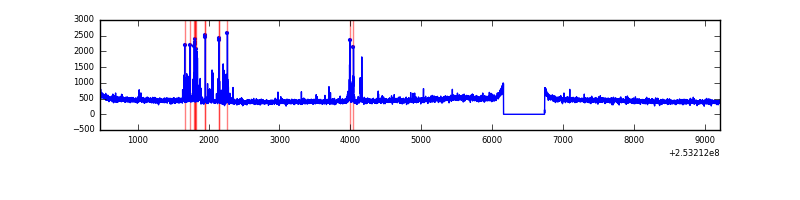

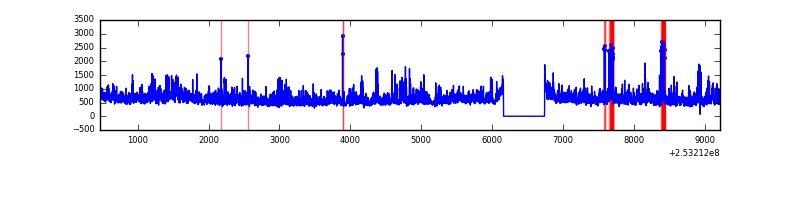

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8750 | 8171 | 62 | 62 | 0.71% | 0.76% |  |
| B | 8750 | 8171 | 66 | 66 | 0.75% | 0.81% |  |
| C | 8750 | 8171 | 14 | 14 | 0.16% | 0.17% |  |
| D | 8750 | 8171 | 133 | 133 | 1.52% | 1.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 472446 | 2448.82 | 933 | 909 | 192.6 |
| A | 8 | 15 | 397858 | 2061.46 | 933 | 909 | 192.6 |
| A | 1 | 162 | 367819 | 1905.46 | 933 | 909 | 192.6 |
| B | 4 | 239 | 280684 | 1567.57 | 936 | 911 | 178.5 |
| B | 10 | 245 | 269306 | 1503.82 | 936 | 911 | 178.5 |
| B | 3 | 209 | 36792 | 201.04 | 936 | 911 | 178.5 |
| C | 15 | 208 | 161005 | 756.93 | 914 | 919 | 211.5 |
| C | 13 | 61 | 6688 | 27.28 | 914 | 919 | 211.5 |
| C | 8 | 222 | 3851 | 13.86 | 914 | 919 | 211.5 |
| D | 1 | 52 | 1492387 | 6827.39 | 910 | 884 | 218.5 |
| D | 10 | 253 | 153332 | 697.83 | 910 | 884 | 218.5 |
| D | 13 | 104 | 115367 | 524.05 | 910 | 884 | 218.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

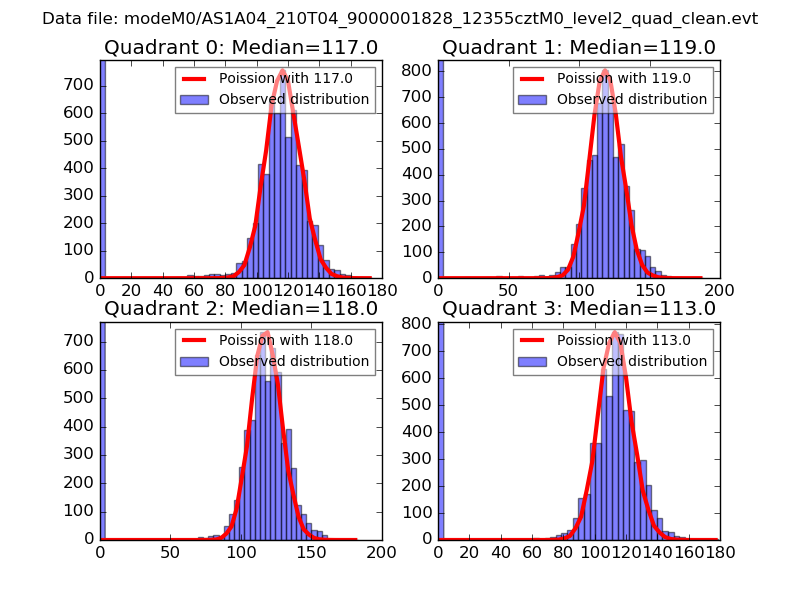

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

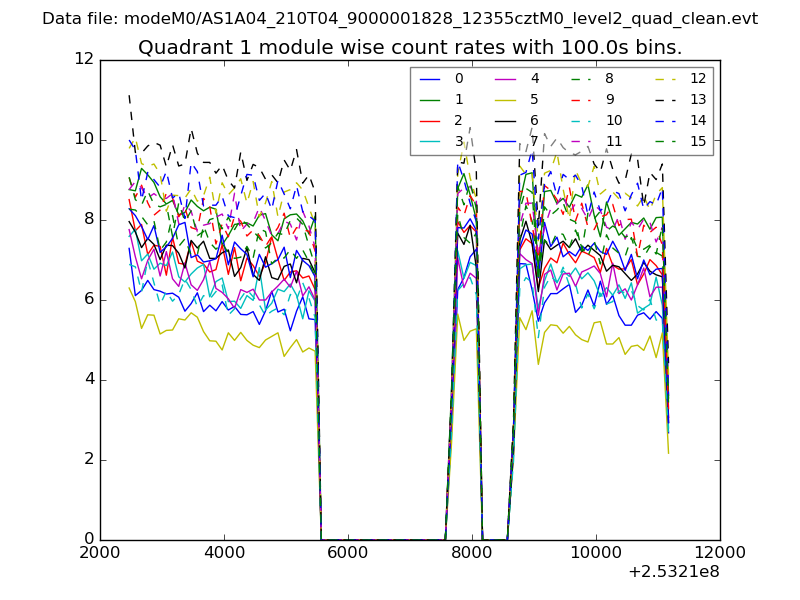

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

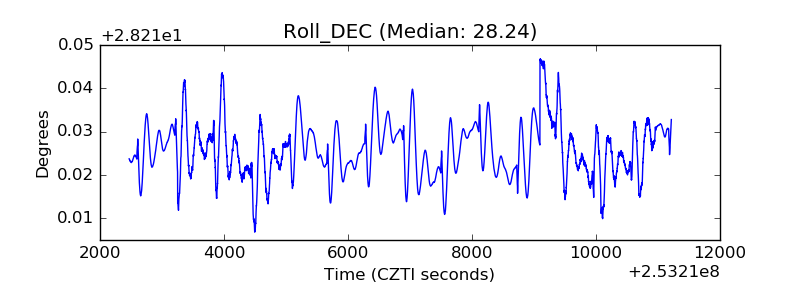

| _Roll_DEC |  |

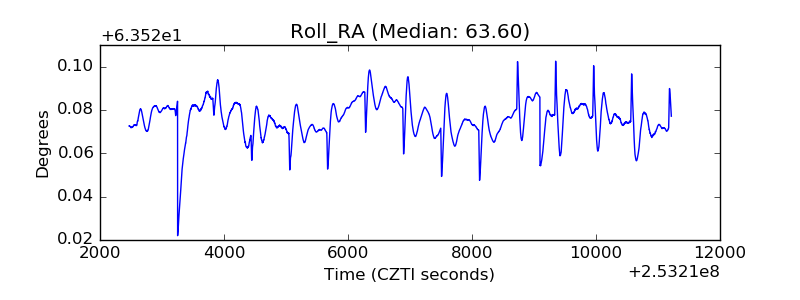

| _Roll_RA |  |

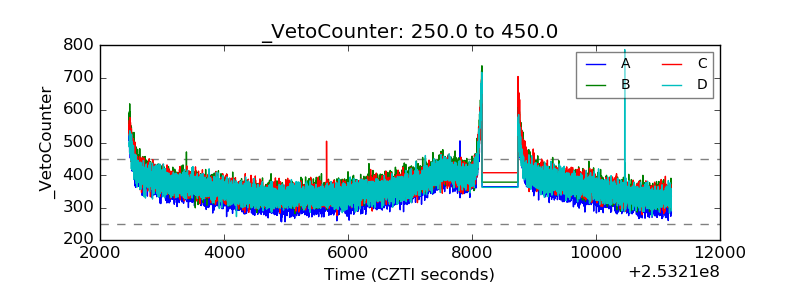

| Veto Counter |  |
