| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_072T03_9000001836_12373cztM0_level2.evt | modeM0/AS1G08_072T03_9000001836_12373cztM0_level2_quad_clean.evt |
| Size (bytes) | 535,397,760 | 93,576,960 |
| Size | 510.6 MB | 89.2 MB |
| Events in quadrant A | 4,046,496 | 593,212 |
| Events in quadrant B | 4,843,508 | 600,919 |
| Events in quadrant C | 3,509,988 | 601,271 |
| Events in quadrant D | 3,359,045 | 569,985 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16460 | 3 |
| B | 0 | 18773 | 2 |
| C | 0 | 14666 | 2 |
| D | 0 | 14436 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6721 | 45 | 0.669543% |
| B | 6721 | 229 | 3.407231% |
| C | 6721 | 45 | 0.669543% |
| D | 6721 | 51 | 0.758816% |

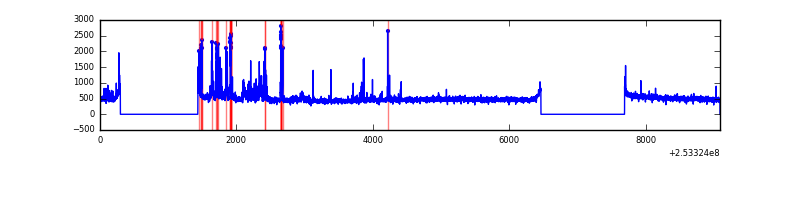

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9082 | 6722 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9082 | 6723 | 156 | 156 | 1.72% | 2.32% |  |
| C | 9082 | 6723 | 30 | 30 | 0.33% | 0.45% |  |
| D | 9081 | 6723 | 46 | 46 | 0.51% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 225643 | 1343.03 | 825 | 808 | 167.4 |
| A | 8 | 15 | 158293 | 940.72 | 825 | 808 | 167.4 |
| A | 1 | 178 | 125191 | 742.99 | 825 | 808 | 167.4 |
| B | 2 | 32 | 794179 | 5080.93 | 829 | 809 | 156.1 |
| B | 3 | 64 | 433630 | 2771.89 | 829 | 809 | 156.1 |
| B | 4 | 239 | 257849 | 1646.14 | 829 | 809 | 156.1 |
| C | 15 | 208 | 313866 | 1662.76 | 817 | 823 | 188.3 |
| C | 14 | 234 | 9968 | 48.57 | 817 | 823 | 188.3 |
| C | 13 | 61 | 6034 | 27.68 | 817 | 823 | 188.3 |
| D | 1 | 52 | 223314 | 1160.0 | 803 | 783 | 191.8 |
| D | 13 | 112 | 51155 | 262.58 | 803 | 783 | 191.8 |
| D | 2 | 234 | 22839 | 114.97 | 803 | 783 | 191.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

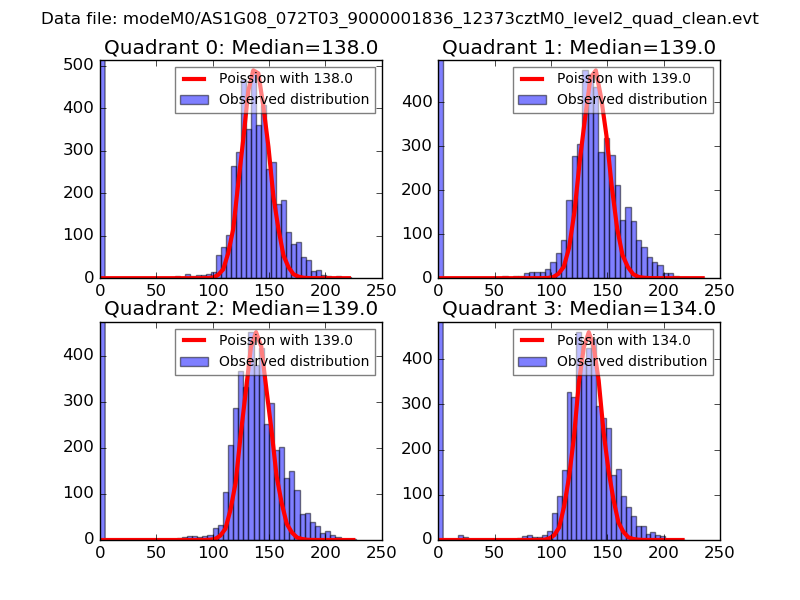

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

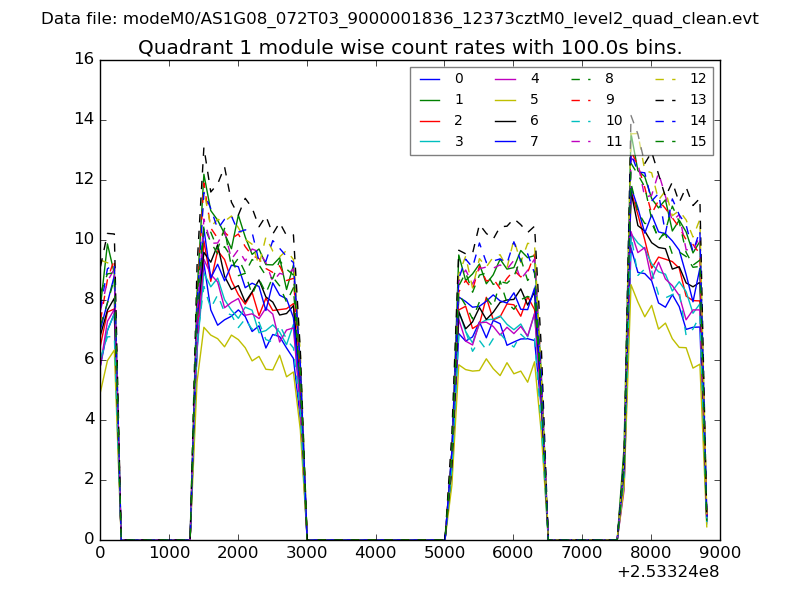

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

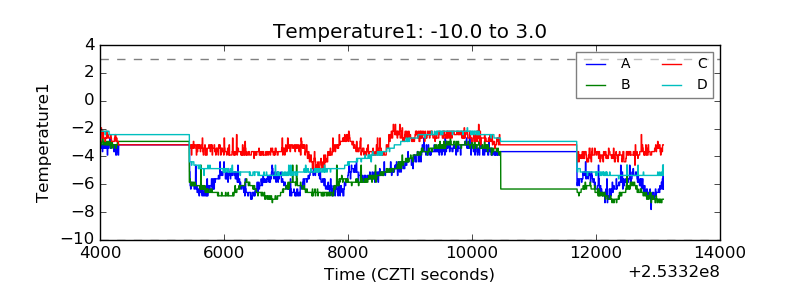

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

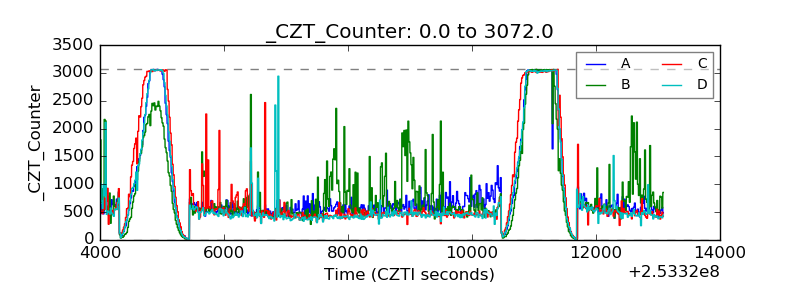

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

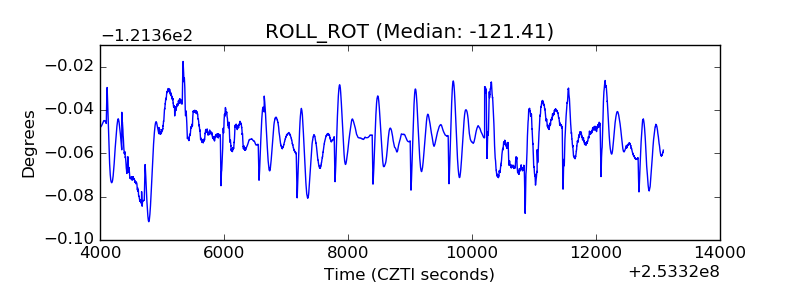

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

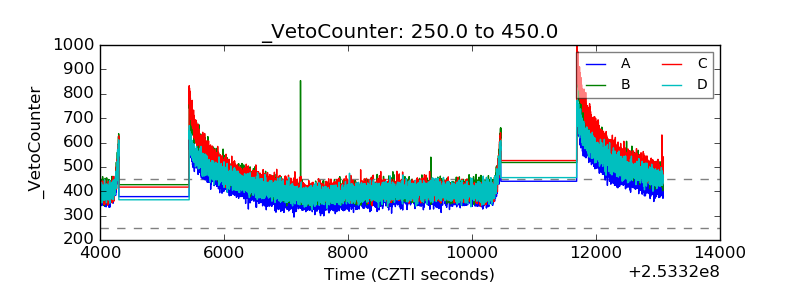

| Veto Counter |  |
