| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_072T03_9000001836_12381cztM0_level2.evt | modeM0/AS1G08_072T03_9000001836_12381cztM0_level2_quad_clean.evt |
| Size (bytes) | 777,168,000 | 89,003,520 |
| Size | 741.2 MB | 84.9 MB |
| Events in quadrant A | 4,030,507 | 599,188 |
| Events in quadrant B | 10,508,015 | 466,639 |
| Events in quadrant C | 3,162,741 | 600,210 |
| Events in quadrant D | 5,366,218 | 545,153 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16623 | 2 |
| B | 0 | 35982 | 1 |
| C | 0 | 14311 | 1 |
| D | 0 | 20577 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6930 | 137 | 1.976912% |
| B | 6930 | 3261 | 47.056277% |
| C | 6930 | 30 | 0.432900% |
| D | 6930 | 637 | 9.191919% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7285 | 6930 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7285 | 6930 | 3070 | 3070 | 42.14% | 44.30% |  |
| C | 7286 | 6932 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7286 | 6931 | 587 | 587 | 8.06% | 8.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 236141 | 1425.71 | 815 | 797 | 165.1 |
| A | 13 | 251 | 223103 | 1346.73 | 815 | 797 | 165.1 |
| A | 1 | 178 | 118447 | 712.72 | 815 | 797 | 165.1 |
| B | 2 | 32 | 6266258 | 56715.76 | 571 | 558 | 110.5 |
| B | 2 | 48 | 1137078 | 10287.53 | 571 | 558 | 110.5 |
| B | 4 | 239 | 500717 | 4527.33 | 571 | 558 | 110.5 |
| C | 15 | 208 | 53569 | 285.44 | 792 | 795 | 184.9 |
| C | 14 | 234 | 13779 | 70.23 | 792 | 795 | 184.9 |
| C | 13 | 61 | 5872 | 27.46 | 792 | 795 | 184.9 |
| D | 10 | 157 | 820528 | 4466.26 | 765 | 743 | 183.6 |
| D | 10 | 199 | 788471 | 4291.61 | 765 | 743 | 183.6 |
| D | 1 | 52 | 555425 | 3021.95 | 765 | 743 | 183.6 |

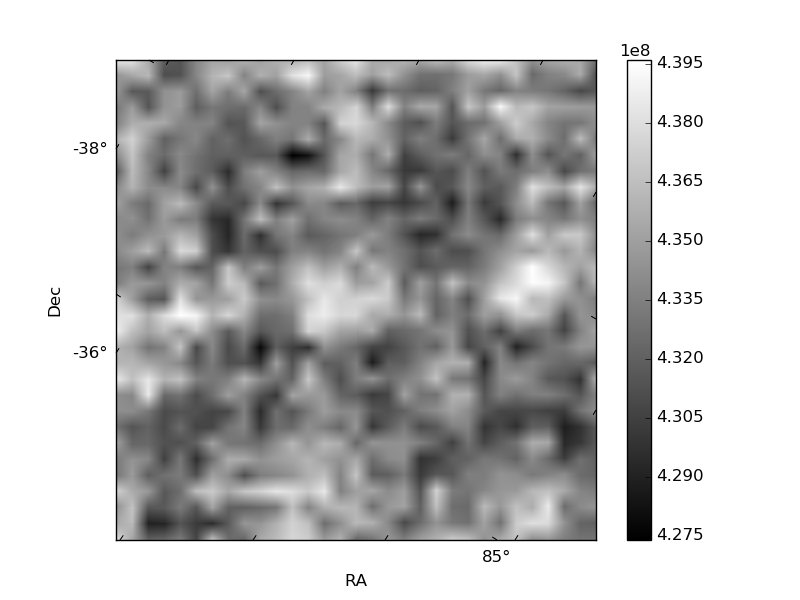

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

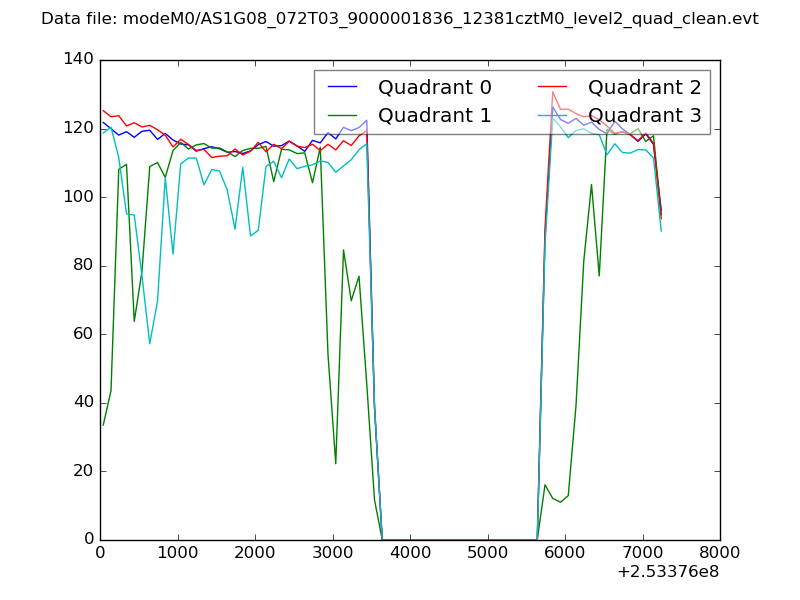

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

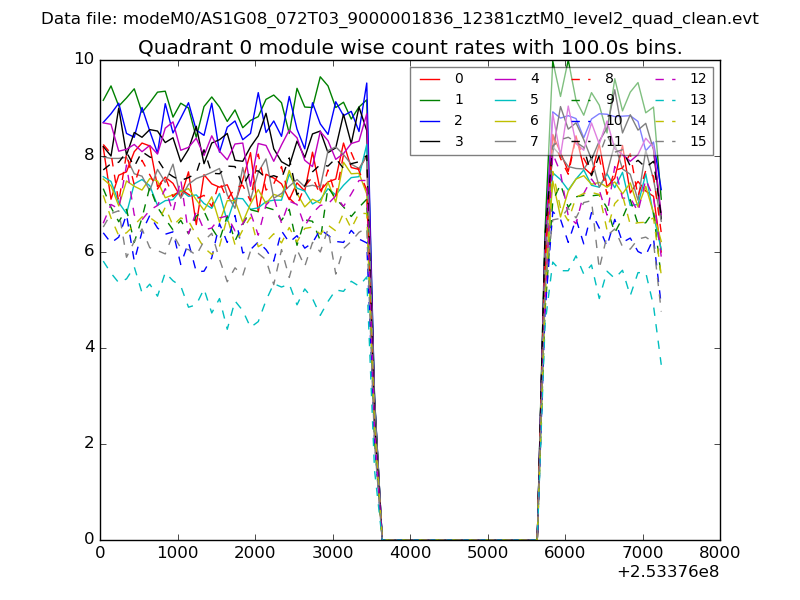

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

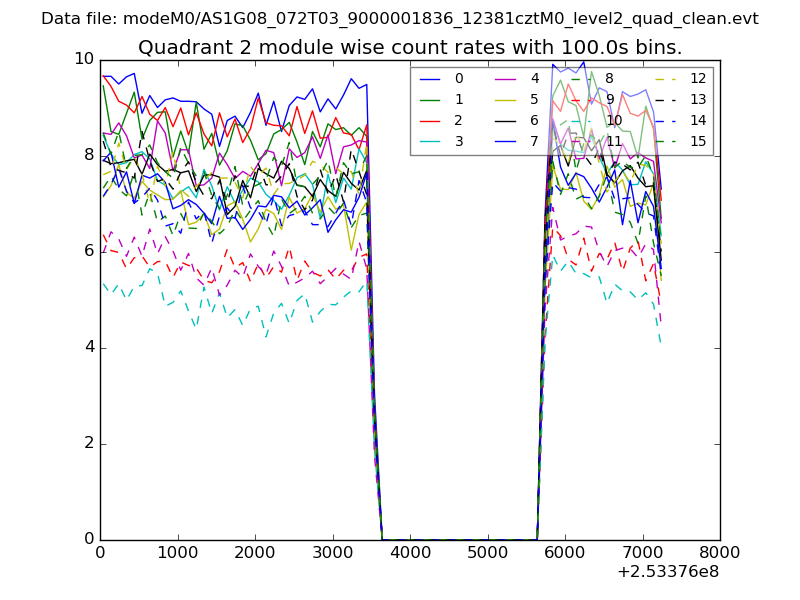

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

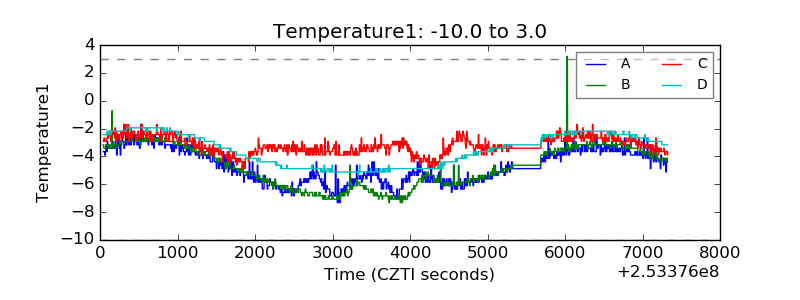

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

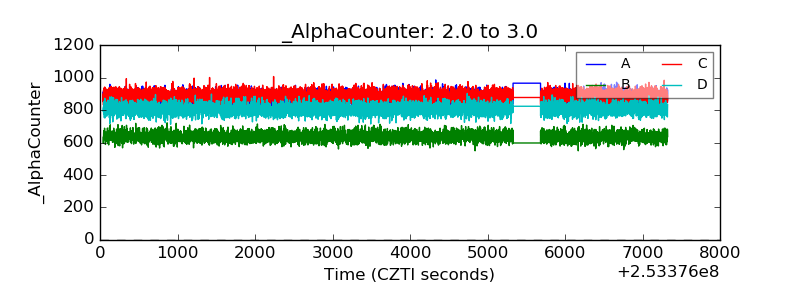

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

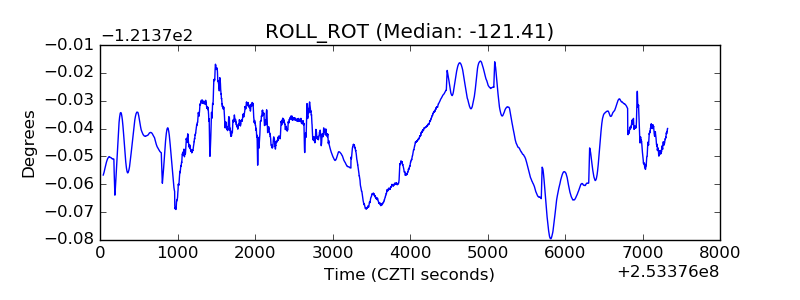

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

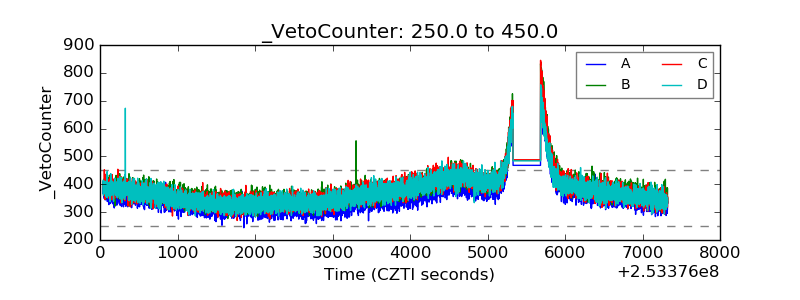

| Veto Counter |  |
