| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_104T02_9000001838_12384cztM0_level2.evt | modeM0/AS1A04_104T02_9000001838_12384cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,001,341,440 | 210,294,720 |
| Size | 955.0 MB | 200.6 MB |
| Events in quadrant A | 7,381,127 | 1,413,809 |
| Events in quadrant B | 9,714,031 | 1,363,722 |
| Events in quadrant C | 5,315,833 | 1,424,454 |
| Events in quadrant D | 7,114,199 | 1,347,741 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 242 | 0 |
| B | 0 | 242 | 0 |
| C | 0 | 242 | 0 |
| D | 0 | 242 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 1 | 273359709408 | 0 |
| B | 1 | -1 | -1 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30143 | 3 |
| B | 0 | 36891 | 2 |
| C | 0 | 24347 | 2 |
| D | 0 | 29599 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11846 | 167 | 1.409759% |
| B | 11846 | 1490 | 12.578085% |
| C | 11846 | 45 | 0.379875% |
| D | 11846 | 421 | 3.553942% |

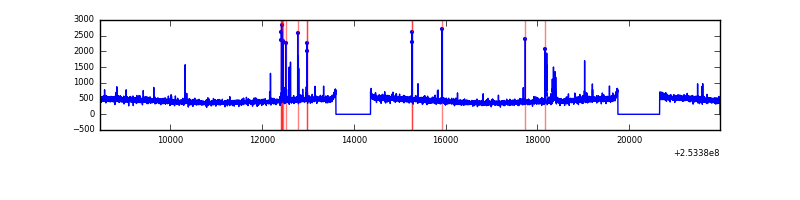

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13512 | 11847 | 58 | 58 | 0.43% | 0.49% |  |
| B | 13512 | 11847 | 1285 | 1285 | 9.51% | 10.85% |  |
| C | 13512 | 11847 | 14 | 14 | 0.10% | 0.12% |  |
| D | 13512 | 11847 | 336 | 336 | 2.49% | 2.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 514690 | 1897.79 | 1342 | 1314 | 270.5 |
| A | 15 | 239 | 493040 | 1817.76 | 1342 | 1314 | 270.5 |
| A | 1 | 162 | 448634 | 1653.6 | 1342 | 1314 | 270.5 |
| B | 2 | 32 | 3159993 | 12899.3 | 1298 | 1265 | 244.9 |
| B | 0 | 85 | 430865 | 1754.36 | 1298 | 1265 | 244.9 |
| B | 4 | 239 | 417550 | 1699.98 | 1298 | 1265 | 244.9 |
| C | 14 | 234 | 92365 | 300.11 | 1317 | 1324 | 303.4 |
| C | 15 | 208 | 88205 | 286.39 | 1317 | 1324 | 303.4 |
| C | 13 | 61 | 9588 | 27.24 | 1317 | 1324 | 303.4 |
| D | 1 | 52 | 1118371 | 3592.58 | 1291 | 1250 | 311.0 |
| D | 10 | 199 | 327043 | 1047.72 | 1291 | 1250 | 311.0 |
| D | 8 | 195 | 176002 | 561.99 | 1291 | 1250 | 311.0 |

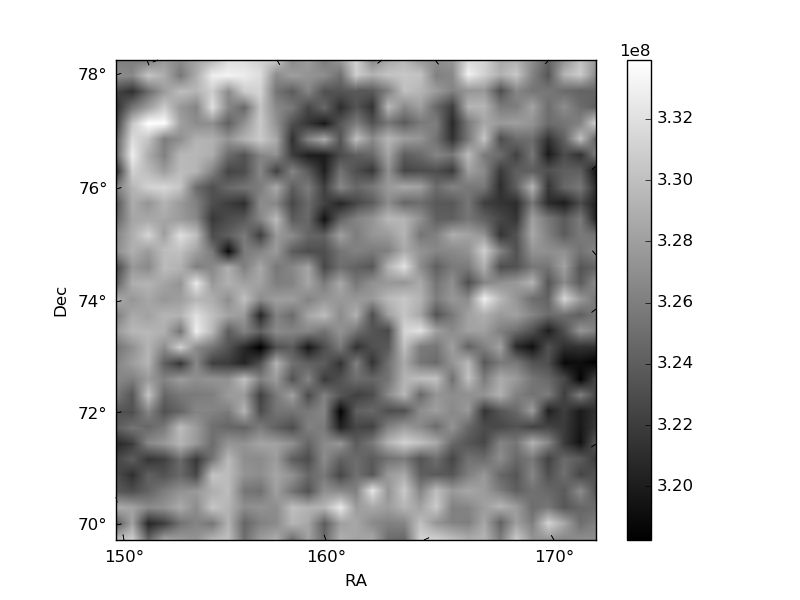

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

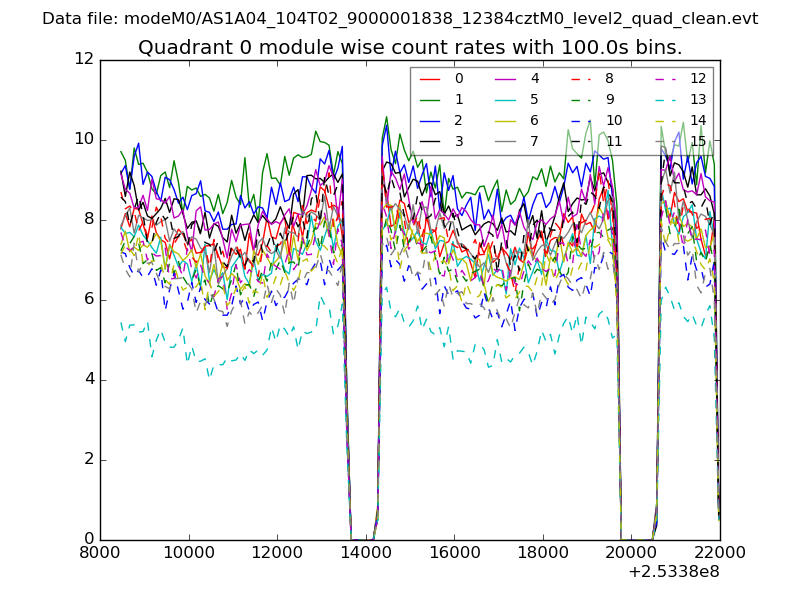

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

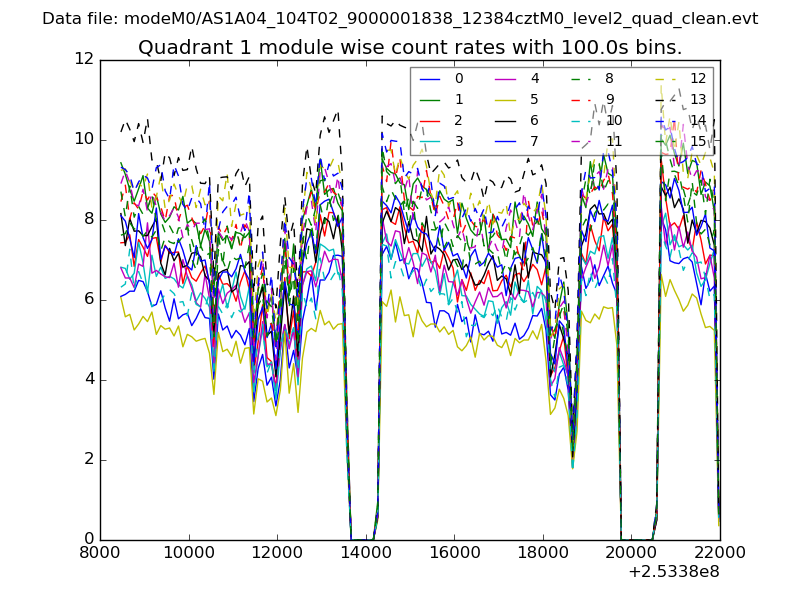

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

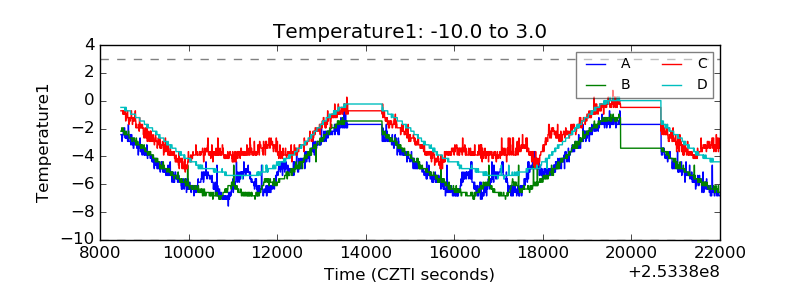

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

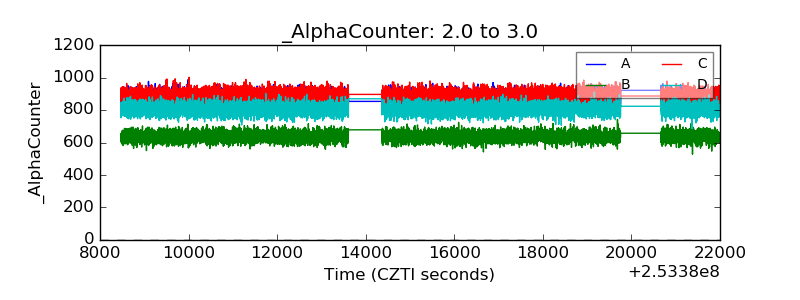

| Alpha Counter |  |

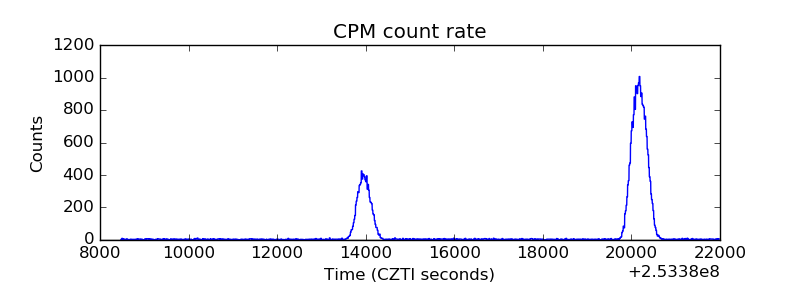

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

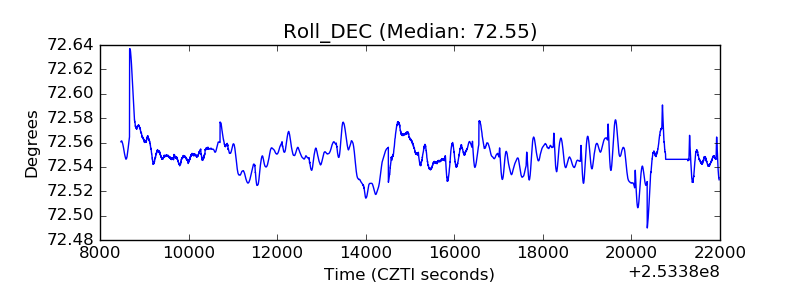

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
