| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_104T02_9000001838_12394cztM0_level2.evt | modeM0/AS1A04_104T02_9000001838_12394cztM0_level2_quad_clean.evt |
| Size (bytes) | 628,574,400 | 138,988,800 |
| Size | 599.5 MB | 132.6 MB |
| Events in quadrant A | 5,892,703 | 917,552 |
| Events in quadrant B | 4,516,183 | 946,798 |
| Events in quadrant C | 3,508,360 | 925,196 |
| Events in quadrant D | 4,591,230 | 877,949 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22790 | 3 |
| B | 0 | 18497 | 2 |
| C | 0 | 16110 | 2 |
| D | 0 | 19056 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7797 | 538 | 6.900090% |
| B | 7797 | 359 | 4.604335% |
| C | 7797 | 103 | 1.321021% |
| D | 7797 | 292 | 3.745030% |

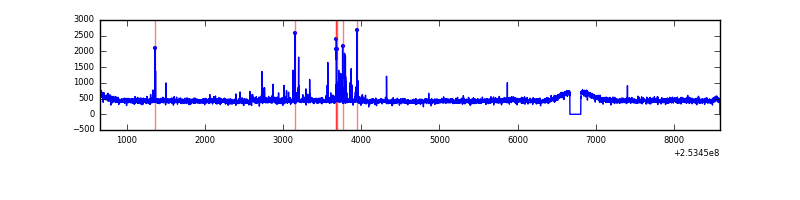

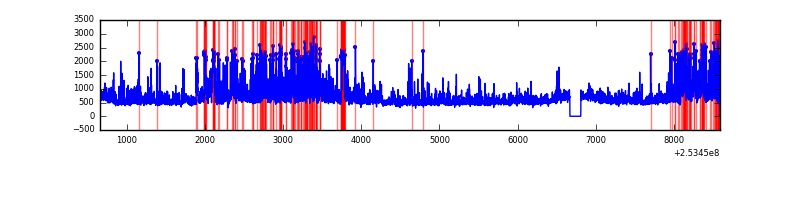

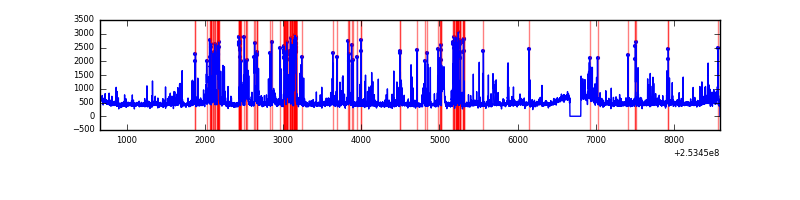

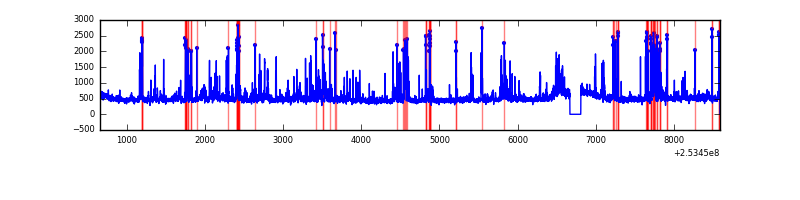

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7938 | 7798 | 229 | 229 | 2.88% | 2.94% |  |
| B | 7938 | 7798 | 94 | 94 | 1.18% | 1.21% |  |
| C | 7938 | 7799 | 7 | 7 | 0.09% | 0.09% |  |
| D | 7938 | 7798 | 181 | 181 | 2.28% | 2.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 1335256 | 7413.59 | 891 | 872 | 180.0 |
| A | 14 | 237 | 317168 | 1757.28 | 891 | 872 | 180.0 |
| A | 1 | 162 | 260005 | 1439.69 | 891 | 872 | 180.0 |
| B | 4 | 239 | 544390 | 3174.76 | 900 | 878 | 171.2 |
| B | 3 | 64 | 185024 | 1075.63 | 900 | 878 | 171.2 |
| B | 10 | 245 | 62993 | 362.83 | 900 | 878 | 171.2 |
| C | 15 | 208 | 90033 | 447.0 | 868 | 869 | 199.5 |
| C | 14 | 234 | 10151 | 46.53 | 868 | 869 | 199.5 |
| C | 8 | 112 | 9167 | 41.6 | 868 | 869 | 199.5 |
| D | 1 | 52 | 847091 | 4085.31 | 860 | 833 | 207.1 |
| D | 13 | 104 | 137323 | 658.91 | 860 | 833 | 207.1 |
| D | 10 | 199 | 96977 | 464.14 | 860 | 833 | 207.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

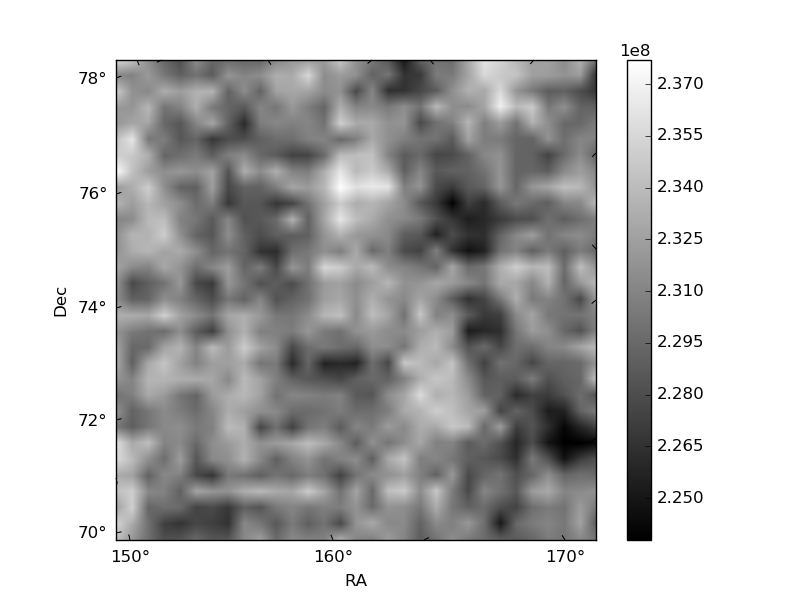

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

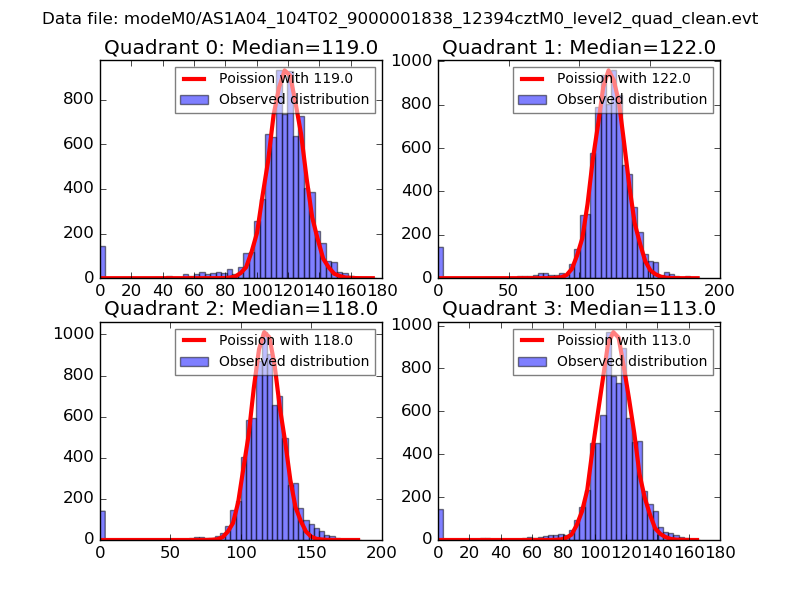

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

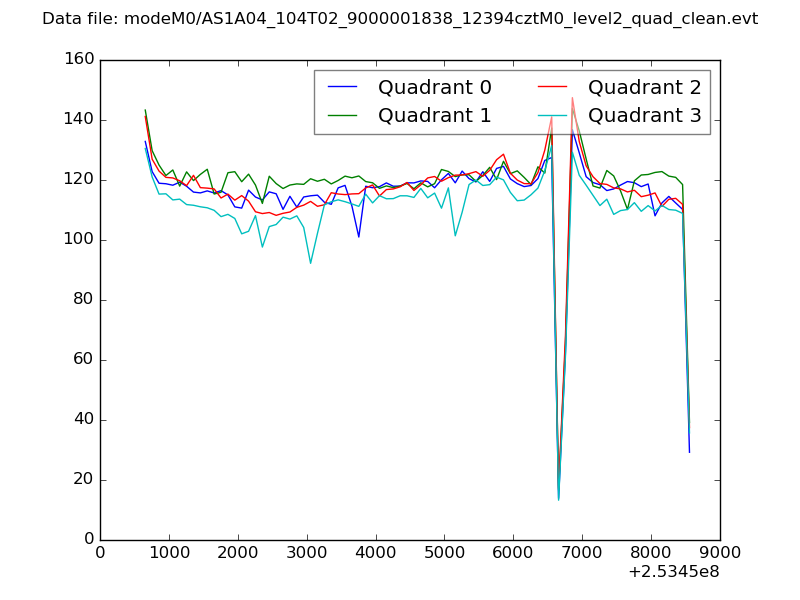

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

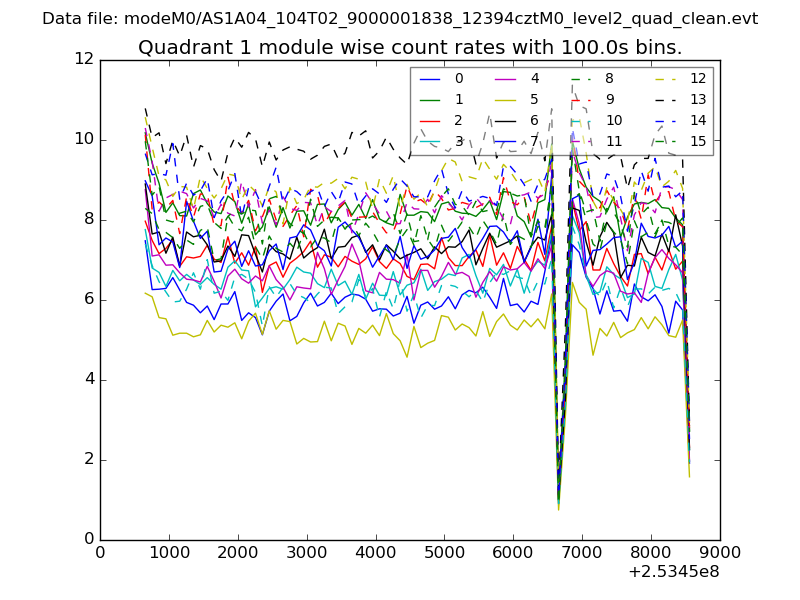

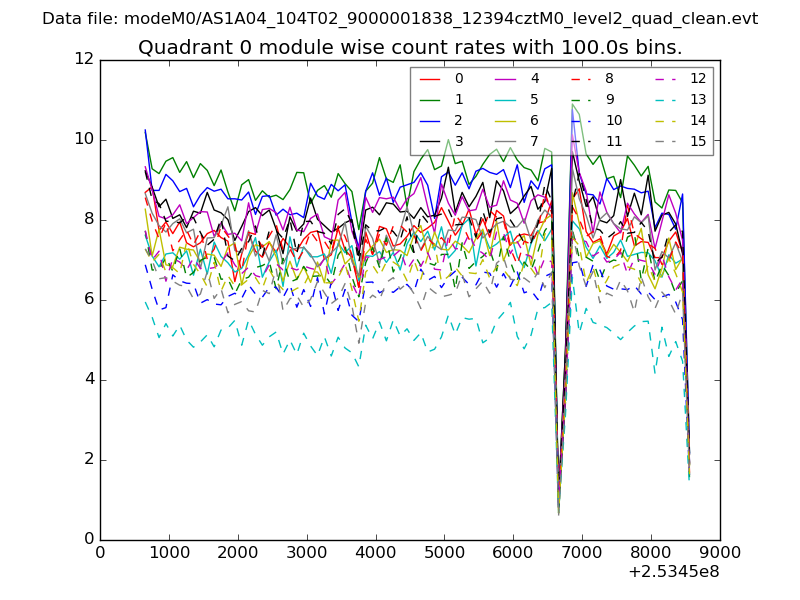

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

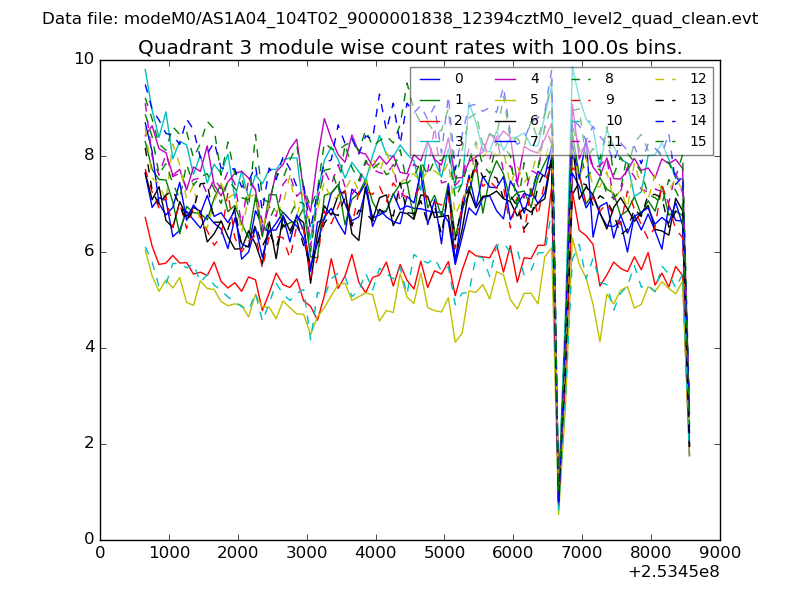

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

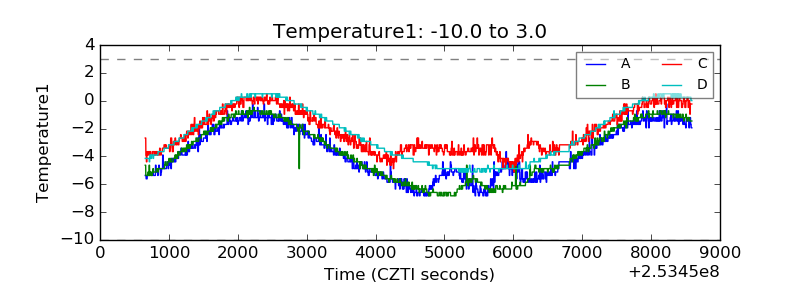

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

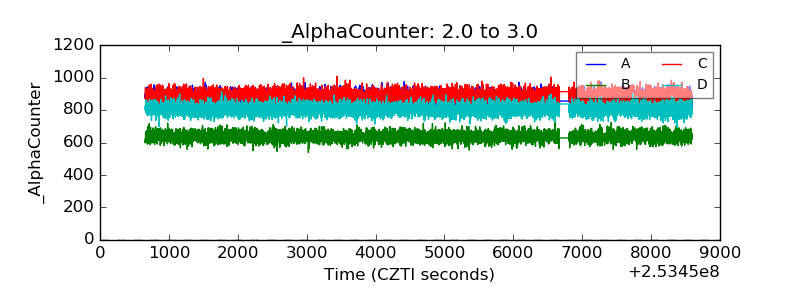

| Alpha Counter |  |

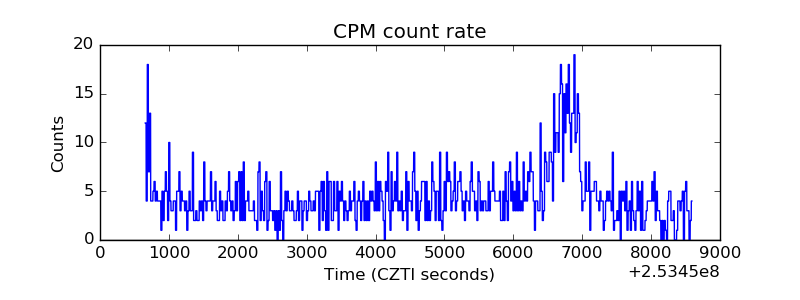

| _CPM_Rate |  |

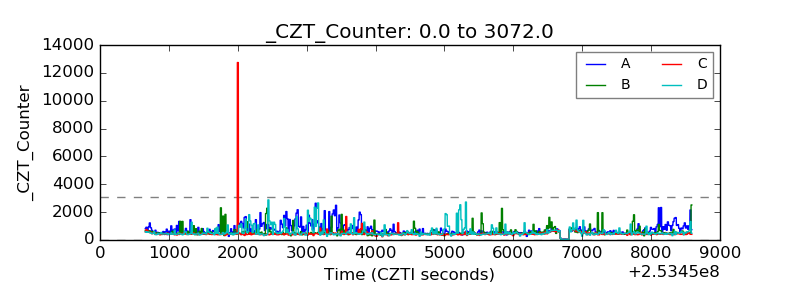

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

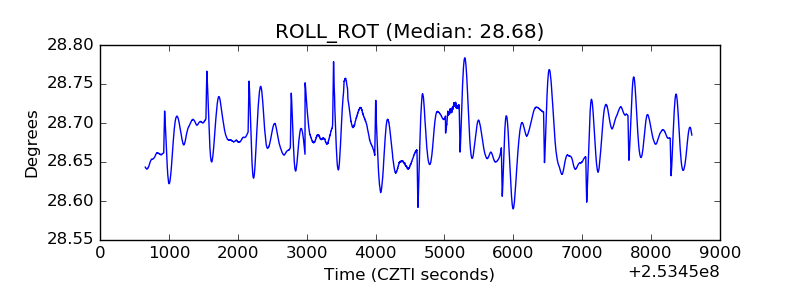

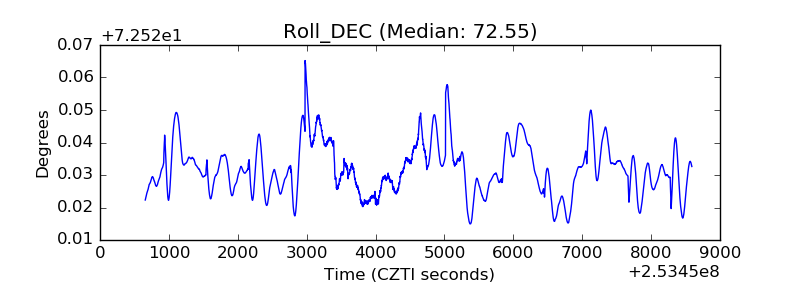

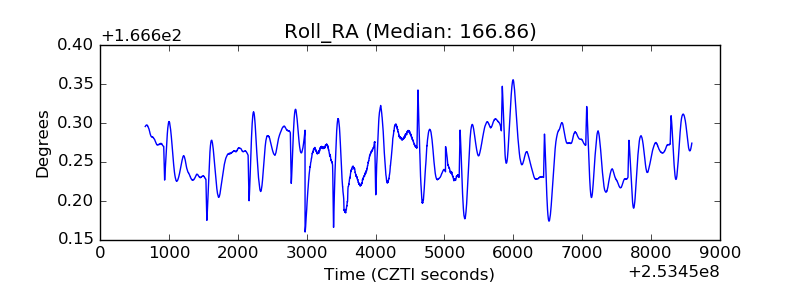

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

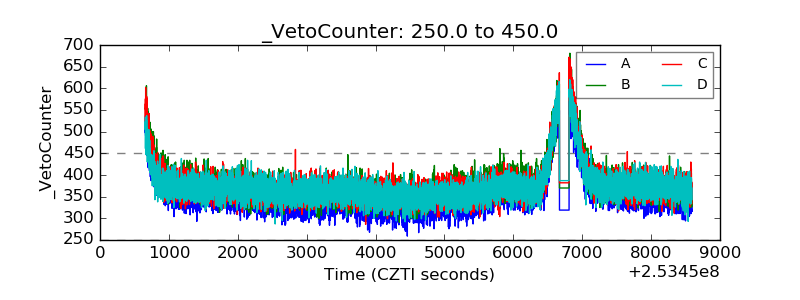

| Veto Counter |  |
