| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_083T02_9000001840_12404cztM0_level2.evt | modeM0/AS1G08_083T02_9000001840_12404cztM0_level2_quad_clean.evt |
| Size (bytes) | 525,006,720 | 95,780,160 |
| Size | 500.7 MB | 91.3 MB |
| Events in quadrant A | 5,322,091 | 611,626 |
| Events in quadrant B | 3,639,119 | 634,129 |
| Events in quadrant C | 3,092,854 | 618,054 |
| Events in quadrant D | 3,404,614 | 582,723 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20260 | 3 |
| B | 0 | 14814 | 2 |
| C | 0 | 13414 | 2 |
| D | 0 | 14446 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6509 | 284 | 4.363189% |
| B | 6509 | 98 | 1.505608% |
| C | 6509 | 27 | 0.414810% |
| D | 6509 | 52 | 0.798894% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7780 | 6510 | 61 | 61 | 0.78% | 0.94% |  |
| B | 7780 | 6510 | 15 | 15 | 0.19% | 0.23% |  |
| C | 7780 | 6510 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7780 | 6510 | 22 | 22 | 0.28% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 1360921 | 8236.4 | 818 | 801 | 165.1 |
| A | 13 | 251 | 254213 | 1534.57 | 818 | 801 | 165.1 |
| A | 1 | 162 | 197734 | 1192.56 | 818 | 801 | 165.1 |
| B | 4 | 239 | 167074 | 1076.95 | 822 | 804 | 154.4 |
| B | 0 | 219 | 66093 | 422.88 | 822 | 804 | 154.4 |
| B | 0 | 187 | 47013 | 299.3 | 822 | 804 | 154.4 |
| C | 13 | 61 | 5982 | 28.4 | 792 | 797 | 182.6 |
| C | 12 | 4 | 2223 | 7.81 | 792 | 797 | 182.6 |
| C | 14 | 234 | 2054 | 6.88 | 792 | 797 | 182.6 |
| D | 1 | 52 | 178094 | 939.62 | 788 | 767 | 188.7 |
| D | 10 | 199 | 77007 | 403.98 | 788 | 767 | 188.7 |
| D | 10 | 50 | 31544 | 163.08 | 788 | 767 | 188.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

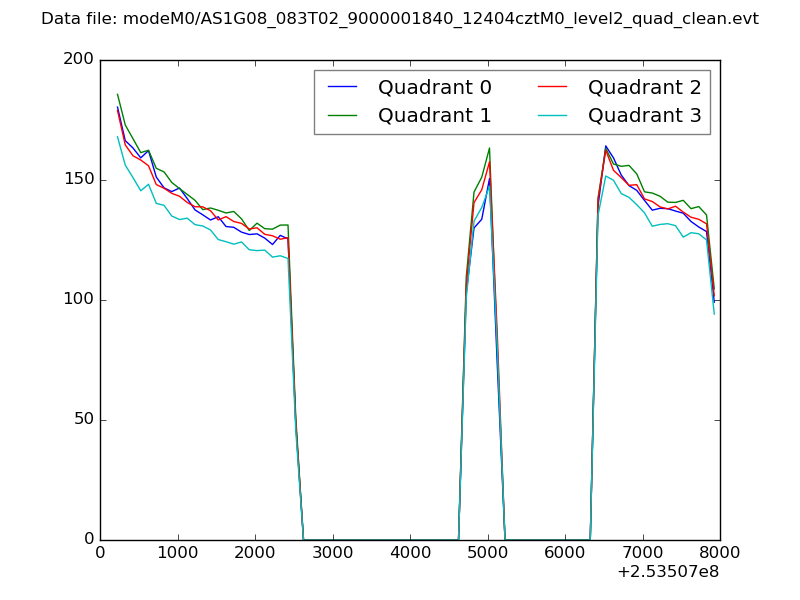

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

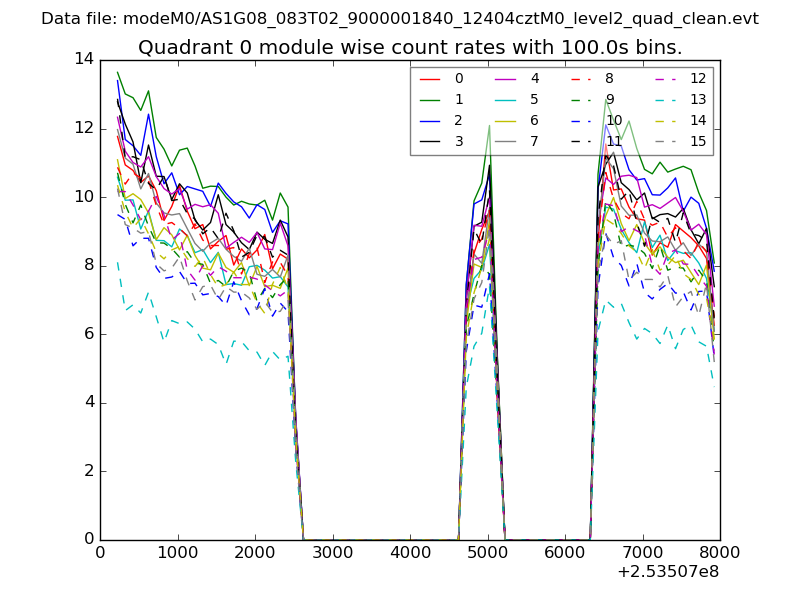

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

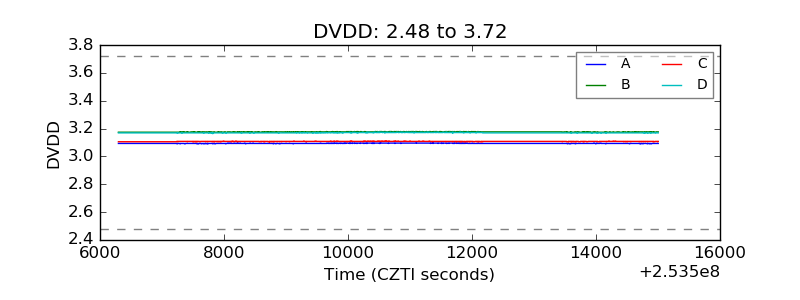

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

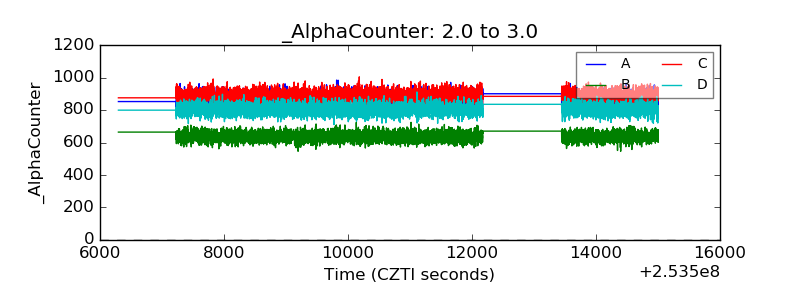

| Alpha Counter |  |

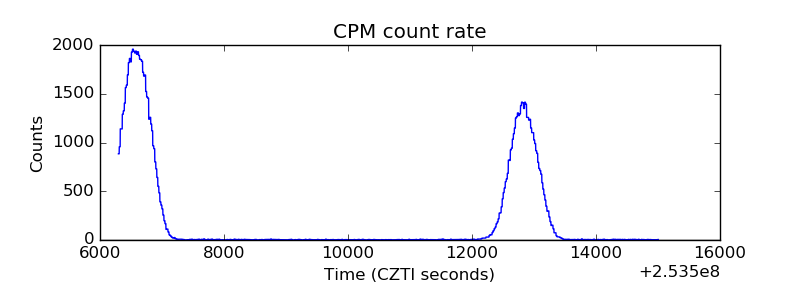

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

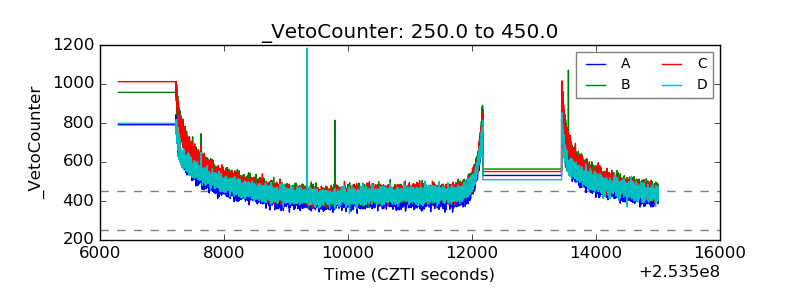

| Veto Counter |  |
