| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_085T02_9000001846_12421cztM0_level2.evt | modeM0/AS1A04_085T02_9000001846_12421cztM0_level2_quad_clean.evt |
| Size (bytes) | 133,914,240 | 21,274,560 |
| Size | 127.7 MB | 20.3 MB |
| Events in quadrant A | 965,911 | 134,363 |
| Events in quadrant B | 975,499 | 137,215 |
| Events in quadrant C | 862,733 | 134,574 |
| Events in quadrant D | 1,149,422 | 128,829 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3793 | 2 |
| B | 0 | 3846 | 1 |
| C | 0 | 3535 | 1 |
| D | 0 | 4381 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1461 | 155 | 10.609172% |
| B | 1461 | 139 | 9.514031% |
| C | 1461 | 119 | 8.145106% |
| D | 1461 | 216 | 14.784394% |

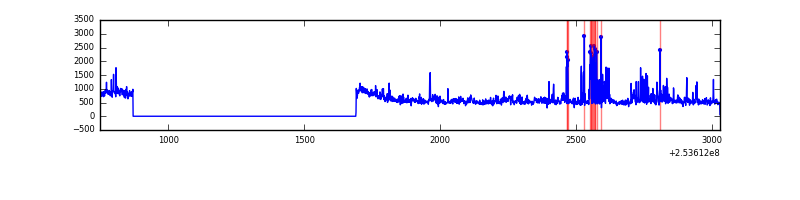

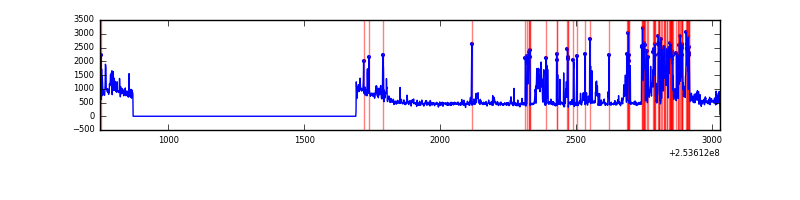

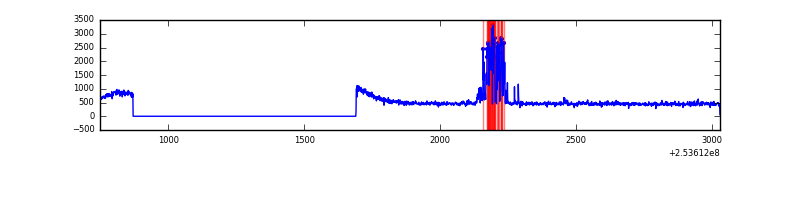

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2282 | 1462 | 15 | 15 | 0.66% | 1.03% |  |
| B | 2282 | 1462 | 18 | 18 | 0.79% | 1.23% |  |
| C | 2282 | 1462 | 36 | 36 | 1.58% | 2.46% |  |
| D | 2282 | 1462 | 88 | 88 | 3.86% | 6.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 154547 | 3712.76 | 194 | 189 | 41.6 |
| A | 1 | 162 | 21850 | 521.01 | 194 | 189 | 41.6 |
| A | 1 | 178 | 11193 | 264.68 | 194 | 189 | 41.6 |
| B | 4 | 239 | 122953 | 3095.54 | 190 | 185 | 39.7 |
| B | 3 | 64 | 55091 | 1384.43 | 190 | 185 | 39.7 |
| B | 0 | 187 | 26227 | 656.64 | 190 | 185 | 39.7 |
| C | 15 | 208 | 127221 | 2761.05 | 188 | 188 | 46.0 |
| C | 13 | 61 | 1362 | 25.52 | 188 | 188 | 46.0 |
| C | 5 | 252 | 930 | 16.13 | 188 | 188 | 46.0 |
| D | 1 | 52 | 378832 | 7950.99 | 187 | 181 | 47.6 |
| D | 2 | 14 | 20303 | 422.53 | 187 | 181 | 47.6 |
| D | 10 | 199 | 11156 | 230.46 | 187 | 181 | 47.6 |

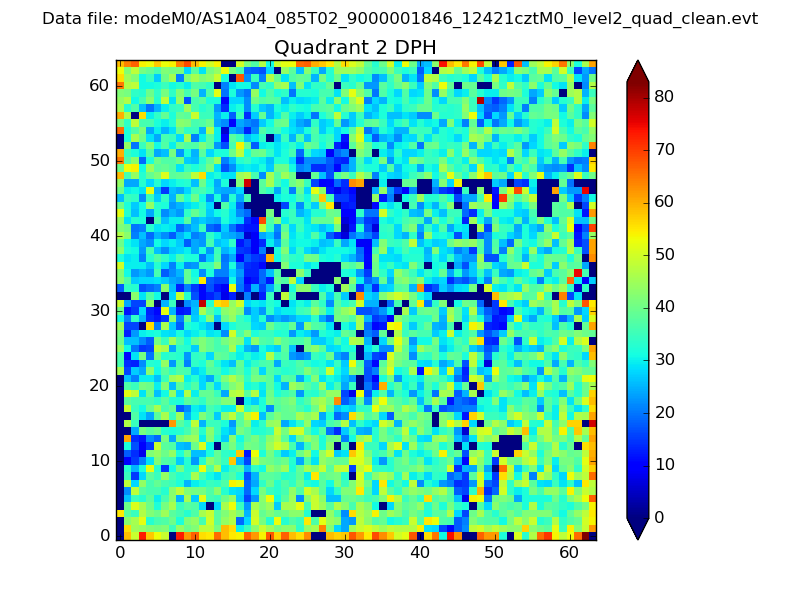

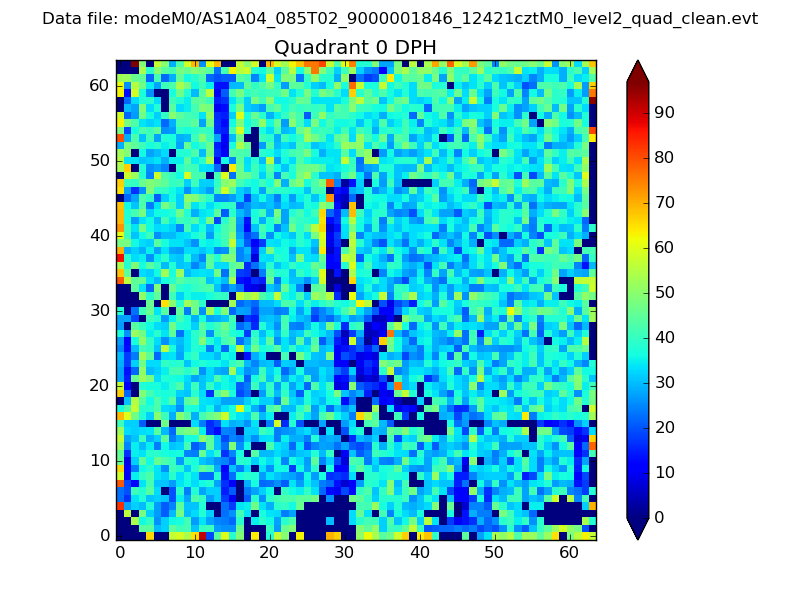

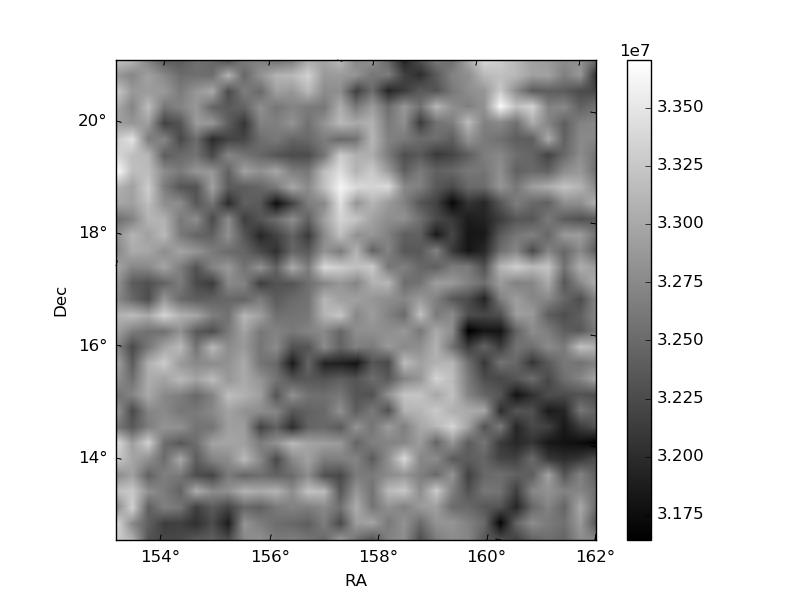

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |

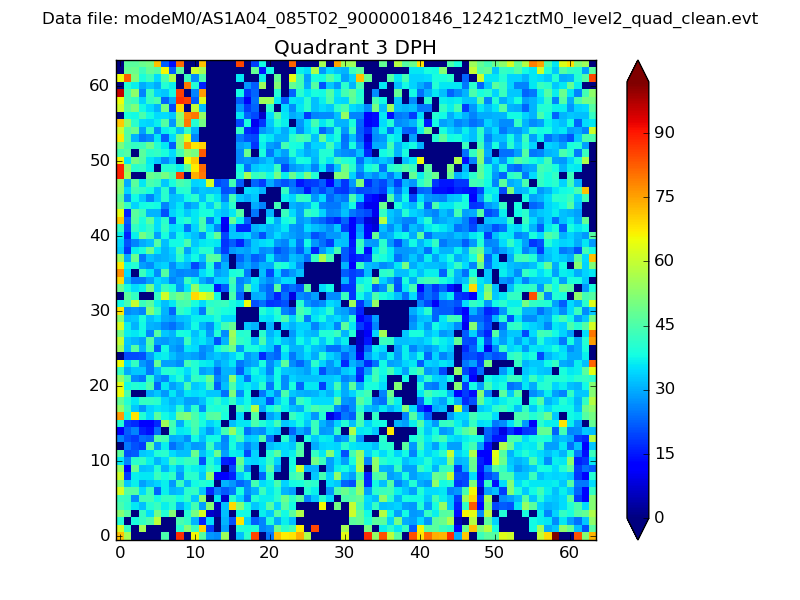

|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

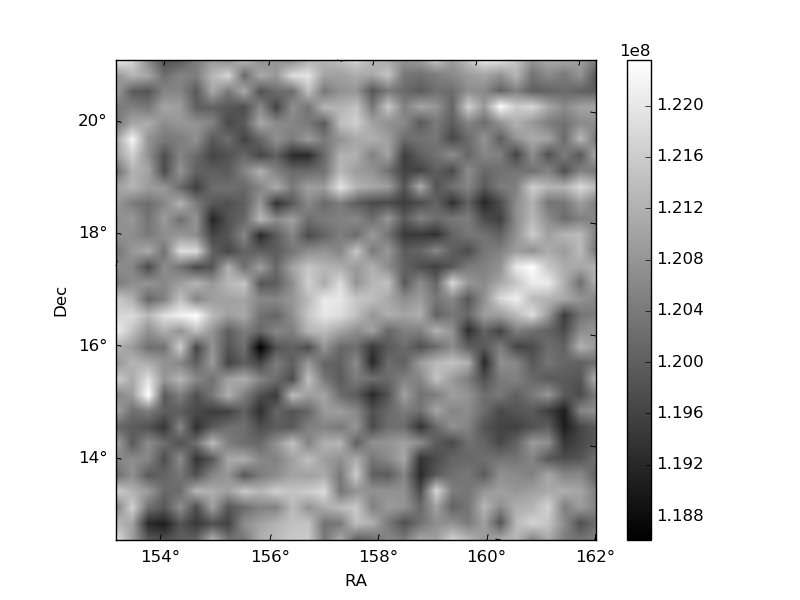

| Plot type | Count rate plots | Images |
|---|---|---|

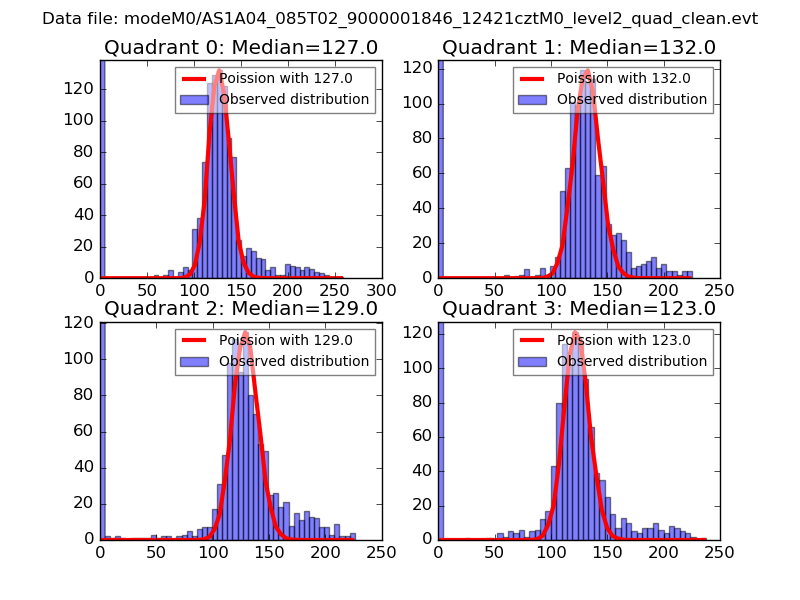

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

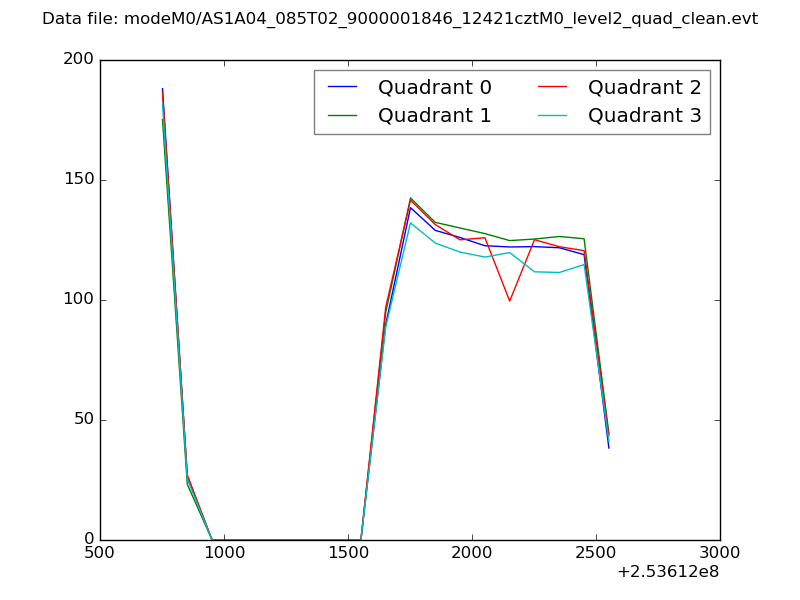

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

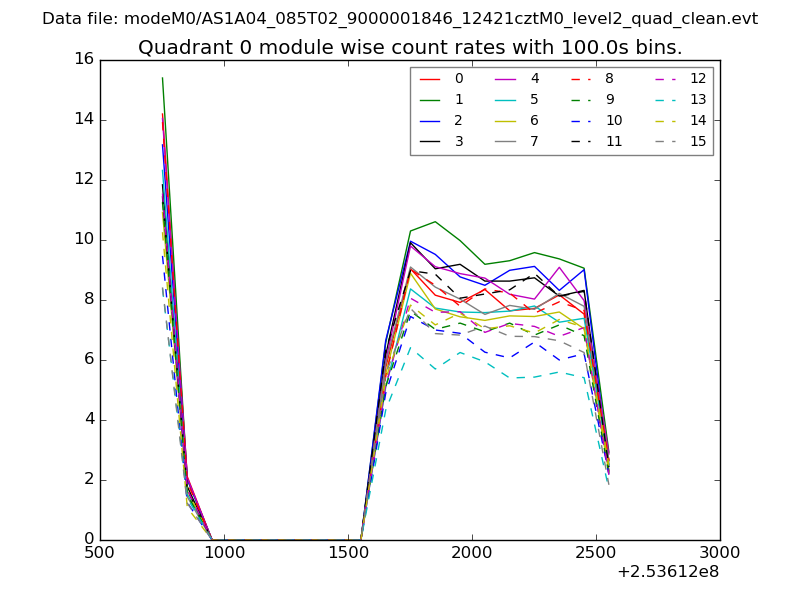

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

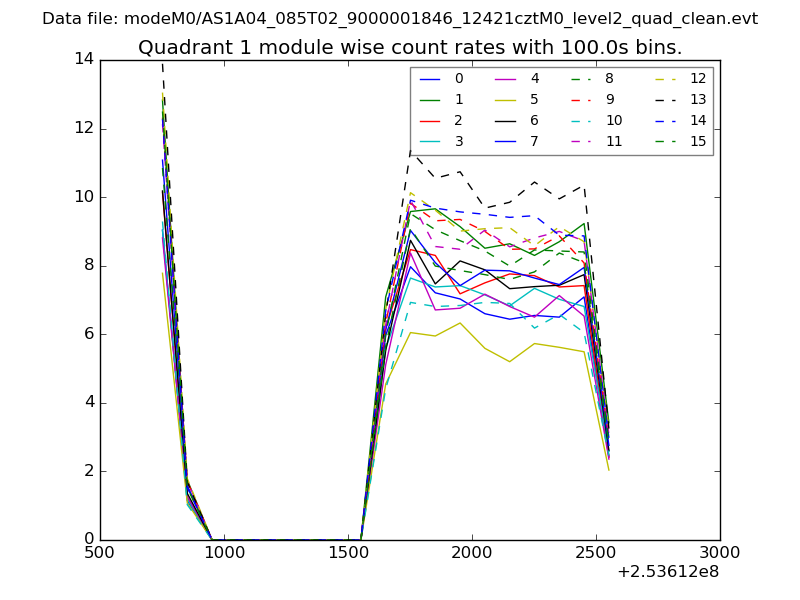

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

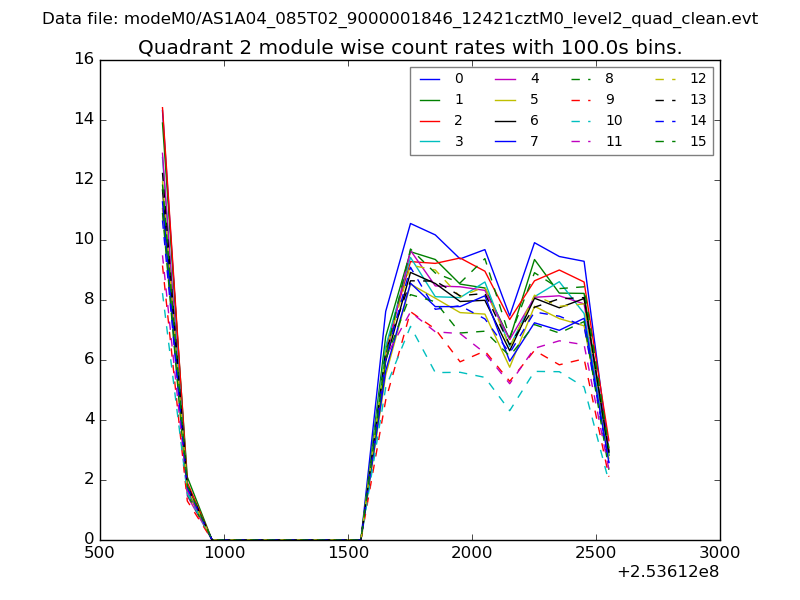

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

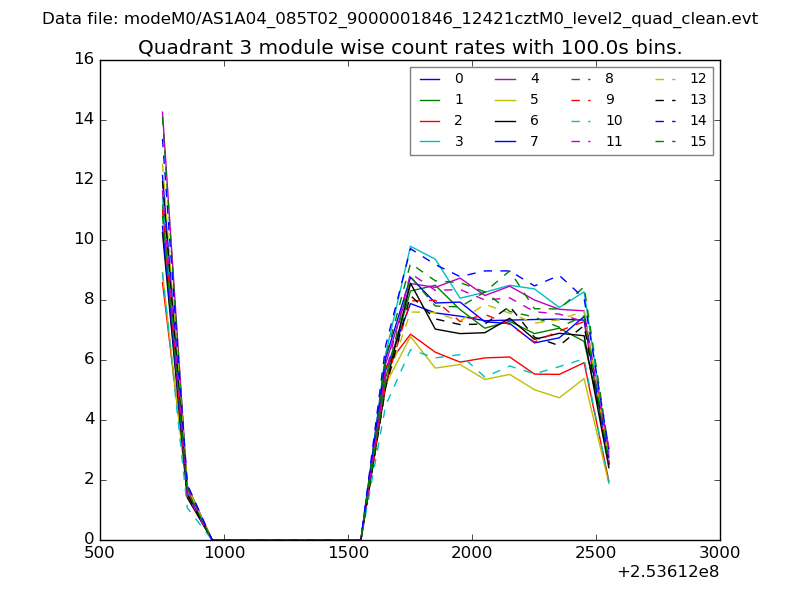

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

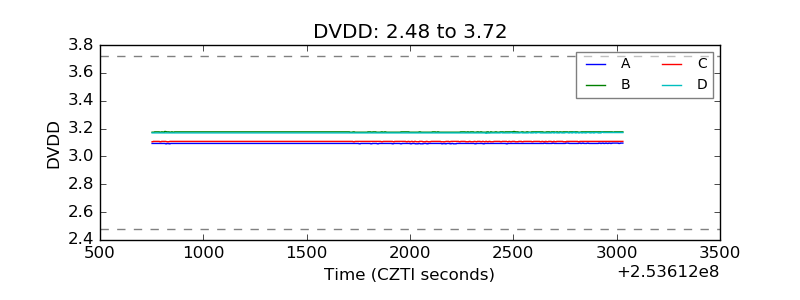

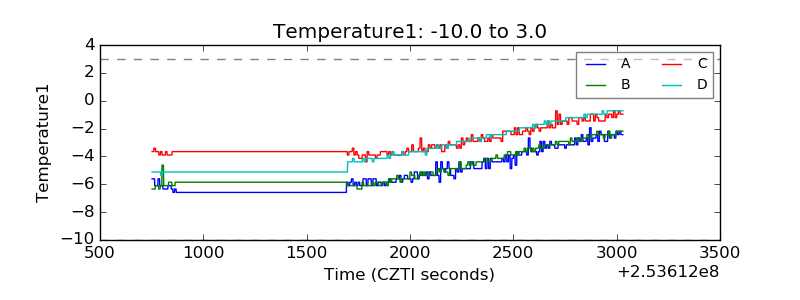

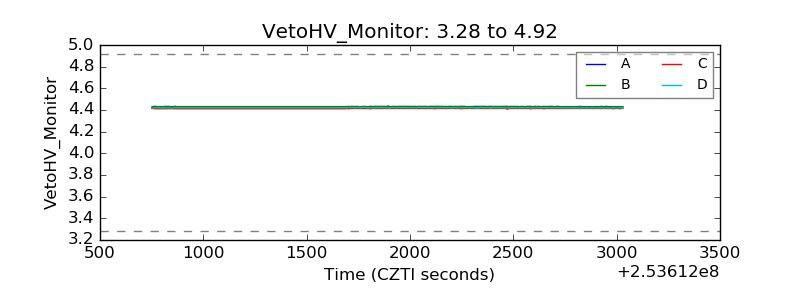

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

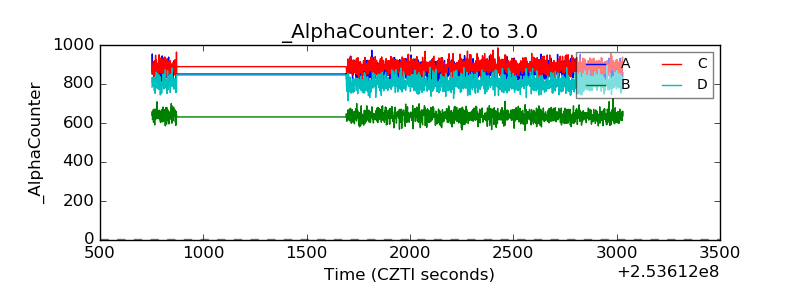

| Alpha Counter |  |
| _CPM_Rate |  |

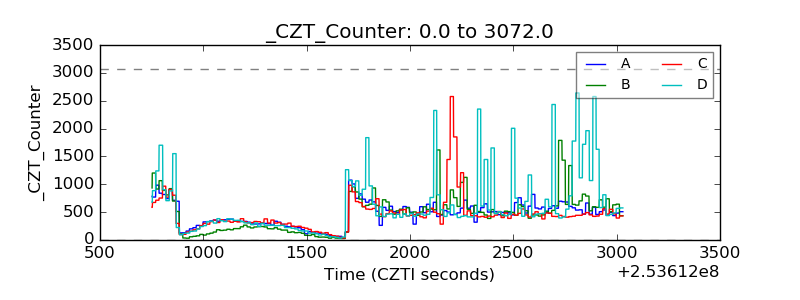

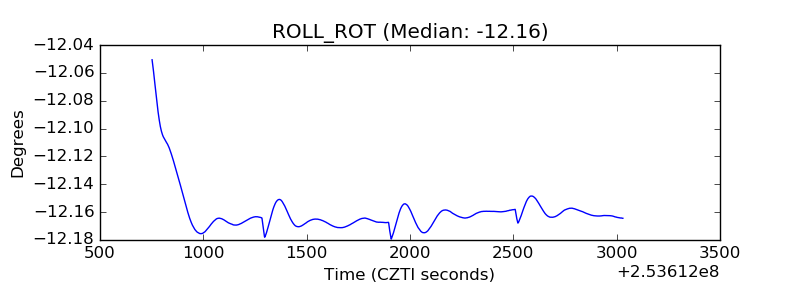

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

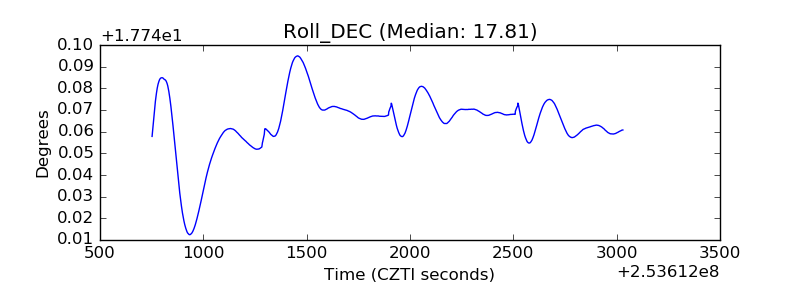

| _Roll_DEC |  |

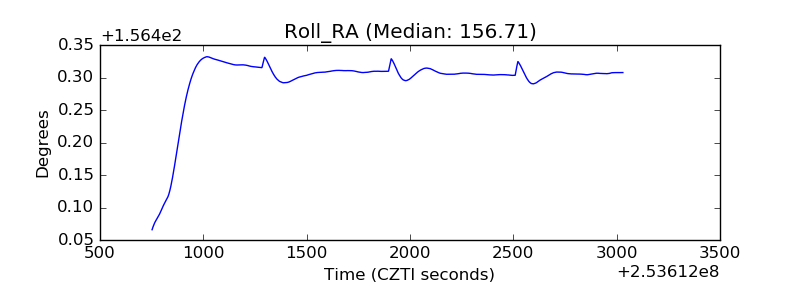

| _Roll_RA |  |

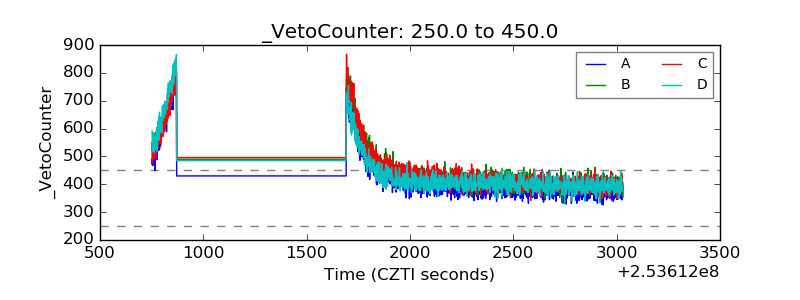

| Veto Counter |  |
