| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_174T01_9000001850_12453cztM0_level2.evt | modeM0/AS1A04_174T01_9000001850_12453cztM0_level2_quad_clean.evt |
| Size (bytes) | 649,739,520 | 92,479,680 |
| Size | 619.6 MB | 88.2 MB |
| Events in quadrant A | 6,379,972 | 577,400 |
| Events in quadrant B | 5,382,891 | 545,995 |
| Events in quadrant C | 3,407,738 | 601,546 |
| Events in quadrant D | 4,008,670 | 562,830 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24351 | 3 |
| B | 0 | 20490 | 2 |
| C | 0 | 14970 | 2 |
| D | 0 | 16806 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7352 | 463 | 6.297606% |
| B | 7352 | 767 | 10.432535% |
| C | 7352 | 64 | 0.870511% |
| D | 7352 | 118 | 1.605005% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7648 | 7353 | 166 | 166 | 2.17% | 2.26% |  |
| B | 7648 | 7354 | 593 | 593 | 7.75% | 8.06% |  |
| C | 7648 | 7354 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7648 | 7354 | 51 | 51 | 0.67% | 0.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 2330945 | 13025.34 | 875 | 859 | 178.9 |
| A | 12 | 189 | 250808 | 1397.23 | 875 | 859 | 178.9 |
| A | 1 | 162 | 144277 | 801.72 | 875 | 859 | 178.9 |
| B | 4 | 239 | 1829074 | 11114.3 | 852 | 831 | 164.5 |
| B | 11 | 51 | 69656 | 418.4 | 852 | 831 | 164.5 |
| B | 0 | 187 | 45651 | 272.47 | 852 | 831 | 164.5 |
| C | 15 | 208 | 14415 | 66.71 | 871 | 877 | 202.9 |
| C | 13 | 61 | 6442 | 27.42 | 871 | 877 | 202.9 |
| C | 3 | 202 | 2231 | 6.67 | 871 | 877 | 202.9 |
| D | 1 | 52 | 606671 | 2912.88 | 860 | 836 | 208.0 |
| D | 13 | 249 | 38375 | 180.49 | 860 | 836 | 208.0 |
| D | 10 | 199 | 36290 | 170.46 | 860 | 836 | 208.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

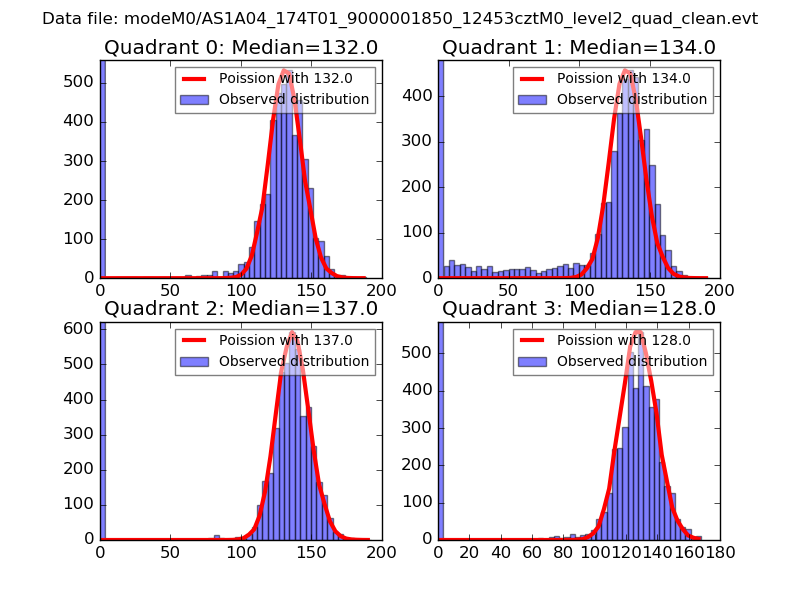

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

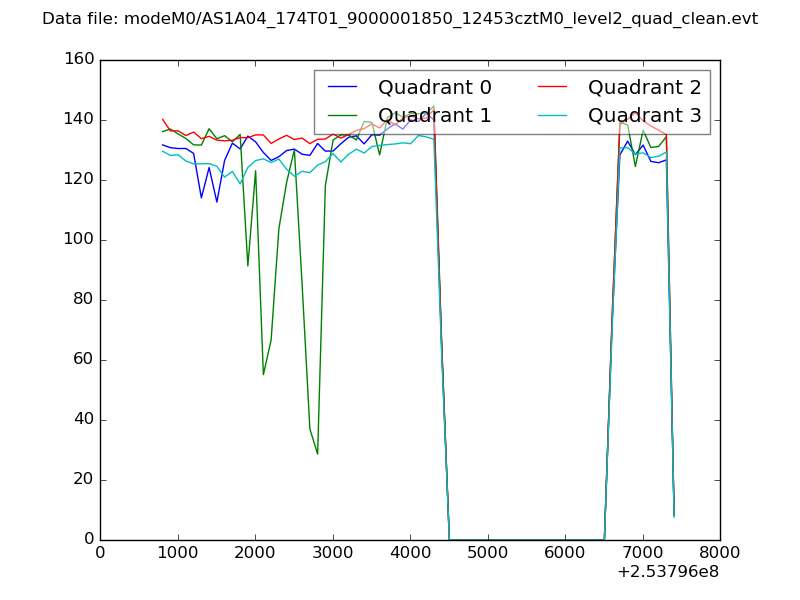

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

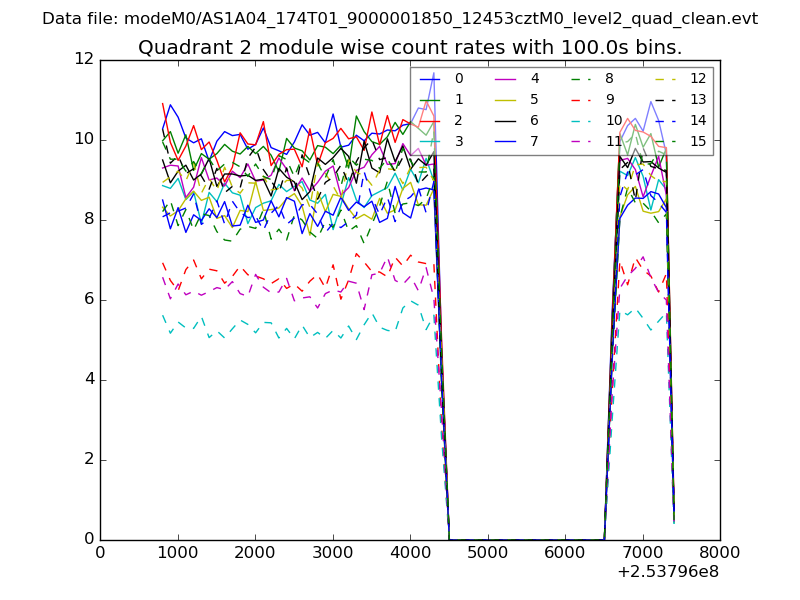

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

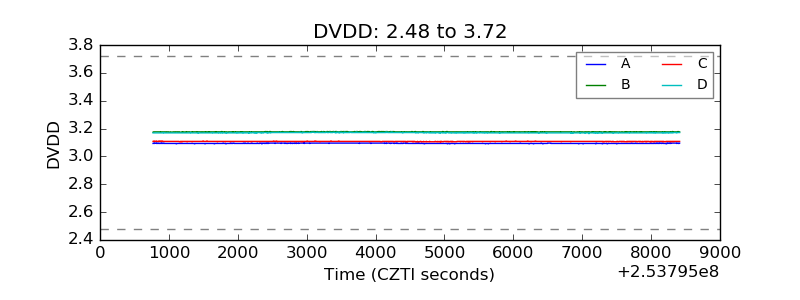

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

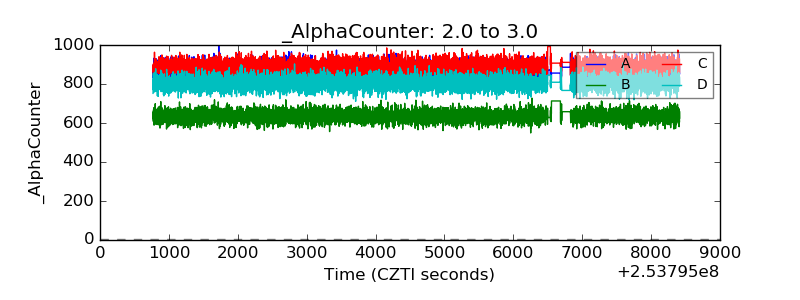

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
