| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_174T01_9000001850_12456cztM0_level2.evt | modeM0/AS1A04_174T01_9000001850_12456cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,695,755,520 | 250,522,560 |
| Size | 1.6 GB | 238.9 MB |
| Events in quadrant A | 20,547,650 | 1,570,291 |
| Events in quadrant B | 11,227,483 | 1,592,337 |
| Events in quadrant C | 8,105,717 | 1,666,400 |
| Events in quadrant D | 10,294,579 | 1,549,550 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 73543 | 4 |
| B | 0 | 44572 | 3 |
| C | 0 | 35770 | 3 |
| D | 0 | 42126 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 358 | 0 |
| B | 0 | 358 | 0 |
| C | 0 | 358 | 0 |
| D | 0 | 358 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17526 | 3134 | 17.882004% |
| B | 17526 | 1154 | 6.584503% |
| C | 17526 | 96 | 0.547758% |
| D | 17526 | 643 | 3.668835% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

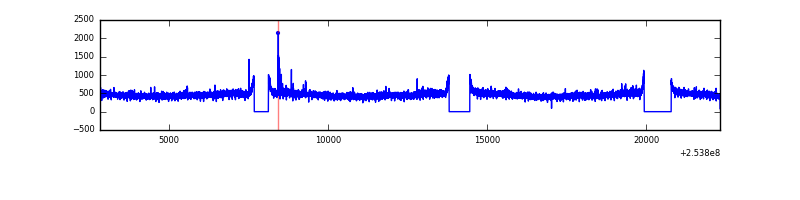

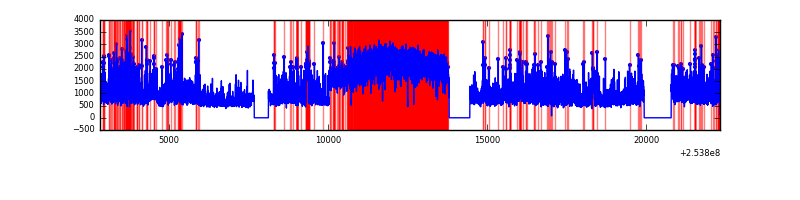

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19473 | 17528 | 2399 | 2399 | 12.32% | 13.69% |  |
| B | 19473 | 17528 | 721 | 721 | 3.70% | 4.11% |  |
| C | 19473 | 17530 | 1 | 1 | 0.01% | 0.01% |  |
| D | 19473 | 17528 | 462 | 462 | 2.37% | 2.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 6326639 | 15164.97 | 2042 | 2004 | 417.1 |
| A | 0 | 23 | 5055718 | 12117.6 | 2042 | 2004 | 417.1 |
| A | 0 | 226 | 380798 | 908.26 | 2042 | 2004 | 417.1 |
| B | 4 | 239 | 2516469 | 6394.57 | 2061 | 2013 | 393.2 |
| B | 11 | 51 | 259466 | 654.73 | 2061 | 2013 | 393.2 |
| B | 3 | 64 | 123493 | 308.94 | 2061 | 2013 | 393.2 |
| C | 15 | 208 | 29172 | 56.52 | 2072 | 2092 | 479.2 |
| C | 13 | 61 | 14883 | 26.69 | 2072 | 2092 | 479.2 |
| C | 14 | 234 | 5605 | 7.33 | 2072 | 2092 | 479.2 |
| D | 1 | 52 | 2075306 | 4163.93 | 2045 | 1991 | 497.9 |
| D | 7 | 80 | 117664 | 232.31 | 2045 | 1991 | 497.9 |
| D | 13 | 104 | 88138 | 173.01 | 2045 | 1991 | 497.9 |

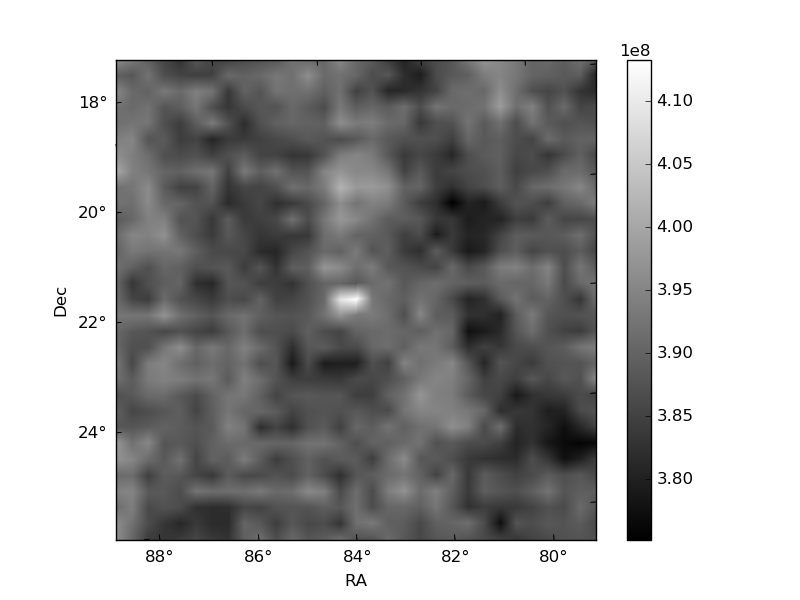

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

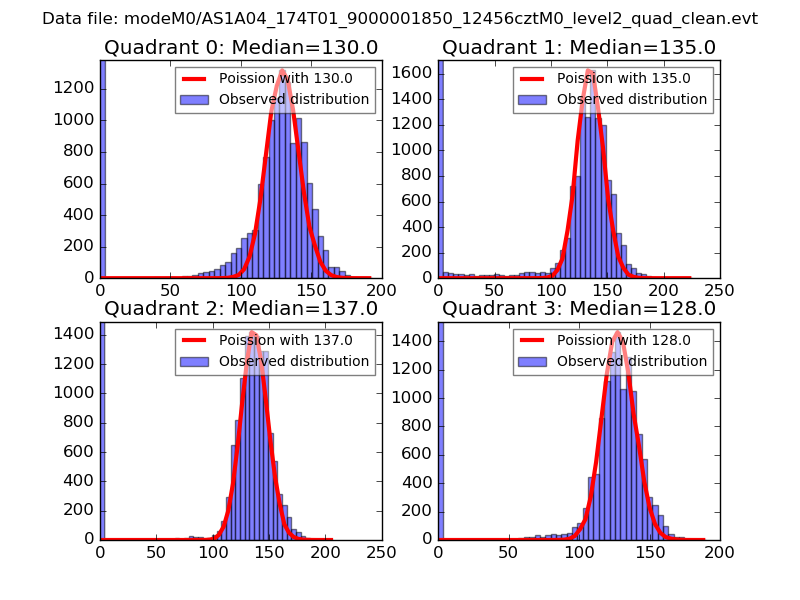

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

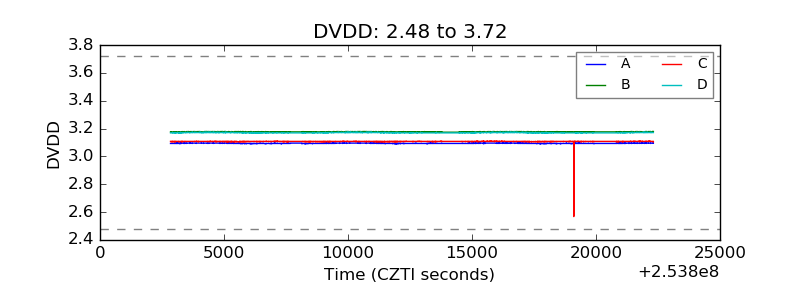

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

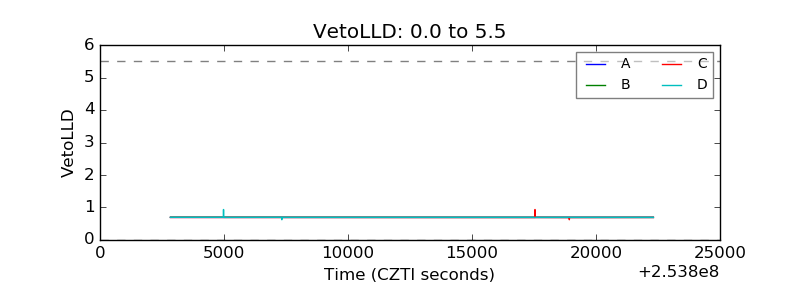

| Veto LLD |  |
| Alpha Counter |  |

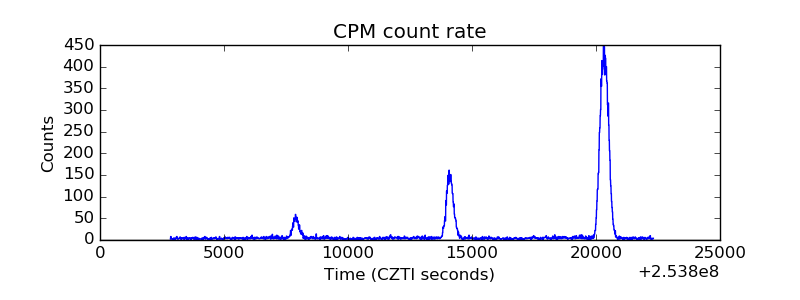

| _CPM_Rate |  |

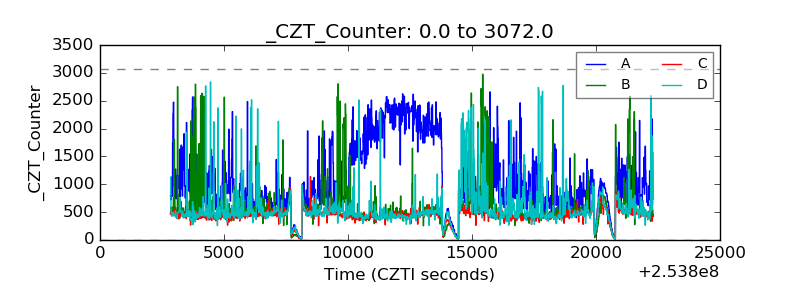

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
