| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_174T01_9000001850_12467cztM0_level2.evt | modeM0/AS1A04_174T01_9000001850_12467cztM0_level2_quad_clean.evt |
| Size (bytes) | 840,876,480 | 87,206,400 |
| Size | 801.9 MB | 83.2 MB |
| Events in quadrant A | 13,100,246 | 469,274 |
| Events in quadrant B | 4,106,605 | 555,872 |
| Events in quadrant C | 3,632,082 | 555,909 |
| Events in quadrant D | 4,105,182 | 522,102 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44299 | 2 |
| B | 0 | 16948 | 1 |
| C | 0 | 15879 | 1 |
| D | 0 | 17438 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7721 | 3617 | 46.846263% |
| B | 7721 | 273 | 3.535811% |
| C | 7721 | 123 | 1.593058% |
| D | 7721 | 231 | 2.991840% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7831 | 7721 | 2288 | 2288 | 29.22% | 29.63% |  |
| B | 7832 | 7724 | 26 | 26 | 0.33% | 0.34% |  |
| C | 7832 | 7724 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7832 | 7723 | 86 | 86 | 1.10% | 1.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 8387759 | 49981.36 | 817 | 801 | 167.8 |
| A | 0 | 23 | 1231028 | 7331.43 | 817 | 801 | 167.8 |
| A | 0 | 226 | 87162 | 514.66 | 817 | 801 | 167.8 |
| B | 4 | 239 | 249344 | 1359.37 | 950 | 924 | 182.7 |
| B | 11 | 51 | 42785 | 229.07 | 950 | 924 | 182.7 |
| B | 0 | 187 | 36927 | 197.01 | 950 | 924 | 182.7 |
| C | 13 | 61 | 6838 | 27.18 | 929 | 934 | 217.2 |
| C | 3 | 233 | 6225 | 24.36 | 929 | 934 | 217.2 |
| C | 8 | 128 | 2516 | 7.28 | 929 | 934 | 217.2 |
| D | 7 | 80 | 217785 | 977.05 | 913 | 886 | 222.0 |
| D | 13 | 104 | 136539 | 611.07 | 913 | 886 | 222.0 |
| D | 13 | 249 | 115128 | 514.62 | 913 | 886 | 222.0 |

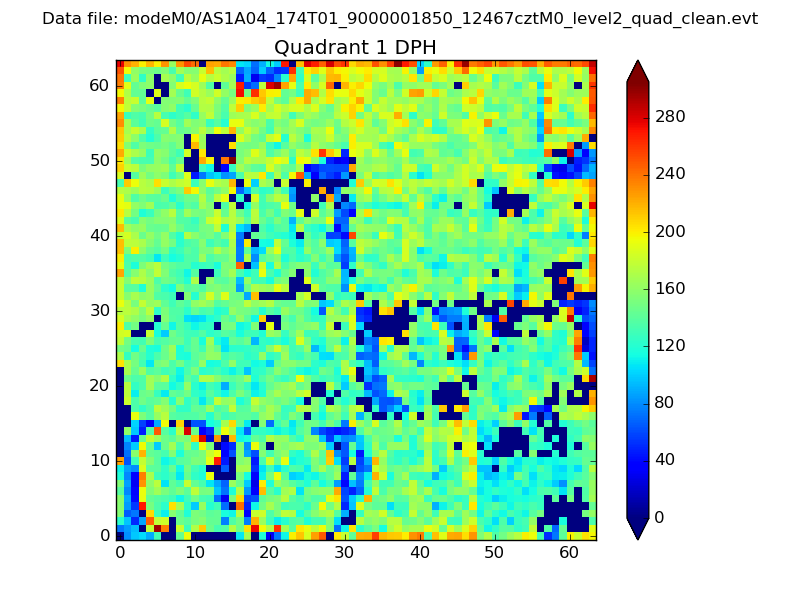

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

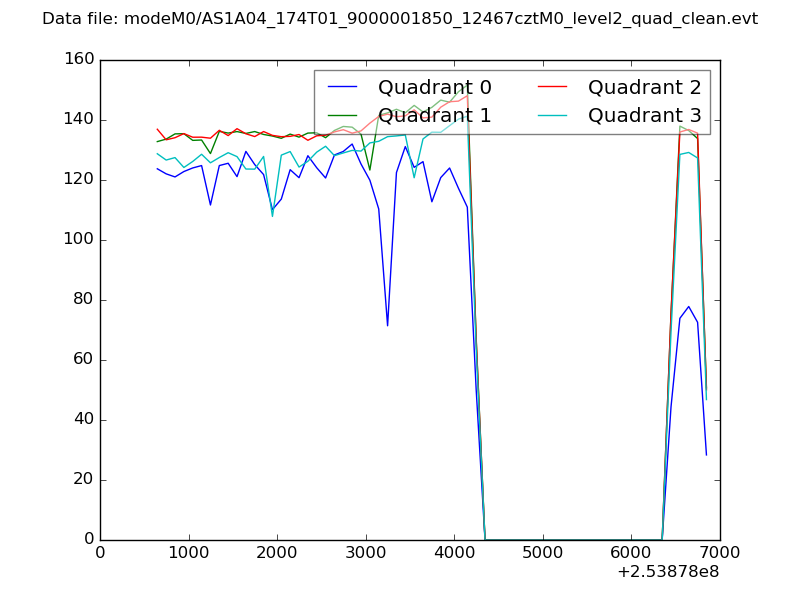

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

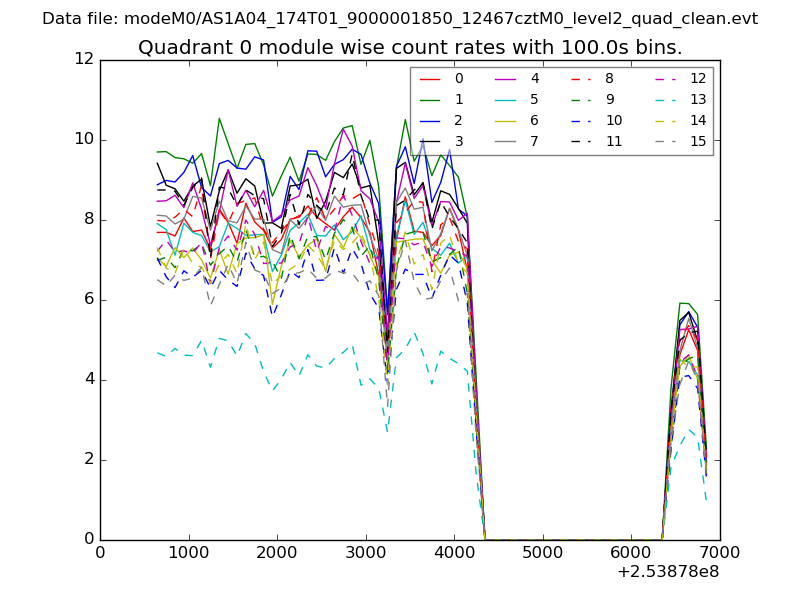

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

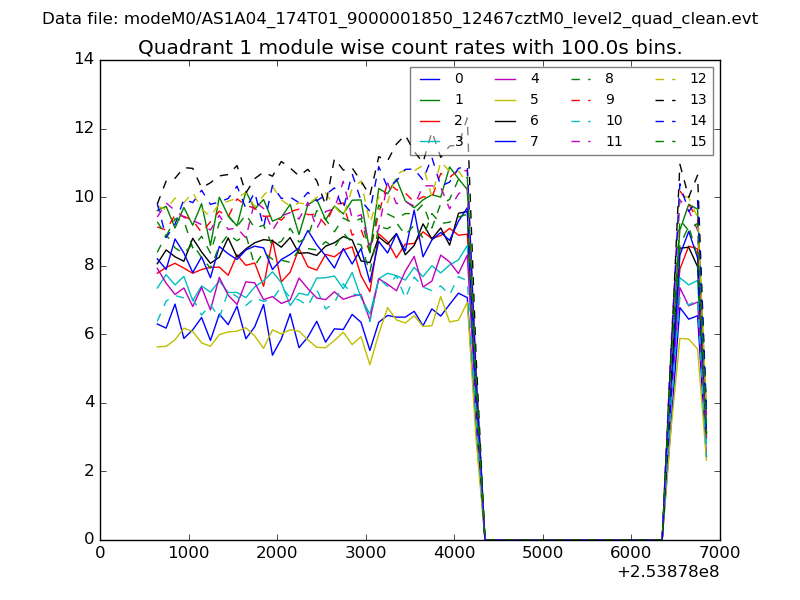

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

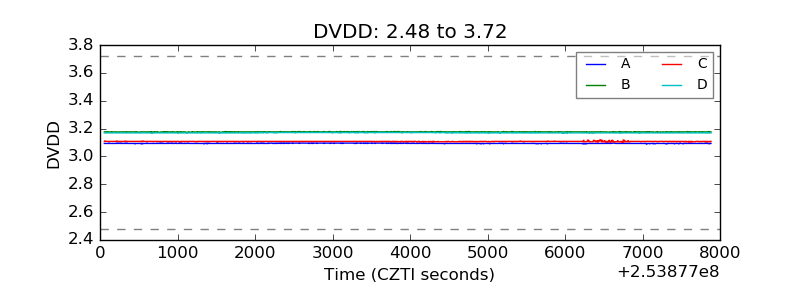

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

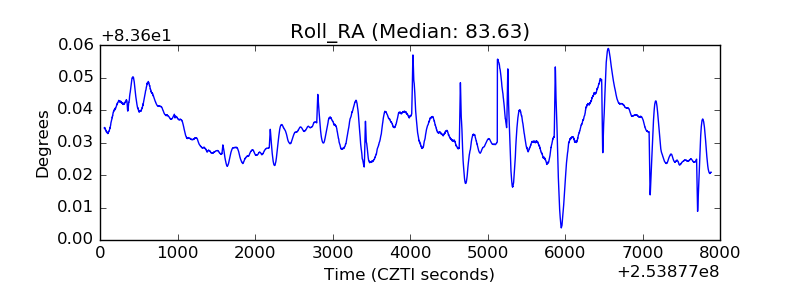

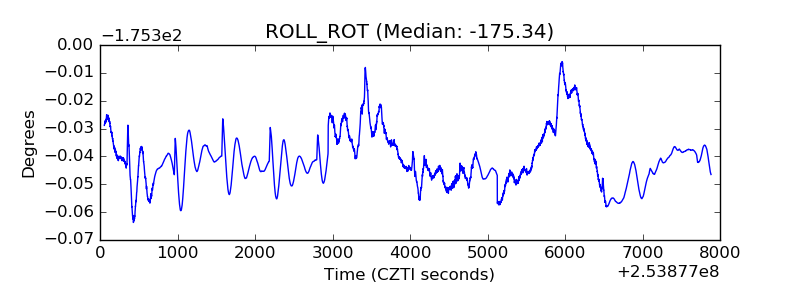

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
