| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_174T01_9000001850_12493cztM0_level2.evt | modeM0/AS1A04_174T01_9000001850_12493cztM0_level2_quad_clean.evt |
| Size (bytes) | 509,837,760 | 81,072,000 |
| Size | 486.2 MB | 77.3 MB |
| Events in quadrant A | 3,689,841 | 504,051 |
| Events in quadrant B | 3,622,998 | 516,533 |
| Events in quadrant C | 3,216,822 | 508,154 |
| Events in quadrant D | 4,458,021 | 460,878 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15255 | 3 |
| B | 0 | 14936 | 2 |
| C | 0 | 13846 | 2 |
| D | 0 | 17576 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6672 | 71 | 1.064149% |
| B | 6672 | 84 | 1.258993% |
| C | 6672 | 12 | 0.179856% |
| D | 6672 | 265 | 3.971823% |

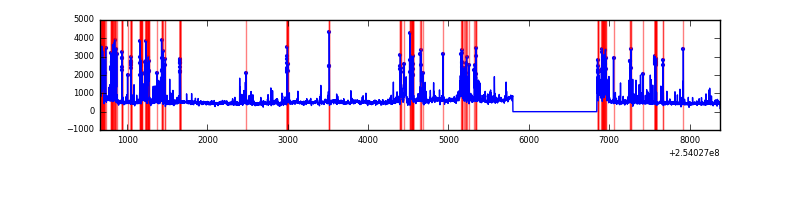

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7718 | 6674 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7718 | 6674 | 16 | 16 | 0.21% | 0.24% |  |
| C | 7718 | 6674 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7718 | 6674 | 215 | 215 | 2.79% | 3.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 157095 | 932.95 | 826 | 810 | 167.5 |
| A | 1 | 178 | 93658 | 554.26 | 826 | 810 | 167.5 |
| A | 1 | 161 | 80030 | 472.91 | 826 | 810 | 167.5 |
| B | 4 | 239 | 187110 | 1174.1 | 835 | 816 | 158.7 |
| B | 0 | 229 | 50138 | 310.84 | 835 | 816 | 158.7 |
| B | 0 | 219 | 48943 | 303.31 | 835 | 816 | 158.7 |
| C | 15 | 208 | 57886 | 304.52 | 809 | 817 | 187.4 |
| C | 13 | 61 | 6004 | 27.68 | 809 | 817 | 187.4 |
| C | 14 | 234 | 3769 | 15.75 | 809 | 817 | 187.4 |
| D | 1 | 52 | 677925 | 3570.52 | 781 | 762 | 189.7 |
| D | 7 | 80 | 656517 | 3457.64 | 781 | 762 | 189.7 |
| D | 13 | 249 | 64064 | 333.78 | 781 | 762 | 189.7 |

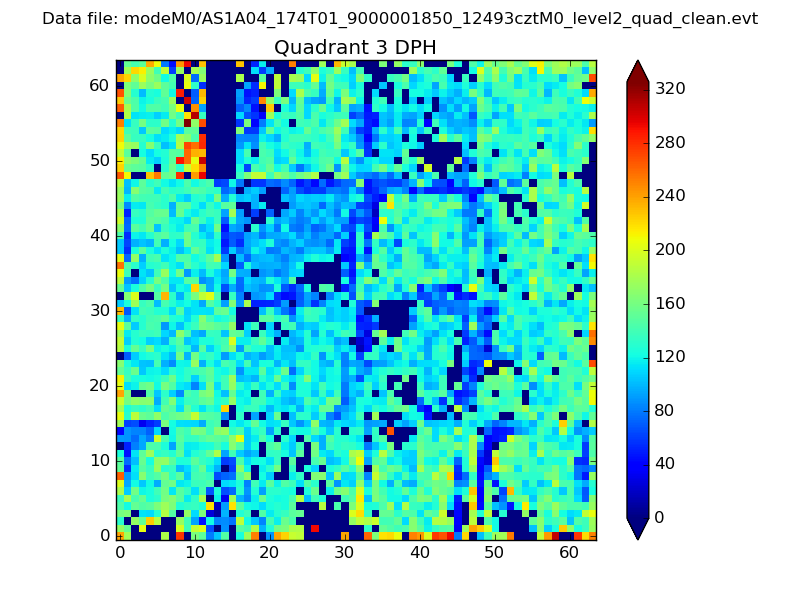

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

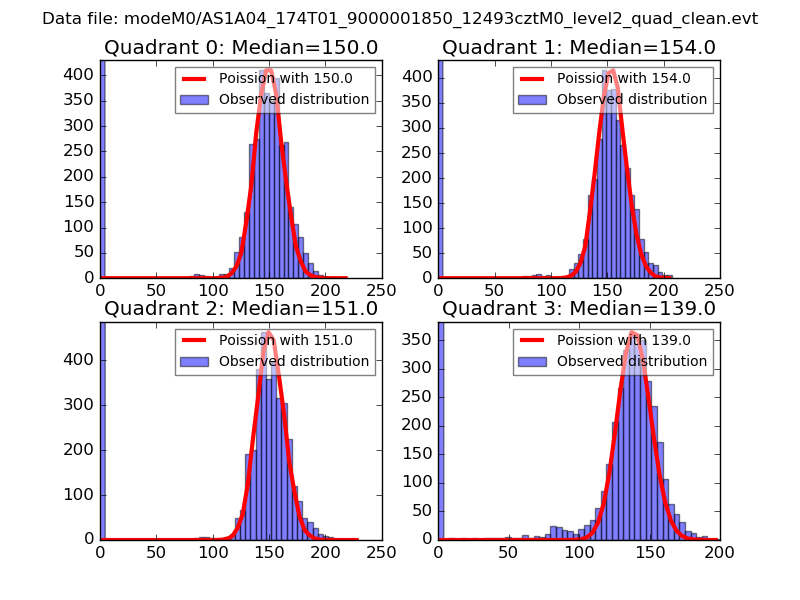

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

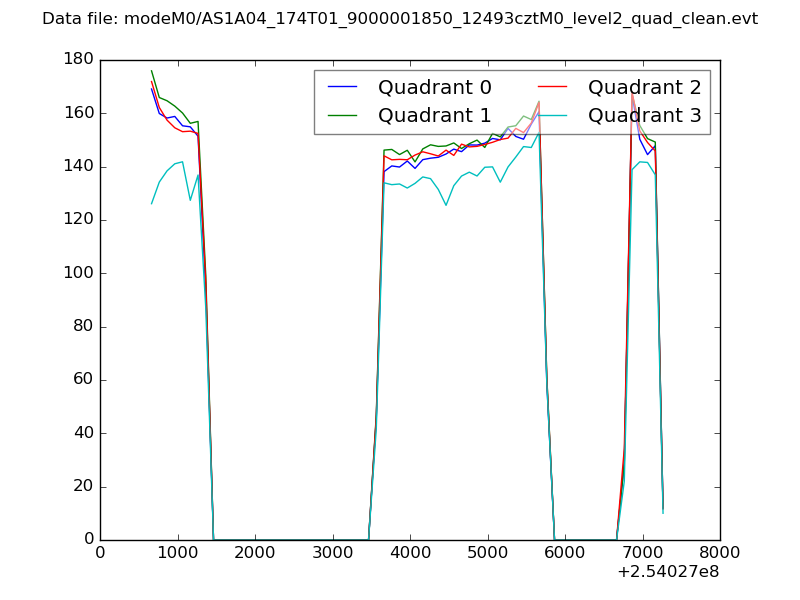

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

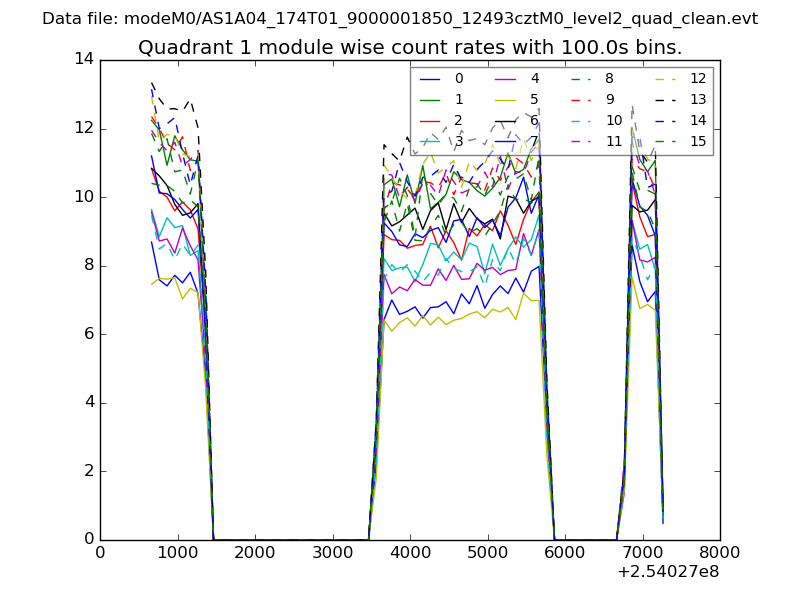

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

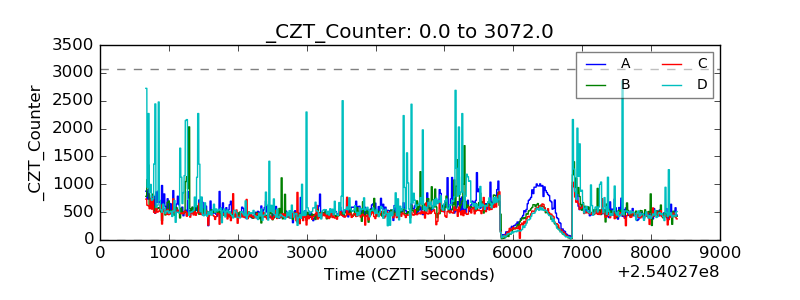

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

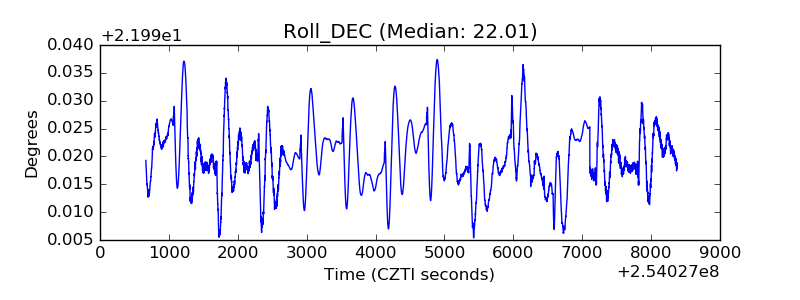

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
