| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_174T01_9000001850_12494cztM0_level2.evt | modeM0/AS1A04_174T01_9000001850_12494cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,178,560 | 76,849,920 |
| Size | 480.8 MB | 73.3 MB |
| Events in quadrant A | 3,909,842 | 461,398 |
| Events in quadrant B | 3,617,570 | 470,536 |
| Events in quadrant C | 3,321,105 | 468,174 |
| Events in quadrant D | 3,940,701 | 434,649 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16174 | 2 |
| B | 0 | 15121 | 1 |
| C | 0 | 14550 | 1 |
| D | 0 | 16357 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7064 | 99 | 1.401472% |
| B | 7064 | 117 | 1.656285% |
| C | 7064 | 31 | 0.438845% |
| D | 7064 | 171 | 2.420725% |

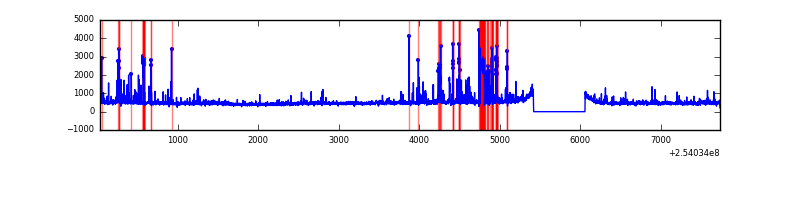

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7705 | 7066 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7705 | 7066 | 26 | 26 | 0.34% | 0.37% |  |
| C | 7705 | 7065 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7705 | 7066 | 126 | 126 | 1.64% | 1.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 145185 | 820.33 | 858 | 841 | 176.0 |
| A | 12 | 189 | 140108 | 791.48 | 858 | 841 | 176.0 |
| A | 1 | 178 | 82431 | 463.69 | 858 | 841 | 176.0 |
| B | 4 | 239 | 107999 | 646.44 | 864 | 844 | 165.8 |
| B | 0 | 214 | 51519 | 305.71 | 864 | 844 | 165.8 |
| B | 0 | 197 | 31407 | 184.38 | 864 | 844 | 165.8 |
| C | 15 | 208 | 36591 | 184.24 | 839 | 846 | 194.0 |
| C | 14 | 234 | 11825 | 56.59 | 839 | 846 | 194.0 |
| C | 13 | 61 | 6029 | 26.72 | 839 | 846 | 194.0 |
| D | 1 | 52 | 527805 | 2666.77 | 820 | 799 | 197.6 |
| D | 7 | 80 | 108755 | 546.28 | 820 | 799 | 197.6 |
| D | 13 | 249 | 50851 | 253.27 | 820 | 799 | 197.6 |

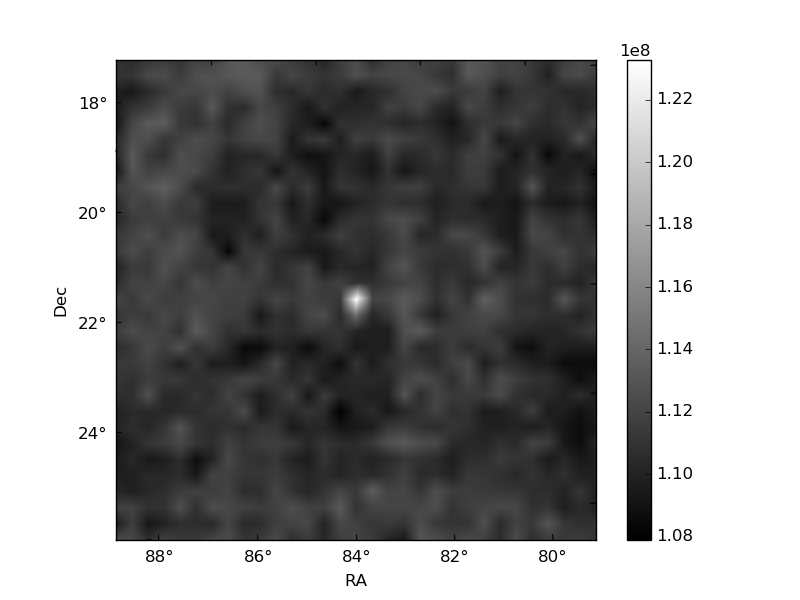

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

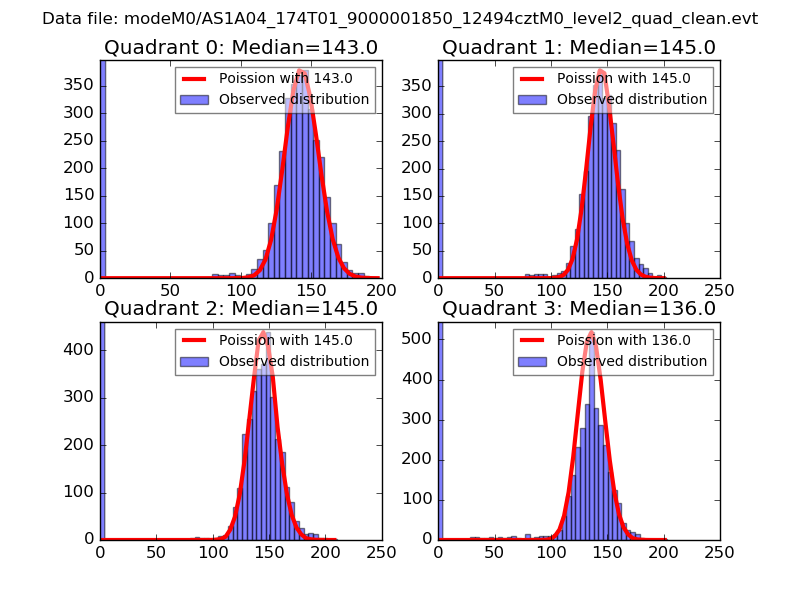

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

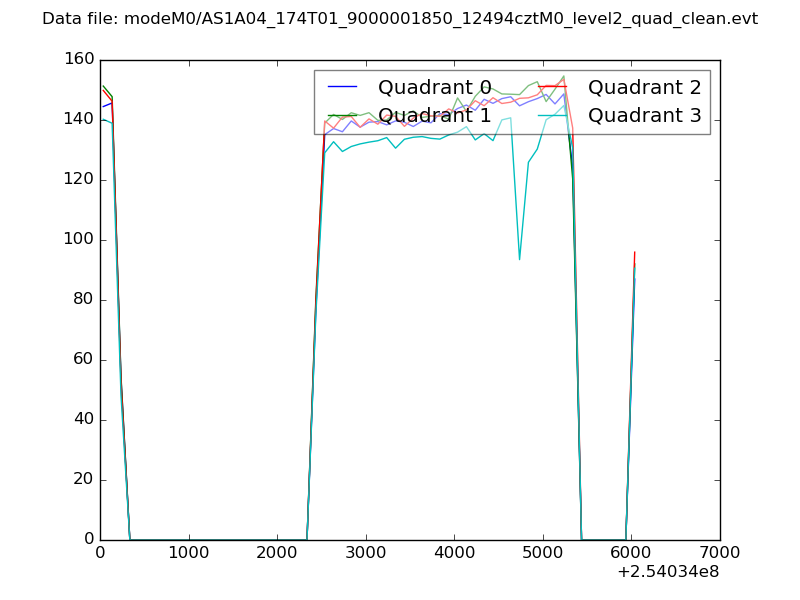

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

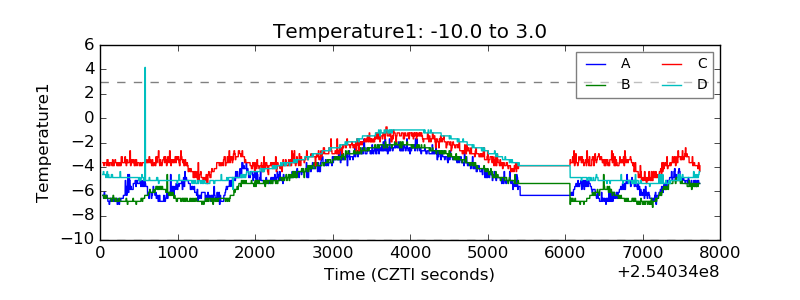

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

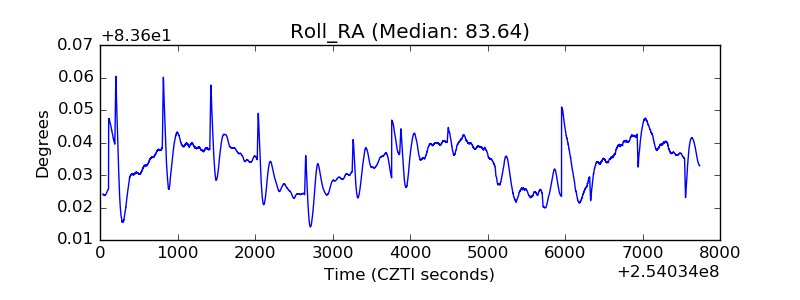

| _Roll_RA |  |
| Veto Counter |  |
