| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_174T01_9000001850_12500cztM0_level2.evt | modeM0/AS1A04_174T01_9000001850_12500cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,714,240 | 96,572,160 |
| Size | 447.0 MB | 92.1 MB |
| Events in quadrant A | 3,612,200 | 627,578 |
| Events in quadrant B | 3,634,962 | 629,787 |
| Events in quadrant C | 2,921,919 | 633,607 |
| Events in quadrant D | 3,598,644 | 594,468 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14889 | 2 |
| B | 0 | 14842 | 1 |
| C | 0 | 12882 | 1 |
| D | 0 | 15132 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6292 | 98 | 1.557533% |
| B | 6292 | 210 | 3.337572% |
| C | 6292 | 31 | 0.492689% |
| D | 6292 | 114 | 1.811825% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7193 | 6293 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7193 | 6294 | 118 | 118 | 1.64% | 1.87% |  |
| C | 7193 | 6294 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7193 | 6293 | 62 | 62 | 0.86% | 0.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 187866 | 1177.53 | 770 | 755 | 158.9 |
| A | 12 | 189 | 142613 | 892.74 | 770 | 755 | 158.9 |
| A | 1 | 178 | 111859 | 699.2 | 770 | 755 | 158.9 |
| B | 4 | 239 | 508927 | 3427.05 | 762 | 743 | 148.3 |
| B | 0 | 214 | 41065 | 271.92 | 762 | 743 | 148.3 |
| B | 11 | 51 | 31001 | 204.05 | 762 | 743 | 148.3 |
| C | 14 | 234 | 5844 | 29.46 | 748 | 756 | 172.7 |
| C | 13 | 61 | 5361 | 26.67 | 748 | 756 | 172.7 |
| C | 8 | 222 | 1895 | 6.6 | 748 | 756 | 172.7 |
| D | 1 | 52 | 549950 | 3052.07 | 745 | 726 | 180.0 |
| D | 7 | 71 | 89241 | 491.88 | 745 | 726 | 180.0 |
| D | 13 | 249 | 46869 | 256.42 | 745 | 726 | 180.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

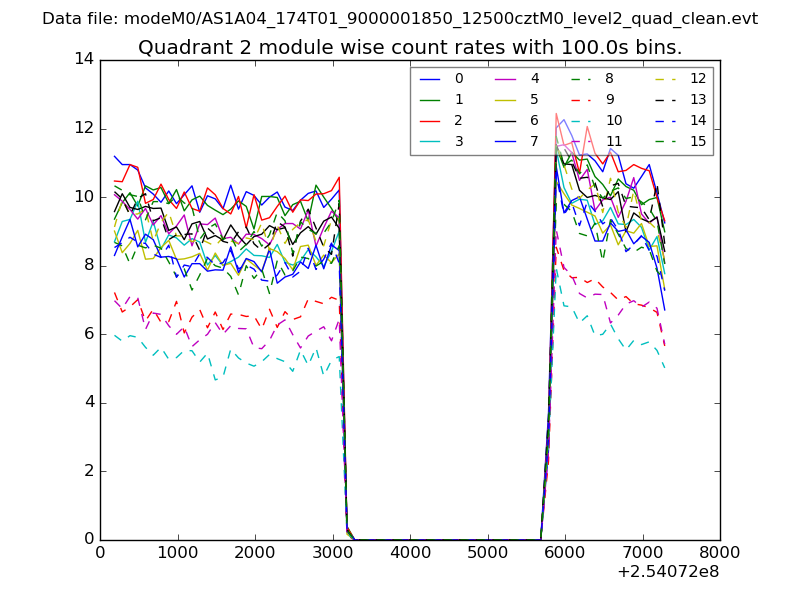

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

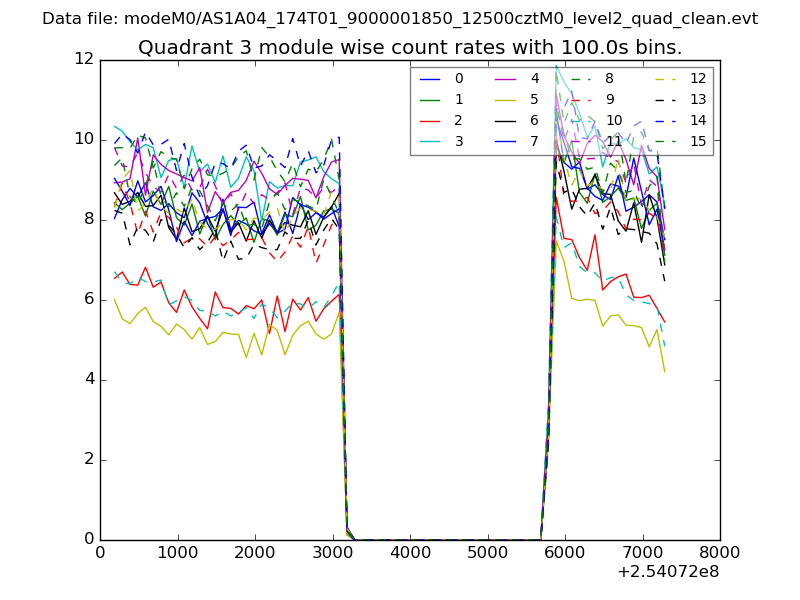

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

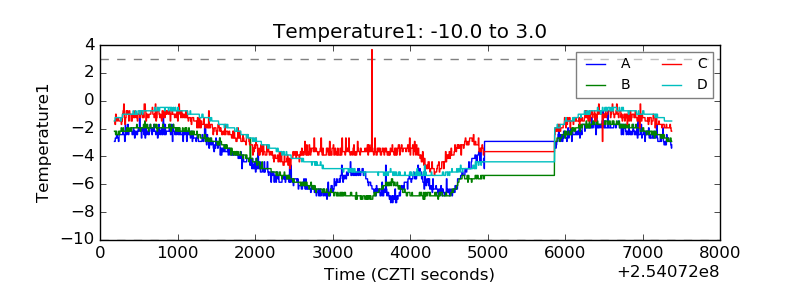

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

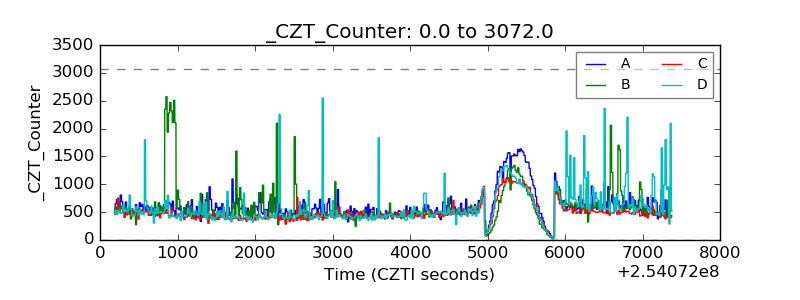

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

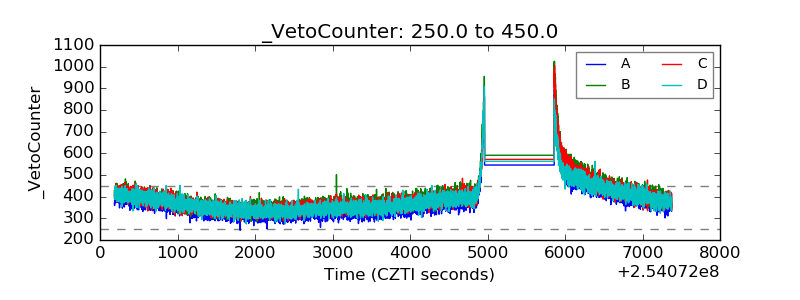

| Veto Counter |  |
