| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_230T01_9000001854_12522cztM0_level2.evt | modeM0/AS1A04_230T01_9000001854_12522cztM0_level2_quad_clean.evt |
| Size (bytes) | 384,497,280 | 87,667,200 |
| Size | 366.7 MB | 83.6 MB |
| Events in quadrant A | 2,826,327 | 568,869 |
| Events in quadrant B | 2,972,909 | 579,083 |
| Events in quadrant C | 2,617,102 | 564,889 |
| Events in quadrant D | 2,828,332 | 531,490 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12166 | 2 |
| B | 0 | 12784 | 1 |
| C | 0 | 11977 | 1 |
| D | 0 | 12708 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5874 | 18 | 0.306435% |
| B | 5874 | 57 | 0.970378% |
| C | 5874 | 4 | 0.068097% |
| D | 5874 | 44 | 0.749064% |

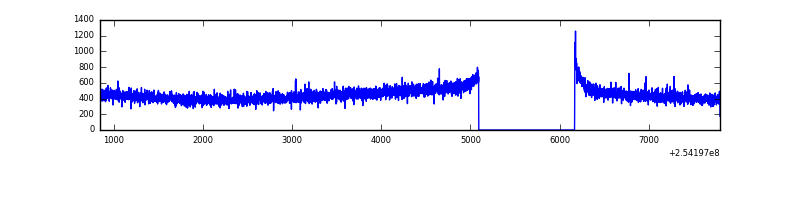

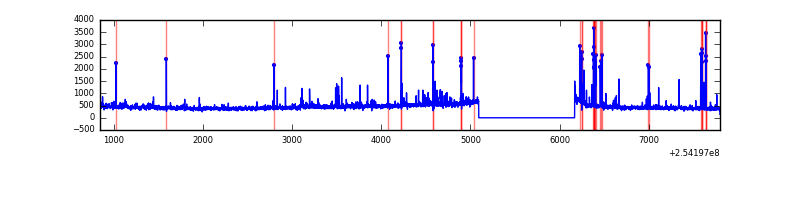

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6950 | 5876 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6950 | 5876 | 17 | 17 | 0.24% | 0.29% |  |
| C | 6950 | 5876 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6950 | 5876 | 35 | 35 | 0.50% | 0.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 42361 | 293.44 | 694 | 684 | 142.0 |
| A | 12 | 189 | 31824 | 219.25 | 694 | 684 | 142.0 |
| A | 1 | 178 | 24041 | 164.45 | 694 | 684 | 142.0 |
| B | 4 | 239 | 170208 | 1270.31 | 698 | 682 | 133.5 |
| B | 0 | 214 | 39516 | 291.0 | 698 | 682 | 133.5 |
| B | 0 | 230 | 21144 | 153.33 | 698 | 682 | 133.5 |
| C | 13 | 61 | 4884 | 26.85 | 671 | 675 | 156.8 |
| C | 12 | 4 | 1927 | 7.99 | 671 | 675 | 156.8 |
| C | 3 | 202 | 1537 | 5.5 | 671 | 675 | 156.8 |
| D | 1 | 52 | 174820 | 1107.82 | 659 | 642 | 157.2 |
| D | 8 | 195 | 73065 | 460.63 | 659 | 642 | 157.2 |
| D | 13 | 249 | 22706 | 140.33 | 659 | 642 | 157.2 |

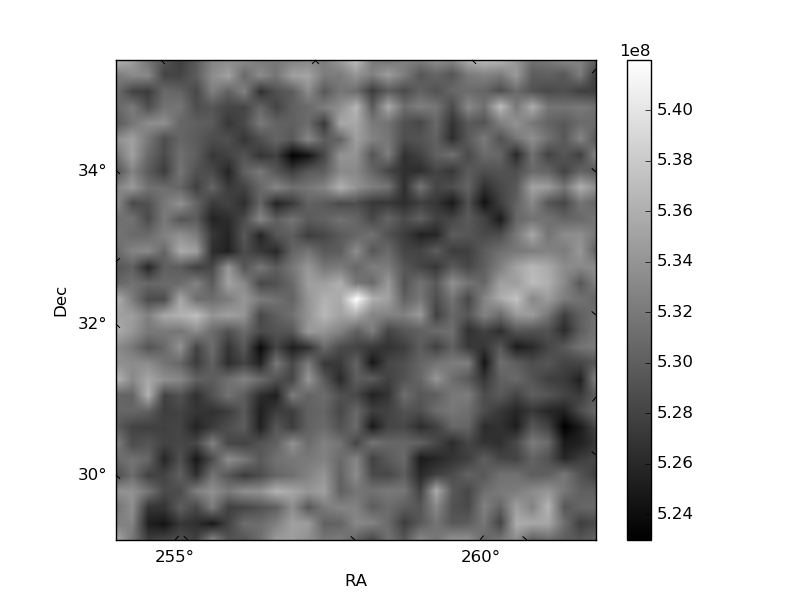

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

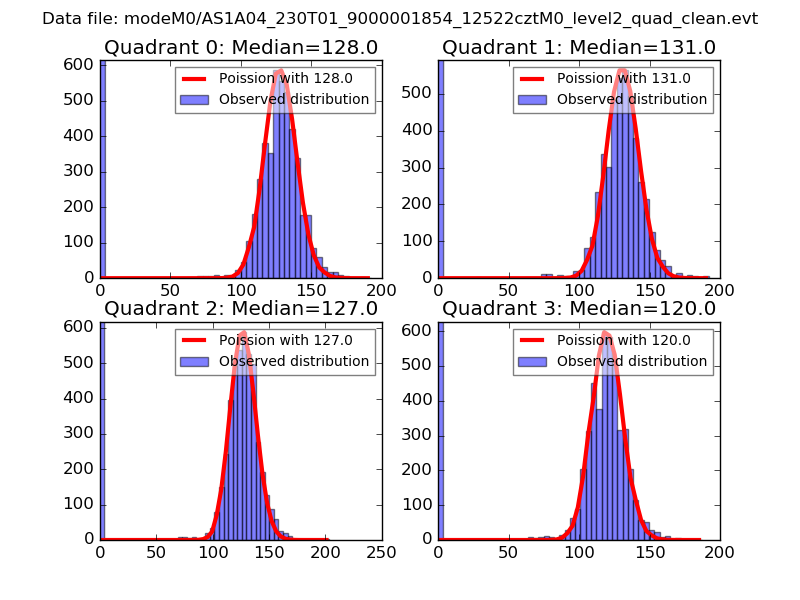

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

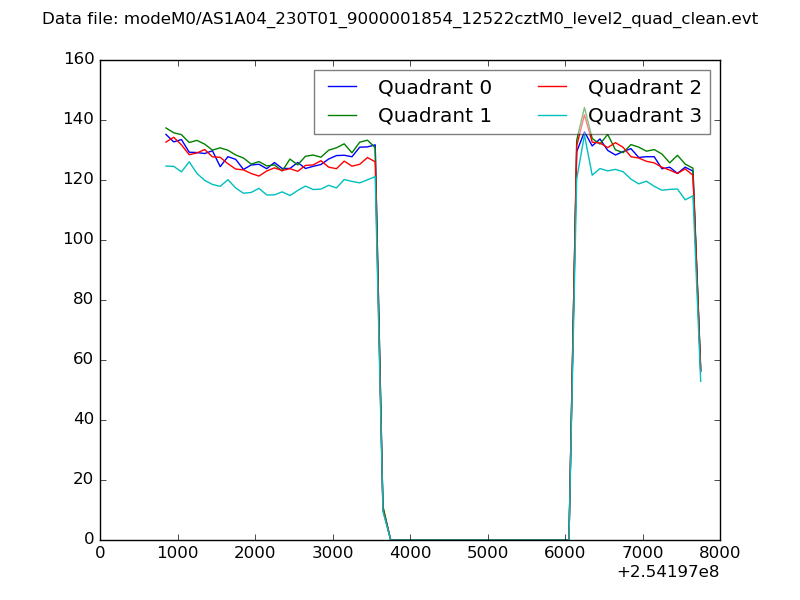

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

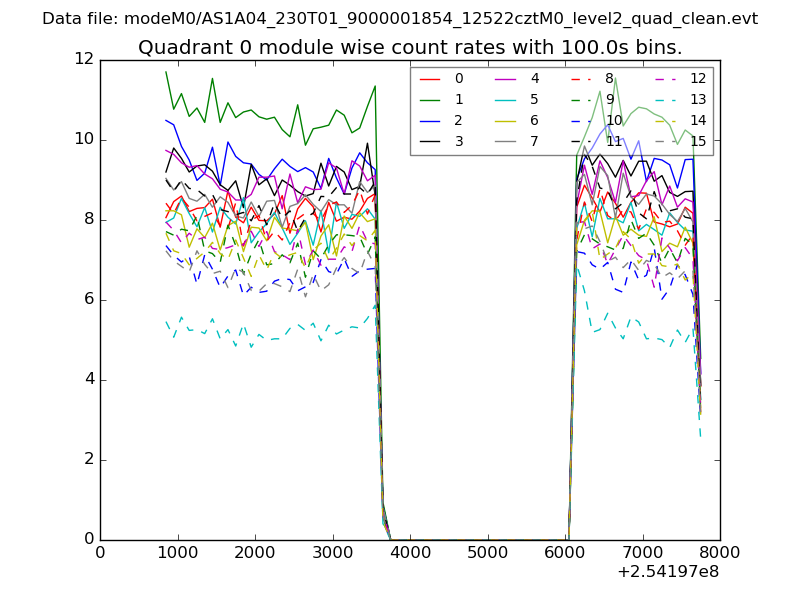

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

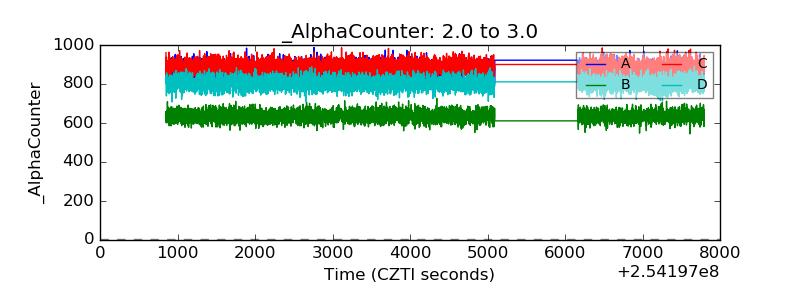

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

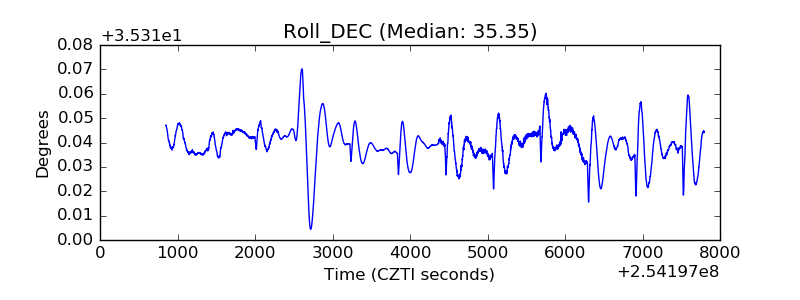

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
