| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_230T01_9000001854_12535cztM0_level2.evt | modeM0/AS1A04_230T01_9000001854_12535cztM0_level2_quad_clean.evt |
| Size (bytes) | 352,241,280 | 77,641,920 |
| Size | 335.9 MB | 74.0 MB |
| Events in quadrant A | 2,634,048 | 505,228 |
| Events in quadrant B | 2,712,035 | 516,696 |
| Events in quadrant C | 2,355,824 | 511,012 |
| Events in quadrant D | 2,634,662 | 476,969 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10892 | 1 |
| B | 0 | 11215 | 1 |
| C | 0 | 10228 | 1 |
| D | 0 | 11208 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4860 | 51 | 1.049383% |
| B | 4860 | 91 | 1.872428% |
| C | 4860 | 19 | 0.390947% |
| D | 4860 | 51 | 1.049383% |

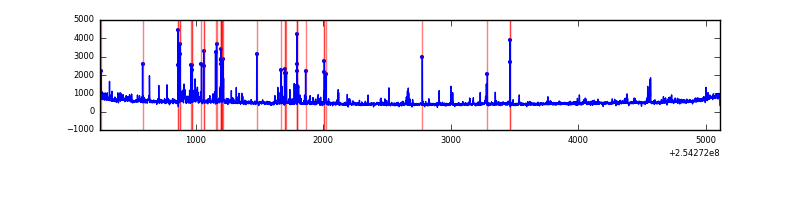

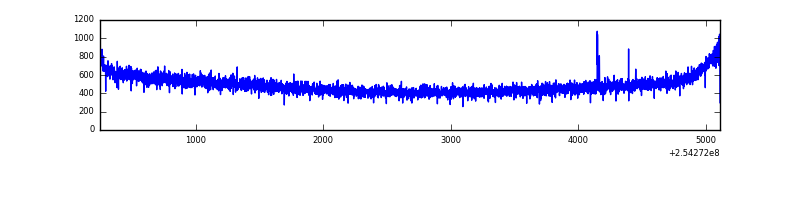

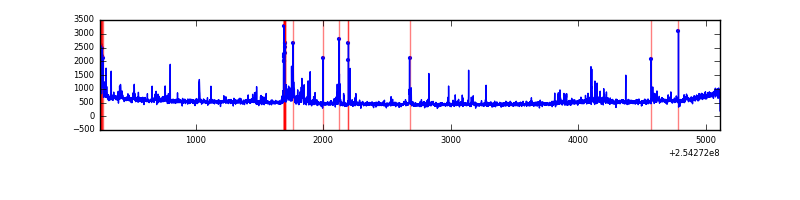

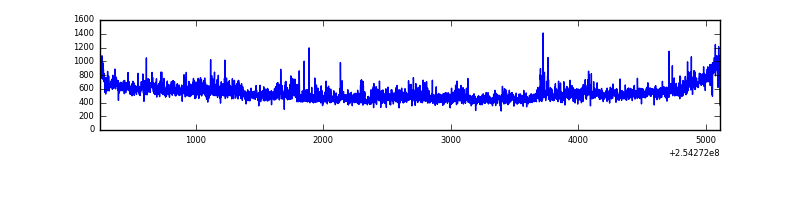

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4861 | 4861 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4861 | 4861 | 30 | 30 | 0.62% | 0.62% |  |
| C | 4861 | 4861 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4861 | 4861 | 37 | 37 | 0.76% | 0.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 97850 | 773.62 | 617 | 606 | 125.7 |
| A | 1 | 178 | 56461 | 444.35 | 617 | 606 | 125.7 |
| A | 1 | 161 | 47379 | 372.1 | 617 | 606 | 125.7 |
| B | 4 | 239 | 220199 | 1875.22 | 617 | 604 | 117.1 |
| B | 0 | 214 | 26195 | 218.53 | 617 | 604 | 117.1 |
| B | 0 | 190 | 17536 | 144.59 | 617 | 604 | 117.1 |
| C | 13 | 61 | 4400 | 27.34 | 603 | 607 | 138.7 |
| C | 14 | 234 | 4219 | 26.03 | 603 | 607 | 138.7 |
| C | 14 | 67 | 1536 | 6.7 | 603 | 607 | 138.7 |
| D | 1 | 52 | 216242 | 1511.37 | 591 | 577 | 142.7 |
| D | 13 | 104 | 68615 | 476.81 | 591 | 577 | 142.7 |
| D | 13 | 249 | 39507 | 272.82 | 591 | 577 | 142.7 |

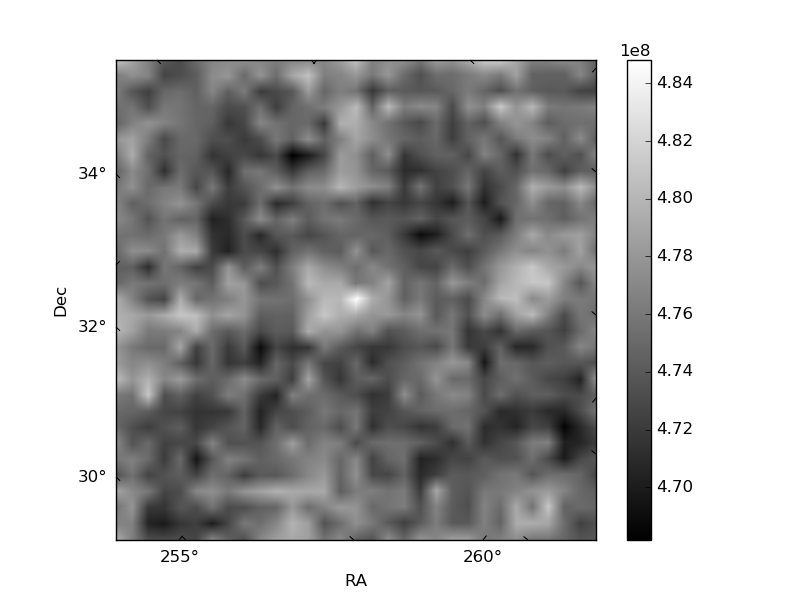

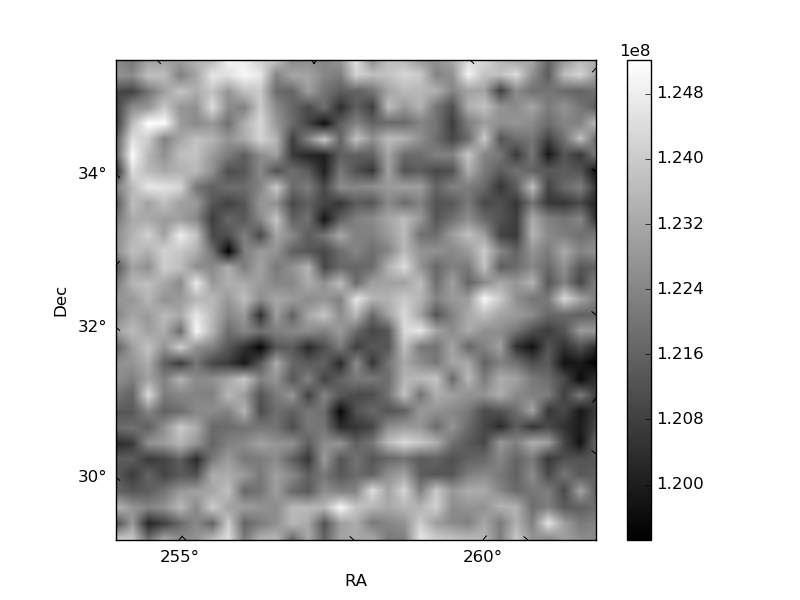

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

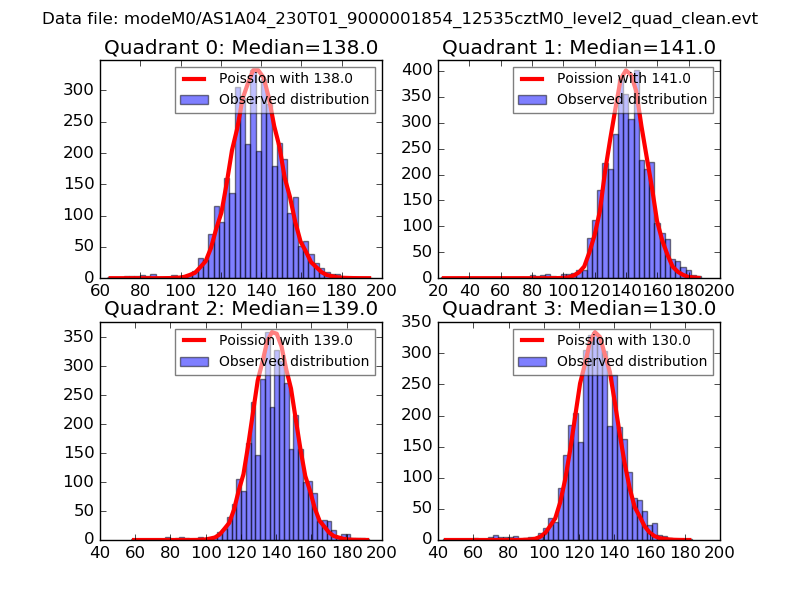

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

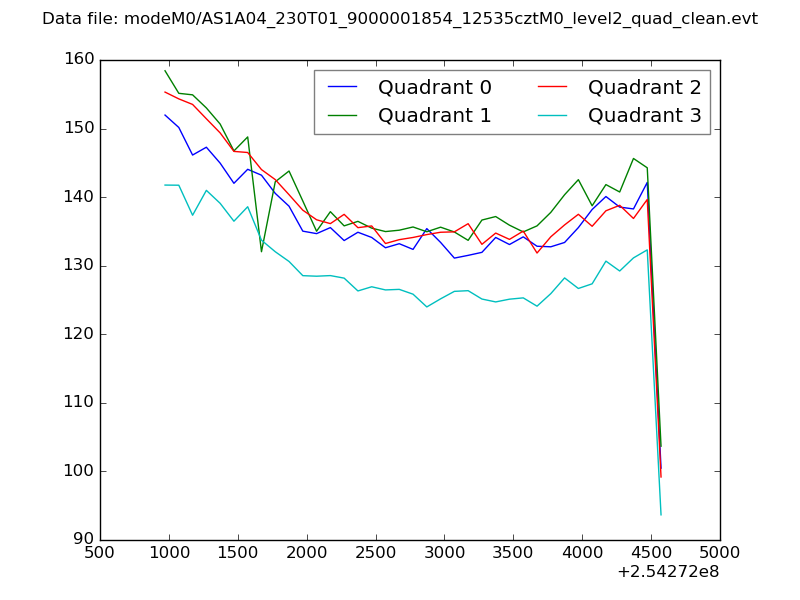

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

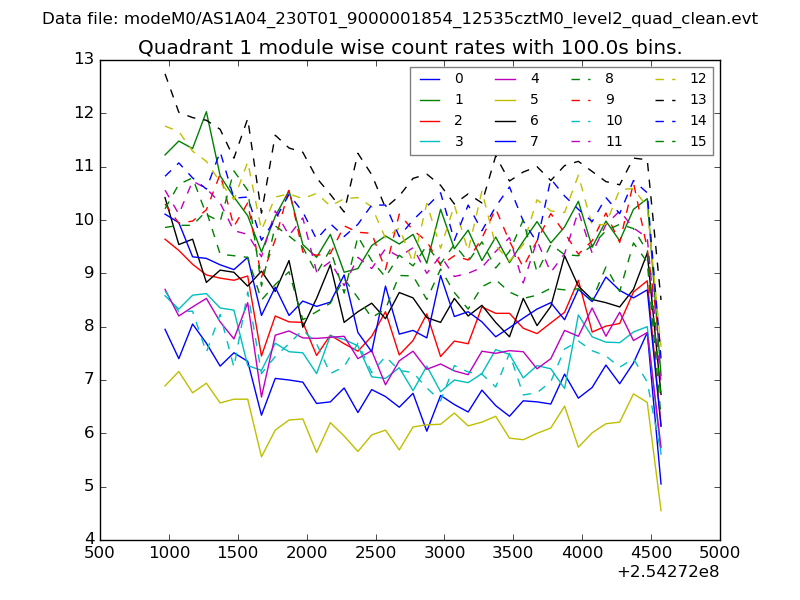

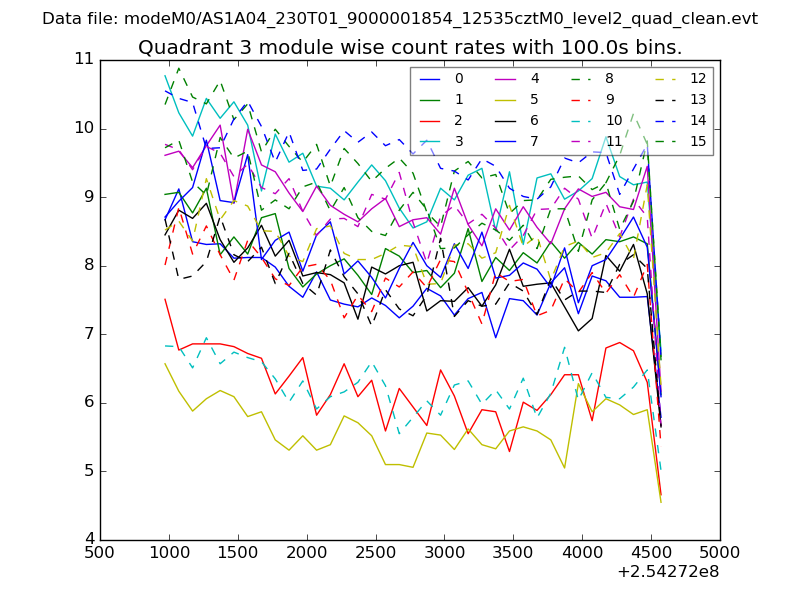

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

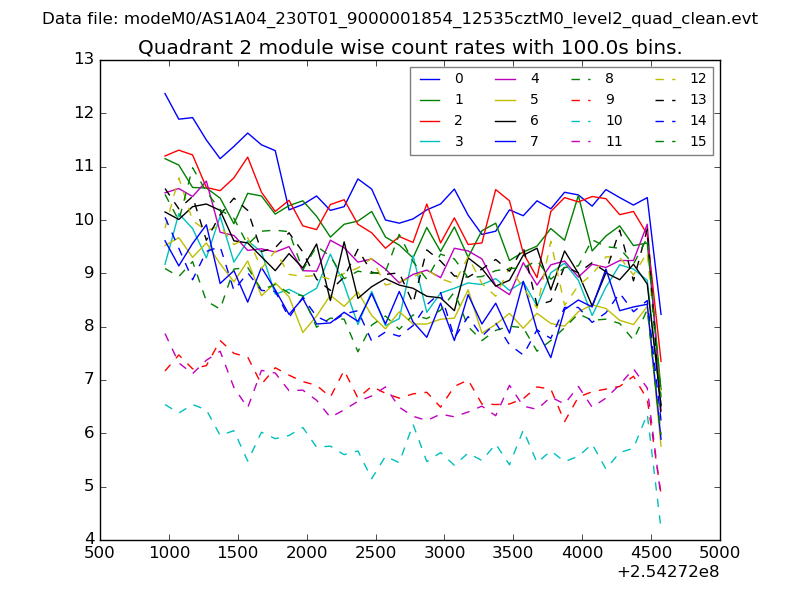

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

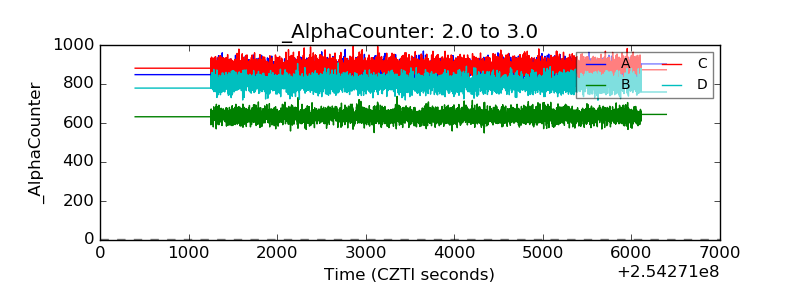

| Alpha Counter |  |

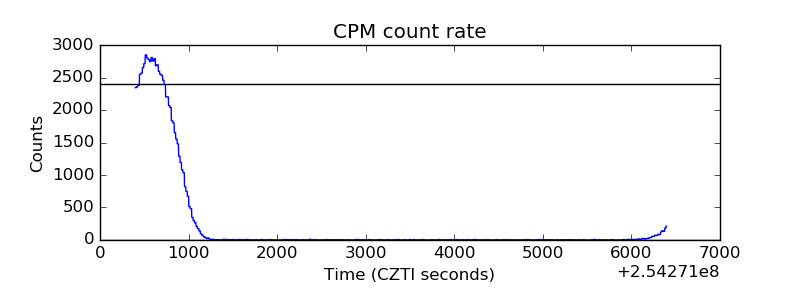

| _CPM_Rate |  |

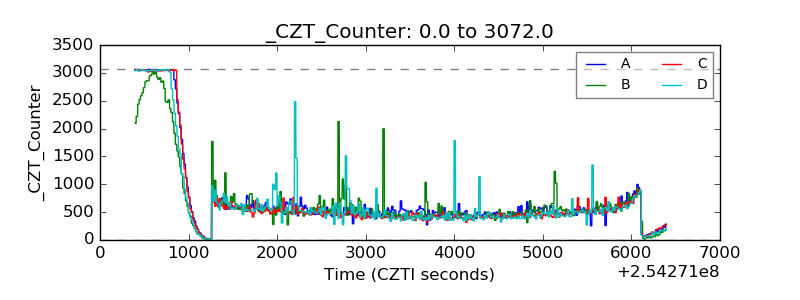

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

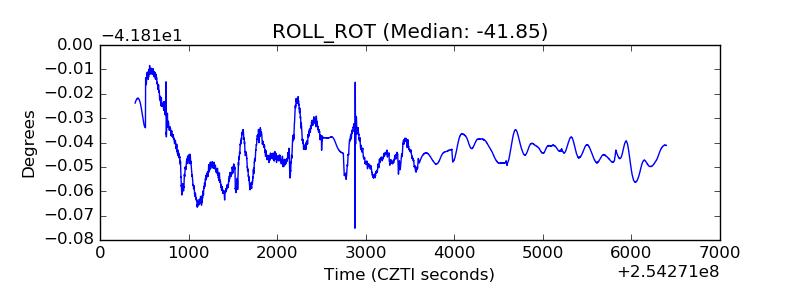

| _ROLL_ROT |  |

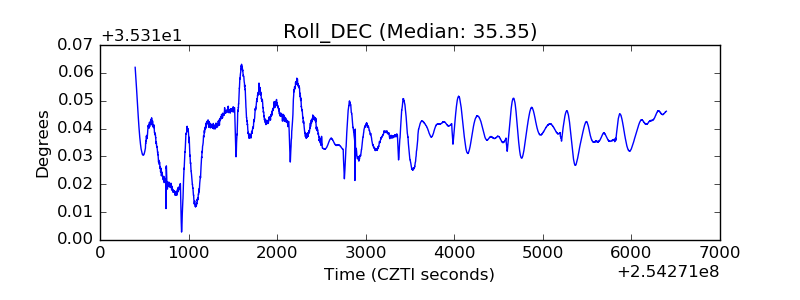

| _Roll_DEC |  |

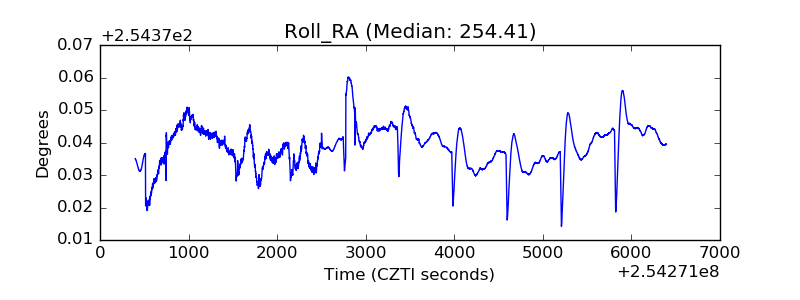

| _Roll_RA |  |
| Veto Counter |  |
