| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_130T01_9000001856_12543cztM0_level2.evt | modeM0/AS1A04_130T01_9000001856_12543cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,619,840 | 82,532,160 |
| Size | 454.5 MB | 78.7 MB |
| Events in quadrant A | 4,012,510 | 518,196 |
| Events in quadrant B | 3,837,751 | 511,090 |
| Events in quadrant C | 2,860,017 | 518,844 |
| Events in quadrant D | 3,291,478 | 506,429 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16294 | 2 |
| B | 0 | 15516 | 1 |
| C | 0 | 13006 | 1 |
| D | 0 | 14122 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6376 | 163 | 2.556462% |
| B | 6376 | 263 | 4.124843% |
| C | 6376 | 48 | 0.752823% |
| D | 6376 | 81 | 1.270389% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

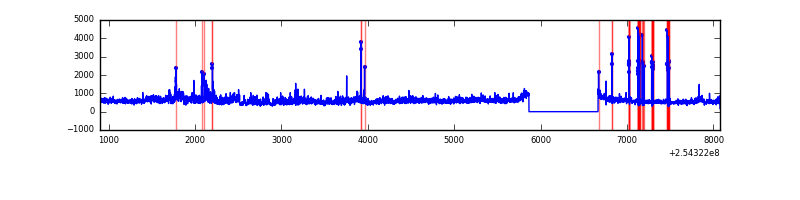

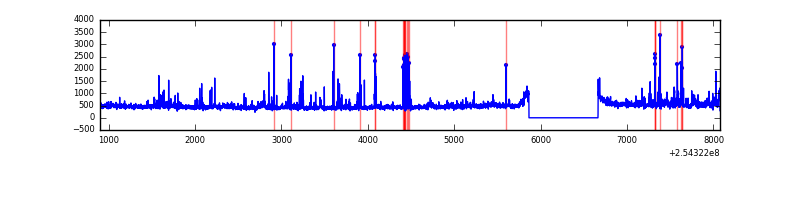

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7176 | 6376 | 62 | 62 | 0.86% | 0.97% |  |
| B | 7176 | 6376 | 151 | 151 | 2.10% | 2.37% |  |
| C | 7176 | 6376 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7176 | 6376 | 25 | 25 | 0.35% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 344247 | 2230.6 | 749 | 734 | 154.0 |
| A | 1 | 162 | 232017 | 1501.83 | 749 | 734 | 154.0 |
| A | 0 | 23 | 144935 | 936.37 | 749 | 734 | 154.0 |
| B | 4 | 239 | 545235 | 3814.0 | 742 | 723 | 142.8 |
| B | 0 | 230 | 184610 | 1288.03 | 742 | 723 | 142.8 |
| B | 15 | 222 | 63447 | 439.35 | 742 | 723 | 142.8 |
| C | 13 | 61 | 5286 | 26.56 | 731 | 734 | 171.4 |
| C | 7 | 238 | 4875 | 24.16 | 731 | 734 | 171.4 |
| C | 3 | 233 | 2054 | 7.7 | 731 | 734 | 171.4 |
| D | 1 | 52 | 242933 | 1375.21 | 734 | 714 | 176.1 |
| D | 8 | 195 | 111266 | 627.67 | 734 | 714 | 176.1 |
| D | 13 | 104 | 75235 | 423.1 | 734 | 714 | 176.1 |

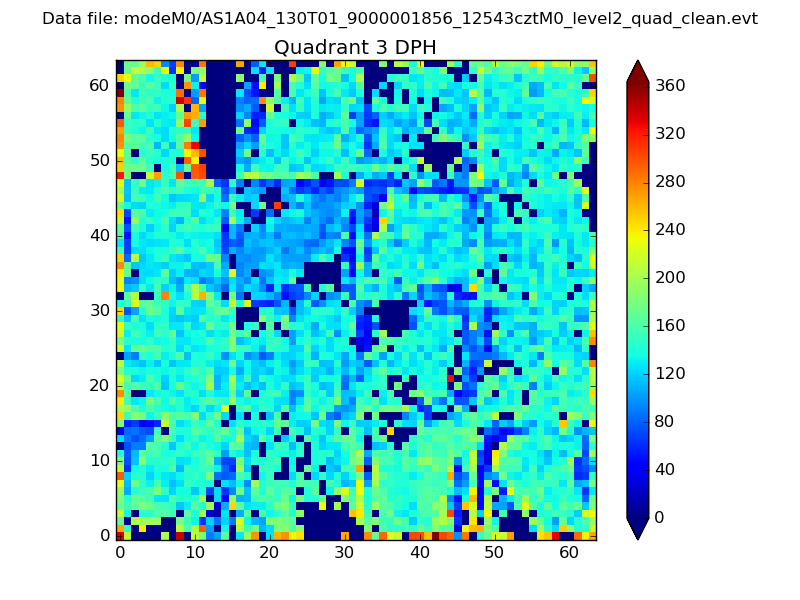

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

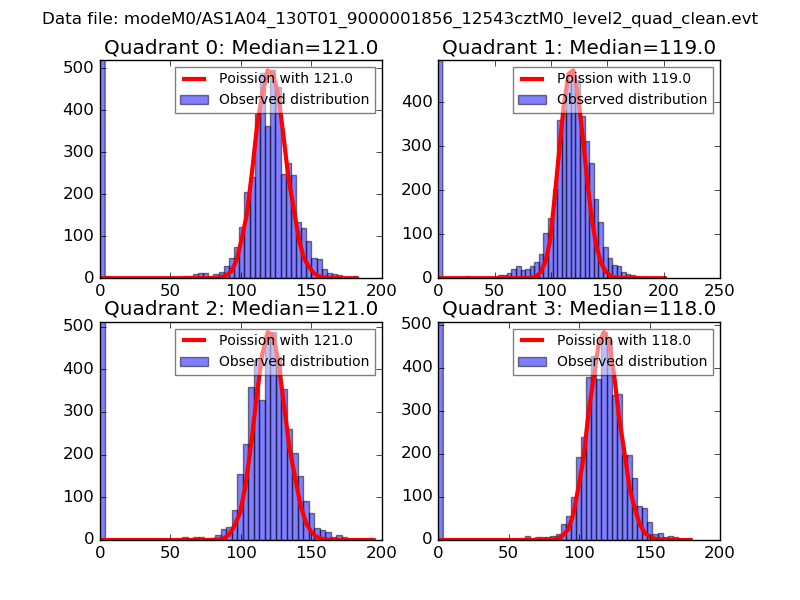

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

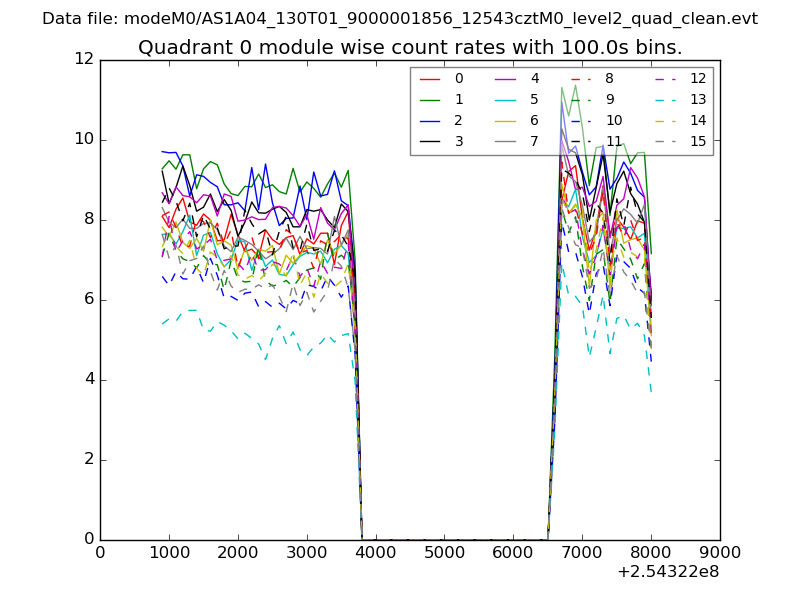

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

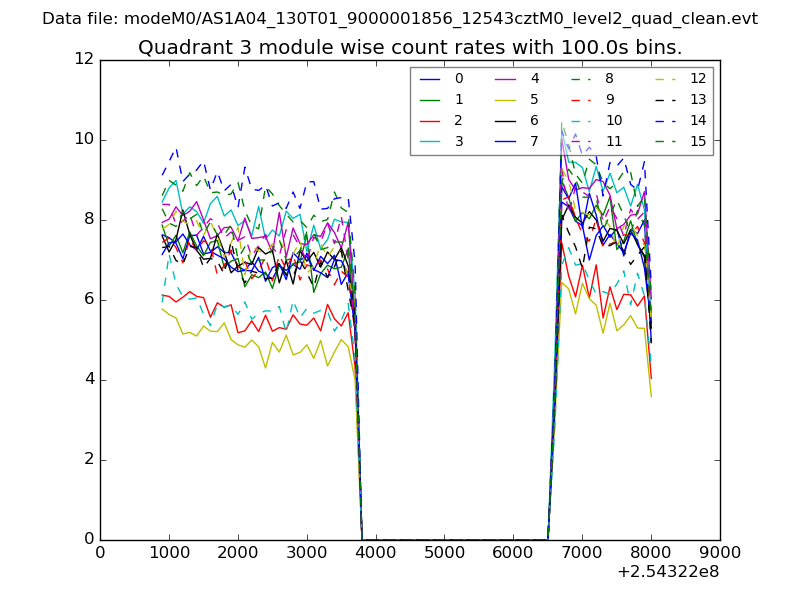

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

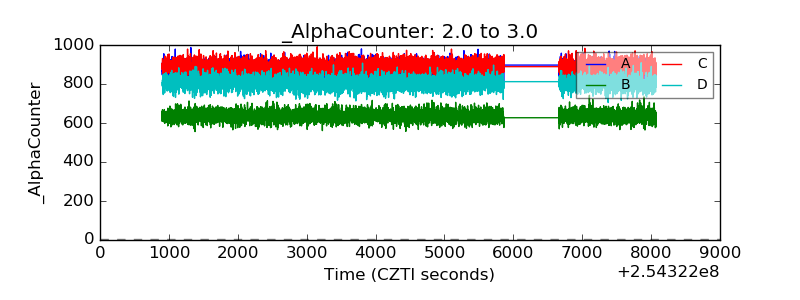

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

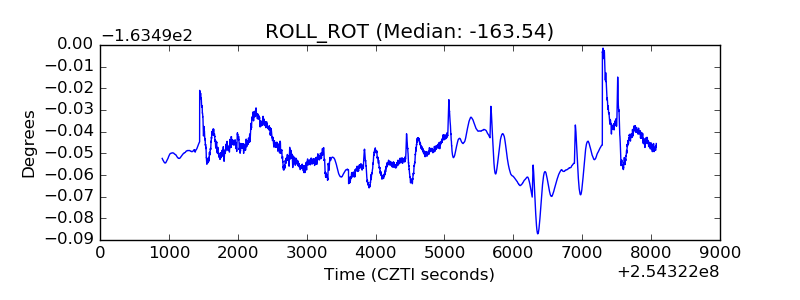

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
