| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_201T03_9000001862_12551cztM0_level2.evt | modeM0/AS1A04_201T03_9000001862_12551cztM0_level2_quad_clean.evt |
| Size (bytes) | 347,472,000 | 57,867,840 |
| Size | 331.4 MB | 55.2 MB |
| Events in quadrant A | 2,464,033 | 350,818 |
| Events in quadrant B | 2,842,450 | 357,272 |
| Events in quadrant C | 2,340,999 | 355,257 |
| Events in quadrant D | 2,534,090 | 336,989 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10575 | 2 |
| B | 0 | 11722 | 1 |
| C | 0 | 10417 | 1 |
| D | 0 | 10935 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5016 | 49 | 0.976874% |
| B | 5016 | 127 | 2.531898% |
| C | 5016 | 29 | 0.578150% |
| D | 5016 | 55 | 1.096491% |

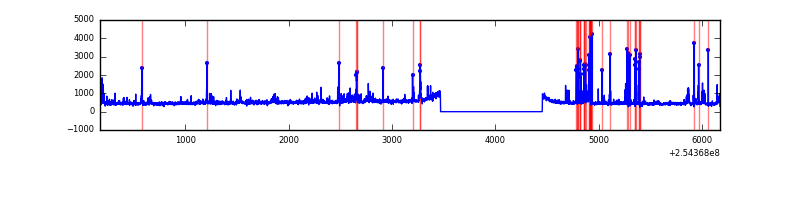

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6002 | 5018 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6002 | 5017 | 50 | 50 | 0.83% | 1.00% |  |
| C | 6002 | 5018 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6002 | 5018 | 15 | 15 | 0.25% | 0.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 45058 | 349.83 | 615 | 601 | 127.1 |
| A | 1 | 178 | 20109 | 153.51 | 615 | 601 | 127.1 |
| A | 1 | 161 | 17246 | 130.98 | 615 | 601 | 127.1 |
| B | 4 | 239 | 365877 | 3084.31 | 612 | 597 | 118.4 |
| B | 11 | 51 | 31100 | 257.56 | 612 | 597 | 118.4 |
| B | 0 | 205 | 21373 | 175.43 | 612 | 597 | 118.4 |
| C | 15 | 208 | 15497 | 107.98 | 594 | 598 | 138.0 |
| C | 3 | 233 | 7260 | 48.28 | 594 | 598 | 138.0 |
| C | 13 | 61 | 4411 | 27.64 | 594 | 598 | 138.0 |
| D | 13 | 249 | 112530 | 773.48 | 590 | 572 | 144.7 |
| D | 8 | 195 | 76620 | 525.39 | 590 | 572 | 144.7 |
| D | 13 | 104 | 45979 | 313.7 | 590 | 572 | 144.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

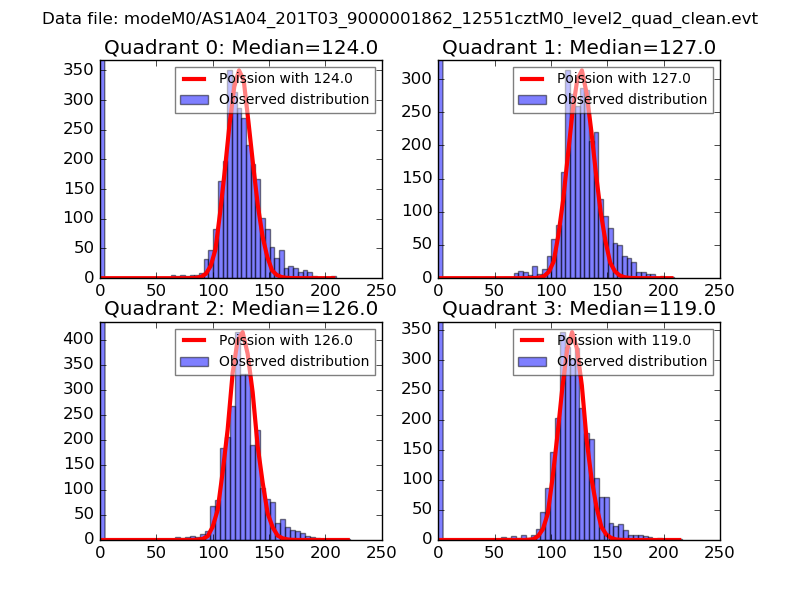

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

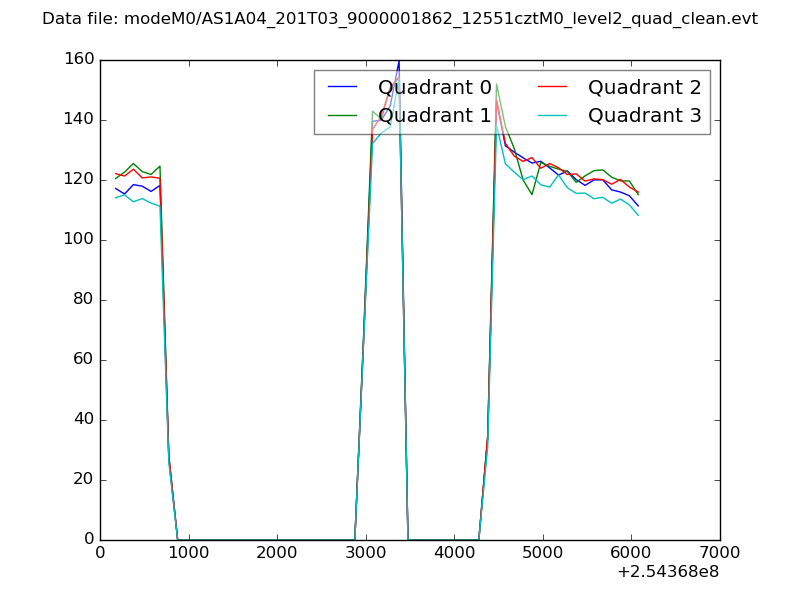

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

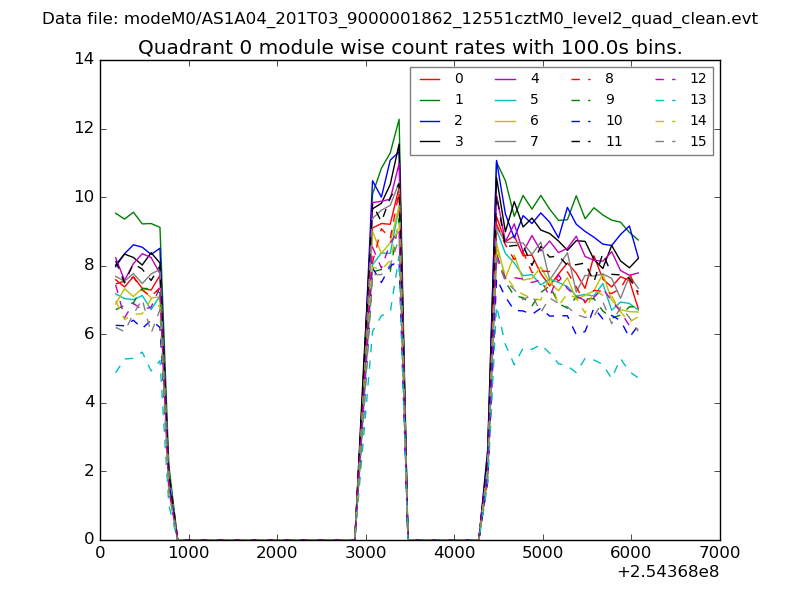

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

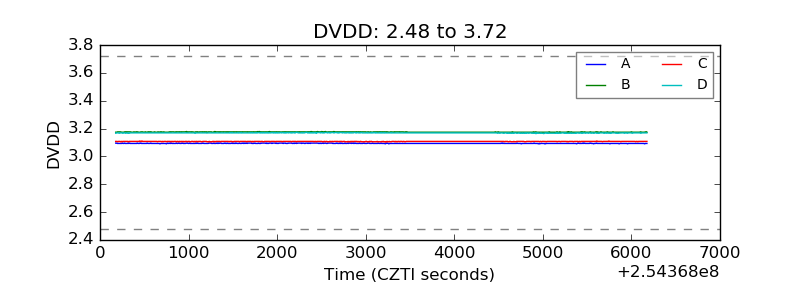

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

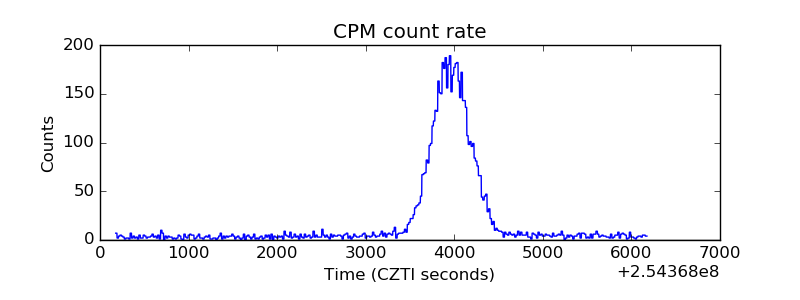

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

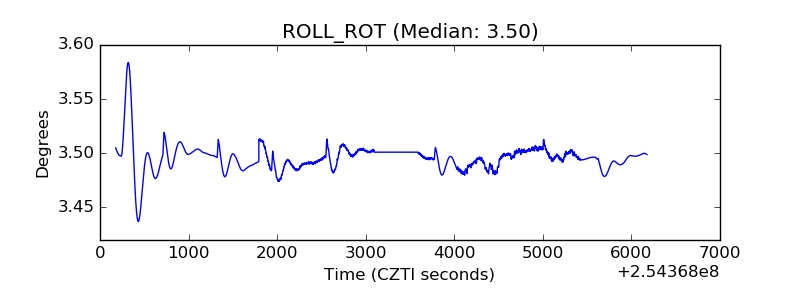

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

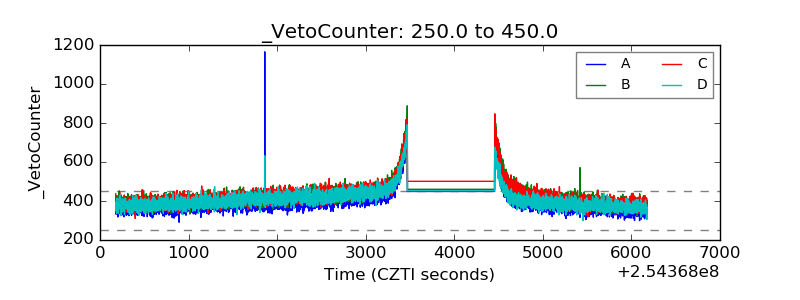

| Veto Counter |  |
