| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_021T01_9000001864_12559cztM0_level2.evt | modeM0/AS1C03_021T01_9000001864_12559cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,337,920 | 71,550,720 |
| Size | 440.9 MB | 68.2 MB |
| Events in quadrant A | 3,156,678 | 430,244 |
| Events in quadrant B | 3,838,378 | 433,419 |
| Events in quadrant C | 3,067,673 | 434,599 |
| Events in quadrant D | 3,499,854 | 417,195 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13763 | 2 |
| B | 0 | 15735 | 1 |
| C | 0 | 13410 | 1 |
| D | 0 | 14884 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6463 | 62 | 0.959307% |
| B | 6463 | 261 | 4.038372% |
| C | 6463 | 34 | 0.526071% |
| D | 6463 | 96 | 1.485378% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7559 | 6464 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7559 | 6464 | 121 | 121 | 1.60% | 1.87% |  |
| C | 7559 | 6464 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7559 | 6464 | 44 | 44 | 0.58% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 35735 | 212.9 | 804 | 785 | 164.2 |
| A | 8 | 15 | 15665 | 90.64 | 804 | 785 | 164.2 |
| A | 0 | 226 | 7264 | 39.47 | 804 | 785 | 164.2 |
| B | 4 | 239 | 491665 | 3203.32 | 796 | 778 | 153.2 |
| B | 11 | 51 | 135739 | 880.7 | 796 | 778 | 153.2 |
| B | 3 | 209 | 51909 | 333.66 | 796 | 778 | 153.2 |
| C | 14 | 234 | 6405 | 30.89 | 785 | 790 | 181.8 |
| C | 13 | 61 | 5794 | 27.53 | 785 | 790 | 181.8 |
| C | 12 | 4 | 2107 | 7.25 | 785 | 790 | 181.8 |
| D | 1 | 52 | 381178 | 2050.29 | 775 | 755 | 185.5 |
| D | 13 | 104 | 63692 | 339.2 | 775 | 755 | 185.5 |
| D | 13 | 249 | 52251 | 277.54 | 775 | 755 | 185.5 |

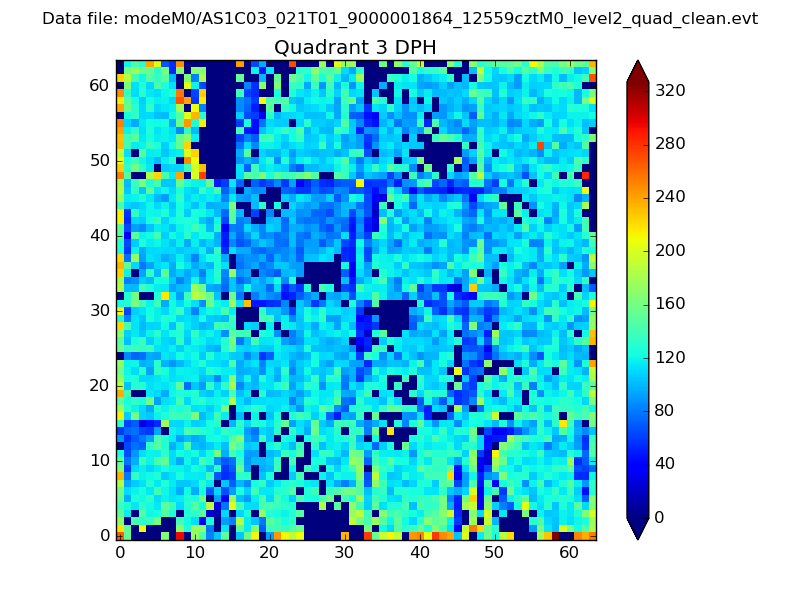

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

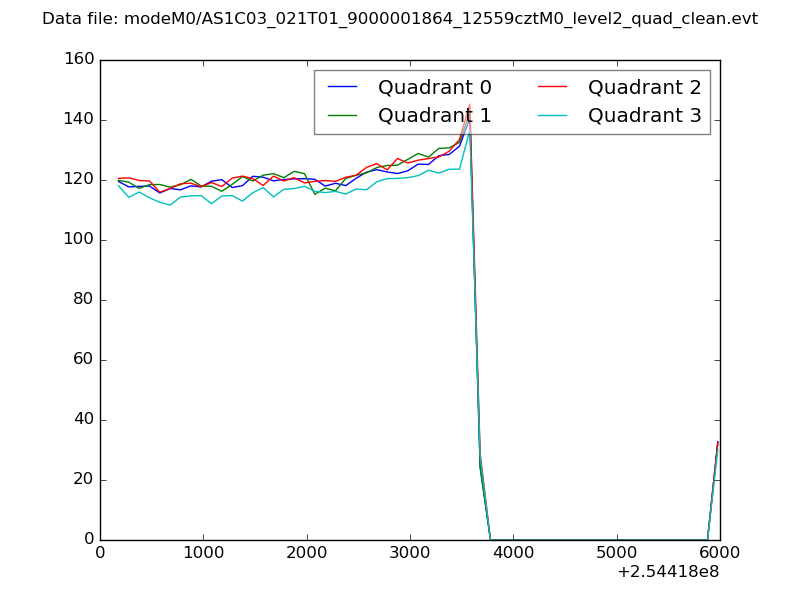

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

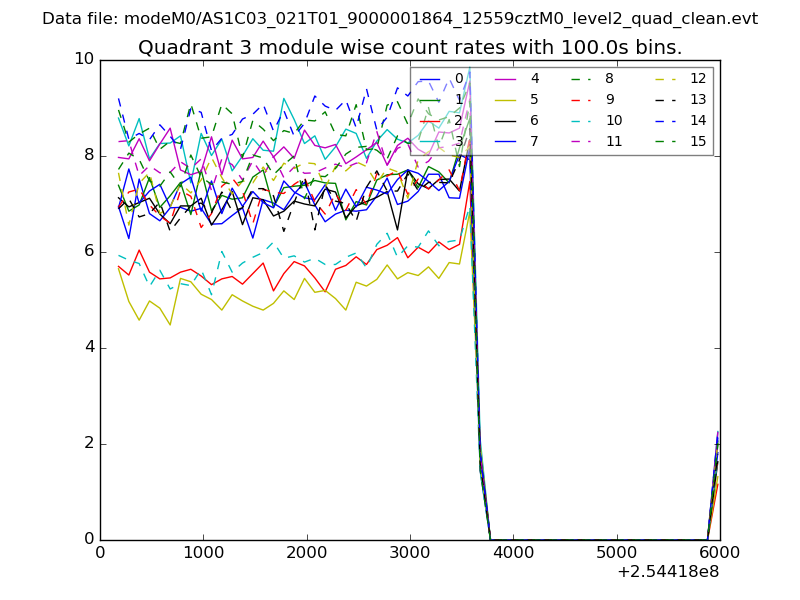

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

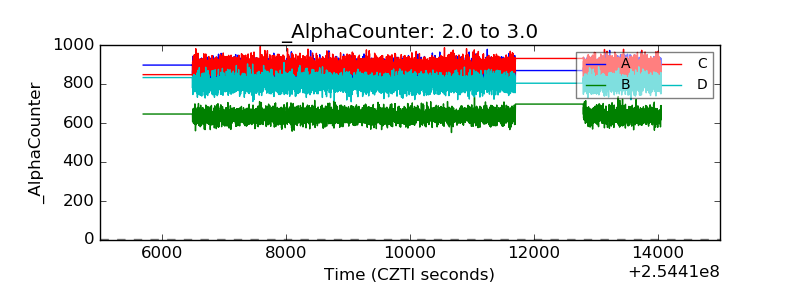

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

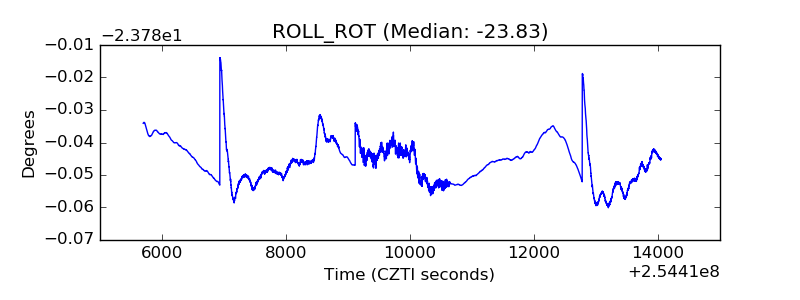

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

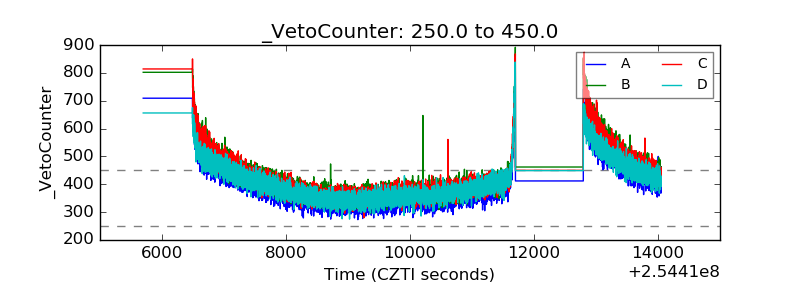

| Veto Counter |  |
