| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_058T03_9000001870_12577cztM0_level2.evt | modeM0/AS1A02_058T03_9000001870_12577cztM0_level2_quad_clean.evt |
| Size (bytes) | 434,592,000 | 94,904,640 |
| Size | 414.5 MB | 90.5 MB |
| Events in quadrant A | 2,978,822 | 617,783 |
| Events in quadrant B | 3,448,844 | 631,202 |
| Events in quadrant C | 2,902,678 | 622,592 |
| Events in quadrant D | 3,415,117 | 575,090 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12859 | 3 |
| B | 0 | 14239 | 2 |
| C | 0 | 12609 | 2 |
| D | 0 | 14286 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6119 | 25 | 0.408563% |
| B | 6119 | 102 | 1.666939% |
| C | 6119 | 9 | 0.147083% |
| D | 6119 | 92 | 1.503514% |

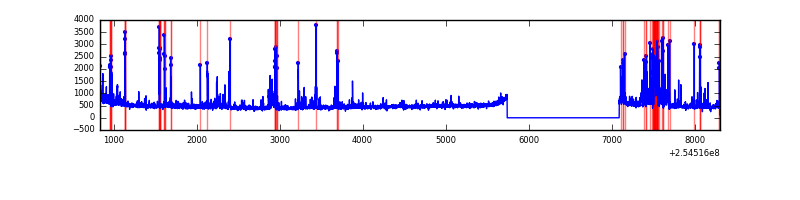

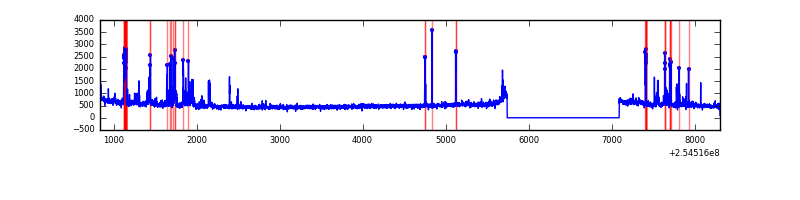

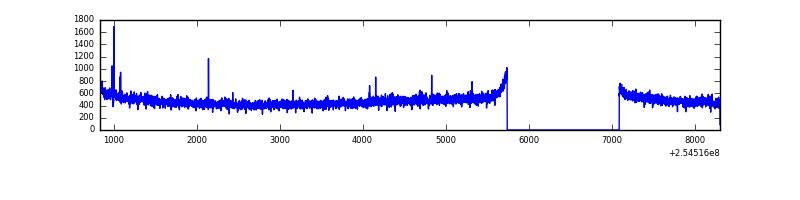

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7470 | 6121 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7470 | 6121 | 56 | 56 | 0.75% | 0.91% |  |
| C | 7470 | 6121 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7470 | 6121 | 90 | 90 | 1.20% | 1.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 44558 | 285.94 | 758 | 745 | 153.2 |
| A | 12 | 96 | 16619 | 103.6 | 758 | 745 | 153.2 |
| A | 0 | 226 | 6916 | 40.27 | 758 | 745 | 153.2 |
| B | 4 | 239 | 288658 | 2005.53 | 767 | 748 | 143.6 |
| B | 0 | 230 | 35144 | 239.6 | 767 | 748 | 143.6 |
| B | 0 | 197 | 31851 | 216.66 | 767 | 748 | 143.6 |
| C | 14 | 234 | 8863 | 48.06 | 740 | 745 | 168.9 |
| C | 13 | 61 | 5268 | 26.78 | 740 | 745 | 168.9 |
| C | 15 | 208 | 4127 | 20.02 | 740 | 745 | 168.9 |
| D | 1 | 52 | 455880 | 2639.85 | 722 | 701 | 172.4 |
| D | 10 | 157 | 86284 | 496.35 | 722 | 701 | 172.4 |
| D | 13 | 104 | 72319 | 415.35 | 722 | 701 | 172.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

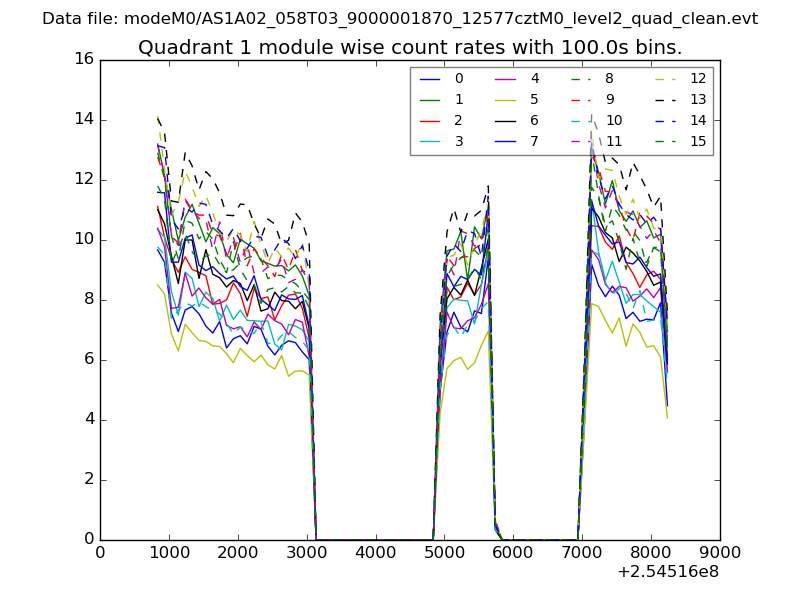

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

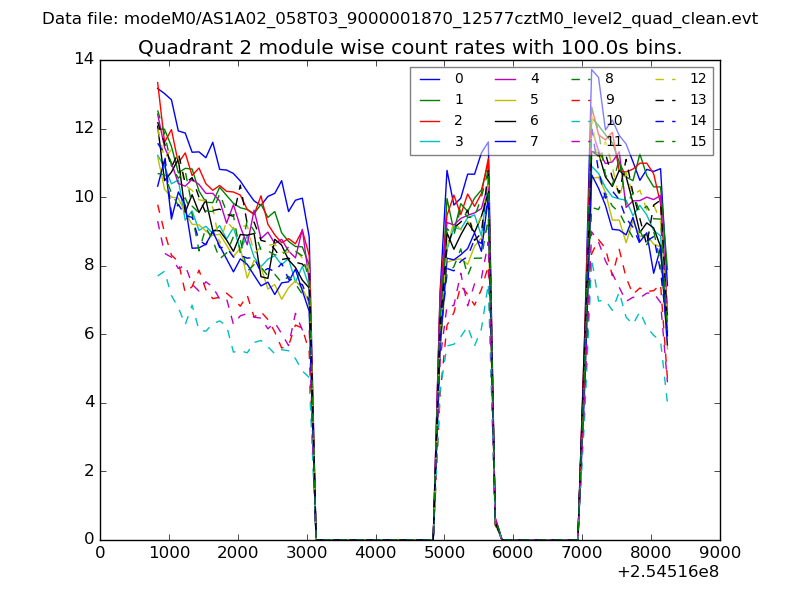

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

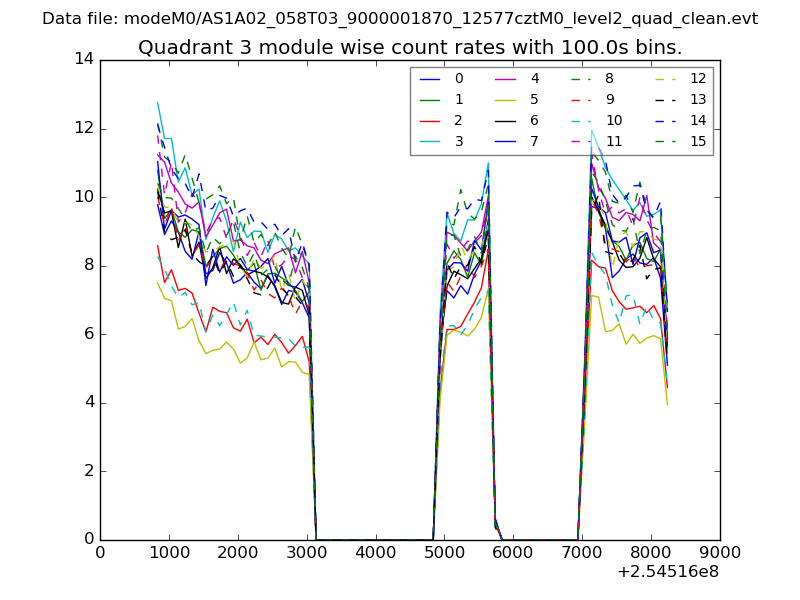

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

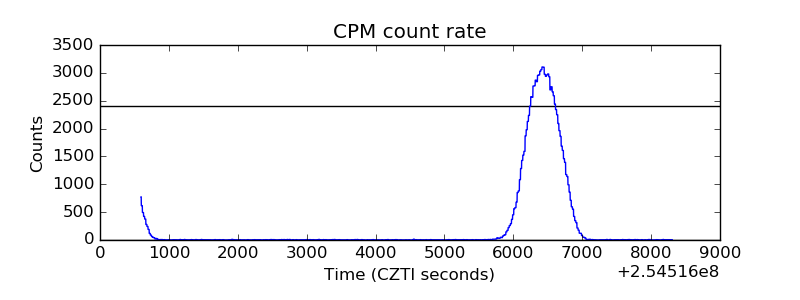

| _CPM_Rate |  |

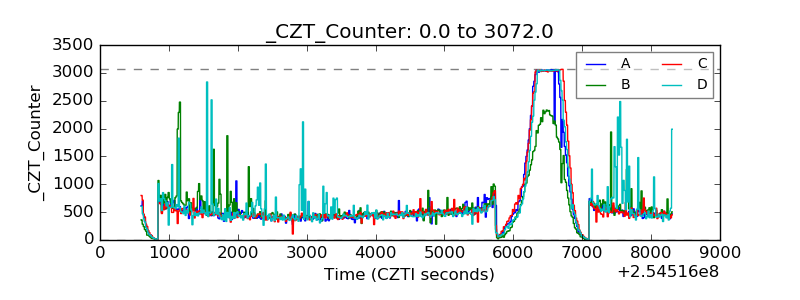

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
