| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_058T03_9000001870_12579cztM0_level2.evt | modeM0/AS1A02_058T03_9000001870_12579cztM0_level2_quad_clean.evt |
| Size (bytes) | 451,344,960 | 84,703,680 |
| Size | 430.4 MB | 80.8 MB |
| Events in quadrant A | 2,753,170 | 555,244 |
| Events in quadrant B | 3,607,221 | 559,394 |
| Events in quadrant C | 2,743,079 | 563,973 |
| Events in quadrant D | 4,179,352 | 488,799 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11810 | 2 |
| B | 0 | 14392 | 2 |
| C | 0 | 11796 | 2 |
| D | 0 | 16270 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5682 | 16 | 0.281591% |
| B | 5682 | 259 | 4.558254% |
| C | 5682 | 12 | 0.211193% |
| D | 5682 | 478 | 8.412531% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7093 | 5684 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7093 | 5684 | 160 | 160 | 2.26% | 2.81% |  |
| C | 7093 | 5684 | 6 | 6 | 0.08% | 0.11% |  |
| D | 7092 | 5683 | 482 | 482 | 6.80% | 8.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 37355 | 257.89 | 704 | 691 | 142.2 |
| A | 12 | 96 | 7226 | 45.97 | 704 | 691 | 142.2 |
| A | 0 | 226 | 6427 | 40.35 | 704 | 691 | 142.2 |
| B | 4 | 239 | 705686 | 5379.4 | 704 | 687 | 131.1 |
| B | 11 | 51 | 47195 | 354.87 | 704 | 687 | 131.1 |
| B | 3 | 64 | 37756 | 282.85 | 704 | 687 | 131.1 |
| C | 15 | 208 | 45629 | 283.71 | 691 | 696 | 158.4 |
| C | 13 | 61 | 4975 | 27.02 | 691 | 696 | 158.4 |
| C | 8 | 222 | 2278 | 9.99 | 691 | 696 | 158.4 |
| D | 1 | 52 | 1507220 | 9617.78 | 652 | 633 | 156.6 |
| D | 13 | 104 | 75687 | 479.13 | 652 | 633 | 156.6 |
| D | 7 | 71 | 41608 | 261.58 | 652 | 633 | 156.6 |

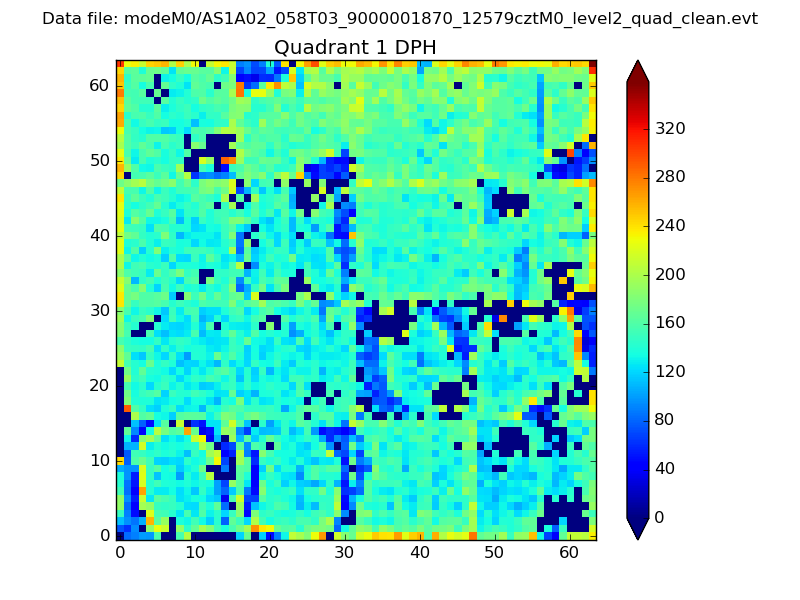

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

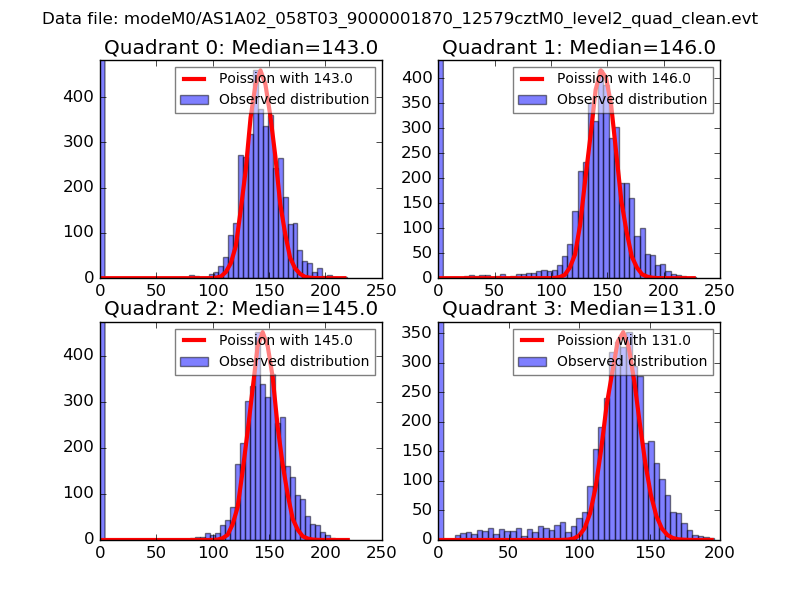

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

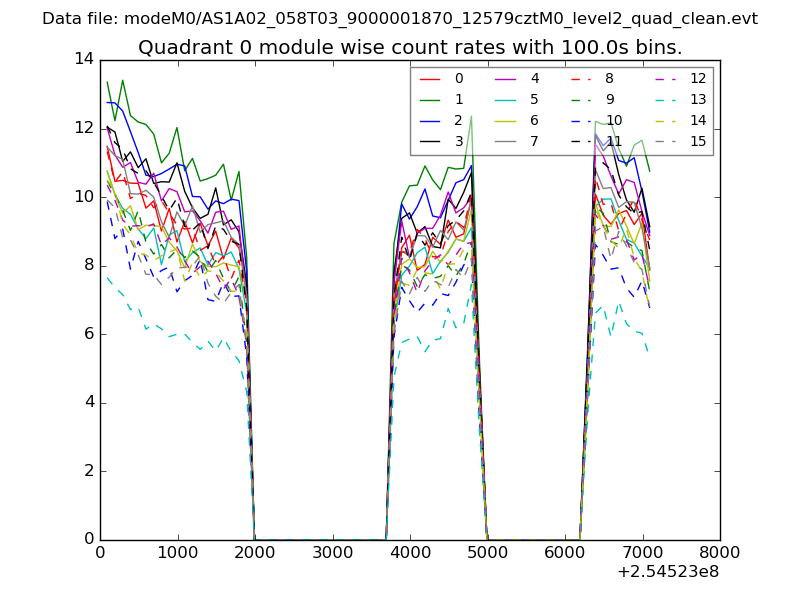

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

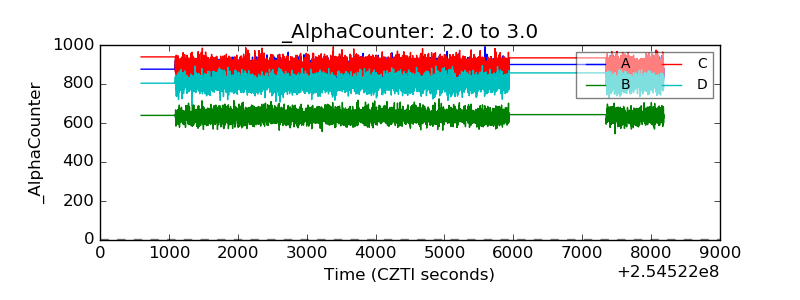

| Alpha Counter |  |

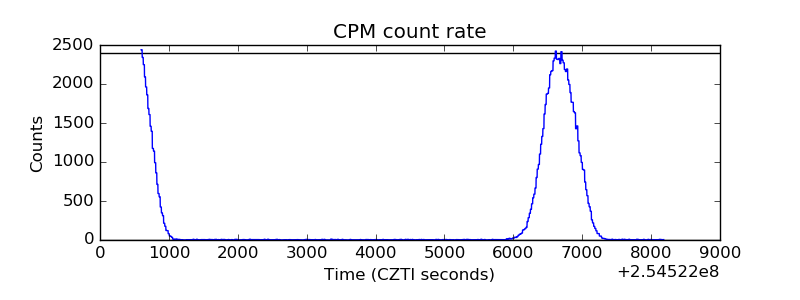

| _CPM_Rate |  |

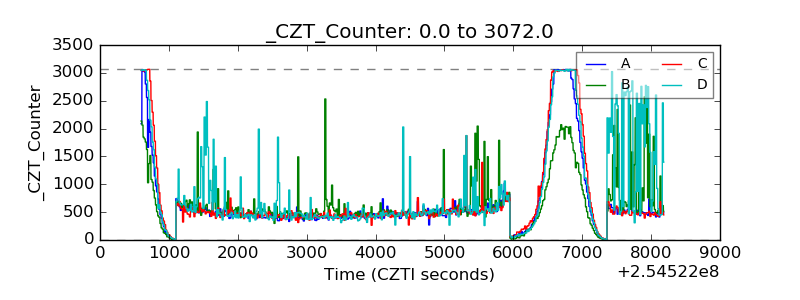

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

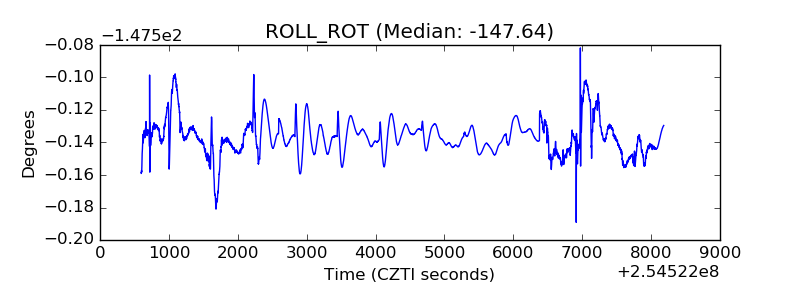

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
